Volt VFL-40 MS-ABZ Series Bedienungsanleitung

VOLT®Low Voltage Landscape Lighting

VOLT®Floodlight with Motion Sensor

VFL-40XX-MS-ABZ

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

Package Contents

Products Model #

Important: Please Read Before Installation

INSTALLATION INSTRUCTIONS

A. (1) Fixture Body

www.voltlighting.com [email protected] • 813.978.3700

Important Safety Instructions

- 2 - - 3 -

VOLT®Floodlight with Motion Sensor

VFL-40XX-MS-ABZ

Product Dimensions

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

xture.

2. Warning: this xture is not intended to be installed within 10 feet [3

meters] of a pool, spa or fountain.

3. This xture is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 12 volts.

4. Underground Low Energy Cable must not be buried over 6” (15.2 cm) in

order to connect to the main low voltage cable.

5. Wiring connections must be made with wire connectors that is suitable

for outdoor use.

6. Position the wire connector so that it is located within 6 inches (15.2 cm)

from a building structure, a luminaire, or tting.

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Lamp gets HOT quickly! Contact only switch/plug when turning on.

2. Do not touch the hot lens, guard or enclosure.

3. Keep lamp away from materials that may burn.

4. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

5. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

Model Input

Voltage

Power

Factor Watt Input

Current Finish Mounting

7W Flood Light AC 12V >0.65 7W 0.7A

Bronze

Powder

Coat

Yoke

10W Flood Light AC 12V >0.65 10W 1A

Bronze

Powder

Coat

Yoke

30W Flood Light AC 12V >0.8 30W 3A

Bronze

Powder

Coat

Yoke

4.25”

3.45”

6”

3.5”

4.25”

4.5”

2.15”

2.55”

7W Flood Light

2.85”

R0.15”

Ø0.85”

www.voltlighting.com [email protected] • 813.978.3700

- 4 - - 5 -

Place Marks for Wall Anchor Bolts

Install Wall Anchors

VOLT®Floodlight with Motion Sensor

VFL-40XX-MS-ABZ

Product Dimensions Wall

Fixture

Mark

Yoke Mount

Hold the yoke mount to your

desired mounting surface.

Place a mark on the wall using

the holes of the mount. These

marks will be used for the wall

anchors.

Wall Anchors

Hole

Wall

Drill the holes for the wall anchors

using the marks on the wall. Insert

the wall anchors into the drilled

holes. Tighten the hex nuts on the

bolts until they are secure to the

wall.

INSTALLATION INSTRUCTIONS

10W Flood Light

30W Flood Light

8.25”

4.25”

7.35”

8.85”

8.5”

5”

R0.175”

Ø0.85”

3”

5”

2.85”

4.25”

3.45”

6”

3.5”

4.25”

4.5”

2.15”

2.55”

2.85”

R0.15”

Ø0.85”

www.voltlighting.com

- 6 -

[email protected] • 813.978.3700

- 7 -

Install Fixture

Wire Connections

VOLT®Floodlight with Motion Sensor

VFL-40XX-MS-ABZ

Fixture

Yoke Mount

Bolt

Hex Nut

Washer

Wall

Remove the hex nuts and the

washers from the wall anchors.

Attach the yoke mount of the

xture to the wall anchors and

secure them in place with the

previously removed washers and

hex nuts. Tighten until snug.

Adjust Fixture and IR Sensor

Wall

Fixture

Set Screw

IR Sensor

Wrench

Adjust the xture to your desired

orientation and tighten set screws

with a wrench.

Adjust the IR sensor to proper

orientation.

After installation, but before power is on:

A. Check whether the lighting xture is rmly xed.

B. Check whether wires are connected properly.

Infrared (IR) Sensor

max.

11.48 Ft. min.

6.56 Ft.

This product can be installed outdoors. It is recommended to install in

these orientations to protect the ood light against heavy rain.

INSTALLATION INSTRUCTIONS

Fixture

Strip both leads from the xture pigtail and main supply cable.

Using two wire connectors (sold separately), connect the leads from

the xture to the main supply cable leads.

Wire Connectors

Pigtails

Main Supply

Cable

Supply Cable

from Fixture

www.voltlighting.com

INSTALLATION INSTRUCTIONS

VOLT®Floodlight with Motion Sensor

VFL-40XX-MS-ABZ

[email protected] • 813.978.3700

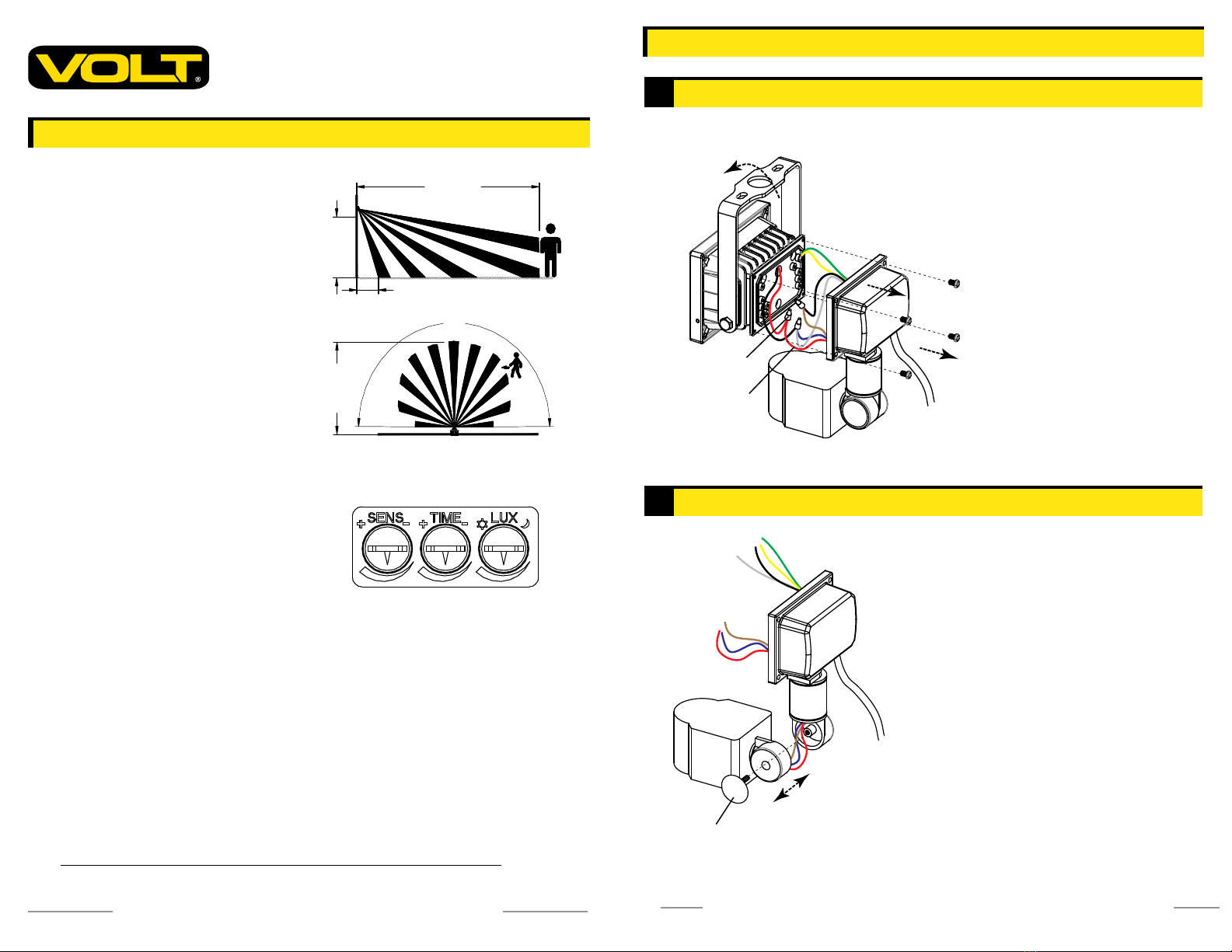

Infrared (IR) Sensor (Continued)

Max 39.4 Ft.

180。

Max 39.4 Ft.

1.64 Ft.

6.56~11.48 Ft.

321

Last, turn on the power and check if the lighting xture works.

Detection distance: max. 39.4 feet

Detection angle: 180°

Optimal installation height:

6.56 - 11.48 feet

Operating humidity:< 93% RH

1. LUX: 0-2000 lux twilight sensor

sensivity adjustable.

a. When set at maximum

(towards the sun) the

motion sensor works even in

the day time.

b. When set at minimum

(towards the moon) the

motion sensor works only in

the dark.

2. TIME: From 7 sec to 15 min. adjustability

a. At the maximum setting, the xture is illuminated 15 minutes

after the sensor is triggered.

b. At the minimum setting, the xtured is illuminated 7 seconds

after the sensor is triggered.

3. SENS: If the sensor is too sensitive or not sensitive enough, it can be

adjusted here.

Replace IR Sensor

Remove Backing with IR Sensor

Rotate the bracket so that

the backing can easily be

removed from the xture.

Remove the backing with IR

sensor from the xture by

loosening the screws.

Use pliers to squeeze the

connectors and release

wires.

Bracket

Backing

Fixture

Screw

IR Sensor

Supply Cable

Connectors

Wires

Remove/Replace IR Sensor

Unscrew the lock screw from

the knuckle and remove the

IR sensor from the back of

the xture.

Place the wires of the

replacement IR sensor inside

of the back by passing wires

through the knuckle. Then,

connect the replacement

sensor to the back by using

the previously removed lock

screw. Hand tighten until

snug.

Back

IR Sensor Supply Cable

Lock Screw

Wires

INSTALLATION INSTRUCTIONS

VOLT®Floodlight with Motion Sensor

VFL-40XX-MS-ABZ

www.voltlighting.com [email protected] • 813.978.3700

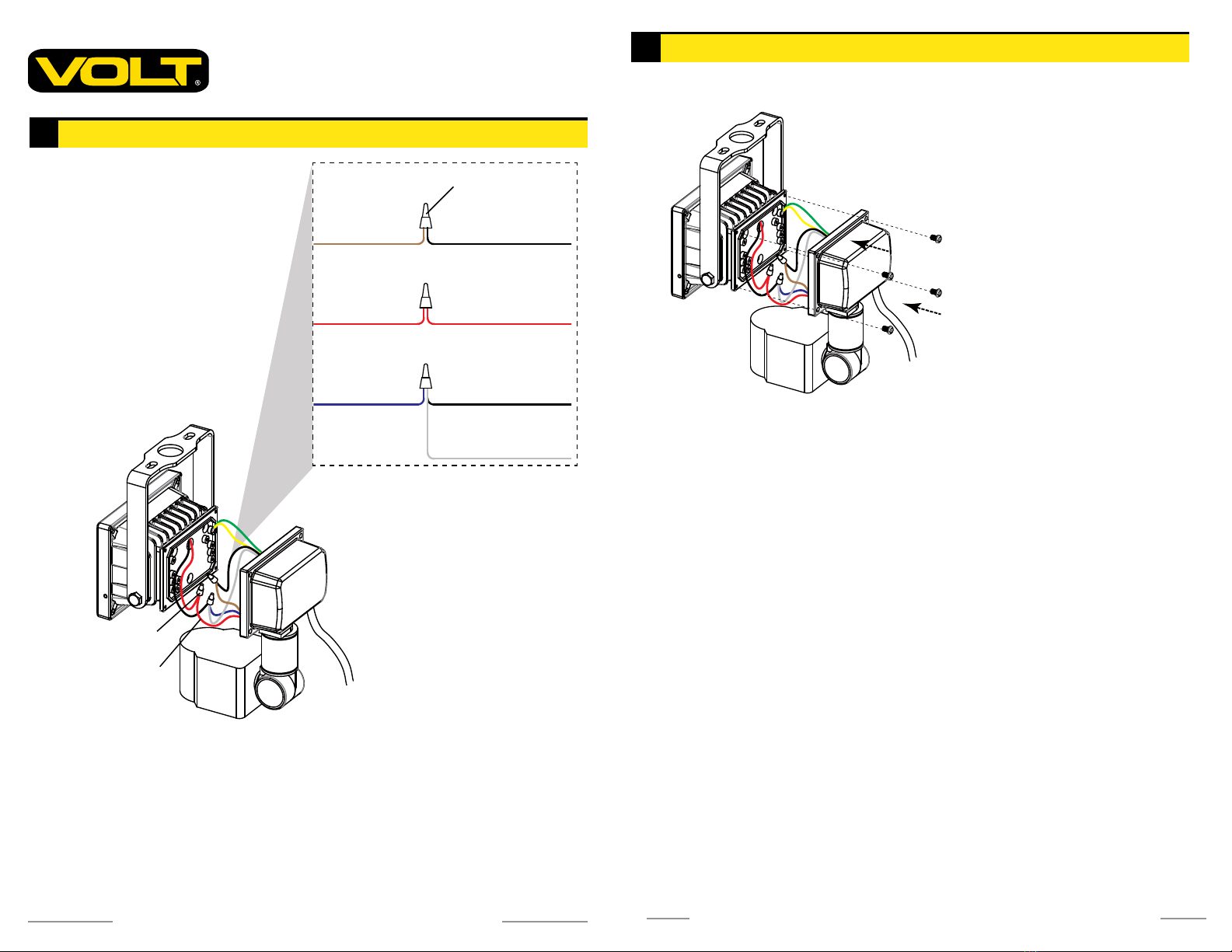

Make Connections of IR Sensor Wires

Refer to the wire connections illustration, connect wires from the

driver, the IR sensor and the supply cable by using wire connectors (not

included). Squeeze connectors with pliers to engage crimp connectors.

Back

Fixture

IR Sensor

Supply Cable

Connector

Wires

Brown Wire

from Sensor

Black Wire from

Supply Cable

Connector

Red Wire

from Sensor

Blue Wire

from Sensor

Red Wire from

Luminaire

Black Wire from

Luminaire

White Wire from

Supply Cable

Make Connections of IR Sensor Wires

Carefully tuck all the wires

inside of the back housing.

Place the backing with the

IR sensor back onto the

xture and secure with

previously removed screws.

Hand tighten until snug with

a screwdriver.

Back Housing

Fixture

Screw

IR Sensor

- 12 -

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

www.voltlighting.com

IS-VFL-40XX-MS-ABZ-ver1.pdf

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
