Volt VSM-2408-0-BBZ Bedienungsanleitung

VOLT®Low Voltage Landscape Lighting

VOLT®Stem with Integrated Hub Top

VSM-2408-0-BBZ (includes part# VSM-2407-X-BXX & VAC-ZWM7-BBZ)

INSTALLATION INSTRUCTIONS

Specications and product details subject to change without notice.

[email protected] • 813.978.3700

Help Hotline:

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

- 1 -

VOLT®Stem with Integrated Hub Top

VSM-2408-0-BBZ (includes part# VSM-2407-X-BXX & VAC-ZWM7-BBZ)

Important: Please Read Before Installation

INSTALLATION INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or

tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

www.voltlighting.com

Important Safety Instructions

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

- 2 -

Package Contents

Product Dimensions

A. (1) Fixture Body

B. (1) Integrated Hub Top

[email protected] • 813.978.3700

1”

4”

22”

2.83”

- 3 -

There are two types of mounts that are sold separately for this xture, the

Stake Mount and Surface Mount.

INSTALLATION INSTRUCTIONS

www.voltlighting.com

Install Stake

Determine the desired location

for mounting the stake mount.

Hammer the stake into the

ground until ange of stake is

ush to grade. To avoid damage

to the stake, place a board

on top of the stake while

hammering.

Note: If the ground is hard and

the stake is difcult to install,

make a crosscut in the ground

using a at shovel.

Board

Ground

Soil

Stake

- 4 -

Wire Connection

Insert the main supply wire continuation (if needed) and the main

supply wire up through the bottom of the stake mount and strip the

ends of both sets of supply wires.

Attach the xture wires and both sets of the main supply wires to their

correct connectors in the integrated hub top.

Once the wires are installed properly, thread the integrated hub top

back onto the stake mount and hand tighten until snug.

Integrated Hub Top

Main Supply Wires

Fixture Wires

Connectors

Stake Mount

Main Supply Wire

Continuation

Option 1: Stake Mount

VOLT®Stem with Integrated Hub Top

VSM-2408-0-BBZ (includes part# VSM-2407-X-BXX & VAC-ZWM7-BBZ)

[email protected] • 813.978.3700

- 5 -

Install Stake Mount

Clear away an area in the

ground at the wireway slot on

top of the stake. Lay the supply

wires into the wireway slot and

screw the stake mount on to

the stake. Tighten until snug.

Stake Mount

Ground

Supply Wires

Wireway Slot

Soil

Stake

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 6 -

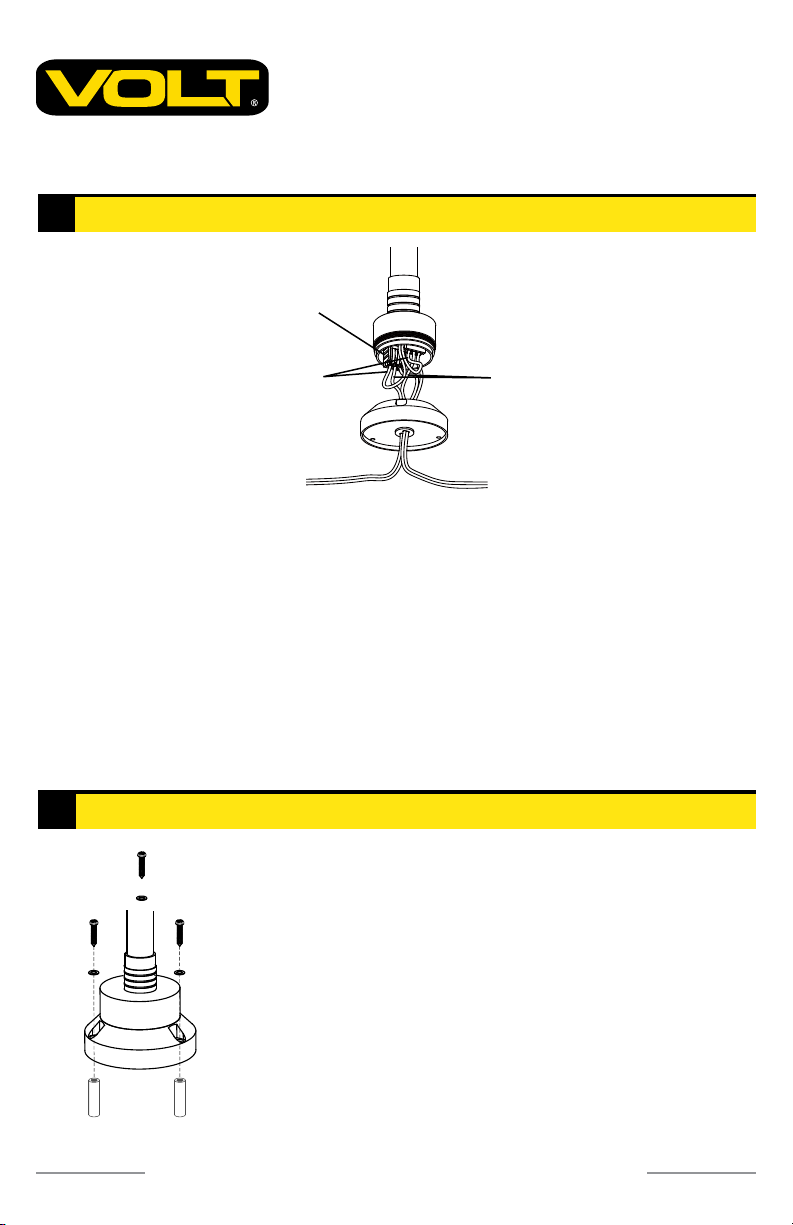

Install Surface Mount

Place the surface mount onto

the desired location and secure

it with the screws. Tighten with

a screwdriver.

Screw

Optional Anchor

Surface Mount

Washer

Option 2: Surface Mount

Wire Connection

Insert the main supply wire continuation (if needed) and the main

supply wire up through the bottom of the surface mount and strip the

ends of both sets of supply wires.

Attach the xture wires and both sets of the main supply wires to their

correct connectors in the integrated hub top.

Once the wires are installed properly, thread the integrated hub top

back onto the surface mount and hand tighten until snug.

Integrated Hub Top

Main Supply Wires

Fixture Wires

Connectors

Surface Mount

Main Supply Wire

Continuation

VOLT®Stem with Integrated Hub Top

VSM-2408-0-BBZ (includes part# VSM-2407-X-BXX & VAC-ZWM7-BBZ)

[email protected] • 813.978.3700

- 7 -

Bulb Installation

Remove Stem Top

Twist the stem top counter-

clockwise and remove it from the

stem.

Stem Top

Stem

Install Bulb

Insert the bulb with the correct

wattage and type marked on the

xture label and push rmly into

place.

CAUTION: Do not exceed

maximum wattage marked on

luminaire label.

Socket

Bulb

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 8 -

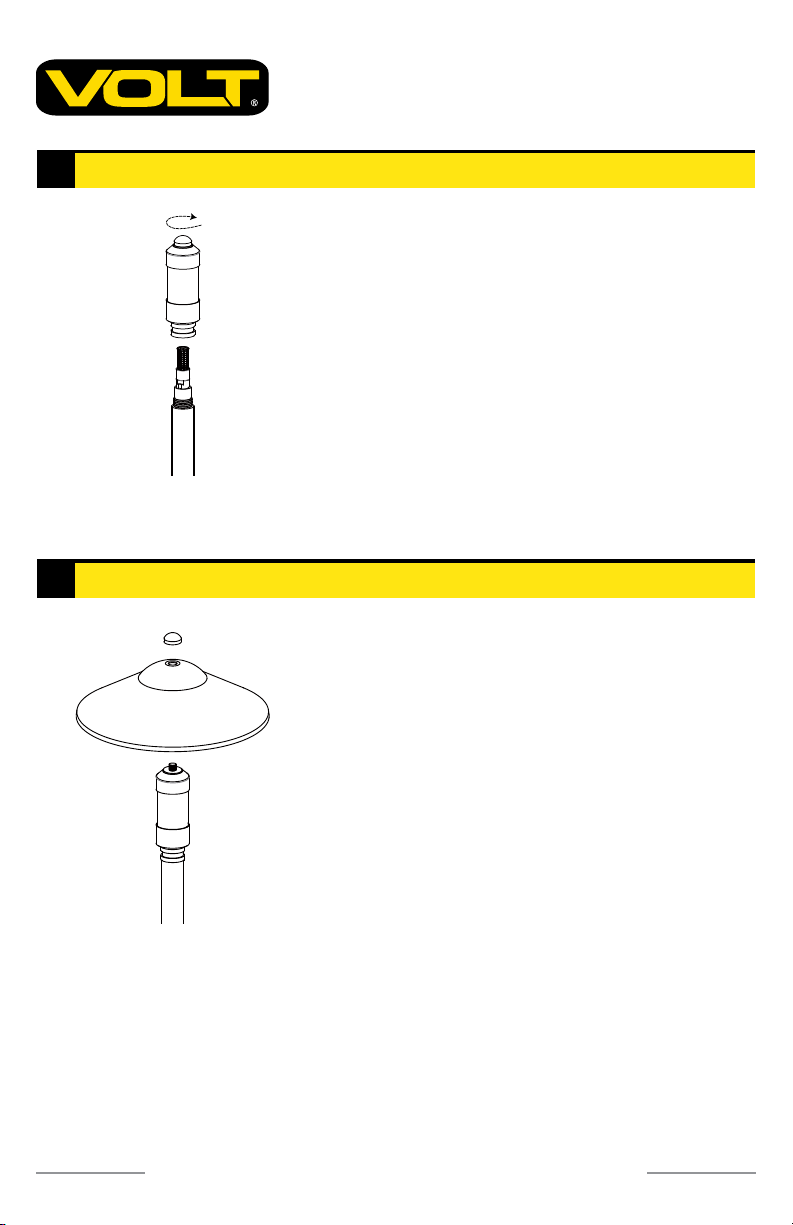

Place the stem top over the

bulb and twist it clockwise

onto the stem.

Install Stem Top to Stem

Stem Top

Stem

Install Hat

Place the hat of your choice onto

the stem top and secure it with

the nial.

Stem Top

Finial

Hat

VOLT®Stem with Integrated Hub Top

VSM-2408-0-BBZ (includes part# VSM-2407-X-BXX & VAC-ZWM7-BBZ)

[email protected] • 813.978.3700

- 9 -

Remove the hat and stem top to expose the bulb and replace it

with the correct wattage and type marked on the xture label. Then,

reinstall the stem top and hat.

IMPORTANT: Bulbs must be protected from moisture and dust at all

times. Always reinstall the stem top and hat when removed.

Install/Replace Bulb

INSTALLATION INSTRUCTIONS

www.voltlighting.com
