INSTALLATION INSTRUCTIONS

VOLT®LOW VOLTAGE LANDSCAPE LIGHTING

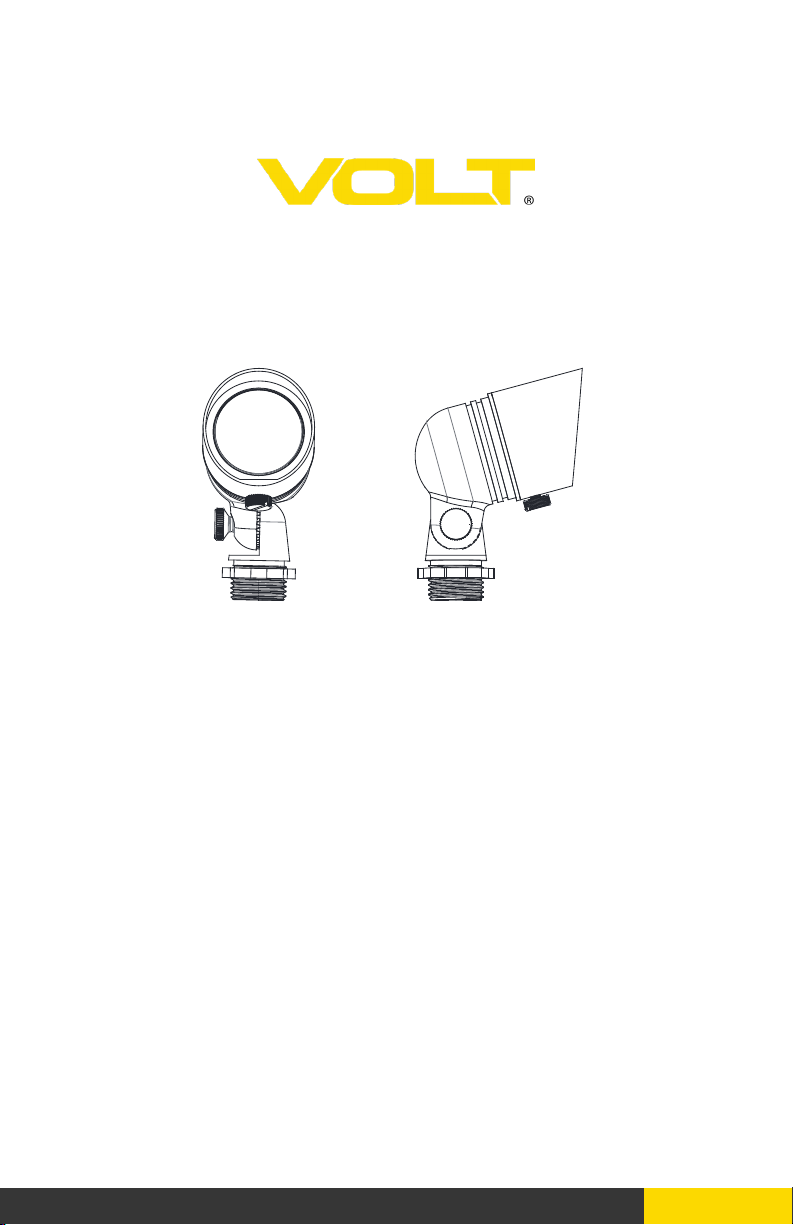

VOLT®Mini Brass Spotlight (Bronze)

ITEM: VAL-2015-BBZ

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT®Mini Brass Spotlight (Bronze) - VAL-2015-BBZ

INSTALLATION INSTRUCTIONS

IMPORTANT: PLEASE READ BEFORE INSTALLATION

IMPORTANT SAFETY INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

This luminaire is intended for installation in accordance with local codes

and the National Electric Code (NEC). Failure to adhere to these codes and

instructions may result in serious injury, property damage and void the

warranty.

These instructions do not intend to cover all variations in installation, opera-

tion maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing

this luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that

are suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or

tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – TO REDUCE THE RISK OF FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may damage

lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

PACKAGE CONTENTS

PRODUCT DIMENSIONS

REMOVE GLARE GUARD

A. (1) Fixture Body

813.978.3700 • [email protected] • www.voltlighting.com

PARTS REQUIRED

A. Mounting Accessory

B. MR11 Lamp

2.76”

1.65”

0.54”

Loosen the set screw and

remove the glare guard from the

xture.

Glare Guard

Fixture Body

Set Screw

VOLT®Mini Brass Spotlight (Bronze) - VAL-2015-BBZ

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

Install MR11 Lamp

Insert the MR11 lamp

with correct wattage and

type marked on xture

label.

CAUTION: Do not ex-

ceed maximum wattage

marked on luminaire

label.

Fixture Socket

MR11 Lamp

Install Glare Guard

Place the glare guard

back onto the xture and

secure with previously

removed set screw.

Glare Guard

Set Screw

Fixture

Install Stake

Determine the desired location for

mounting the xture. Hammer the

stake into the ground until ange of

stake is ush to grade. To avoid dam-

age to the stake, place a board on top

of the stake while hammering.

NOTE: If the ground is hard and the

stake is difcult to install, make a

crosscut in the ground using a at

shovel.

Board

Stake

Ground

Soil

813.978.3700 • [email protected] • www.voltlighting.com

Install Fixture to Stake

Clear away an area in the ground

at the wireway slot on top of the

stake. Lay the luminaire pigtail

into the wireway slot and screw

the xture on to the stake. Tight-

en until snug.

Wireway Slot Fixture

Stake

Pigtail

Wire Connection

Strip both the leads from the luminaire pigtail. Using two UL listed wire

connectors (sold separately), connect the leads from the luminaire to

the main supply cable leads.

Main supply Cable

Wire Connectors

Pigtail

Specications and product details subject to change without notice.

[email protected] • www.voltlighting.com

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
