VOLT®RGBW Salty Dog Integrated LED Brass Well Light (Bronze)

VWL-7125-BBZ

Important: Please Read Before Installation

Important: Safety Instructions

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 2 -

This xture is intended for installation in accordance with local codes and the

National Electric Code (NEC). Failure to adhere to these codes and instructions

may result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation,

operation maintenance or mounting situations.

1. Make sure the power is turned OFF before installing or servicing this

luminaire.

2. WARNING: risk of electrical shock. Install all luminaires 10 feet (3.05M)

or more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply

(transformer) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located

within 6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

Lighted lamp is HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn o/unplug and allow to cool before replacing lamp.

2. Lamp gets HOT quickly! Contact only switch/plug when turning on.

3. Do not touch the hot lens, guard or enclosure.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time. Use a soft cloth. Oil from skin may

damage lamp.

6. Do not operate the luminaire tting with a missing or damaged shield.

SAVE THESE INSTRUCTIONS

[email protected] • 813.978.3700

Package Contents

Product Dimensions

- 3 -

A. (1) Fixture

B. (1) PVC Tube

8.25”

6.25”

5.5”

www.voltlighting.com

INSTALLATION INSTRUCTIONS

- 4 -

Wire Connection

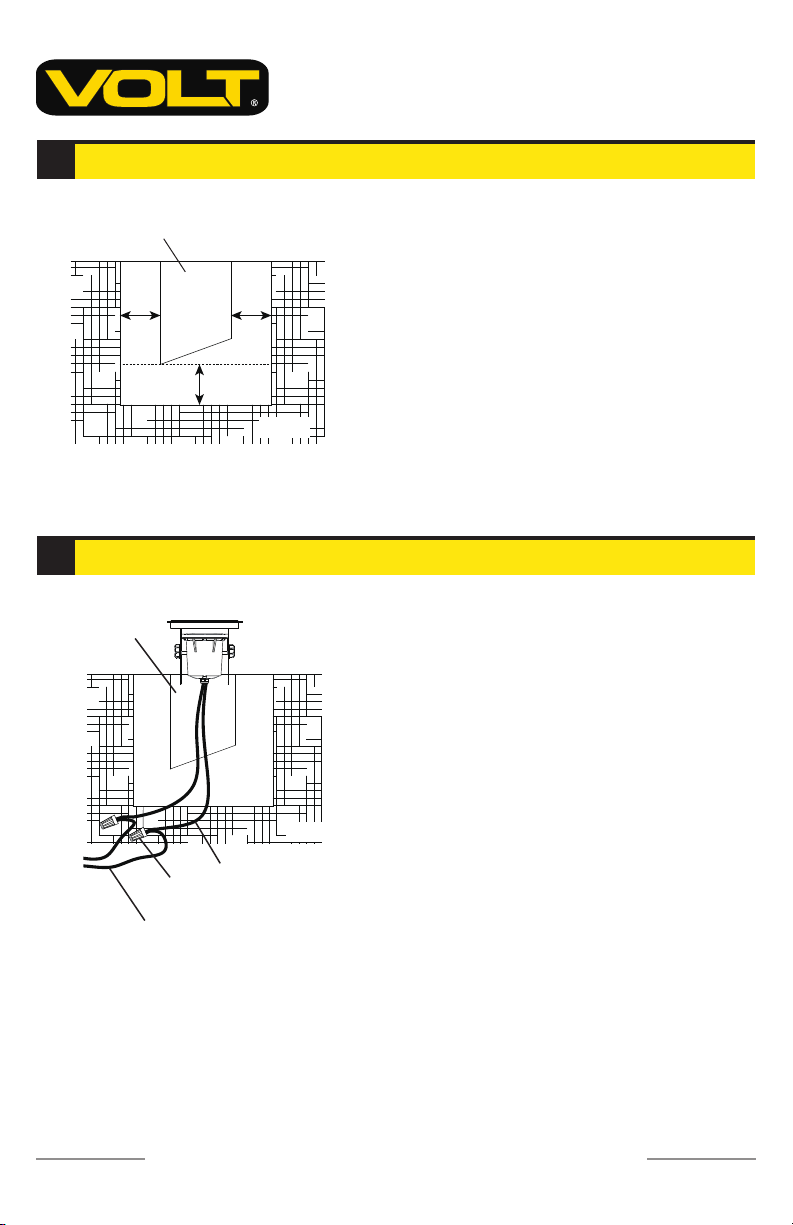

Dig Hole

VOLT®RGBW Salty Dog Integrated LED Brass Well Light (Bronze)

VWL-7125-BBZ

3”

Dig a hole in the ground. Make

sure there is approximately 3

inches surrounding the PVC Tube

for pea gravel or sand on all sides.

PVC Tube

Hole

Soil

Place the xture into the PVC

Tube and pass the luminaire pigtail

through the PVC Tube.

Strip both leads from the luminaire

pigtail. Using two wire connectors

(sold separately), connect the leads

from the luminaire to the main

supply cable leads.

PVC Tube

Wire Connector

Main Supply Wire

Soil

Pigtail

Fixture

[email protected] • 813.978.3700

- 5 -

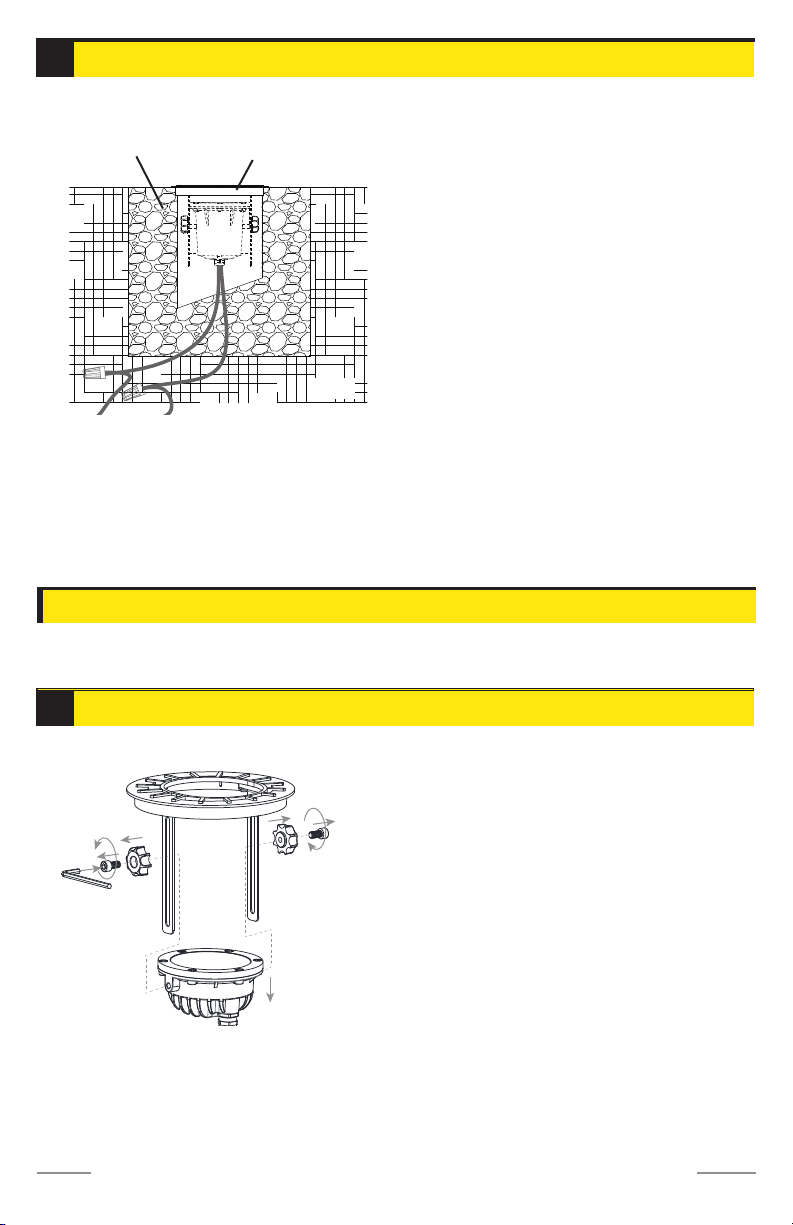

Fill Pea Gravel or Sand

Remove Luminaire from bracket

Soil

Install the PVC Tube with the

xture in the hole and ll

around the xture securing it in

place with pea gravel or sand to

allow for water drainage.

Now you can power on the

system, and the light is 2700K

and the optic is 60 degree as

default.

PVC Tube

with Fixture

Pea Gravel

or Sand

By using the Allen wrench,

loosen the screw in the handle

and remove the luminaire from

the bracket.

Luminaire

Allen

Wrench

Handle

Screw

Bracket

Install/Replace Opc

www.voltlighting.com

INSTALLATION INSTRUCTIONS

- 6 -

VOLT®RGBW Salty Dog Integrated LED Brass Well Light (Bronze)

VWL-7125-BBZ

Remove Faceplate and Lens

Replace Optic

Loosen all screws on the faceplate.

Remove the faceplate and lens from

the xture.

xture

Screw

Faceplate

Lens

xture

Screw

Loosen the screws and remove

the optic from the xture.

Install the new optic in the

xture. Make sure that you have

the optic properly aligned over

the LED board before tightening

down. Improper alignment when

tightening the screws can cause

the optic to break.

Optic

customersupport@voltlighting.com • 813.978.3700

- 7 -

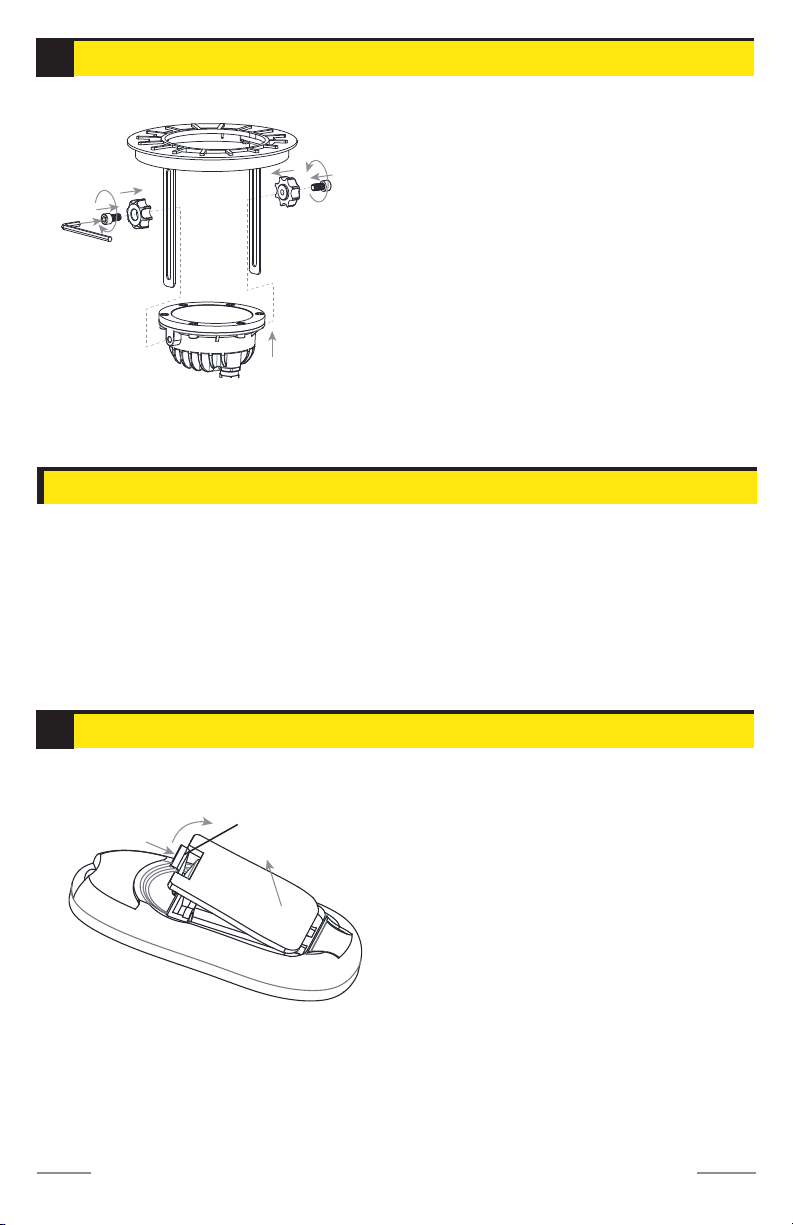

Reinstall Luminaire to bracket

Remove the Battery compartment Cover

IR Remote (Oponal)

Place the luminaire between

the brackets. Pass previously

removed screws through the

handle and bracket. Thread the

screws back onto the luminaire.

Hand tighten until snug with the

Allen wrench.

Luminaire

Allen

Wrench

Handle

Screw

Bracket

Press the tab and rotate the battery

compartment cover to remove it

from the IR Remote.

Ta b

Cover

Backing

IR Remote

An IR Remote is optional for this xture. The IR remote requires two AAA

batteries.

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 8 -

Install Two AAA Batteries

Install the Battery Compartment Cover

VOLT®RGBW Salty Dog Integrated LED Brass Well Light (Bronze)

VWL-7125-BBZ

Place two AAA batteries into the

battery compartment properly.

AAA Battery Battery

Compartment

Backing

IR Remote

2Place the battery compartment

cover back onto the IR Remote.

Ta b

Cover

Backing

IR Remote

customersupport@voltlighting.com • 813.978.3700

- 9 -

IR Remote Functions

OFF ON

R B

FLASH

FADE

SMOOTH

STROBE

1. On

2. O

3. Brightness Control

4. 16 color selections

5. Flash

• Mode 1: Repeats Red, Green,

Blue + color cycle for 1

second duration of each of

the seven colors within this

mode.

• Mode 2: Hit ash a second

time and this mode slowly

blends the same seven

colors from mode one,

mixing them together.

6. Strobe

• Mode 1: Pick any color on the remote, then press strobe and that

color will strobe every second alternating between on and o.

• Mode 2: Hit strobe a second time and this mode will strobe a

blended white color at the same speed as before.

7. Fade

• Mode 1: Pick any color on the remote, then press fade and that

color will slowly fade on and o every second.

• Mode 2: Hit fade a second time and it will fade a blended white

color on and o at the same speed as before.

8. Smooth

• Mode 1: Repeats a ash cycle of Red, Green, and Blue only.

• Mode 2: Hit smooth a second time and this mode slowly blends Red,

Green, and Blue only; on and o at the same speed.

INSTALLATION INSTRUCTIONS

www.voltlighting.com

- 10 -

VOLT®RGBW Salty Dog Integrated LED Brass Well Light (Bronze)

VWL-7125-BBZ
