INSTALLATION INSTRUCTIONS

VOLT®LOW VOLTAGE LANDSCAPE LIGHTING

VOLT® Wide Modernelle Brass Path & Area Light

ITEM: VPL-1043-4-BBK

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)

VOLT®- Wide Modernelle Brass Path & Area Light - VPL-1043-4-BBK

INSTALLATION INSTRUCTIONS

IMPORTANT: PLEASE READ BEFORE INSTALLATION

IMPORTANT SAFETY INSTRUCTIONS

This luminaire is intended for installation in accordance with local codes and

the National Electric Code (NEC). Failure to adhere to these codes and instruc-

tions may result in serious injury, property damage and void the warranty.

These instructions do not intend to cover all variations in installation, operation

maintenance or mounting situations.

1. Make sure that the power is turned OFF before installing or servicing this

luminaire.

2. Warning: risk of electrical shock. Install all luminaires 10 feet (3.05M) or

more from pool, spa or fountain.

3. This luminaire is intended to be used only with a power supply (transform-

er) rated maximum of 300 watts (25 AMPS) at 15 volts.

4. Wiring connections must be made with UL listed wire connectors that are

suitable for outdoor use.

5. Position the low voltage wire and wire connector so that it is located within

6 inches (15.2 cm) from a building structure, a luminaire or tting.

6. The main low voltage cable is intended for shallow burial - less than 6

inches (152 mm).

INSTRUCTIONS PERTAINING TO A RISK OF FIRE, OR INJURY TO PERSONS

LIGHTED LAMP IS HOT!

WARNING – To reduce the risk of FIRE OR INJURY TO PERSONS.

1. Turn off/unplug and allow to cool before reducing lamp.

2. Lamp gets HOT quickly!

3. Do not touch the hot lens, guard or cowl.

4. Keep lamp away from materials that may burn.

5. Do not touch lamp at any time.

6. Use a soft cloth.

7. Oil from skin may damage lamp.

8. Do not operate the xture with a damaged or missing lens or shield.

813.978.3700 • [email protected] • www.voltlighting.com

PACKAGE CONTENTS

PARTS REQUIRED (SOLD SEPARATELY)

A. (1) Fixture Body

813.978.3700 • [email protected] • www.voltlighting.com

PRODUCT DIMENSIONS

A. (1) G4 Bi-Pin

22”

6”2”

1”

REMOVE LENS

Install G4 Bulb

813.978.3700 • [email protected] • www.voltlighting.com

Remove the lens from the

xture by loosening the

screws.

Fixture

Lens

Screw

Insert the Bi-Pin with

correct wattage and type

marked on xture label and

push into place.

CAUTION: Do not exceed

maximum wattage marked

on luminaire label.

NOTE: DO NOT touch bulb

with bare hands. Use soft

cloth to handle bulb.

Socket

Bi-Pin

VOLT®- Wide Modernelle Brass Path & Area Light - VPL-1043-4-BBK

INSTALLATION INSTRUCTIONS

Install Lens

Install Stake

813.978.3700 • [email protected] • www.voltlighting.com

Place the lens back onto

the xture and secure with

the previously removed

screws. Tighten until snug.

Fixture

Lens

Screw

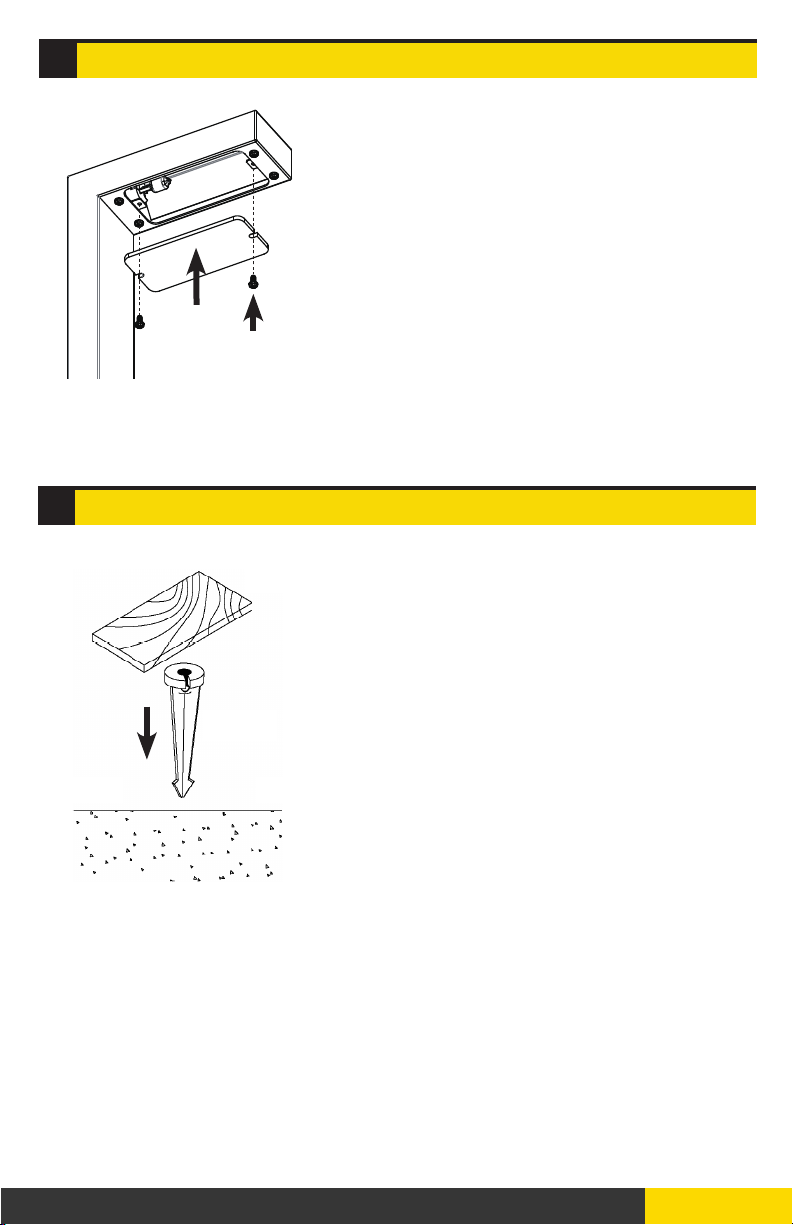

Determine the desired location

for mounting the stake mount.

Hammer the stake into the

ground until ange of stake is

ush to grade. To avoid damage

to the stake, place a board on top

of the stake while hammering.

Note: If the ground is hard and

the stake is difcult to install,

make a crosscut in the ground

using a at shovel.

Board

GroundSoil

Stake

INSTALL FIXTURE TO STAKE

813.978.3700 • [email protected] • www.voltlighting.com

Pass the xture wire

through the center hole

of the stake. Thread the

xture on to the stake and

hand tighten until snug.

Fixture

Fixture Wire

WIRE CONNECTIONS

Strip both leads from xture body. Using two wire connectors (sold

separately), connect the leads from the xture body to main supply

cable leads.

Supply Wire

Pigtail

Wire Connectors

Main Supply Cable

VOLT®- Wide Modernelle Brass Path & Area Light - VPL-1043-4-BBK

INSTALLATION INSTRUCTIONS

813.978.3700 • [email protected] • www.voltlighting.com

INSTALL/ REPLACE G4 BULB

Please reverse Step 2 - Step 3 to expose the bi-pin and replace

it with the correct wattage and type marked on the xture label.

And then reinstall the lens.

IMPORTANT: Bi-Pin must be protected from moisture and dust

at all times. Always reinstall the lens when removed.

Specications and product details subject to change without notice.

[email protected] • www.voltlighting.com

1-813-978-3700 • Mon-Fri 8am-8pm • Sat-Sun 10am - 6pm (EST)
