Volvo RTI S6 Bedienungsanleitung

Instruction No Version Part. No.

8685716 1.0

RTI S60

Instruction No Version Part. No.

8685716 1.0

RTI S60

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation RTI S60- 8685716 - V1.0

Page 1 / 34

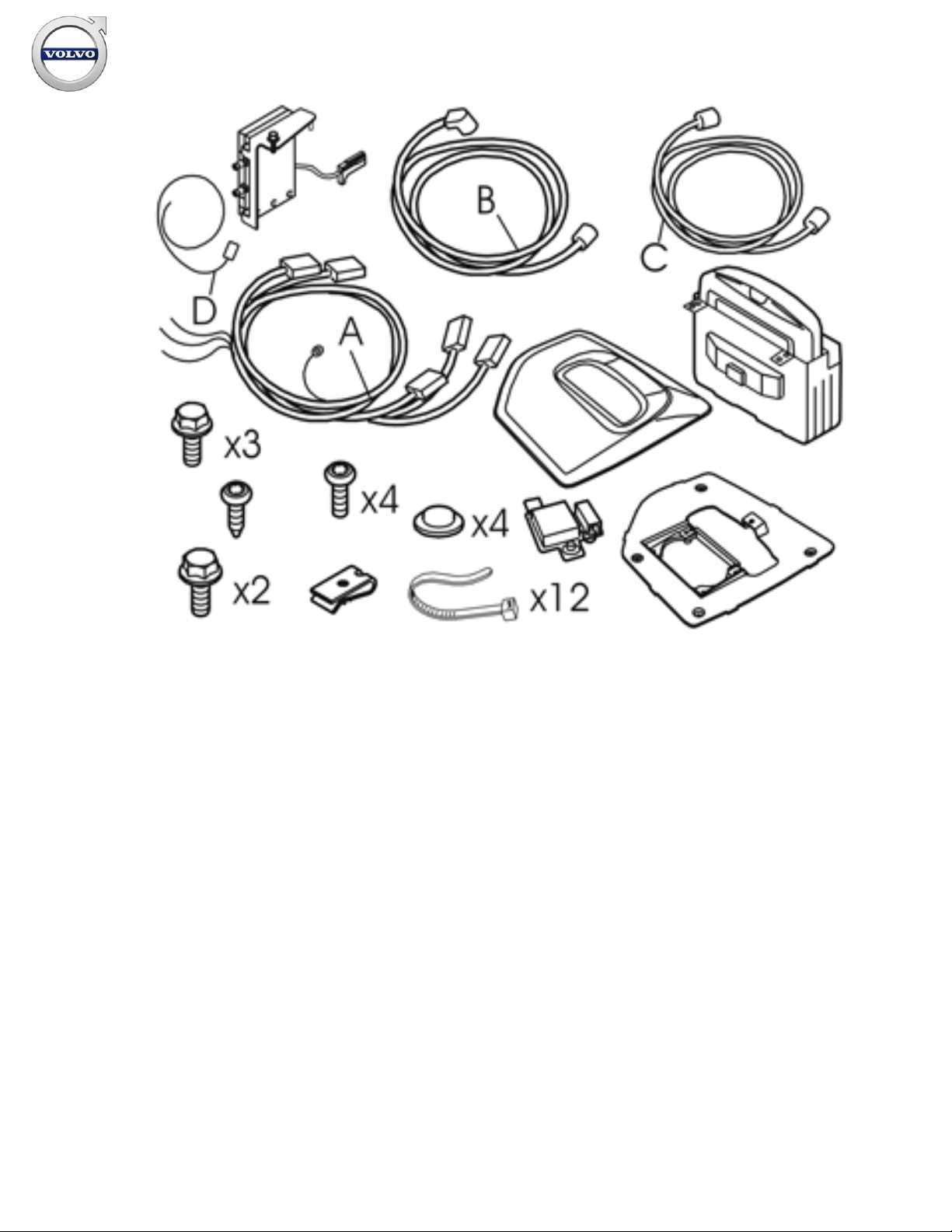

Equipment

A0000162 A0000161 A0801178

M8802509

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation RTI S60- 8685716 - V1.0

Page 2 / 34

M3903563

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation RTI S60- 8685716 - V1.0

Page 3 / 34

M3903789

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation RTI S60- 8685716 - V1.0

Page 4 / 34

M8503983

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation RTI S60- 8685716 - V1.0

Page 5 / 34

M3903786

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation RTI S60- 8685716 - V1.0

Page 6 / 34

INTRODUCTION

Read through all of the instructions before starting installation.

Notifications and warning texts are for your safety and to

minimise the risk of something breaking during installation.

Ensure that all tools stated in the instructions are available

before starting installation.

Certain steps in the instructions are only presented in the form

of images. Explanatory text is also given for more complicated

steps.

In the event of any problems with the instructions or the

accessory, contact your local Volvo dealer.

Note!

This accessory requires software unique to the car.

1

Preparations

Move the left front seat and the gear selector lever to the

rearmost positions.

2

A8800136

Turn the ignition key to position 0

Remove the key from the ignition switch (does not apply to cars

with automatic gearboxes)

Disconnect the battery negative lead.

Note!

Wait at least five minutes before disassembling the connectors

or removing other electrical equipment.

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation RTI S60- 8685716 - V1.0

Page 7 / 34

3

M3902612

Carefully remove the loudspeaker grille (1) on the dashboard.

Use a weatherstrip tool or similar.

4

M3902613

Remove the screws (1). Remove the bracket (2).

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation RTI S60- 8685716 - V1.0

Page 8 / 34

5

M3902614

Applies to cars with a centrally mounted loudspeaker

Remove the three screws in the loudspeaker (1)

Lift up the loudspeaker. Disconnect the connector (2)

Place the loudspeaker to one side.

6

M8502988

Pry off the panel in front of the gear selector lever. Use a

weatherstrip tool as illustrated. Remove the panel in front of the

gear selector lever.

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation RTI S60- 8685716 - V1.0

Page 9 / 34

7

M4302463

Press in the catches on the front edge of the gear selector lever

panel. Lift the panel upwards, first the front edge and then the

rear edge. Remove the panel around the gear selector lever.

8

M8503027

Remove the two screws from the dashboard environment panel.

Installation instructions, accessories Volvo Car Corporation Gothenburg, Sweden

© Volvo Car Corporation RTI S60- 8685716 - V1.0

Page 10 / 34
