Petrol Pressure Cleaner User’s Manual VF3600P
About your pressure cleaner
Thank you for purchasing this Vyking Force Petrol Pressure Cleaner. This cold water
petrol pressure washer is ideal for professionals. The quality Annovi Reverberi pump,
the steel frame, steel armed hose and pneumatic wheels make this perfect for general
cleaning by tradies and residential use. Please read and understand the content of this
manual in conjunction with the engine manual for safety guidelines, start-up, shut-down,
operation, adjustment and maintenance instructions before using this product. Take all
possible precautions to protect your own safety and that of the people in the immediate
vicinity. Save this manual for future reference.
4
Specications
Model VF3600P
Max pressure 3600 psi / 24.8 MPa
Rated pressure 3300 psi / 22.7 MPa
Max ow rate 12 L/min
Rated ow rate 11 L/min
Min inlet water pressure 58 psi / 0.4 MPa
Max inlet water temperature 50°C
Pump model no RSV3G30D+F25
Pump type Annovi Reverberi triplex brass head & ceramic
pistons
Pump oil type SAE 15W40 300ml
Engine type Vyking Force 4 stroke air cooled OHV
Engine horsepower 8 HP
Engine RPM 3600 RPM
Engine displacement 224cc
Spark plug type F7RTC (NGK PART NO: BPR7ES)
Engine oil type SAE 30
Engine oil capacity 500 ml
Engine start Recoil
Fuel tank size 3.6 L
Fuel type Regular 91 RON
Detergent tank capacity 3 L
Hose length 10M Steel braided
Inline lter Yes
Nozzle set 0°, 15°, 25°, 40°, SOAP NOZZLE
Draws water from a bucket Yes
Low oil shutdown Yes
Wheels 380 X 100mm Pneumatic wheels
Thermal relief valve Yes -60°C
Auto throttle control Yes
EPA compliant Yes
Product dimensions (LxWxH) 850 x 620 x 720 mm
Net weight 36 kg
Gross weight 41 kg
Max noise level 105 dB
5
PRESSURE WASHER 3600P
Vyking Force is constantly improving its products. All information in this manual is based
on the latest product information available at the time of printing. The specications
outlined herein are subject to change without prior notice or obligation. The purchaser
and/or user shall assume liability for any modication and/or alterations of this
equipment from original design and manufacture. *3 month warranty on accessories and
consumables such as gun, lance, hose, spark plug, lters.
Packing List
Check your packing list against the diagram below. If any part is damaged or missing,
please contact us
• Pressure washer
• Quick start guide
• Spray gun
• Extension lance with quick-connect tting
• High pressure hose
• Spray nozzles (5) - 0°, 15°, 25°, 40° and soap nozzle
• Spray gun hook (upper)
• Spray gun hook (lower)
• Wheel & Axle & Washer
• Nozzle cleaner
6
Hazard signal word denitions
This manual uses the following symbols to help differentiate between different kinds of
information. The safety symbol is used with a key word to alert you to potential hazards
in operating and owning power equipment. Follow all safety messages to avoid or
reduce the risk of serious injury or death.
!Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury. Obey all safety messages that
follow this symbol to avoid possible injury or
death.
!DANGER Indicates an imminently hazardous situation
which, if not avoided, will result in death or
serious injury.
!WARNING Indicates a potentially hazardous situation
which, if not avoided, could result in death or
serious injury.
!CAUTION Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury.
CAUTION Used without the safety alert symbol indicates
a potentially hazardous situation which, if not
avoided, may result in property damage.
Before starting
The pressure washer is shipped without oil. You must add an adequate amount of
engine oil before rst use. The engine will be damaged beyond repair if it’s started
without oil. For oil type, please see “Recommended Oil Type” in the engine section of
this manual. Fresh regular RON 91 fuel must be used in this unit. DO NOT use premium
or Ethanol based fuels.
Read and understand all safety warnings and instructions in this manual before
proceeding with use of the product or recommended maintenance tasks. Keep this
instruction manual for future reference.

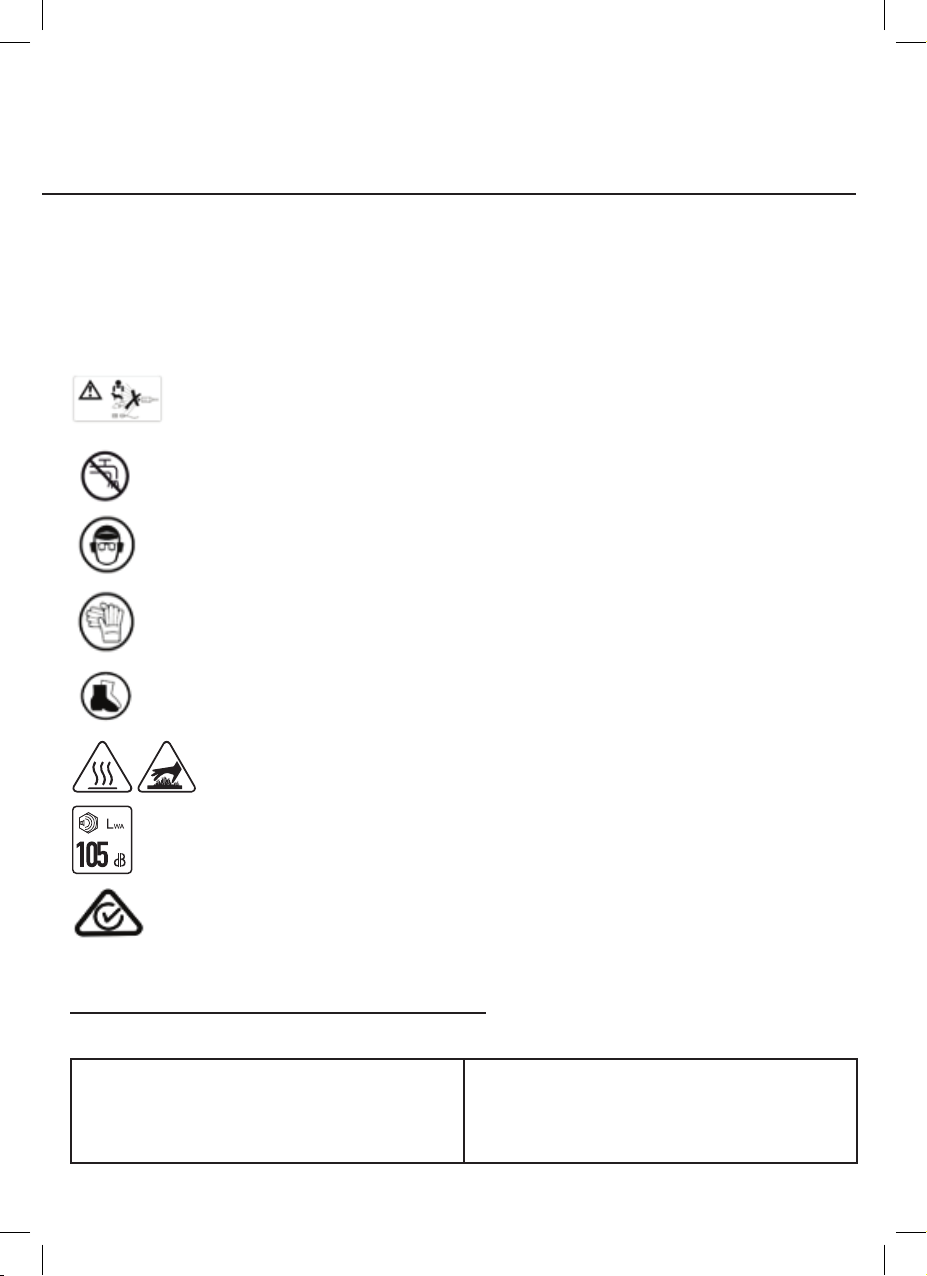

Safety symbols on product & packaging
Comply with the instructions provided by the safety signs and symbols tted to the
pressure washer and in this manual. The pressure washer and manual only feature the
symbols relevant to the model purchased. Check that the symbols and signs afxed
7
PRESSURE WASHER 3600P
to the unit are always present and legible; otherwise, t replacements in the original
positions.
The high-pressure jet must not be directed at persons, animals, live
electrical equipment or at the appliance itself.
The appliance must not be directly connected to the public drinking
water network.
For protection against injury, wear earmuffs and safety goggles.
Wear safety gloves during use to protect hands.
Wear non-slip footwear that will protect your feet and improve your
footing on slippery surfaces.
The Motor is hot, do not touch
Sound power level is 105 dB
Australian Regulatory Compliance Mark (RCM)
General safety rules for operation
!WARNING Read all safety warnings, instructions,
illustrations and specications provided with
this generator. Failure to follow all instructions
listed below may result in electric shock, re
and/or serious injury.
8
Save all warnings and instructions for future reference.
This equipment is to be only used for the purpose for which it is designed and intended.
TO AVOID DAMAGING THE PRESSURE WASHER DURING USE it is critical to adhere
to the pump precautions, engine precautions and pre-start inspection. Seek assistance if
required when moving or lifting the pressure washer.
Work area safety
• Intended for outdoor use only. DO NOT operate in conned spaces or indoors, carbon
monoxide released in the exhaust can kill.
• Do not operate in explosive atmospheres, such as in the presence of ammable liquids,
gases or dust.
• Keep children and bystanders away while operating a pressure washer. Distractions
can cause you to lose control.
• Beware of uneven or slippery work surfaces. Slip/Trip/Fall is a major cause of serious
injury or death
• This pressure washer is not weatherproof. Exposure to rain, damp conditions or
extreme temperature can cause damage or serious injury.
Personal safety
• Stay alert, watch what you are doing and use common sense when operating a
pressure washer. Do not use a pressure washer while you are tired or under the
inuence of drugs, alcohol or medication. A moment of inattention may result in serious
personal injury.
• Use personal protective equipment. Always wear eye protection. Wear suitable face
mask if there is a danger of inhaling mist containing hazardous material. Wear hearing
protection if working nearby to the pressure washer.
• Always wear safety apparel. Wear waterproof insulated gloves and non-slip protected
footwear or boots.
• Do not overreach. Keep proper footing and balance at all times. This enables better
control of the pressure washer in unexpected situations.
• Dress properly. Do not wear loose clothing, gloves, neckties or jewellery. Keep your
hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be
caught in moving parts.
• Do not let familiarity gained from frequent use of the pressure washer allow you to
become complacent and ignore tool safety principles. A careless action can cause
severe injury within a fraction of a second.
9
PRESSURE WASHER 3600P
• For your own safety, do not operate your pressure washer until it is completely
assembled and installed according to the instructions and until you have read and
understood all of the safety guidelines.
Pressure washer safety rules
• Do not force the pressure washer. Use the correct pressure washer for your
application. The correct pressure washer will do the job better and safer at the rate for
which it was designed.
• Do not use the pressure washer if the engine switch or trigger does not turn it on
and off. Any pressure washer that cannot be controlled with the switch is dangerous
and must be repaired.
• Switch off the engine, disconnect the spark plug lead and depressurise unit
before making any adjustments, service or storing pressure washers.
Such preventive safety measures reduce the risk of starting the pressure washer
accidentally.
• Store idle pressure washers out of the reach of children and do not allow
persons unfamiliar with the pressure washer or these instructions to operate the
pressure washer. Pressure washers are dangerous in the hands of untrained users.
• Maintain pressure washers and accessories. Check for misalignment or binding of
moving parts, leakage of water and fuel and any other condition that may affect the
pressure washer’s operation. If damaged, have the pressure washer repaired before
use. Many accidents are caused by poorly maintained pressure washers.
• Use the pressure washer and accessories etc. in accordance with these
instructions, taking into account the working conditions and the work to
be performed. Use of the pressure washer for operations different from those intended
could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and grease.
Slippery handles and grasping surfaces do not allow for safe handling and control of
the equipment in unexpected situations.
• Do not alter or misuse the tool. These tools are precision built. Any alteration or
modication not specied is misuse and may result in dangerous conditions.
• NEVER leave running equipment unattended. Shut down before leaving worksite.
•ALWAYS release pressure at the end of use.
• NEVER move equipment by pulling the hoses.
• NEVER activate the spray gun with no nozzle in the wand. This will cause the “O”
ring to be dislodged from the coupling and the unit will not function properly.
• NEVER lock the spray gun in the on position.
• NEVER operate with the hose coiled or kinked. Ensure the hose is unwound and as
straight as possible to avoid damage to hose.
10
• ALWAYS spray the ground to test pressure.
• NEVER exceed the recommended pressure rating of the unit.
• NEVER change quick couplers with the nozzle under pressure & without the gun
safely in the lock position.
• NEVER spray water directly at the pressure washer.
• Locate the equipment on a solid level surface so the oil can be distributed evenly
inside the crankcase.
• PRACTICE & TEST using the pressure washer on each new material & area you
spray. The pressure washer is extremely powerful and can damage property if
untested.
• ALWAYS use the safety lock latch on the lance gun when the pressure washer is
on but not in use. This will reduce the risk of accidental discharge.
Additional hazards and risks
• Mechanical hazards. Be sure the engine is lled with oil before startup. ENSURE
hoses are connected properly before operating. BE CAREFUL not to come in contact
with the exhaust when the engine is hot, it can cause severe burns. ENSURE that the
repairs to the motor and equipment are carried out by suitably qualied personnel.
• Fire & explosion hazards. PETROL is extremely ammable and explosive under
certain conditions. ENSURE that the petrol is only stored in an approved storage
container. DO NOT refuel while it is in operation or hot. Allow engine to cool before
refueling. DO NOT refuel the motor in the vicinity of sparks, a naked ame or a person
smoking. DO NOT over ll the fuel tank and avoid spilling petrol when refueling. Spilled
petrol or petrol vapor may ignite. If spillage occurs, ensure that the area is dry before
starting the motor. ENSURE that the fuel tank cap is securely tted after refueling.
NEVER spray ammable liquid.
• Noise hazards. EXCESSIVE NOISE can lead to temporary or permanent loss of
hearing. This pressure washer can produce sounds of up to 103dBA during operation.
Ensure hearing protection is worn when in use. WEAR an approved hearing
protection device to limit noise exposure as required by Occupational Health and
Safety regulations.
• Chemical hazards. DO NOT operate or refuel a petrol motor in a conned area
without adequate ventilation. DO NOT use with toxic chemicals, only use non-?
hazardous approved cleaning agents. NEVER spray toxic, harsh acidic or alkaline
liquids.
• High pressure water hazards. High pressure can cause serious injury including
injection of water under the skin if caution is not taken. NEVER point the spray gun at
people, animals or plants. NEVER put your hands or ngers over the spray tip. NEVER
try to stop or deect leaks with your hand or body. NEVER use powder detergents or
soaps not manufactured specically for use with pressure washers.
Inhaltsverzeichnis
Andere VYKING FORCE Hochdruckreiniger Handbücher
VYKING FORCE
VYKING FORCE VF2320B Bedienungsanleitung
VYKING FORCE
VYKING FORCE VF1450B Bedienungsanleitung
VYKING FORCE
VYKING FORCE VF2030B Bedienungsanleitung
VYKING FORCE
VYKING FORCE VF1305B Bedienungsanleitung
VYKING FORCE
VYKING FORCE VF2465I Bedienungsanleitung
VYKING FORCE
VYKING FORCE VF3500P Bedienungsanleitung
VYKING FORCE
VYKING FORCE VF3000P Bedienungsanleitung
