Warn Ford Performance M-1821-SD Bedienungsanleitung
Techline 1-800-367-3788 Page 1 of 3 IS-M-1821-SD 031221
NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
FORD PERFORMANCE PARTS © Ford Motor Company 2020
Ford Factory Shop Manual purchase options www.motorcraftservice.com
M-1821-SD
Model 2020→
Super Duty Winch by Warn
03.12.2021 UPDATE
INSTALLATION INSTRUCTION
STEP 33 Bumper re-installation
Summary of Update Procedure
Remove and discard the 2 center Bumper Spoiler bolts
remove & save associated j-clip nuts
Replace bolts with a low profile M6 cap head, Ford
Standard Part W711581S450B.
Insert from topside
Re-install j-clip nuts on to Spoiler
This improves winch roll winding by allowing the winch
rope to pass freely over the spoiler bolt.
Image shows spoiler bolts as installed relative to the winch rope spool.
Techline 1-800-367-3788 Page 2 of 3 IS-M-1821-SD 031221
NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
FORD PERFORMANCE PARTS © Ford Motor Company 2020
Ford Factory Shop Manual purchase options www.motorcraftservice.com
M-1821-SD
Model 2020→
Super Duty Winch by Warn
Step 1) Remove bolts from spoiler
Step 2) Remove j-clips from bumper
Techline 1-800-367-3788 Page 3 of 3 IS-M-1821-SD 031221
NO PART OF THIS DOCUMENT MAY BE REPRODUCED WITHOUT PRIOR AGREEMENT AND WRITTEN PERMISSION OF
FORD PERFORMANCE PARTS © Ford Motor Company 2020
Ford Factory Shop Manual purchase options www.motorcraftservice.com
M-1821-SD
Model 2020→
Super Duty Winch by Warn
Step 3) Re-installing j-clips to spoiler
End Step 4) Bolt Replacement image W711581S450B or like standard M6 bolt with chassis head
to allow the rope to freely pass over the head
NOTE: Installer Delivery Check List
1) Review this Notice with Vehicle Owner
2) Provide Winch Owner Manual (The Basic Guide to Winching Techniques) www.warn.com
3) Leave these literature items in plain view
This winch has 12,000LBS of pull strength
Improper line rope stowage will cause damage to the vehicle, winch and winch
mounting brackets.
✓Power-in the remaining slack in the winch rope by “pulsing” the power-in button on the
remote until there is minimal slack between hook and fairlead.
Do not power the hook into the fairlead.
×Do not continue to power-in winch after rope first becomes taut.
✓Stow to ‘Passenger-side’ tow hook only
Optional Cruise Radar
CONTENTS
INSTALLATION
Warn Winch
-ANUAL 4ABLE OF #ONTENTS
WARN WINCH
2020-CMY Super Duty
Winch
Contents
SKLC3J-19E536-AA
© Copyright Ford 2020 FoMoCo
INSTALLATION
Warn Winch
2020-CMY Super Duty
Winch
1
Page 1 of 26
SKLC3J-19E536-AA
© Copyright Ford 2020 FoMoCo

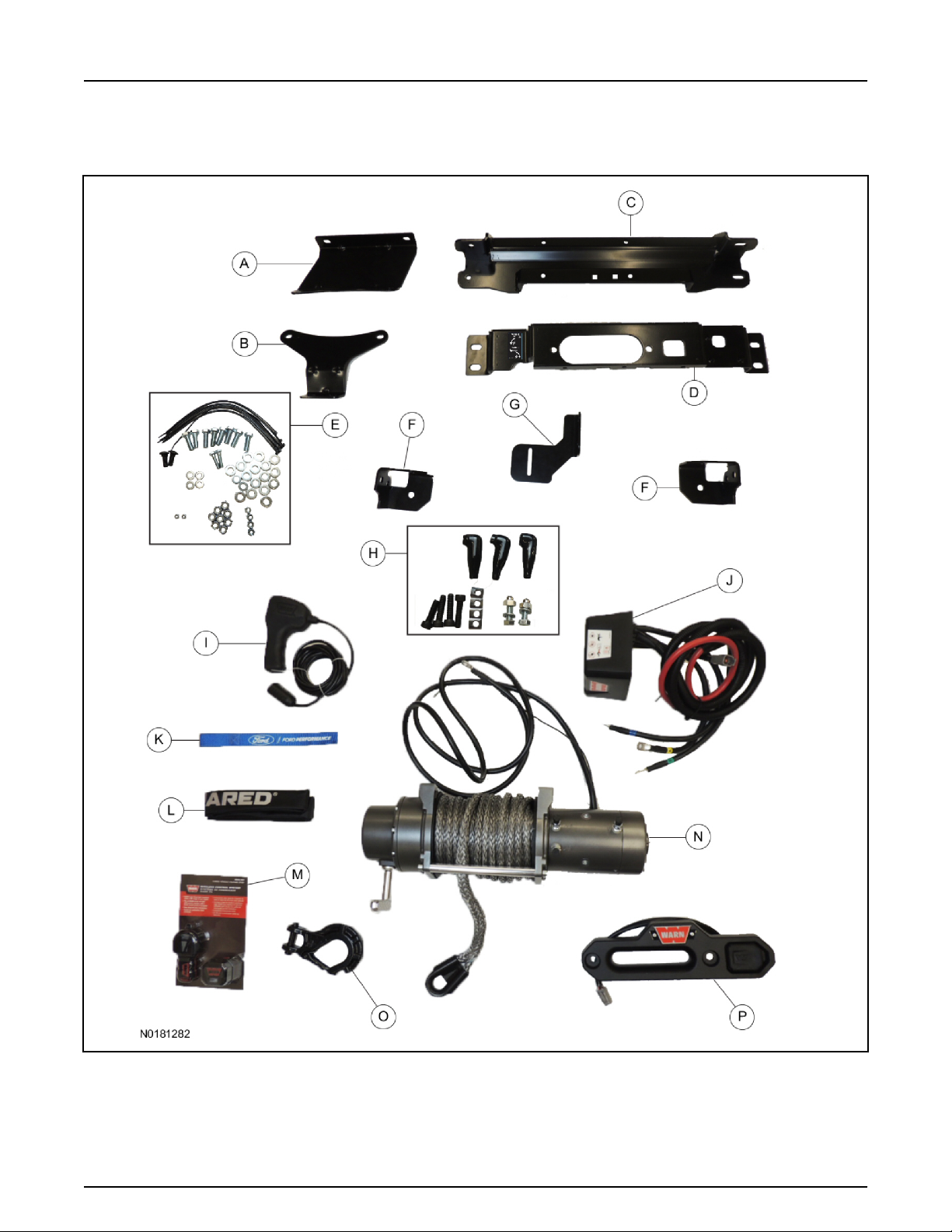

Winch Final Assembly Contents
Item Description
A Oblique Bracket
B Y Bracket
C Center Mounting Bracket
D Fairlead Mounting bracket
E Winch Mounting Bracket Hardware
F End Mounting Bracket
G Control Pack Assembly Bracket
H Winch Hardware
I Plug In Remote Control
J Control Pack Assembly
K Tow Hook Guide Strap
L Abrasion Sleeve
M Wireless Winch Remote
N Winch
O Tow Hook
P Fairlead
2. Disconnect the battery cable to ground. Please follow the Workshop Manual (WSM) procedures in
section 414-01.
NOTICE:
Negative cables must be disconnected from the batteries to interrupt the vehicles electrical
system power. Failure to disconnect both of the negative battery cables may cause vehicle
damage.
3. Remove the air cleaner. Please follow the WSM procedures in section 303-12.
4. If equipped, release the retaining clips and remove the front license plate mounting bracket.
5. Remove the front bumper. Please follow the WSM procedures in section 501-19.
• Place the front bumper on a workbench covered with a non-marring surface.
INSTALLATION (Continued)
1. Review of the winch final assembly contents.
2020-CMY Super Duty
Winch
2
Page 2 of 26
SKLC3J-19E536-AA
© Copyright Ford 2020 FoMoCo
7. If equipped, remove the studs from the front side of the cruise control module bracket.
NOTE:
Save the top cruise control mounting stud for installation.
INSTALLATION (Continued)

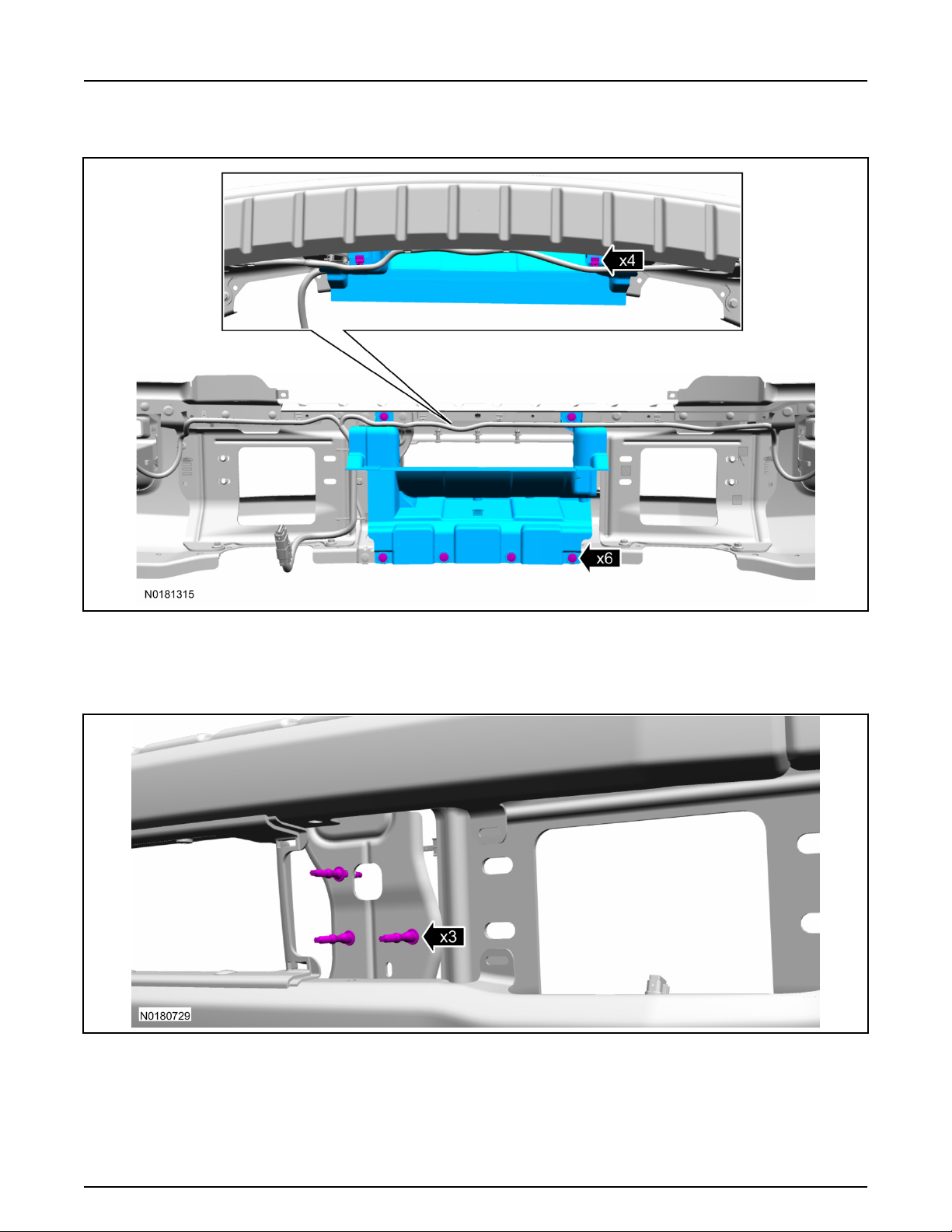

6. Position aside the wire harness. Remove and discard the 6 retainers and the bumper center support.
2020-CMY Super Duty
Winch
3
Page 3 of 26
SKLC3J-19E536-AA
© Copyright Ford 2020 FoMoCo

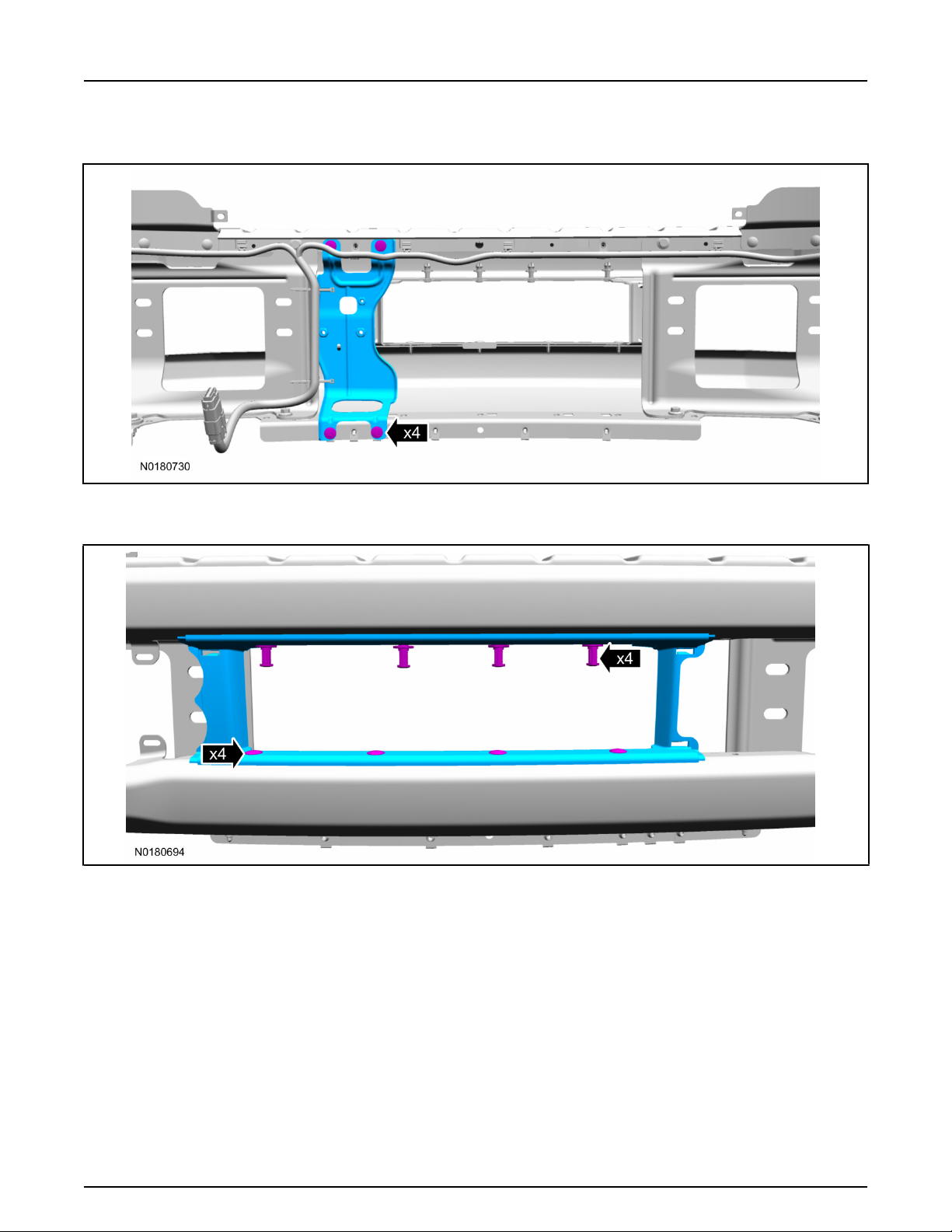

9. Remove and discard the retainers and the bumper opening trim.
INSTALLATION (Continued)
8. If equipped, remove and discard the retainers and the cruise control module bracket.
2020-CMY Super Duty
Winch
4
Page 4 of 26
SKLC3J-19E536-AA
© Copyright Ford 2020 FoMoCo
11. Install the Y bracket and the oblique bracket using four washers, two 3/8 in (9.52 mm) bolts and
nuts.
• Leave retainers loose at this time.
NOTE:
Ensure to align the Y bracket and oblique bracket using the curve as a focus point and the Y
bracket tang facing downwards.
INSTALLATION (Continued)
10. Remove the inboard retainers from the vehicle frame.
2020-CMY Super Duty
Winch
5
Page 5 of 26
SKLC3J-19E536-AA
© Copyright Ford 2020 FoMoCo
