Firebox®T20, T20-W

Hardware Guide

Firebox®T20, T20-W

FS2AE5, FS2AE5W

About This Guide

Information in this guide is subject to change without notice. Companies, names, and data used in

examples herein are fictitious unless otherwise noted. No part of this guide may be reproduced or

transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express

written permission of WatchGuard Technologies, Inc.

Guide revised: 1/24/2020

mentioned herein, if any, are the property of their respective owners.

Complete copyright, trademark, patent, and licensing information can be found in the Copyright and

Licensing Guide, available online at https://www.watchguard.com/wgrd-help/documentation/overview.

About WatchGuard

WatchGuard® Technologies, Inc. is a global leader in network

security, providing best-in-class Unified Threat Management, Next

Generation Firewall, secure Wi-Fi, and network intelligence

products and services to more than 75,000 customers worldwide.

The company’s mission is to make enterprise-grade security

accessible to companies of all types and sizes through simplicity,

making WatchGuard an ideal solution for Distributed Enterprises

and SMBs. WatchGuard is headquartered in Seattle, Washington,

with offices throughout North America, Europe, Asia Pacific, and

Latin America. To learn more, visit WatchGuard.com.

For additional information, promotions and updates, follow

WatchGuard on Twitter, @WatchGuard on Facebook, or on the

LinkedIn Company page. Also, visit our InfoSec blog, Secplicity,

for real-time information about the latest threats and how to cope

with them at www.secplicity.org.

Address

505 Fifth Avenue South

Suite 500

Seattle, WA 98104

Support

www.watchguard.com/support

U.S. and Canada +877.232.3531

All Other Countries +1.206.521.3575

Sales

U.S. and Canada +1.800.734.9905

All Other Countries +1.206.613.0895

WatchGuard Technologies, Inc. i

Contents

WatchGuard Firebox T20/T20-W Hardware Guide iv

Fireware OS iv

About Your Hardware iv

Hardware Specifications iv

Interface Specifications v

Environmental Requirements v

Hardware Description vi

Front vi

Rear vii

AC Power Adapter ix

Wall Mounting Plate ix

Restore Factory-Default Settings x

Notices xi

Product Safety Certification xi

Safety Warning xi

Disclaimer xi

Hinweise Zur Sicherheit xi

Sicherheitshinweis xii

Aviso De Seguridad xii

Certificación de seguridad del producto xii

Advertencia de seguridad xii

Federal Communications Commission Interference Statement xiii

IMPORTANT NOTE: xiii

FCC Radiation Exposure Statement: (Wireless) xiii

Europe – EU Declaration of Conformity (Wireless) xiii

CE Notice xiv

ii WatchGuard Technologies, Inc.

RoHS Statement xiv

WEEE Statement xiv

REACH xv

Industry Canada Statement xv

Caution:(Wireless) xvi

Avertissement: xvi

For Mobile Device Usage (Wireless) xvi

Radiation Exposure Statement xvi

Déclaration d’exposition aux radiations: xvi

France (Wireless) xvi

Japan VCCI Notice (Class A ITE) xvi

Taiwan RoHS (T20) xvii

Taiwan Class A Notice xvii

Taiwan NCC xvii

Mexico Notice xviii

Limited Hardware Warranty xviii

Declaration of Conformity xx

WatchGuard Technologies, Inc. iii

WatchGuard Firebox T20/T20-W Hardware Guide

WatchGuard® Firebox security appliances deliver unparalleled unified threat management, superior

performance, ease of use, and value for your small organization or branch office. Our security subscriptions

give you fully integrated protection from spyware, spam, viruses, worms, trojans, web-based exploits, and

blended threats. From firewall and VPN protection to secure remote access, WatchGuard Firebox

appliances support a broad range of network environments.

This guide introduces the Firebox T20 RoHS-compliant (lead-free) hardware product. The Firebox T20

network security appliance is designed for small organizations and branch offices.

Fireware OS

The Firebox T20 supports WatchGuard’s next generation UTM OS—Fireware® OS. Each Firebox appliance

includes Fireware OS and delivers exceptional protection against today's sophisticated threats to make

sure that your business stays connected. For more information on the features of Fireware OS, see

Fireware Help.

About Your Hardware

Hardware Specifications

Processor NXP LS1023A, 1.0GHz, 2-Core

Memory DDR4 2GB with ECC

Storage eMMC 4GB

Power Supply Input Ratings: 100-240V AC, MAX 1.2A, 50-60Hz

Output: 12V DC

Dimensions D = 205.5 mm (8")

W = 217 mm (8.5")

H = 43 mm(1.7")

Weight T20: 0.88 kg(1.94 lbs)

T20–W: 0.9 kg (1.98 lbs)

WatchGuard Firebox T20/T20-W Hardware Guide

iv WatchGuard Technologies, Inc.

WatchGuard Firebox T20/T20-W Hardware Guide

Interface Specifications

Network Interfaces 5 RJ45 connectors, 1000 Base-TX (10/100/1000Mbps)

T20-W is compliant with the IEEE802.11AC wave1 standard.

Radio Type and Frequency Band

(T20–W)

A single 3x3:3 radio that can operate on one of these bands:

n2.4 GHz 802.11 b/g/n

n5 GHz 802.11 a/n/ac

I/O Interfaces 2x USB3.0, Type-A

1 RJ45 Serial Port

Environmental Requirements

To safely install your Firebox, we recommend that you:

nInstall it indoors.

nPut it in a secure area, such as a locked room, to block the device from people who do not have

permission to use it.

nConnect it to a conditioned power supply to prevent damage from sudden power changes.

Other environmental requirements:

nOperating temperature: 0° to 40°C (32° to 104°F)

nOperating humidity: 5% to 90% non-condensing

nNon-operating temperature: –25° to 75°C (-13° to 167°F)

nNon-operating humidity: 0% to 95% non-condensing

WatchGuard Technologies, Inc. v

Hardware Description

Front

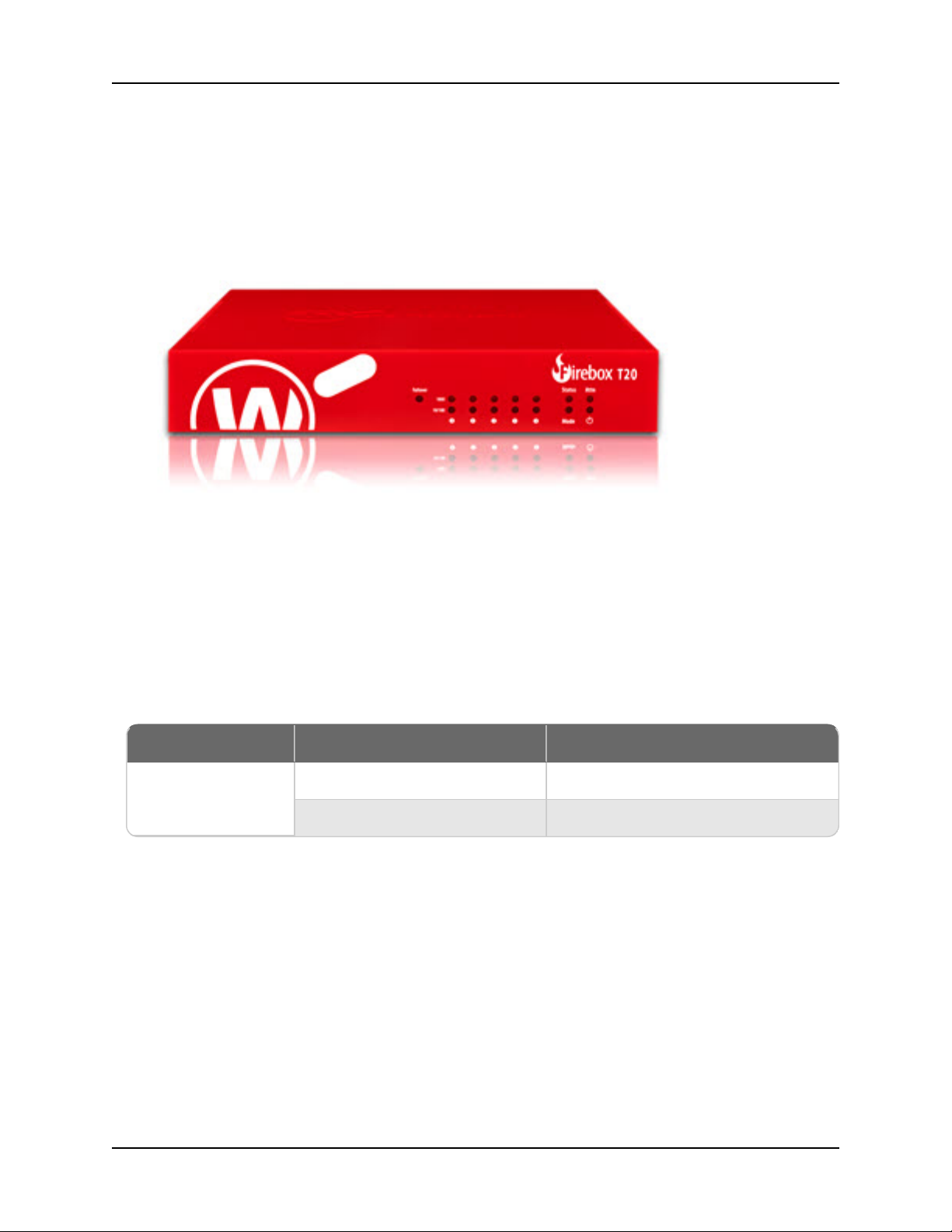

Front view of the Firebox:

Failover

The Failover indicator is lit when there is a WAN failover from the primary external interface to the

backup interface. After the external interface connection fails back to the primary external interface,

the indicator is not lit.

WAP

On the Firebox T20-W model, the WAP indicator is lit when the appliance is activated as a wireless

access point or a wireless client. The color indicates the active wireless radio band. The light blinks

when data is sent and received. The speed of the blink increases as the data flow increases.

Indicator Indicator Color Wireless Band

WAP

Yellow 2.4 GHz radio band

Green 5 GHz radio band

WatchGuard Firebox T20/T20-W Hardware Guide

vi WatchGuard Technologies, Inc.

WatchGuard Firebox T20/T20-W Hardware Guide

Network Interface Status Indicators

The Firebox T20 has five network interfaces. There are two status indicators for each interface.

Indicator Indicator Color Interface Status

1000

Yellow

On Link speed: 1000 Mbps

Blinks (speed of blink increases as the data flow

increases)

Data sent and received

10/100

Green

On Link speed: 10 Mbps or 100

Mbps

Blinks (speed of blink increases as the data flow

increases)

Data sent and received

Status

The Status indicator is lit when there is a management connection to the device. The Status indicator

is lit for 30 seconds after you connect to the device with the Fireware Web UI or the command line

interface. It is also lit when the device is polled by WatchGuard System Manager.

Mode

The Mode indicator shows the status of the external network connection. If the device can connect

to the external network and send traffic, the indicator is green. The indicator flashes if the device

cannot send traffic to the external network.

Attn

The Attn indicator is yellow when you start the device with the Reset button pressed. For more

information, see

Restore Factory-Default Settings

Power ( )

The Power indicator is lit to indicate power status. It is green when the Firebox is powered on.

Rear

Rear view of the Firebox:

Serial Port (Console)

The leftmost port is an RJ45 serial console port. An RJ45 serial cable is not included with the device.

WatchGuard Technologies, Inc. vii

USB Interfaces

The device includes two USB 3.0 interfaces. Connect a USB storage device for USB backup and

restore, or to store a support snapshot. For more information, see Fireware Help.

Network Interfaces

The Ethernet interfaces have standard RJ45 connectors and support link speeds of 10, 100, or 1000

Mbps.

The Firebox T20 has five network interfaces. These interfaces are labeled 0/WAN, 1/LAN, 2, 3, 4.

Reset Button

This resets the device. To restore the device to factory-default settings, see

Restore Factory-Default

Settings

Power Switch

Controls the power supplied to the device. Move the switch to position 1to power on the device, or

position 0to power it off.

Power Input

An AC power adapter is included with your device. Connect the AC adapter to the device and to a

power source. The power supply tip is plus (+) polarity. Use only the supplied AC power adapter.

WatchGuard Firebox T20/T20-W Hardware Guide

viii WatchGuard Technologies, Inc.

WatchGuard Firebox T20/T20-W Hardware Guide

AC Power Adapter

The AC power adapter supplies power for the Firebox. The power supply connector has a screw-type

retention mechanism. To prevent a disruption in the power supply, tighten the screw on the connector.

Before you connect the adapter, verify that the color band on the cord matches the color ring around the

power plug on the Firebox.

To safely connect the power supply:

Insert the silver connector on the power cord into the power port on the Firebox. Tighten the screw

until the connector is securely attached to the Firebox.

A T20 Firebox shipped outside the United States includes four power plugs to connect to the AC power

adapter. Use the correct power plug for the power source used in your country.

Wall Mounting Plate

The wall mounting plate (available separately) enables you to mount the Firebox on a wall in a good location

to increase the wireless range.

You need four screws 1/8" (3 mm) wide and at least 3/4" (18 mm) long to install the mounting plate.

To install the wall mounting plate:

1. Place the wall mounting plate horizontally against the wall where you want to install the Firebox.

2. Securely screw the wall mounting plate to the wall with the four screws.

3. Align the two holes on the bottom of the Firebox with the two connection points on the mounting plate.

4. Push the Firebox toward the mounting plate, until the two connection points on the mounting plate are

inside the holes on the bottom of the Firebox. Then press firmly down to seat the device on the plate.

To remove the Firebox from the mounting plate, push the Firebox up slightly, and then pull out, to separate

the connection points on the mounting plate from the holes on the bottom of the Firebox.

WatchGuard Technologies, Inc. ix
