Watchguard Firebox T40-CW Montageanleitung

Firebox® T40-CW

Hardware Guide

Firebox® T40-CW

BS4AE5CW

About This Guide

Information in this guide is subject to change without notice. Companies, names, and data used in

examples herein are fictitious unless otherwise noted. No part of this guide may be reproduced or

transmitted in any form or by any means, electronic or mechanical, for any purpose, without the express

written permission of WatchGuard Technologies, Inc.

Guide revised: 1/24/2020

mentioned herein, if any, are the property of their respective owners.

Complete copyright, trademark, patent, and licensing information can be found in the Copyright and

Licensing Guide, available online at https://www.watchguard.com/wgrd-help/documentation/overview.

About WatchGuard

WatchGuard® Technologies, Inc. is a global leader in network

security, providing best-in-class Unified Threat Management, Next

Generation Firewall, secure Wi-Fi, and network intelligence

products and services to more than 75,000 customers worldwide.

The company’s mission is to make enterprise-grade security

accessible to companies of all types and sizes through simplicity,

making WatchGuard an ideal solution for Distributed Enterprises

and SMBs. WatchGuard is headquartered in Seattle, Washington,

with offices throughout North America, Europe, Asia Pacific, and

Latin America. To learn more, visit WatchGuard.com.

For additional information, promotions and updates, follow

WatchGuard on Twitter, @WatchGuard on Facebook, or on the

LinkedIn Company page. Also, visit our InfoSec blog, Secplicity,

for real-time information about the latest threats and how to cope

with them at www.secplicity.org.

Address

505 Fifth Avenue South

Suite 500

Seattle, WA 98104

Support

www.watchguard.com/support

U.S. and Canada +877.232.3531

All Other Countries +1.206.521.3575

Sales

U.S. and Canada +1.800.734.9905

All Other Countries +1.206.613.0895

WatchGuard Technologies, Inc. i

Contents

WatchGuard Firebox T40/T40-W Hardware Guide iv

Fireware OS iv

About Your Hardware iv

Hardware Specifications iv

Interface Specifications v

Environmental Requirements v

Hardware Description vi

Front vi

Rear viii

AC Power Adapter ix

Wall Mounting Plate ix

Restore Factory-Default Settings x

Notices xi

Product Safety Certification xi

Safety Warning xi

Disclaimer xi

Hinweise Zur Sicherheit xi

Sicherheitshinweis xii

Aviso De Seguridad xii

Certificación de seguridad del producto xii

Advertencia de seguridad xii

Federal Communications Commission Interference Statement xiii

IMPORTANT NOTE: xiii

FCC Radiation Exposure Statement: (Wireless) xiii

Europe – EU Declaration of Conformity (Wireless) xiii

CE Notice xiv

ii WatchGuard Technologies, Inc.

RoHS Statement xiv

WEEE Statement xiv

REACH xv

Industry Canada Statement xv

Caution:(Wireless) xvi

Avertissement: xvi

For Mobile Device Usage (Wireless) xvi

Radiation Exposure Statement xvi

Déclaration d’exposition aux radiations: xvi

France (Wireless) xvi

Japan VCCI Notice (Class A ITE) xvi

Taiwan RoHS (T40) xvii

Taiwan Class A Notice xvii

Taiwan NCC xvii

Mexico Notice xviii

Limited Hardware Warranty xviii

Declaration of Conformity xx

WatchGuard Technologies, Inc. iii

WatchGuard Firebox T40-CW Hardware Guide

WatchGuard® Firebox security appliances deliver unparalleled unified threat management, superior

performance, ease of use, and value for your small organization or branch office. Our security subscriptions

give you fully integrated protection from spyware, spam, viruses, worms, trojans, web-based exploits, and

blended threats. From firewall and VPN protection to secure remote access, WatchGuard Firebox

appliances support a broad range of network environments.

This guide introduces the Firebox T40 RoHS-compliant (lead-free) hardware product. The Firebox T40

network security appliance is designed for small organizations and branch offices.

Fireware OS

The Firebox T40 supports WatchGuard’s next generation UTM OS—Fireware® OS. Each Firebox appliance

includes Fireware OS and delivers exceptional protection against today's sophisticated threats to make

sure that your business stays connected. For more information on the features of Fireware OS, see

Fireware Help.

About Your Hardware

Hardware Specifications

Processor NXP LS1043A, 1.0GHz, 4-Core

Memory DDR4 4GB

Storage mSATA 16GB

Power Supply Input Ratings: 100-240V AC, MAX 1.2A, 50-60Hz

Output: 54V DC

Dimensions D = 205.5 mm (8")

W = 217 mm (8.5")

H = 43 mm(1.7")

Weight T40: 0.88 kg(1.94 lbs)

T40–W: 0.9 kg (1.98 lbs)

WatchGuard Firebox T40/T40-W Hardware Guide

iv WatchGuard Technologies, Inc.

WatchGuard Firebox T40/T40-W Hardware Guide

Interface Specifications

Network Interfaces

5 RJ45 connectors, 1000Base-TX (10/100/1000Mbps)

1 Embedded 4G/LTE wireless wan module

Radio Type and

Frequency Band

(T40–CW)

Dual radios, one dedicated to 2.4 GHz for 2x2, the other to 5 GHz for

4x4.

Both radios operate in 802.11ac

I/O Interfaces 2x USB3.0, Type-A

1 RJ45 Serial Port

Environmental Requirements

To safely install your Firebox, we recommend that you:

nInstall it indoors.

nPut it in a secure area, such as a locked room, to block the device from people who do not have

permission to use it.

nConnect it to a conditioned power supply to prevent damage from sudden power changes.

Other environmental requirements:

nOperating temperature: 0° to 40°C (32° to 104°F)

nOperating humidity: 5% to 90% non-condensing

nNon-operating temperature: –25° to 75°C (-13° to 167°F)

nNon-operating humidity: 0% to 95% non-condensing

WatchGuard Technologies, Inc. v

Hardware Description

Front

Front view of the Firebox:

Failover

The Failover indicator is lit when there is a WAN failover from the primary external interface to the

backup interface. After the external interface connection fails back to the primary external interface,

the indicator is not lit.

WAP

On the Firebox T40-W model, the WAP indicator is lit when the appliance is activated as a wireless

access point or a wireless client. The color indicates the active wireless radio band. The light blinks

when data is sent and received. The speed of the blink increases as the data flow increases.

Indicator Indicator Color Wireless Band

WAP

Yellow 2.4 GHz radio band

Green 5 GHz radio band

WatchGuard Firebox T40/T40-W Hardware Guide

vi WatchGuard Technologies, Inc.

WatchGuard Firebox T40/T40-W Hardware Guide

Network Interface Status Indicators

The Firebox T40 has five network interfaces. There are two status indicators for each interface.

Indicator Indicator Color Interface Status

1000

Yellow

On Link speed: 1000 Mbps

Blinks (speed of blink increases as the data flow

increases)

Data sent and received

10/100

Green

On Link speed: 10 Mbps or 100

Mbps

Blinks (speed of blink increases as the data flow

increases)

Data sent and received

Status

The Status indicator is lit when there is a management connection to the device. The Status indicator

is lit for 30 seconds after you connect to the device with the Fireware Web UI or the command line

interface. It is also lit when the device is polled by WatchGuard System Manager.

Mode

The Mode indicator shows the status of the external network connection. If the device can connect

to the external network and send traffic, the indicator is green. The indicator flashes if the device

cannot send traffic to the external network.

Attn

The Attn indicator is yellow when you start the device with the Reset button pressed. For more

information, see

Restore Factory-Default Settings

Power ( )

The Power indicator is lit to indicate power status. It is green when the Firebox is powered on.

WatchGuard Technologies, Inc. vii

Rear

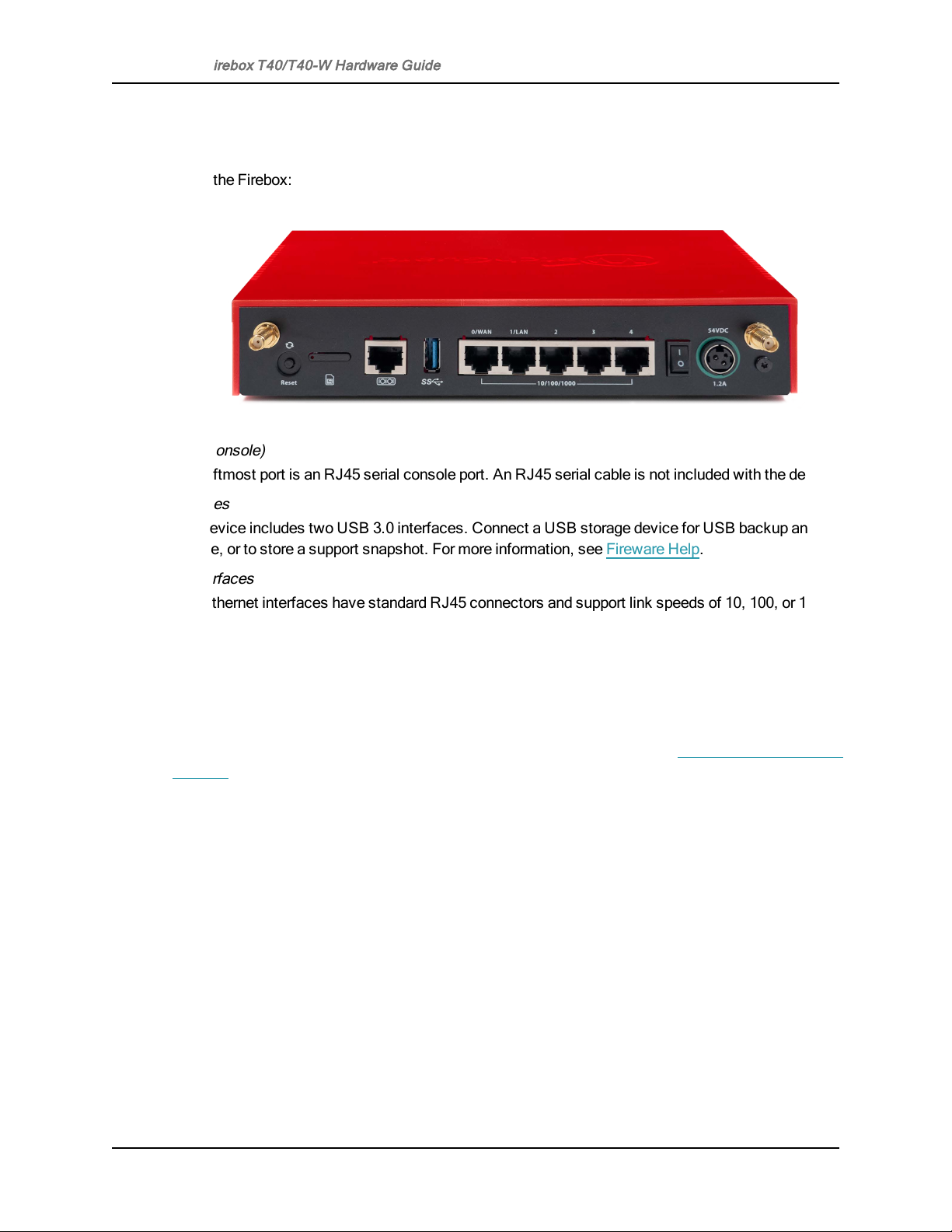

Rear view of the Firebox:

Serial Port (Console)

The leftmost port is an RJ45 serial console port. An RJ45 serial cable is not included with the device.

USB Interfaces

The device includes two USB 3.0 interfaces. Connect a USB storage device for USB backup and

restore, or to store a support snapshot. For more information, see Fireware Help.

Network Interfaces

The Ethernet interfaces have standard RJ45 connectors and support link speeds of 10, 100, or 1000

Mbps.

The Firebox T40 has five network interfaces. These interfaces are labeled 0/WAN, 1/LAN, 2, 3,

& 4

Reset

Button

This resets the device. To restore the device to factory-default settings, see

Restore Factory-Default

Settings

Power Switch

Controls the power supplied to the device. Move the switch to position 1to power on the device, or

position 0to power it off.

Power Input

An AC power adapter is included with your device. Connect the AC adapter to the device and to a

power source. Use only the supplied AC power adapter.

WatchGuard Firebox T40/T40-W Hardware Guide

viii WatchGuard Technologies, Inc.

WatchGuard Firebox T40/T40-W Hardware Guide

AC Power Adapter

The AC power adapter supplies power for the Firebox. Before you connect the adapter, verify that the color

band on the cord matches the color ring around the power plug on the Firebox.

To safely disconnect the power supply:

Slide the black plastic external housing away from the Firebox to expose the internal silver metal

connector. With the internal silver connector exposed, continue to pull to disconnect the cord.

A Firebox shipped outside the United States includes four power cables to connect to the AC power

adapter. Use the correct power cable for the power source used in your country.

WatchGuard Technologies, Inc. ix
