Wattbike AtomX Bedienungsanleitung

QUICK START GUIDE

WELCOME

TO YOUR

WATTBIKE

ATOMX

THE INDUSTRY’S MOST

ADVANCED SMART BIKE

This guide will show

you how to build and

set up your AtomX,

how to connect to

your preferred devices

and how to get the

most from your

AtomX’s features.

WELCOME TO

THE TRIBE

#WATTBIKERS

_P3

BIKE WEIGHT 48kg

BIKE FOOTPRINT Floor space = 100 x 68cm

Footprint inc Touchscreen = 144 x 68cm

MAX RIDER WEIGHT 150kg (23st, 8lb)

MIN - MAX RIDER HEIGHT 152cm - 198cm (5’ - 6’5”)

RESISTANCE TYPE Electromagnet

POWER RANGE 0 - 2500W

PEDALS Combination pedals fitted as standard

WIRELESS TECHNOLOGIES

Wi-Fi, Bluetooth, NFC, ANT (Heart Rate Only),

ANT+, Polar (Heart Rate Only) ANT+ FE-C,

Bluetooth FTMS

COMPATIBLE HR DEVICES BLE, ANT+, ANT (Suunto), Polar

SHIFTERS Each 3 buttons, hard-wired fully integrated

digital shifters with vibration motor

GEARS 22 virtual

GRADIENT 0 - 25%

POWER REQUIREMENTS Mains powered 12V 7A

01 IN THE BOX

02 SPECIFICATION

– Wattbike AtomX

– Wattbike Performance

Touchscreen

– Power Adaptor

– Combination Pedals

– Quick Start Guide

– Allen Keys

– Spanner

TRANSPORTATION

ROLLERS

COMBINATION

P E D A L S

POWER INLET

POWER

ACCURACY

+/-1%

PERFORMANCE TOUCHSCREEN

ANGLE ADJUSTMENT

DUAL THREE BUTTON

DIGITAL SHIFTERS, HARD-

WIRED AND INCORPORATING

VIBRATION MOTOR

WATTBIKE PERFORMANCE

T O U C H S C R E E N,

WI-FI, BLUETOOTH,

FTMS, ANT+, FE-C, NFC

AND ANT COMPATIBILITY

HORIZONTAL

H A N D L E B A R

ADJUSTMENT

A D J U S TA B L E

HANDLEBAR

HEIGHT

B O T T L E C A G E

03 FEATURES

ELECTROMAGNETIC

RESISTANCE

HORIZONTAL

S A D D L E

A D J U S T M E N T

A D J U S TA B L E

SADDLE

HEIGHT

L E V E L L I N G

FEET

If you have ordered your bike as a boxed delivery, please follow

the below instructions carefully to ensure safe use following the build.

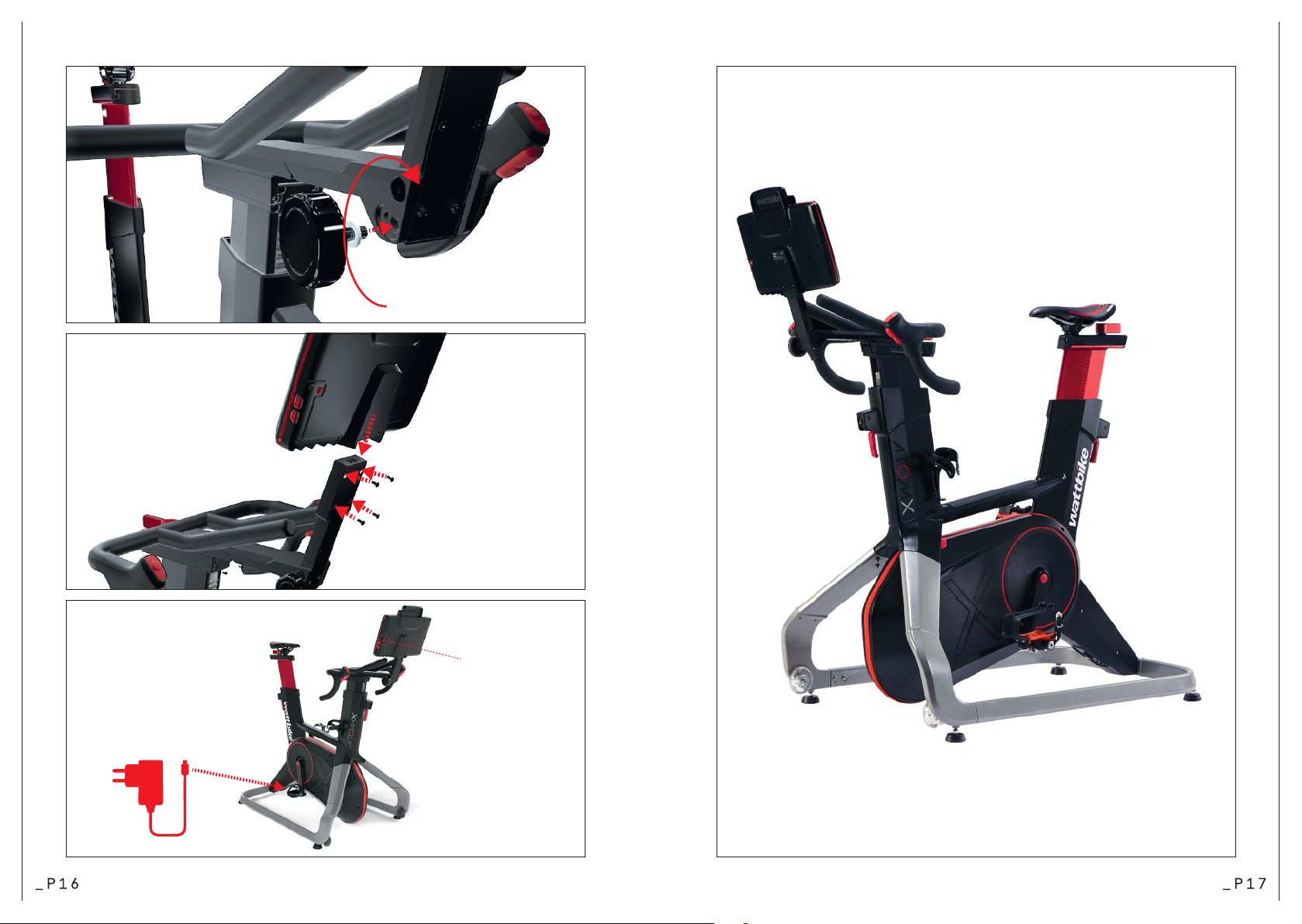

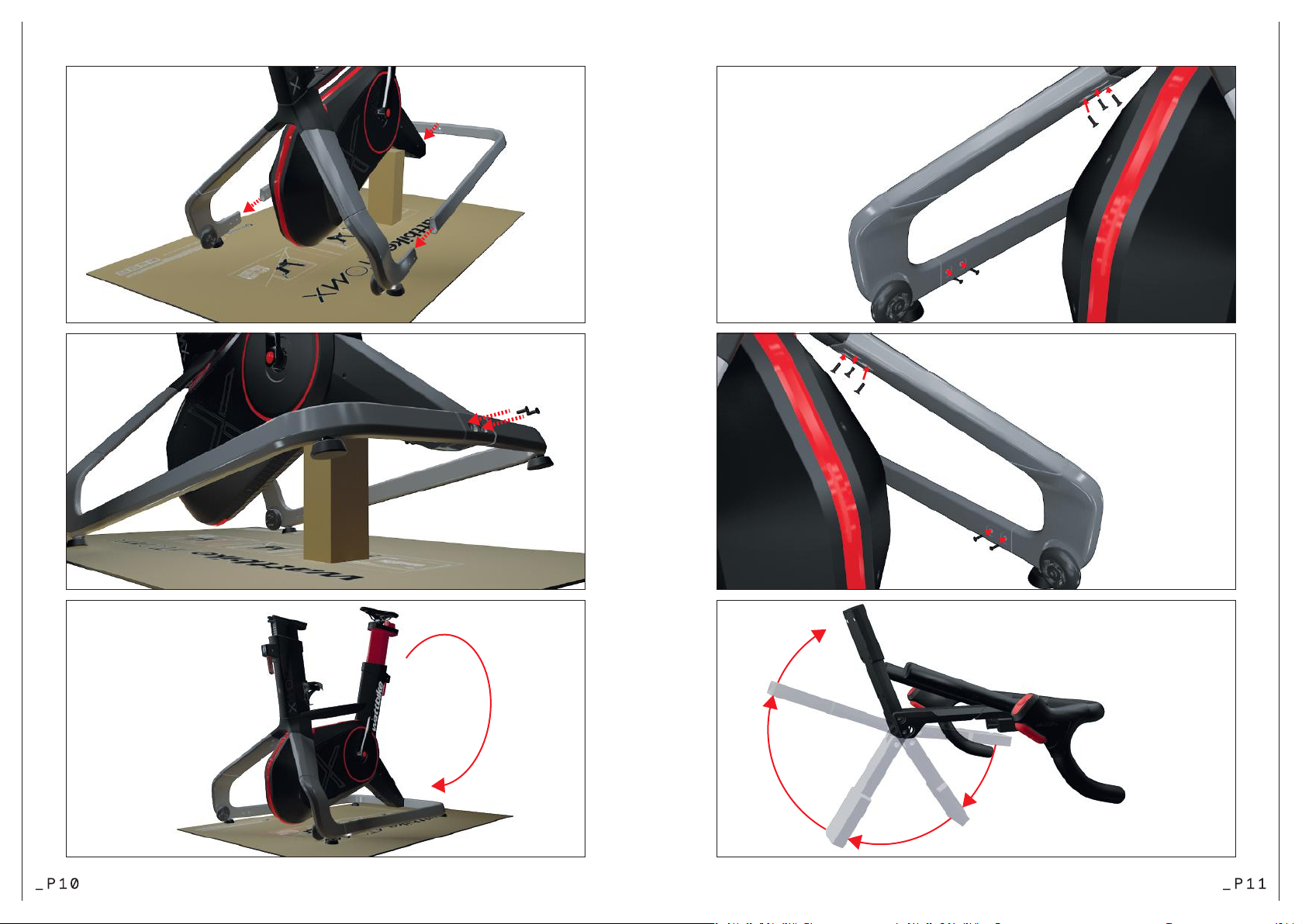

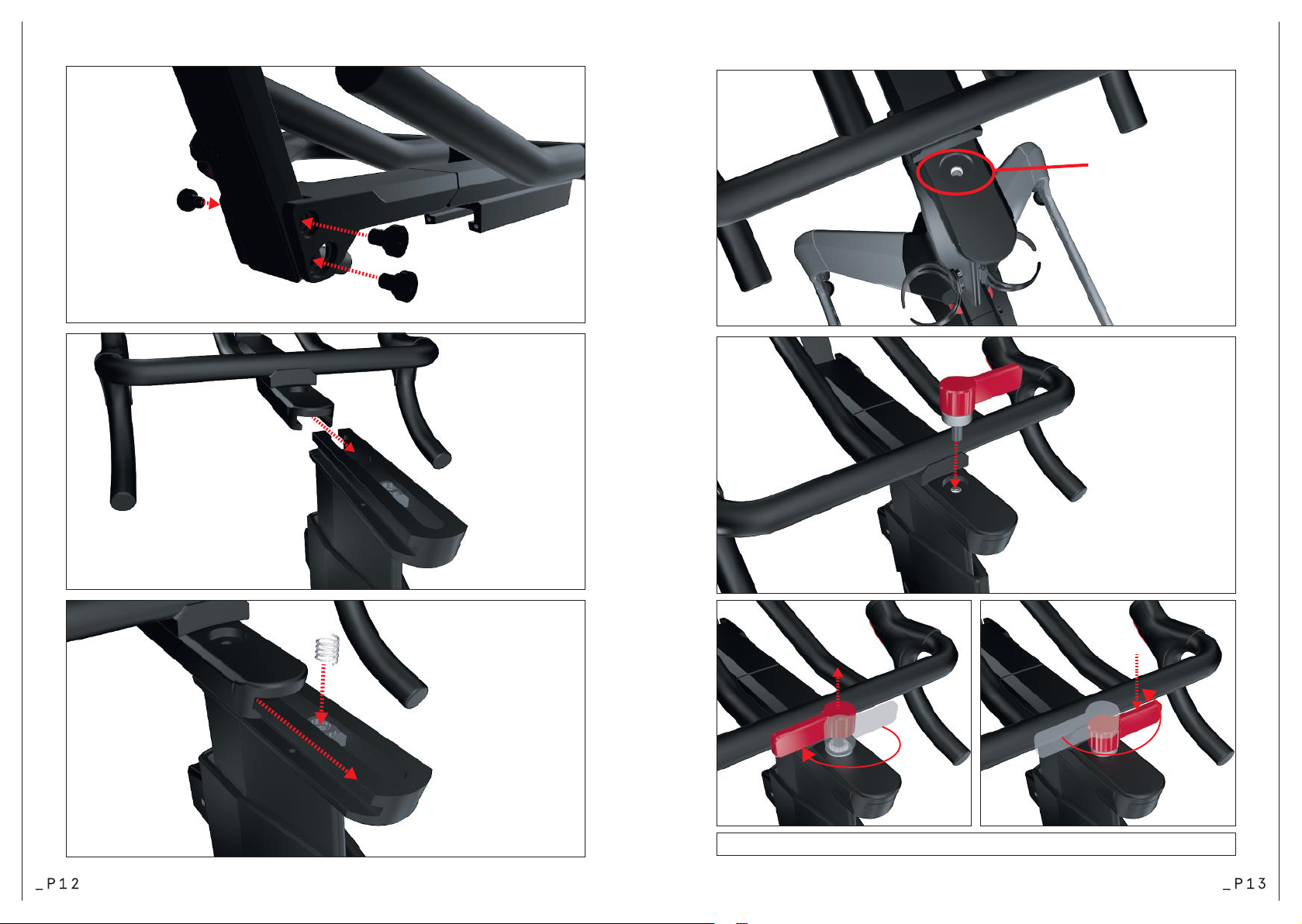

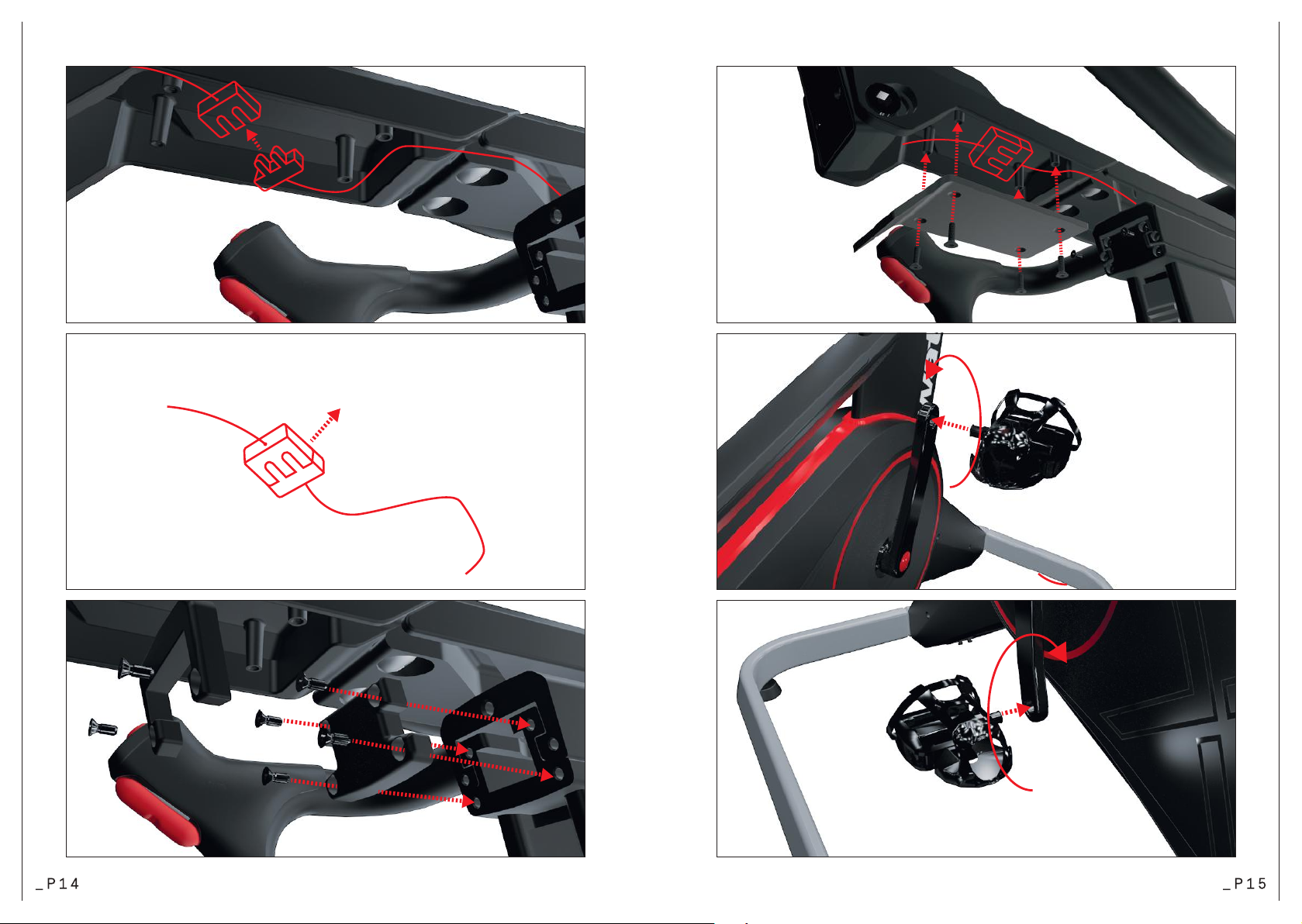

04 GET READY TO RIDE

2 7

BUILD

1Open the box and remove all contents and parts, placing these to

one side. Use a knife to cut the side of the box open. Remove the

handlebar by cutting the tie wraps on the side.

3 4

5 6

912

holes

aligned

REPEAT STEPS 20-21 UNTIL TIGHT

23 26

sec

ADJUSTING LOCK LEVERS

When adjusting the lock levers for the saddle or the handlebars,

it is imperative that after adjustments have been made, the lock lever is

returned to the fully locked position (FIG 4). If the lever is left unlocked

(FIG 3), it is at risk of allowing the saddle or handlebar to slide down

during use.

3 4

_P19
