Weider Pro 2250 Bedienungsanleitung

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manu-

al for future reference.

WEIGHT SYSTEM EXERCISER

User’s Manual

Patent Pending

Model No. 831.159301

Serial No.

Write the serial number in the

space above for reference.

Serial Number Decal (under seat)

Sears, Roebuck and Co., Hoffman Estates, IL 60179

• Assembly

• Adjustments

• Troubleshooting

• Part List and Drawing

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

WEIGHT RESISTANCE CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

CABLE DIAGRAMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90-DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

Note: A PART IDENTIFICATION CHART and a PART LIST/EXPLODED DRAWING are attached to the center of

this manual. Remove the PART IDENTIFICATION CHART and PART LIST/EXPLODED DRAWING before begin-

ning assembly.

WARNING: To reduce the risk of serious injury, read the following important precautions

before using the weight system.

IMPORTANT PRECAUTIONS

1. Read all instructions in this manual and in

the accompanying literature before using the

weight system.

2. It is the responsibility of the owner to ensure

that all users of the weight system are ade-

quately informed of all precautions.

3. The weight system is intended for home use

only. Do not use the weight system in any

commercial, rental, or institutional setting.

4. Use the weight system only on a level sur-

face. Cover the floor beneath the weight sys-

tem to protect the floor.

5. Make sure all parts are properly tightened

each time the weight system is used.

Replace any worn parts immediately.

6. Keep children under 12 and pets away from

the weight system at all times.

7. Keep hands and feet away from moving

parts.

8. Always wear athletic shoes for foot protection.

9. The weight system is designed to support a

maximum user weight of 300 pounds.

10. Always stand on a foot plate when perform-

ing an exercise that could cause the weight

system to tip.

11. Never release the press arm, butterfly arms,

leg lever, lat bar, or nylon strap while weights

are raised. The weights will fall with great

force.

12. Make sure that the cables remain on the pul-

leys at all times. If the cables bind while you

are exercising, stop immediately and make

sure that the cables are on all of the pulleys.

13. Always disconnect the lat bar from the

weight system when performing an exercise

that does not use the lat bar.

14. If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

15. The decals shown below have been placed

on the weight system in the locations shown

on page 4. If a decal is missing or illegible,

call our toll-free Customer Service

Department at 1-877-992-5999 and order a

free replacement decal. Apply the decal in the

location shown.

Keep hands and

fingers clear of

this area.

Decal 2

Decal 1

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. Sears assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

BEFORE YOU BEGIN

Thank you for selecting the versatile WEIDER®PRO

2250 weight system. The weight system offers an

impressive array of weight stations designed to devel-

op every major muscle group of the body. Whether

your goal is to tone your body, build dramatic muscle

size and strength, or improve your cardiovascular sys-

tem, the weight system will help you to achieve the

specific results you want.

For your benefit, read this manual carefully before

using the weight system. If you have questions after

reading this manual, call 1-800-4-MY-HOME®

(1-800-469-4663). To help us assist you, please note

the product model number and serial number before

calling. The model number is 831.159301. The serial

number can be found on a decal attached to the

weight system (see the front cover of this manual for

the location of the decal).

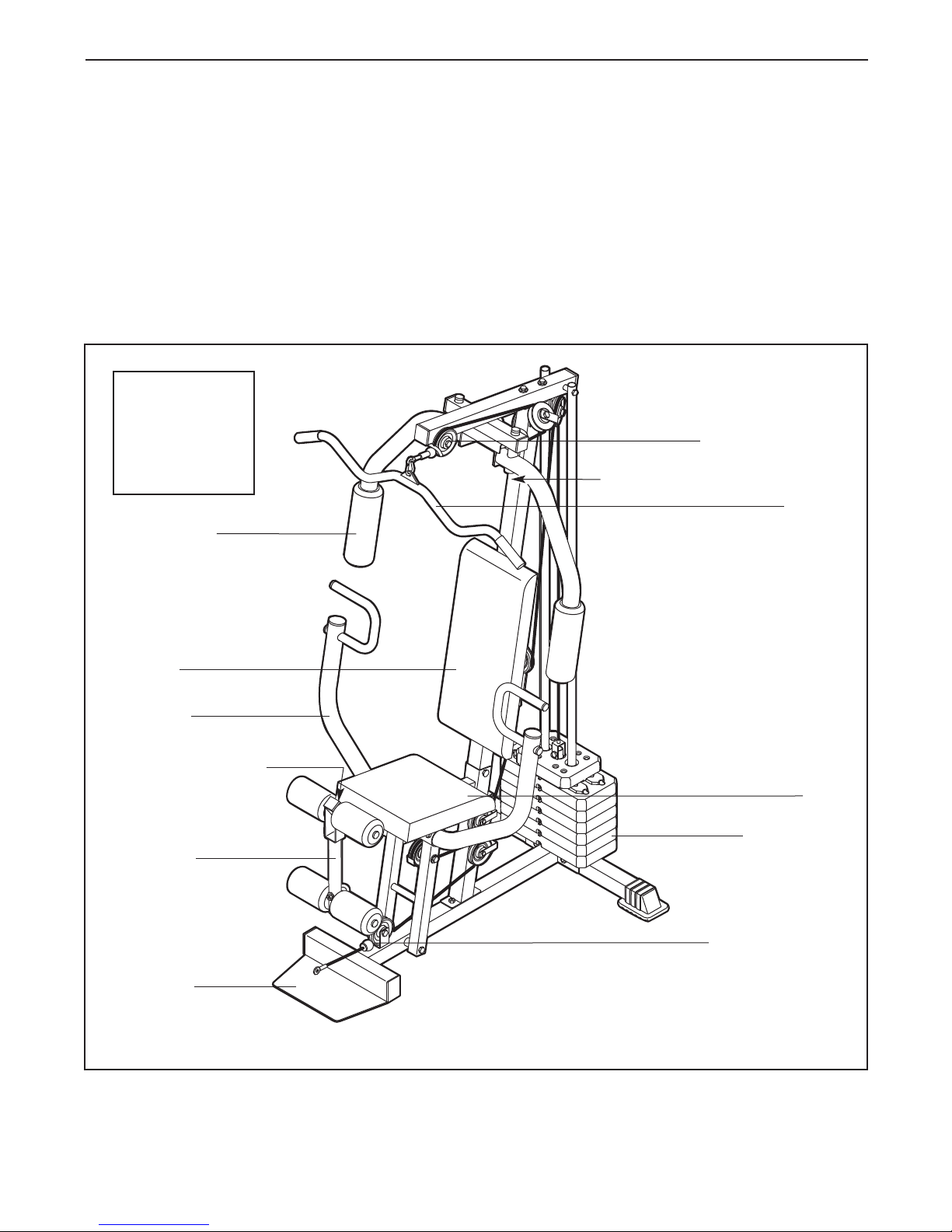

Before reading further, please review the drawing

below and familiarize yourself with the parts that are

labeled.

ASSEMBLED

DIMENSIONS:

Height: 76 in.

Width: 38 in.

Length: 53 in.

Foot Plate

Low Pulley Station

High Pulley Station

Left Side

Right Side

Lat Bar

Decal 1

Decal 2

Leg Lever

Butterfly Arms

Press Arm

Weight Stack

Seat

Backrest

Note: The terms “right side” and “left side”

are determined relative to a person sitting

on the seat; they do not correspond to right

and left on the drawings in the manual.

Small

Holes

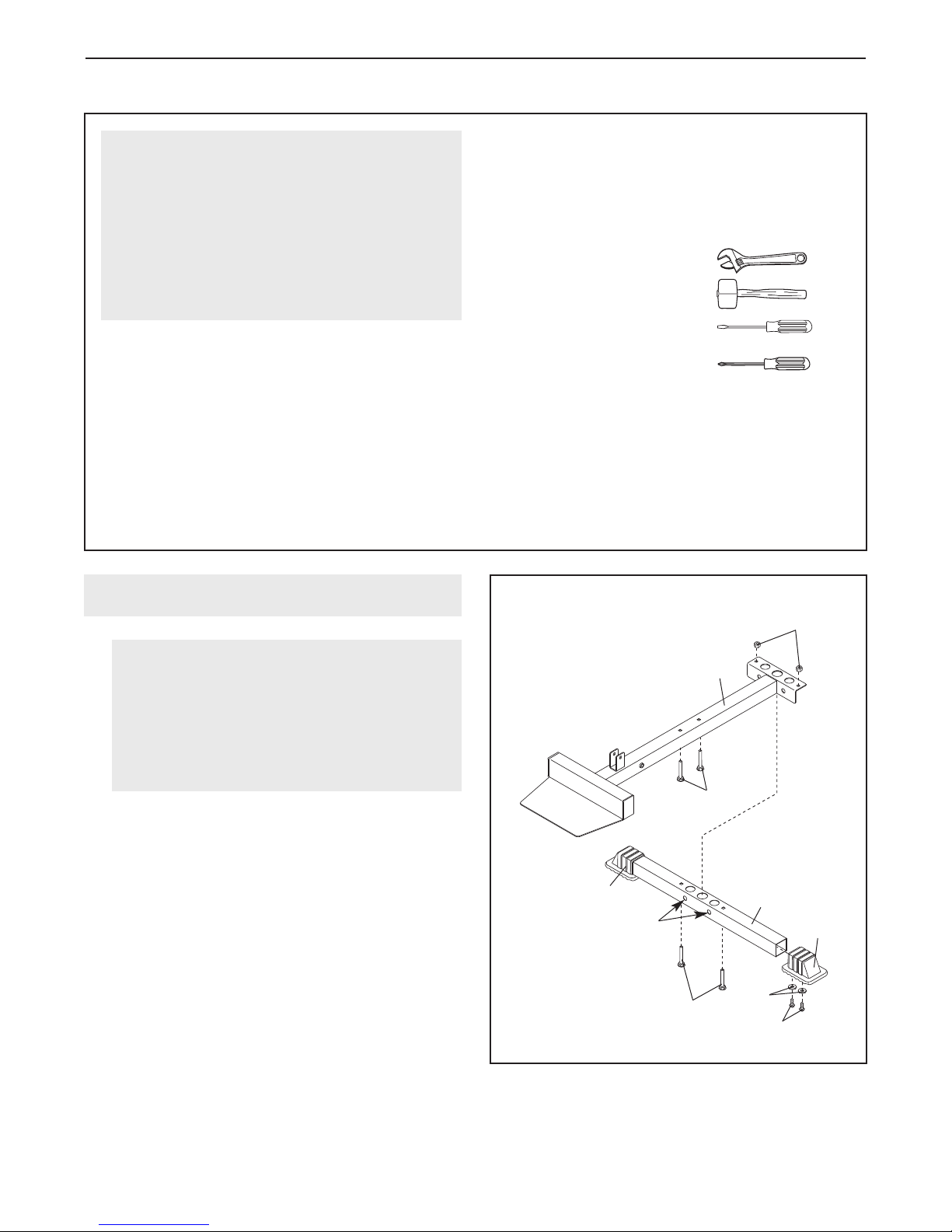

Attach a Stabilizer Foot (51) to the Stabilizer (5)

with two M4 x 20mm Screws (56) and two M4

Washers (82). Attach another Stabilizer Foot in

the same manner.

Insert two M10 x 67mm Carriage Bolts (14) up

through the Stabilizer (5). Insert two M8 x 65mm

Carriage Bolts (1) up through the Base (4). Note:

It may be helpful to place a piece of tape over

the bolt heads to hold the Bolts in place.

Orient the Stabilizer (5) with the small holes on

the indicated side. Attach the Base (4) to the

Stabilizer with the two M10 x 67mm Carriage

Bolts (14) and two M10 Nylon Locknuts (21). Do

not tighten the Locknuts yet.

Frame Assembly

Before beginning assembly, make sure that

you have read and understand the informa-

tion in the box above.

For help identifying small parts, use the

PART IDENTIFICATION CHART in the cen-

ter of this manual.

•Assembly requires two people.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•As you assemble the weight system, make sure

all parts are oriented as shown in the drawings.

•For help identifying small parts, use the PART

IDENTIFICATION CHART at the center of this

manual.

The following tools (not included) are required

for assembly:

• Two adjustable wrenches

• One rubber mallet

• One standard screwdriver

• One Phillips screwdriver

• Lubricant, such as grease or petroleum jelly,

and soapy water.

Assembly will be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Things Easier for Yourself

Everything in this manual is designed to ensure

that the weight system can be assembled suc-

cessfully by anyone. However, it is important to

realize that the weight system has many parts

and that the assembly process will take time.

Most people find that by setting aside plenty of

time, assembly will go smoothly.

ASSEMBLY

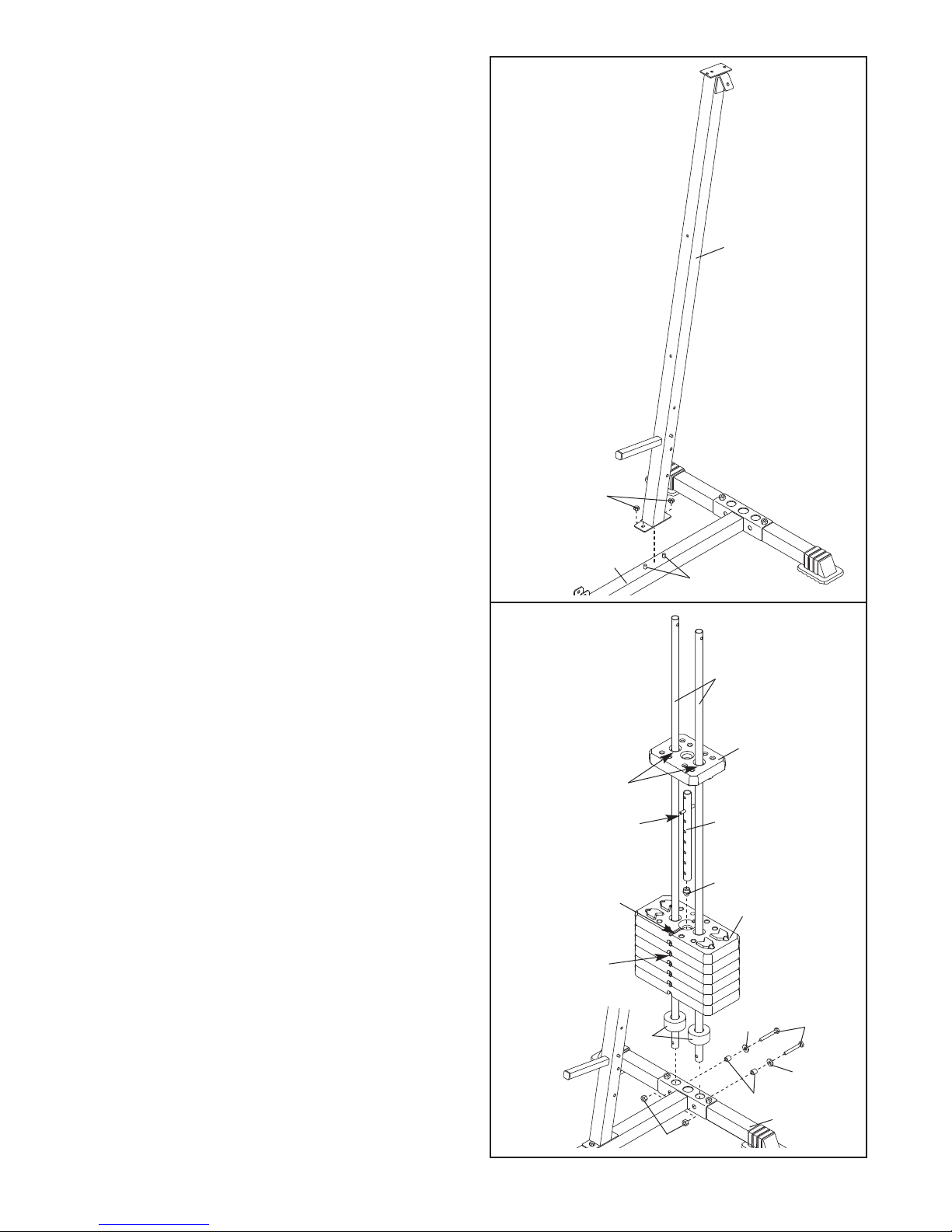

2. Slide the Front Upright (42) onto the M8 x 65mm

Carriage Bolts (1) in the Base (4). Hand tighten

two M8 Nylon Locknuts (3) onto the Carriage

Bolts. Do not tighten the Locknuts yet.

3. Attach the two Weight Guides (62) inside of the

Stabilizer (5) with two M10 x 67mm Bolts (11),

two M10 Washers (9), two 13mm Spacers (61),

and two M10 Nylon Locknuts (21).

Tighten the M10 Nylon Locknuts (21) used in

step 1.

Slide two Weight Bumpers (19) onto Weight

Guides (62). Stack the six Weights (25) on the

Weight Bumpers (19). Make sure that all of the

Weights are turned so the large pin grooves

are on the bottom of the Weights and on the

same side of the weight stack.

Press the Weight Tube Bumper (64) into the end

of the Weight Tube (63). Insert the Weight Tube

into the stack of Weights (25). Make sure that

the pins on the Weight Tube are resting in the

pin grooves in the upper Weight.

Lubricate the insides of the holes in the Top

Weight (76). Slide the Top Weight onto the

Weight Guides (62).

911

Groove

Lubricate

Groove

5. Press two 25mm Plastic Bushings (75) onto the

welded spacers on the Press Frame (17). Orient

the Press Frame with the hole in the indicated

position. Slide the Press Frame into place on the

Base (4) as shown. Note: This will be a tight fit.

The Plastic Bushings should fit onto each end

of the indicated tube in the Base.

Lubricate the M10 x 198mm Bolt (59) with

grease. Attach the Press Frame (17) to the Base

(4) with the Bolt, two M10 Washers (9), and an

M10 Nylon Locknut (21). Do not overtighten the

Locknut; the Press Frame must be able to

pivot easily.

6. Identify the Right and Left Press Arms (46, 73) by

the position of the indicated holes.

Attach the Right Press Arm (46) to the indicated

side of the Press Frame (17) with two M10 x

75mm Bolts (22), four M10 Washers (9), and two

M10 Nylon Locknuts (21).

Assemble the Left Press Arm (73) in the same

manner.

Holes

Tube

Lubricate

Welded

Spacer

Hole

Arm Assembly

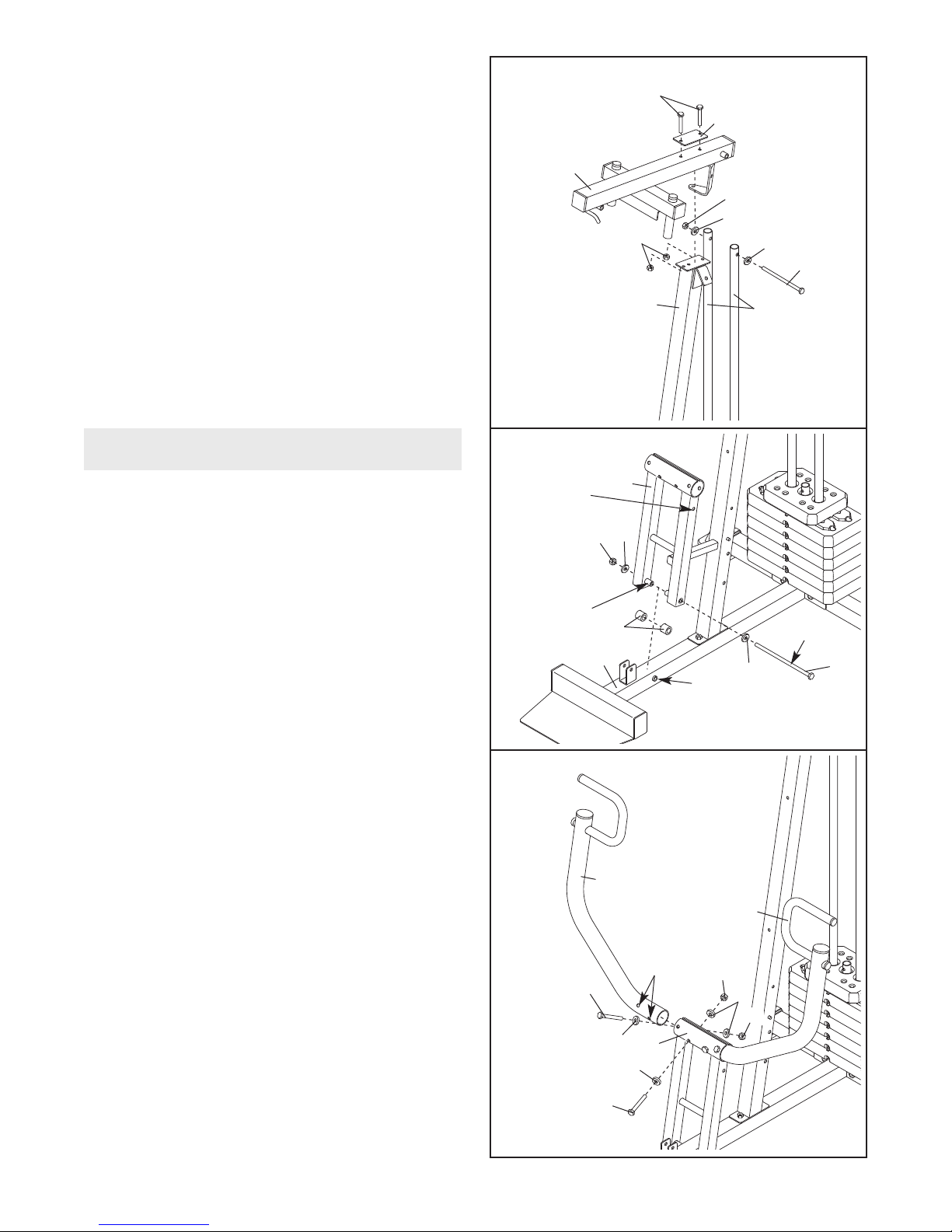

4. Attach the Top Frame (55) to the Front Upright

(42) with two M8 x70mm Bolts (81), a Support

Plate (84), and two M8 Nylon Locknuts (3).

Attach the upper ends of the Weight Guides (62)

to the Top Frame (55) with an M10 x 155mm Bolt

(60), two M10 Washers (9), and an M10 Nylon

Locknut (21).

Tighten the M8 Nylon Locknuts (3) used in

steps 2 and 4.

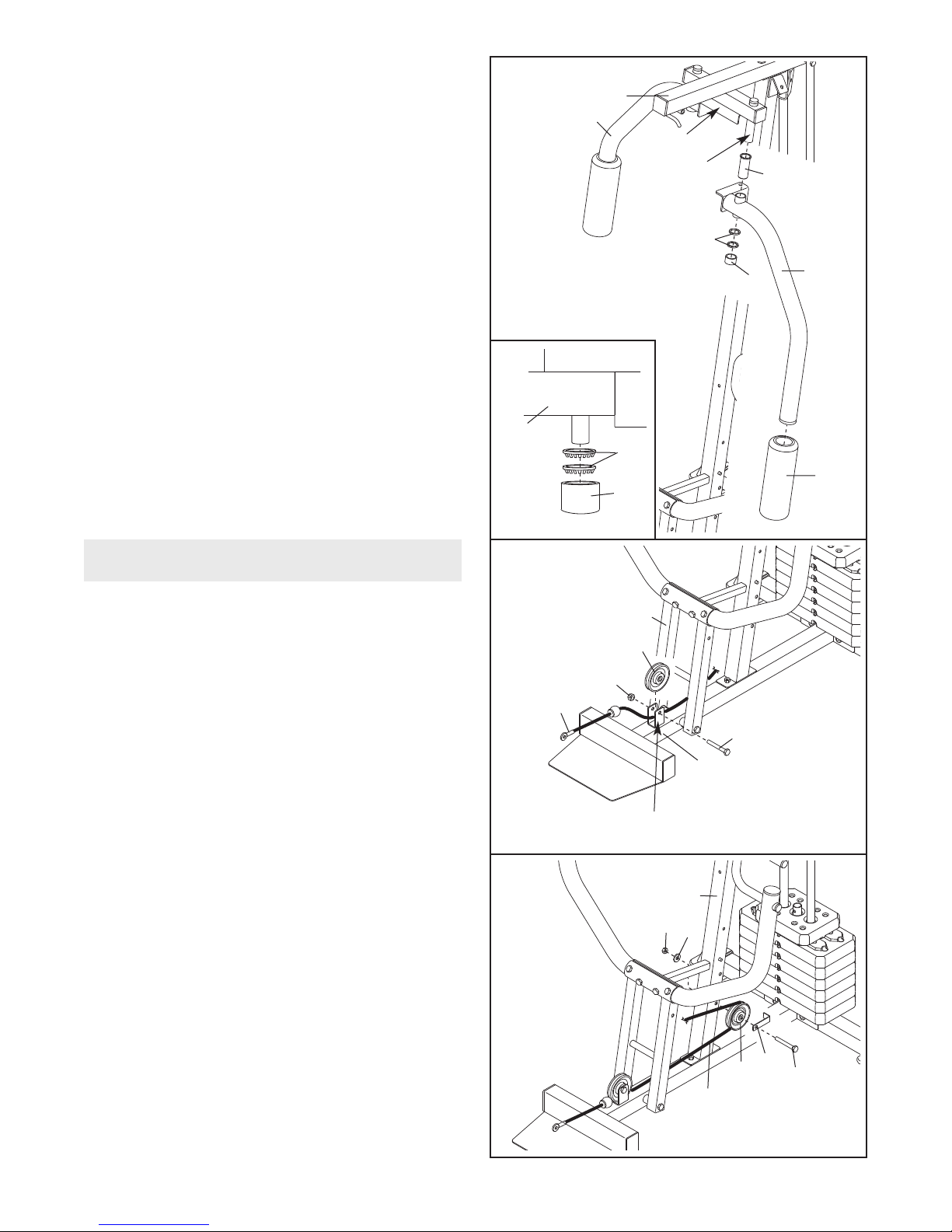

7. Identify the Right Arm (48) and the Left Arm (47)

by the position of the welded bracket on each Arm.

Wet the end of the Left Arm (47) with soapy water

and slide a Large Pad (45) onto it. Make sure the

Butterfly Arm Plastic Bushing (74) is in the Arm.

Lubricate both axles on the Top Frame (55). Have

another person slide the Left Arm (47) onto the

left axle on the Top Frame. Note: Make sure not

to confuse the Right Arm (48) with the Left

Arm. Make sure that the upper end of the Left

Arm is behind the indicated bracket on the

Top Frame.

Set two 25mm Retainers (69) on top of a 25mm

Round Cover Cap (70). Make sure that the teeth

on the Retainers bend toward the Cover Cap,

as shown in the inset drawing. Tap the

Retainers and Cap onto the left axle on the Top

Frame (55).

Attach the Right Arm (48) in the same manner.

8. During steps 8 through 19, see the CABLE

DIAGRAMS on page 17 of this manual to verify

proper cable routing.

Locate the Short Cable (58). Lay the Cable in

the bracket on the Base (4) and under the Press

Frame (17). Attach a 90mm Pulley (15) to the

bracket with an M10 x 48mm Bolt (12) and an

M10 Nylon Locknut (21). Make sure that the end

of the Cable with the ball is on the indicated

side of the bracket.

9. Route the Short Cable (58) under a 90mm Pulley

(15) Attach the Pulley and a Cable Trap (66) to

the lower hole in the Front Upright (42) with an

M10 x 95mm Bolt (71), an M10 Washer (9), and

an M10 Nylon Locknut (21). Make sure that the

Cable Trap is turned to hold the Cable in the

groove of the Pulley.

Bracket

Lubricate

Axle

Bracket

66 71

Cable Assembly

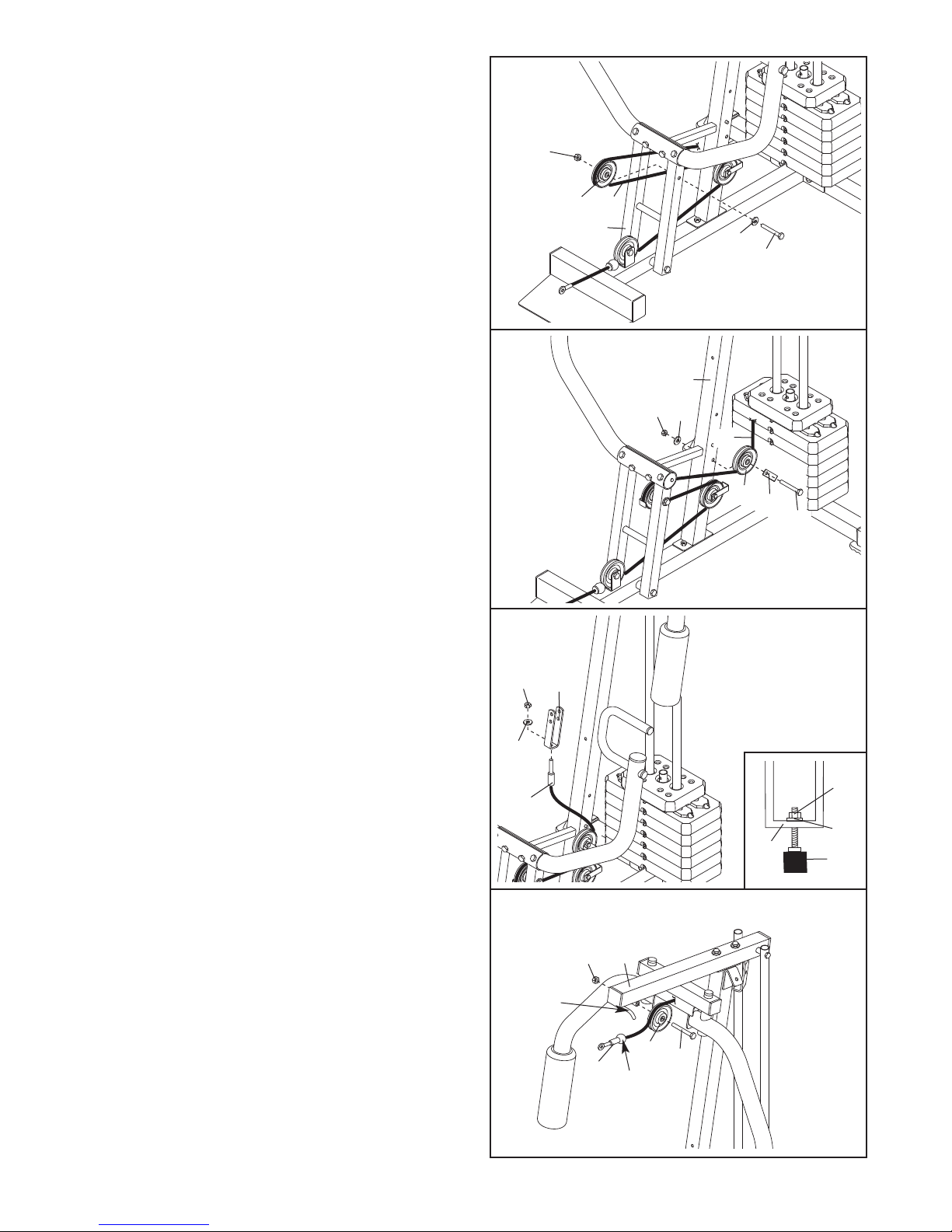

10. Route the Short Cable (58) around the 90mm

Pulley (15). Tighten the M10 x 80mm Bolt (16),

the M10 Washer (9), and the M10 Nylon Locknut

(21).

11. Route the Short Cable (58) under a 90mm Pulley

(15). Attach the Pulley and a Cable Trap (66) to

the upper hole in the Front Upright (42) with an

M10 x 95mm Bolt (71), an M10 Washer (9), and

an M10 Nylon Locknut (21). Make sure that the

Cable Trap is turned to hold the Cable in the

groove of the Pulley.

12. Attach the end of the Short Cable (58) to the

Long “U”-bracket (57) with an M8 Nylon Locknut

(3) and an M8 Washer (8). See the inset draw-

ing. Do not overtighten the Locknut; it should

be threaded onto the end of the Cable so that

two threads are showing above the nut.

13. Locate the Long Cable (23). Route the Long

Cable over a 90mm Pulley (15). Make sure that

the Cable is between the Pulley and the hook

and that the end of the Cable with the ball is

on the indicated side of the hook. Tighten the

M10 x 90mm Bolt (85) and the M10 Nylon

Locknut (21).

Hook

Ball

15 58

17 916

15 66 71

Bracket

15 66

12 57

14. Wrap the Long Cable (23) over a “V”-pulley (6).

Attach the “V”-pulley and a Long Cable Trap (50)

to the Front Upright (42) with an M10 x 58mm

Bolt (7) and an M10 Nylon Locknut (21). Make

sure that the Long Cable Trap is positioned to

hold the Cable in the groove of the “V”-pulley.

15. Route the Long Cable (23) around a “V”-pulley

(6). Attach the “V”-pulley and a Long Cable Trap

(50) to the Left Arm (47) with an M10 x 58mm

Bolt (7) and an M10 Nylon Locknuts (21). Make

sure that the Long Cable Trap is positioned to

hold the Cable in the groove of the “V”-pulley.

Repeat this step with the Right Arm (48).

16. Route the Long Cable (23) over the 90mm Pulley

(15) attached to the Pulley Bracket (20). Make

sure that the Cable Trap (66) is oriented to

hold the Cable in the groove of the Pulley.

Tighten the M10 x 48mm Bolt (12) and the M10

Nylon Locknut (21).

Properly tighten the M8 x 117mm Bolt (68) and a

M8 Nylon Locknut (3) attaching the Pulley

Bracket (20) to the bracket on the Top Frame

(55). Do not overtighten the Locknut; the

Pulley Bracket must be able to pivot easily.

17. Wrap the Long Cable (23) under a 90mm Pulley

(15). Attach the Pulley and a Cable Trap (66) to

the indicated hole in the Long “U”-bracket (57)

with an M10 x 48mm Bolt (12) and an M10 Nylon

Locknut (21). Make sure that the Cable Trap is

oriented to hold the Cable in the groove of the

Pulley.

Andere Handbücher für Pro 2250

Inhaltsverzeichnis

Andere Weider Heim-Fitnessstudio Handbücher

Weider

Weider 831.15969.0 Bedienungsanleitung

Weider

Weider PRO 290 W Bedienungsanleitung

Weider

Weider Pro 2000 Bedienungsanleitung

Weider

Weider 170 Tc Bench Systemhandbuch

Weider

Weider Body Blaster Force 4 Bedienungsanleitung

Weider

Weider WEBE07920 Bedienungsanleitung

Weider

Weider Pro 2000 Bedienungsanleitung

Weider

Weider Wb-450 Bench Bedienungsanleitung

Weider

Weider WESY19510 Bedienungsanleitung

Weider

Weider Body Works Pro 2.0 Bench Kurzanleitung

Weider

Weider 150 L Utility Bench Bedienungsanleitung

Weider

Weider WEEVBE33110 Bedienungsanleitung

Weider

Weider E8002 Bedienungsanleitung

Weider

Weider Power Guide X1s Bedienungsanleitung

Weider

Weider E5500 FLEX STACKMASTER Bedienungsanleitung

Weider

Weider PRO 240 831.15607.0 Bedienungsanleitung

Weider

Weider WB-320 Classic Bedienungsanleitung

Weider

Weider Flat Bench Sa 10-4 Bedienungsanleitung

Weider

Weider Powerguide Home Gym Sy X2s Bedienungsanleitung

Weider

Weider C102 Bedienungsanleitung

Weider

Weider WESY5993.3 Bedienungsanleitung

Weider

Weider B-240 Bedienungsanleitung

Weider

Weider 9000 Bench Bedienungs- und Wartungshandbuch

Weider

Weider WESY8630C3 Bedienungsanleitung

Beliebte Heim-Fitnessstudio Handbücher anderer Marken

Horizon Fitness

Horizon Fitness OXFORD 6 Bedienungsanleitung

Energetics

Energetics Multi Trainer 5.1 Bedienungsanleitung

Matrix

Matrix MG-PL Series Bedienungsanleitung

Reebok

Reebok Tbr2i Bedienungs- und Wartungshandbuch

Pure Fitness

Pure Fitness 8526HE Bedienungsanleitung

Bowflex

Bowflex Sport 001-6961 Bedienungsanleitung

NordicTrack

NordicTrack E8200 Competition Bench Kurzanleitung

Body Solid

Body Solid GHYP-345 Bedienungsanleitung

Evo

Evo TAHOE 5105 Bedienungsanleitung

cardiobull

cardiobull RA17 Bedienungsanleitung

ParaBody

ParaBody 40 Bedienungsanleitung

JLL

JLL Ventus Pro Air Power Bedienungsanleitung

Trojan

Trojan Colorado 370 Bedienungsanleitung

Octane Fitness

Octane Fitness xRide xR650 Bedienungsanleitung

Precor

Precor Discovery Series Bedienungsanleitung

Insportline

Insportline RW600 Bedienungsanleitung

Stamina

Stamina 55-1532 Bedienungsanleitung

Tunturi

Tunturi R25 Bedienungsanleitung
