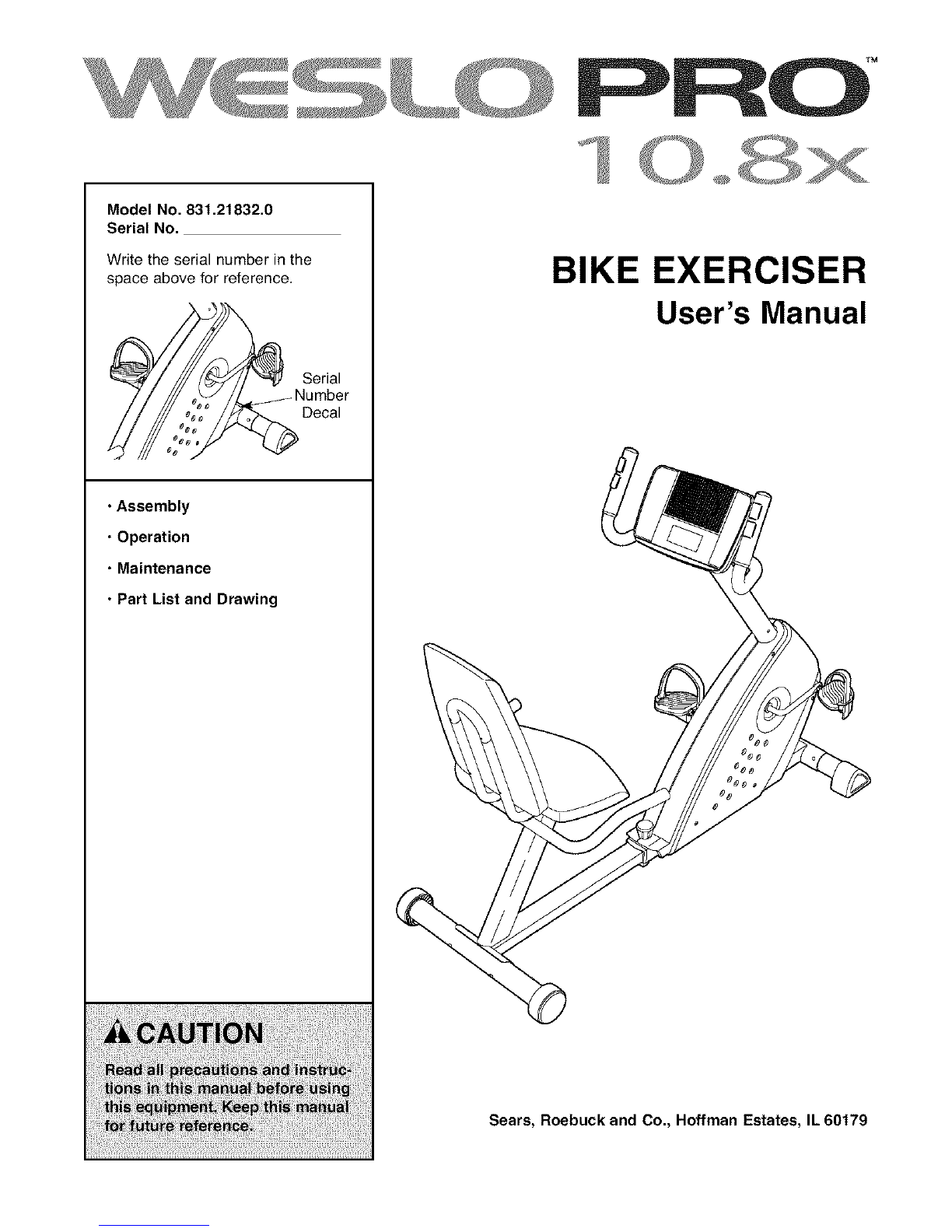

Weslo PRO 10.8x Bedienungsanleitung

Model No. 83t.2t832.0

Serial No.

Write the serial number in the

space above for reference.

_ Serial

Number

Decal

• Assembly

•Operation

•Maintenance

•Part List and Drawing

BIKE EXERCISER

User's Manual

Sears, Roebuck and Co., Hoffman Estates, IL 60179

TABLE OF CONTENTS

WARNING DECAL PLACEMENT .............................................................. 2

IMPORTANT PRECAUTIONS ................................................................ 3

BEFORE YOU BEGIN ...................................................................... 4

ASSEMBLY ............................................................................... 5

HOW TO USE THE EXERCISE CYCLE ........................................................ 11

MAINTENANCE AND TROUBLESHOOTING ................................................... 18

EXERCISE GUIDELINES ................................................................... 19

PART LIST .............................................................................. 22

EXPLODED DRAWING .................................................................... 23

ORDERING REPLACEMENT PARTS .................................................. Back Cover

90 DAY FULL WARRANTY .......................................................... Back Cover

WARNING DECAL PLACEMENT

This drawing shows the location(s) of the

warning decal(s). If a decal is missing

or illegible, call 1-866-699-3756 and

request a free replacement decal.

Apply the decal in the location shown.

Note: The decal(s) may not be shown at

actual size.

• Misuseof this machine

may result in serious

injury.

•Read user's mannualI

prior to use and follow

all warnings and

instructions.

• Do not allow children

on or around machine.

•Peda s continue to

spin when you stop

pedaling,

• Spinnintj pedals can

cause injury.

•Reduce pedal speed

in a controlledmanner.

•User weight must not

exceed 250 pounds.

•Replace label if

damaged, illegible, or

removed. [_

IMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Thank you for selecting the new WESLO PRO TM

10.8X exercise cycle. Cycling is one of the most effec-

tive exercises for increasing cardiovascular fitness,

building endurance, and toning the body. The 10.8X

exercise cycle offers a selection of features designed

to let you enjoy this healthful exercise in the conve-

nience and privacy of your home.

For your benefit, read this manual carefully before

you use the exercise cycle. If you have questions

after reading this manual, please see the back cover

of this manual. To help us assist you, note the product

model number and serial number before contacting

us. The model number and the location of the serial

number decal are shown on the front cover of this

manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Fan

Console

Pulse Sensor

Backrest )dal/Strap

Seat

Adjustment Knob

Wheel Handlebar

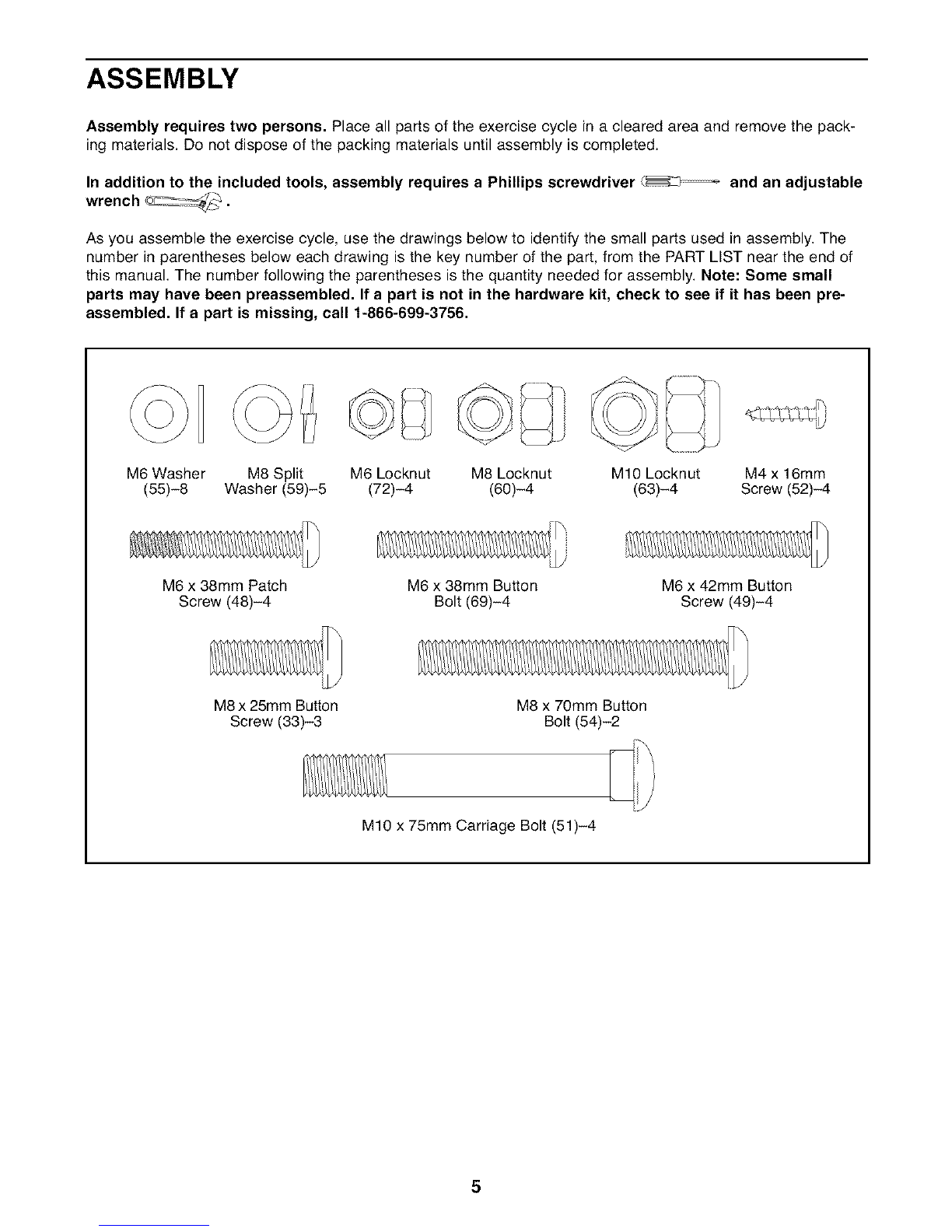

ASSEMBLY

Assembly requires two persons. Place all parts of the exercise cycle in a cleared area and remove the pack-

ing materials, Do not dispose of the packing materials until assembly is completed,

In addition to the included tools, assembly requires a Phillips screwdriver _and an adjustable

wrench _.

As you assemble the exercise cycle, use the drawings below to identify the small parts used in assembly. The

number in parentheses below each drawing is the key number of the part, from the PART LIST near the end of

this manual. The number following the parentheses is the quantity needed for assembly. Note: Some small

parts may have been preassembled. If a part is not in the hardware kit, check to see if it has been pre-

assembled. If a part is missing, call t-866-699-3756.

M6 Washer M8 Split M8 Locknut M10 Locknut M4 x 16ram

(55)-8 Washer (59)-5 (60)-4 (63)-4 Screw (52)-4

M6 Locknut

(72)-4

M6 x 38mm Patch

Screw (48)-4 M6 x 38mm Button

Bolt (69)-4 M6 x 42ram Button

Screw (49)-4

M8 x 25mm Button

Screw (33)-3 M8 x 70mm Button

Bolt (54)-2

M10 x 75mm Carriage Bolt (51)-4

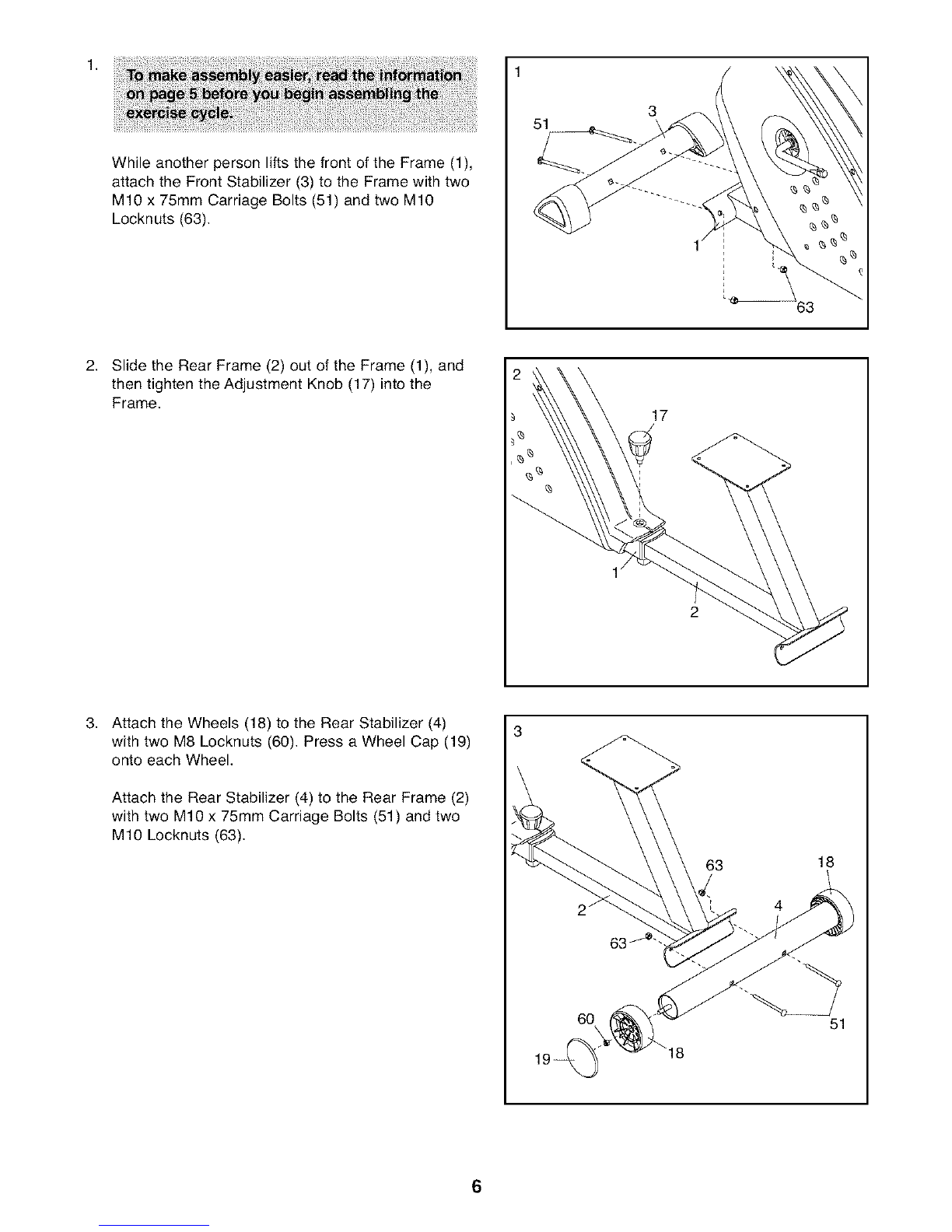

While another person lifts the front of the Frame (1),

attach the Front Stabilizer (3) to the Frame with two

M10 x 75ram Carriage Bolts (51) and two M10

Locknuts (63).

51 3

2, Slide the Rear Frame (2) out of the Frame (1), and

then tighten the Adjustment Knob (17) into the

Frame. 17

3, Attach the Wheels (18) to the Rear Stabilizer (4)

with two M8 Locknuts (60). Press a Wheel Cap (19)

onto each Wheel.

Attach the Rear Stabilizer (4) to the Rear Frame (2)

with two M10 x 75ram Carriage Bolts (51) and two

M10 Locknuts (63).

63 18

4. 4

Attach the Seat Frame (7) to the Handlebar (6) with

two M8 x 70mm Button Bolts (54), two M8 Split

Washers (59), and two M8 Locknuts (60). Do not

tighten the Button Bolts yet.

5, Attach the Backrest (5) to the Seat Frame (7) with

four M6 x 38mm Patch Screws (48) and four M6

Washers (55). Do not tighten the Patch Screws

yet.

6. 6

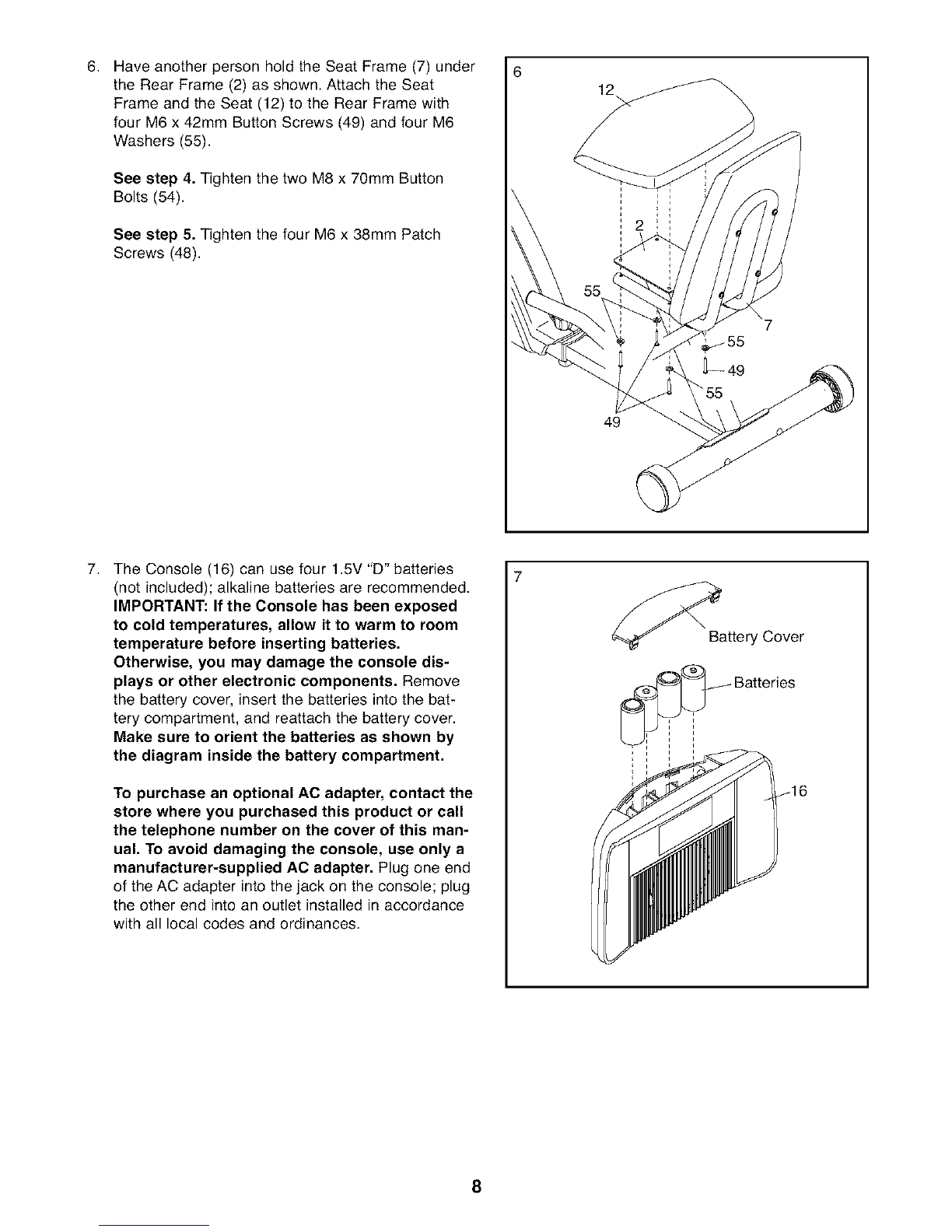

Have another person hold the Seat Frame (7) under

the Rear Frame (2) as shown. Attach the Seat

Frame and the Seat (12) to the Rear Frame with

four M6 x 42mm Button Screws (49) and four M6

Washers (55).

See step 4. Tighten the two M8 x 7Omm Button

Bolts (54).

See step 5. Tighten the four M6 x 38mm Patch

Screws (48).

7. The Console (16) can use four 1.5V "D" batteries

(not included); alkaline batteries are recommended.

IMPORTANT: If the Console has been exposed

to cold temperatures, allow it to warm to room

temperature before inserting batteries.

Otherwise, you may damage the console dis-

plays or other electronic components. Remove

the battery cover, insert the batteries into the bat-

tery compartment, and reattach the battery cover.

Make sure to orient the batteries as shown by

the diagram inside the battery compartment.

To purchase an optional AC adapter, contact the

store where you purchased this product or call

the telephone number on the cover of this man-

ual. To avoid damaging the console, use only a

manufacturer-supplied AC adapter. Plug one end

of the AC adapter into the jack on the console; plug

the other end into an outlet installed in accordance

with all local codes and ordinances.

Battery Cover

/Batteries

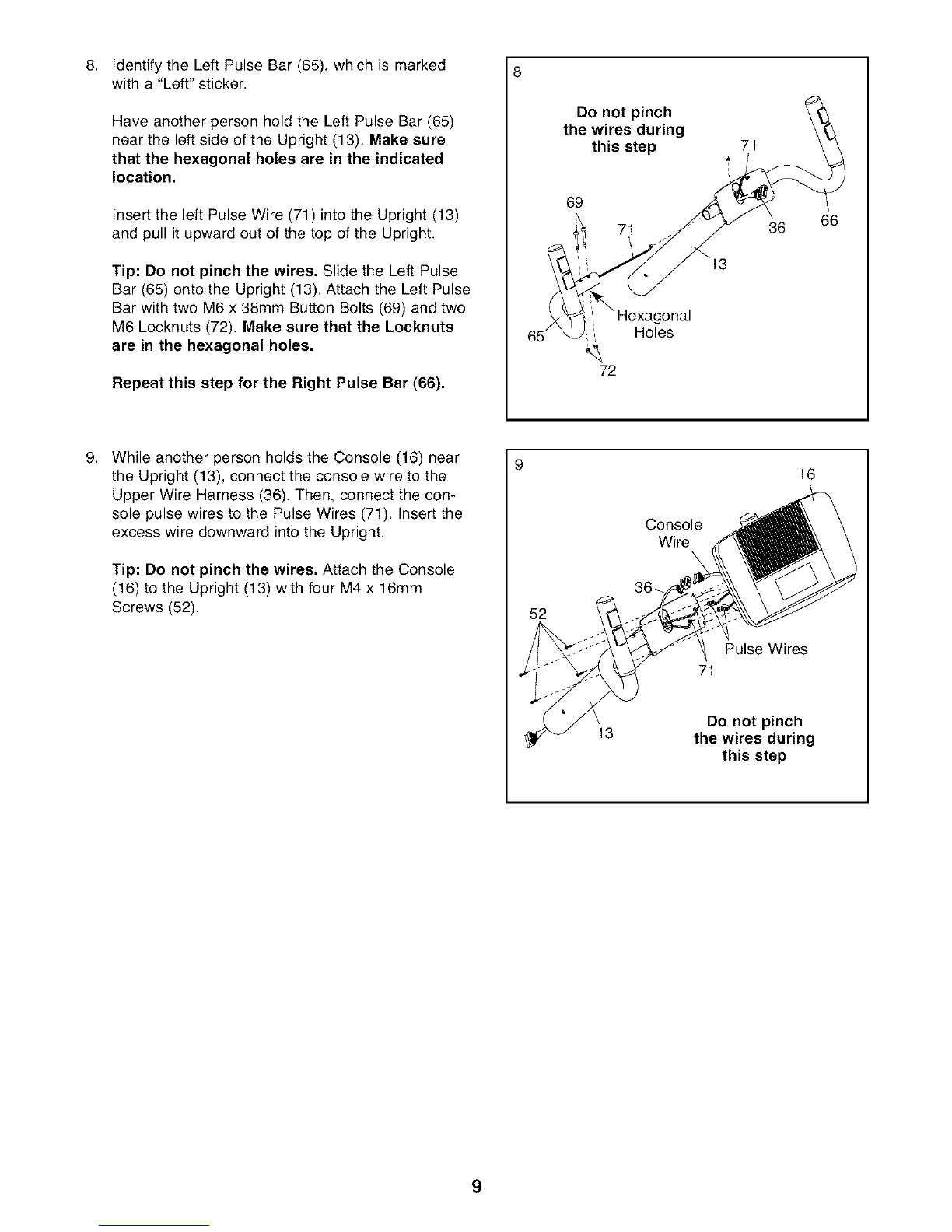

8. Identify the Left Pulse Bar (65), which is marked

with a "Left" sticker.

Have another person hold the Left Pulse Bar (65)

near the left side of the Upright (13). Make sure

that the hexagonal holes are in the indicated

location.

Insert the left Pulse Wire (71) into the Upright (13)

and pull it upward out of the top of the Upright.

Tip: Do not pinch the wires. Slide the Left Pulse

Bar (65) onto the Upright (13). Attach the Left Pulse

Bar with two M6 x 38mm Button Bolts (69) and two

M6 Locknuts (72). Make sure that the Locknuts

are in the hexagonal holes.

Repeat this step for the Right Pulse Bar (66).

Do not pinch

the wires during

this step

Holes

36 66

9. While another person holds the Console (16) near

the Upright (13), connect the console wire to the

Upper Wire Harness (36). Then, connect the con-

sole pulse wires to the Pulse Wires (71). Insert the

excess wire downward into the Upright.

Tip: Do not pinch the wires. Attach the Console

(16) to the Upright (13) with four M4 x 16mm

Screws (52).

Console

Wire\

Pulse Wires

Do not pinch

13 the wires during

this step

10. While another person holds the Upright (13) near

the Frame (1), connect the Upper Wire Harness

(36) to the Lower Wire Harness (8).

Tip: Do not pinch the Wire Harnesses (8, 36).

Slide the Upright (13) onto the Frame (1). Attach

the Upright with three M8 x 25mm Button Screws

(33) and three M8 Split Washers (59).

Do not pinch the

Wire Harnesses (8, 36)

during this step

11. Identify the Left Pedal (24), which is marked with a

"Left" sticker. Firmly tighten the Left Pedal counter-

clockwise into the left arm of the Crank (31).

Tighten the Right Pedal (not shown) clockwise into

the right arm of the Crank. IMPORTANT: Tighten

both pedals as firmly as possible. After using

the exercise cycle for one week, retighten the

pedals. For best performance, keep the pedals

tightened.

Adjust the Left Pedal Strap (25) to the desired posi-

tion, and press the end of the Left Pedal Strap onto

the tab on the Left Pedal (24). Adjust the Right

Pedal Strap (not shown) in the same way.

Tab 24

12. Make sure that all parts are properly tightened before you use the exercise cycle. Note: Some hardware

may be left over after assembly is completed. Place a mat beneath the exercise cycle to protect the floor.
