Western HHP-201 Bedienungsanleitung

Handheld Pulse Oximeter

USER MANUAL

ONE STOP SHOWROOM FOR HOSPITAL & HEALTHCARE PRODUCTS.

Supported by : S.M. Pvt. Ltd.

SERVICE INFORMATION............................................................................................... I

1 SAFETY ...................................................................................................................... ...... 1

1.1 SAFETY INFORMATION ................................................................................................ 1

1.2 PRODUCT LABEL ......................................................................................................... 2

1.3 SYMBOL ....................................................................................................................... 2

2 INTRODUCTION ............................................................................................................ 4

2.1 PRODUCT INTRODUCTION ........................................................................................... 4

2.2 DESCRIPTION OF CONTROLS,INDICATORS,AND SYMBOLS ....................................... 5

2.2.1 Overview.............................................................................................................. 5

2.2.2 Display ................................................................................................................. 6

2.2.3 Keys ..................................................................................................................... 7

2.3 DESCRIPTION OF FUNCTION ....................................................................................... 8

3 UNPACKINGG AND INSTALLATION........................................................................ 9

3.1 UNPACKING ................................................................................................................. 9

3.2 INSTALLING THE BATTERIES ....................................................................................... 9

3.3 INSTALLING AND USING THE PROBE ........................................................................ 10

4 POWER-ON AND USE.................................................................................................. 14

4.1 BASIC OPERATION .................................................................................................... 14

4.1.1 Power-On .......................................................................................................... 14

4.1.2 Running Mode .................................................................................................. 15

4.1.3 Keys Operation ................................................................................................. 15

4.1.4 Turn Off ............................................................................................................ 16

4.1.5 Charge ............................................................................................................... 16

4.1.6 Storage ............................................................................................................... 17

4.1.7 Environment of Protection .............................................................................. 17

4.2 IMPACT OF PERFORMANCE CONSIDERATION .......................................................... 17

5 ALARM FUNCTIONS................................................................................................... 19

5.1 ON/OFF FUNCTION ................................................................................................... 19

5.2 ALARM LIMIT SETUP ................................................................................................ 19

Contents

www.westernsurgical.in

Email : [email protected]

Ph. : +91-281-2232871 / 2243159

WESTERNSURGICAL

* Carrying Warranty at Rajkot Office only on site warranty not provided free of cost.

* Due to constant upgradation design, price and features are subject to change any time without prior notice.

Supported by : S.M. Pvt. Ltd.

5.3 ALARM MUTE TIME INTERVAL SETUP ...................................................................... 19

6 TROUBLESHOOTING AN D MAINTENANCE ........................................................ 21

6.1 TROUBLESHOOTING AND SOLUTIONS (REFER TO TABLE)....................................... 21

6.2 OBTAINING TECHNICAL ASSISTANCE ....................................................................... 22

6.3 RETURNING ............................................................................................................... 22

6.4 SERVICE ..................................................................................................................... 22

6.4.1 Pulse Oximeter .................................................................................................. 22

6.4.2 Probe .................................................................................................................. 23

6.5 PERIODIC SAFETY CHECKS ....................................................................................... 23

7 APPENDIX.................................................................................................................... .. 24

7.1 PRINCIPLES OF MEASUREMENT ................................................................................ 24

7.2 HHP-201 STANDARD PACKAGING ............................................................................ 25

8 GUARANTEE ................................................................................................................. 26

9 TECHNICAL SPECIFICATION.................................................................................. 27

9.1 PERFORMANCE INDEX .............................................................................................. 27

9.2. PROBE STANDARD TYPE :......................................................................................... 27

9.3. ENVIRONMENTAL REQUIREMENTS ......................................................................... 27

9.4. POWER REQUIREMENTS .......................................................................................... 27

9.5. FUSE SPECIFICATION ............................................................................................... 28

9.6. SIZE AND WEIGHT .................................................................................................... 28

9.7. THE EQUIPMENT CLASSIFICATIONS ......................................................................... 28

10 EMC (ELECTRO-MAGNETIC COMPATIBIL ITY) .............................................. 29

Contents

www.westernsurgical.in

Email : [email protected]

Ph. : +91-281-2232871 / 2243159

WESTERNSURGICAL

* Carrying Warranty at Rajkot Office only on site warranty not provided free of cost.

* Due to constant upgradation design, price and features are subject to change any time without prior notice.

Supported by : S.M. Pvt. Ltd.

EMC (Electro-Magnetic Compatibility)

Service Information

Dear Customer

Welcome to use HHP-201 Handheld Pulse Oximeter！This manual is mainly designed to

offer users the operation guidance and device maintenance information. The manual

explains specifications, installation, use, and safety information of the Oximeter. Before use,

carefully read this manual so as to use the Oximeter properly.

Note

Federal Law (USA) restricts this device to sale by or on the order of a physician.

Version information

This version is subject to change or upgrade without notice.

Version: 1.0

Software version: 1.0.0

Issue date: 2016-05

File’s NO.: HHP-201-004

1 Safety

1.1 Safety Information

This section contains important safety information related to general use of the HHP-201.

Other important safety information appears throughout the manual in sections that relate

specifically to the precautionary information. Be sure to read all text surrounding all

precautionary information.

Before using, read this manual carefully, accessory directions for use, all precautionary

information in boldface type, and specifications.

Warning

The HHP-201 is a prescription device and is to be operated by qualified personnel

only.

Explosion hazard. Do not use the HHP-201 handheld pulse oximeter in the presence

of flammable anesthetic.

He cover should be removed only by qualified service personnel. There are no

user-serviceable parts inside.

To ensure accurate performance and prevent device failure, do not expose the

HHP-201 to extreme moisture, such as rain.

Pulse oximetry readings and pulse signal can be affected by certain ambient

environmental conditions, probe application errors, and certain patient conditions.

Do not use the HHP-201 during magnetic resonance imaging (MRI) scanning.

Induced current could potentially cause burns. The HHP-201 may affect the MRI

image; the MRI unit may affect the accuracy of oximetry measurements.

If you are uncertain about the accuracy of any measurement, check the patient’s vital

signs by alternate means, and then make sure the Oximeter is functioning correctly.

SpO2 measurements may be adversely affected in the presence of high ambient light.

Shield the probe area (with a surgical towel, for example) if necessary.

Tissue damage can be caused by incorrect application or duration of use of a SpO2

probe. Inspect the probe site as directed in the probe directions for use.

Reposition the probe at least once every 4 hours to allow the patient's skin to respire.

www.westernsurgical.in

Email : [email protected]

Ph. : +91-281-2232871 / 2243159

WESTERNSURGICAL

* Carrying Warranty at Rajkot Office only on site warranty not provided free of cost.

* Due to constant upgradation design, price and features are subject to change any time without prior notice.

Supported by : S.M. Pvt. Ltd.

Safety

Caution

The HHP-201 is intended only as an adjunct in patient assessment. It must be used in

conjunction with clinical signs and symptoms.

Ambient light, movement, electromagnetic interference, artifacts, dysfunctional

hemoglobin, and certain dyes, etc. may be interfering in the pulse oximeter's

functions.

Do not autoclave, ethylene oxide sterilize. Do not immerse the HHP-201 in liquid.

The Pulse Oximeter does not provide dfib Sync signal so it cannot be connected with a

defibrillator.

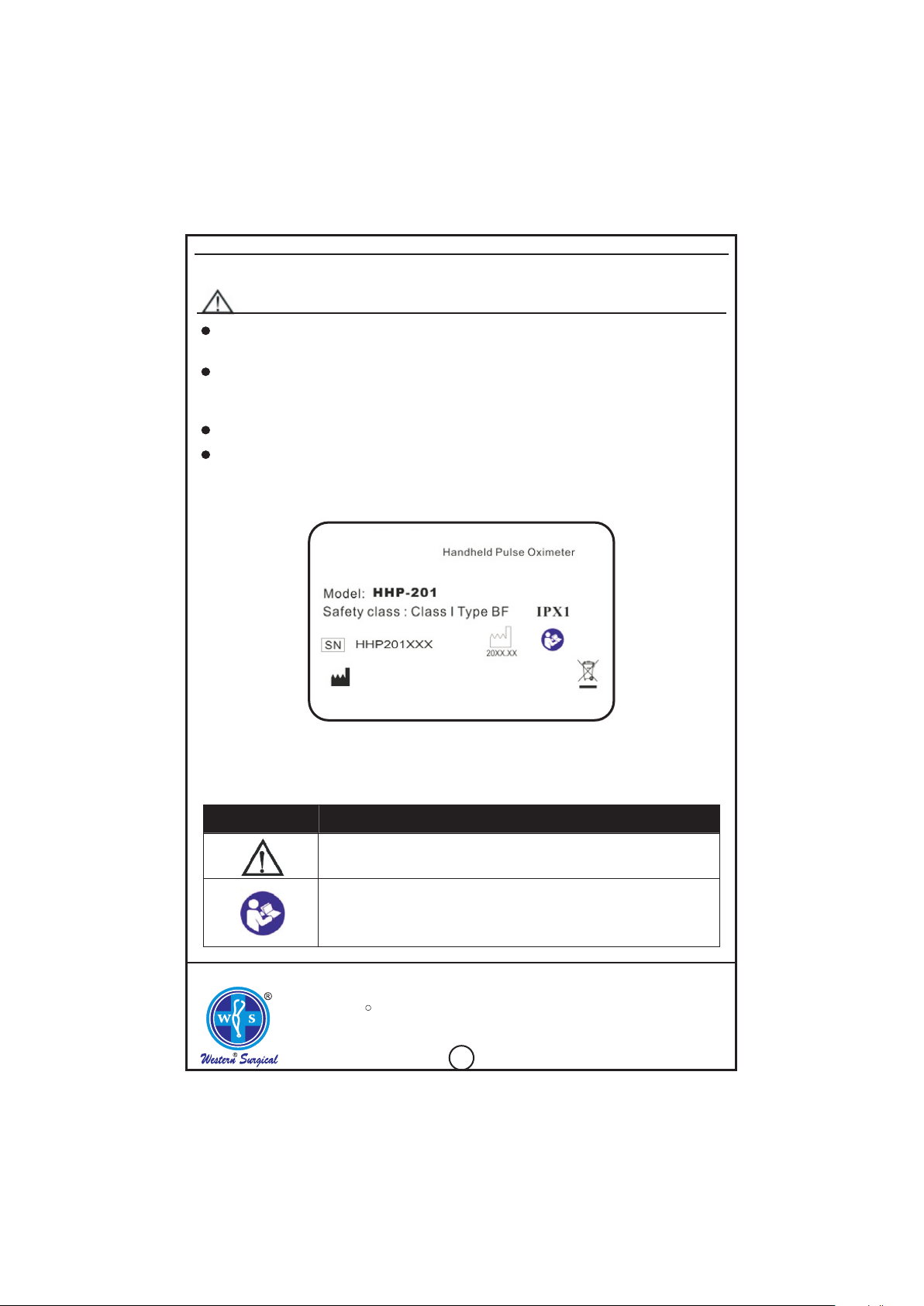

1.3 Symbol

The symbols indicated on this monitor are explained below:

Symbol Description

Attention!

Follow instructions for use.

Figure1-1: Product label

1.2 Product Label

www.westernsurgical.in

Email : [email protected]

Ph. : +91-281-2232871 / 2243159

WESTERNSURGICAL

* Carrying Warranty at Rajkot Office only on site warranty not provided free of cost.

* Due to constant upgradation design, price and features are subject to change any time without prior notice.

Supported by : S.M. Pvt. Ltd.

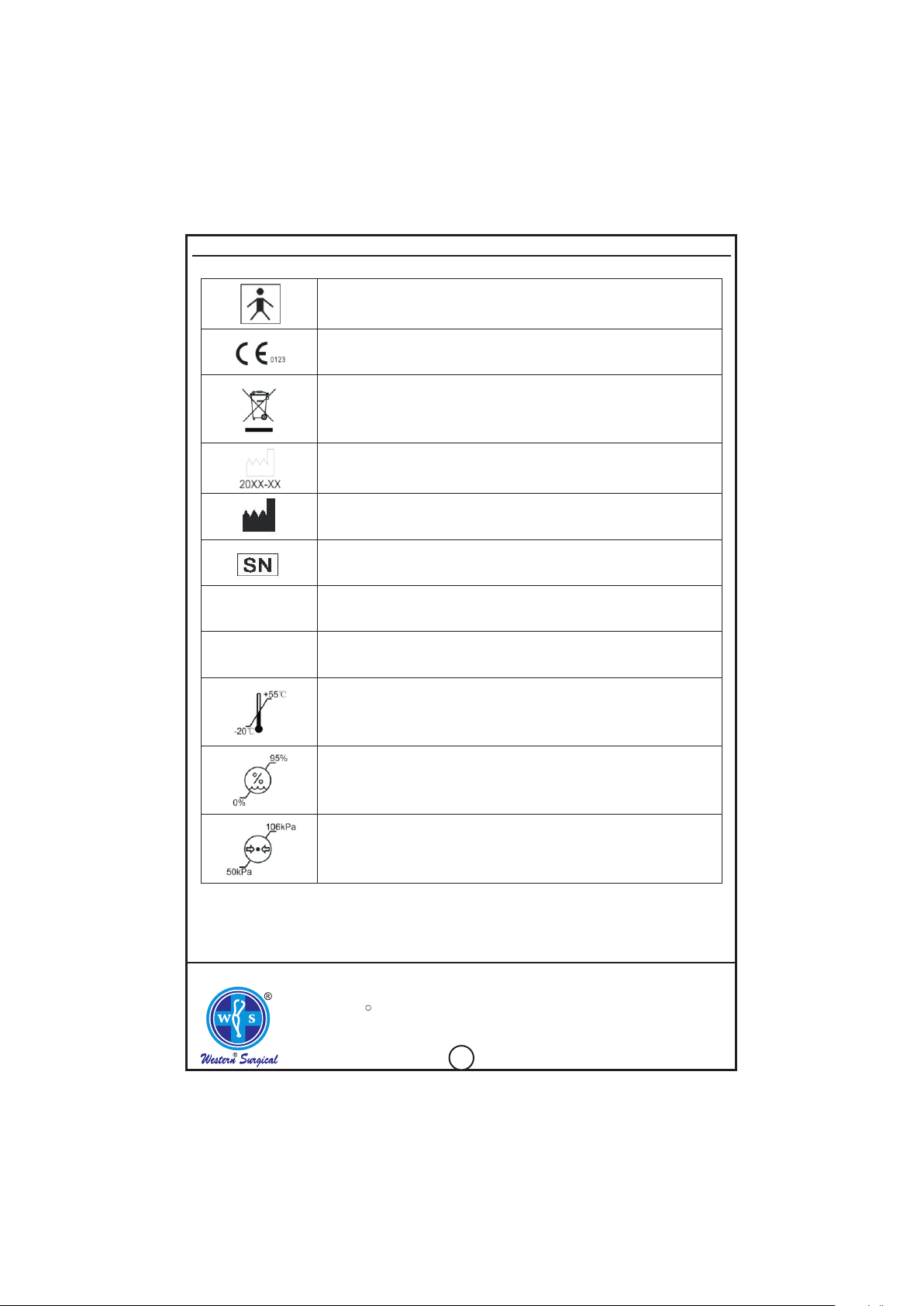

Safety

Type BF

The sign of CE authentication

The sign of reclaiming products

Date of Manufacture

Manufacturer

Serial number

RX Only Prescriptive device, operated by qualified personnel only!

IPX1 Drip proof

Temperature Limit

Humidity Limitation

Atmospheric pressure limitation

www.westernsurgical.in

Email : [email protected]

Ph. : +91-281-2232871 / 2243159

WESTERNSURGICAL

* Carrying Warranty at Rajkot Office only on site warranty not provided free of cost.

* Due to constant upgradation design, price and features are subject to change any time without prior notice.

Supported by : S.M. Pvt. Ltd.

Introduction

2 Introduction

2.1 Product Introduction

Intended use

The HHP-201 handheld pulse oximeter is a type of Monitor intended for measurement of

pulse oxygen saturation of arterial hemoglobin (%SpO2), and pulse rate. This Oximeter can

be for use on adult, pediatric, and neonatal patients.

The Pulse Oximeter contains: mainframe and probe.

Caution

The HHP-201 is intended only as an adjunct in patient assessment. It must be used in

conjunction with clinical signs and symptoms.

Warning

Do not use the HHP-201 during magnetic resonance imaging (MRI) scanning.

Induced current could potentially cause burns. The HHP-201 may affect the MRI

image; The MRI unit may affect the accuracy of oximetry measurements.

General operating principles and conditions

The HHP-201 uses pulse oximetry to measure oxygen saturation in the blood．Pulse

oximetry works by applying a probe to pulsating arteriolar vascular bed，such as a finger or

toe．The probe contains a dual light source and a photo detector．Bone，tissue，pigmentation,

and venous vessels normally absorb a constant amount of light over time．The arteriolar bed

normally pulsates and absorbs variable amounts of light during the pulsations．The ratio of

light absorbed is translated in an oxygen saturation measurement (SpO2)．

Because a measurement of SpO2 is dependent on light from the probe, excessive ambient

light can interfere with this measurement.

Warning

Pulse oximetry readings and pulse signal can be affected by certain ambient

environmental conditions, probe application errors, and certain patient conditions.

Specific information about ambient environmental conditions, probe application, and

patient conditions, is contained throughout this manual．

www.westernsurgical.in

Email : [email protected]

Ph. : +91-281-2232871 / 2243159

WESTERNSURGICAL

* Carrying Warranty at Rajkot Office only on site warranty not provided free of cost.

* Due to constant upgradation design, price and features are subject to change any time without prior notice.

Supported by : S.M. Pvt. Ltd.

Introduction

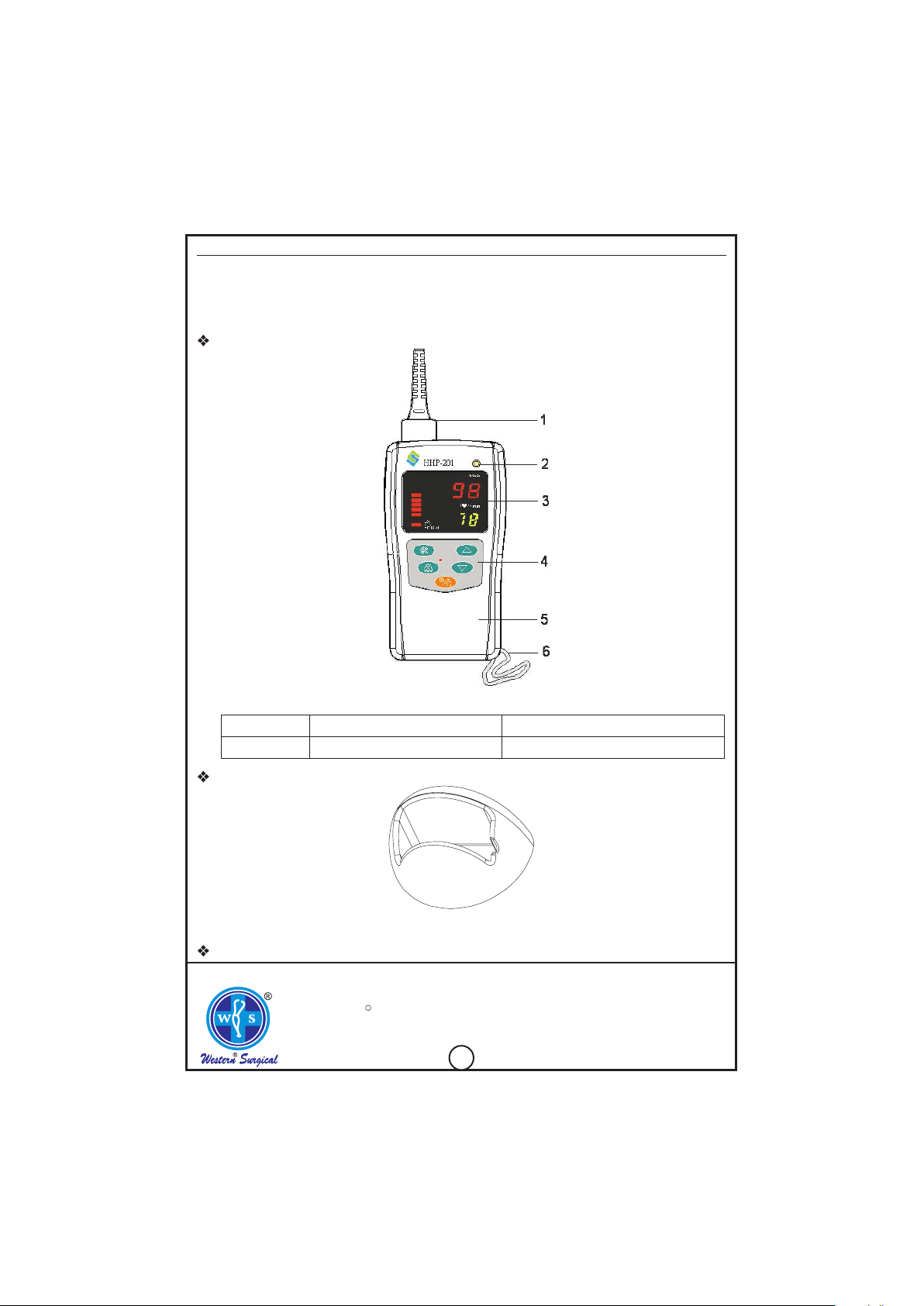

2.2 Description of Controls, Indicators, and Symbols

2.2.1 Overview

Front views

Figure 2-1：Front View

1. Probe

2. Power indicator light 3. Display Window

4. Keys

5. Front Panel

6. Wrist Tie

Stand

Figure 2-2：Stand

Rear view

www.westernsurgical.in

Email : [email protected]

Ph. : +91-281-2232871 / 2243159

WESTERNSURGICAL

* Carrying Warranty at Rajkot Office only on site warranty not provided free of cost.

* Due to constant upgradation design, price and features are subject to change any time without prior notice.

Supported by : S.M. Pvt. Ltd.

Introduction

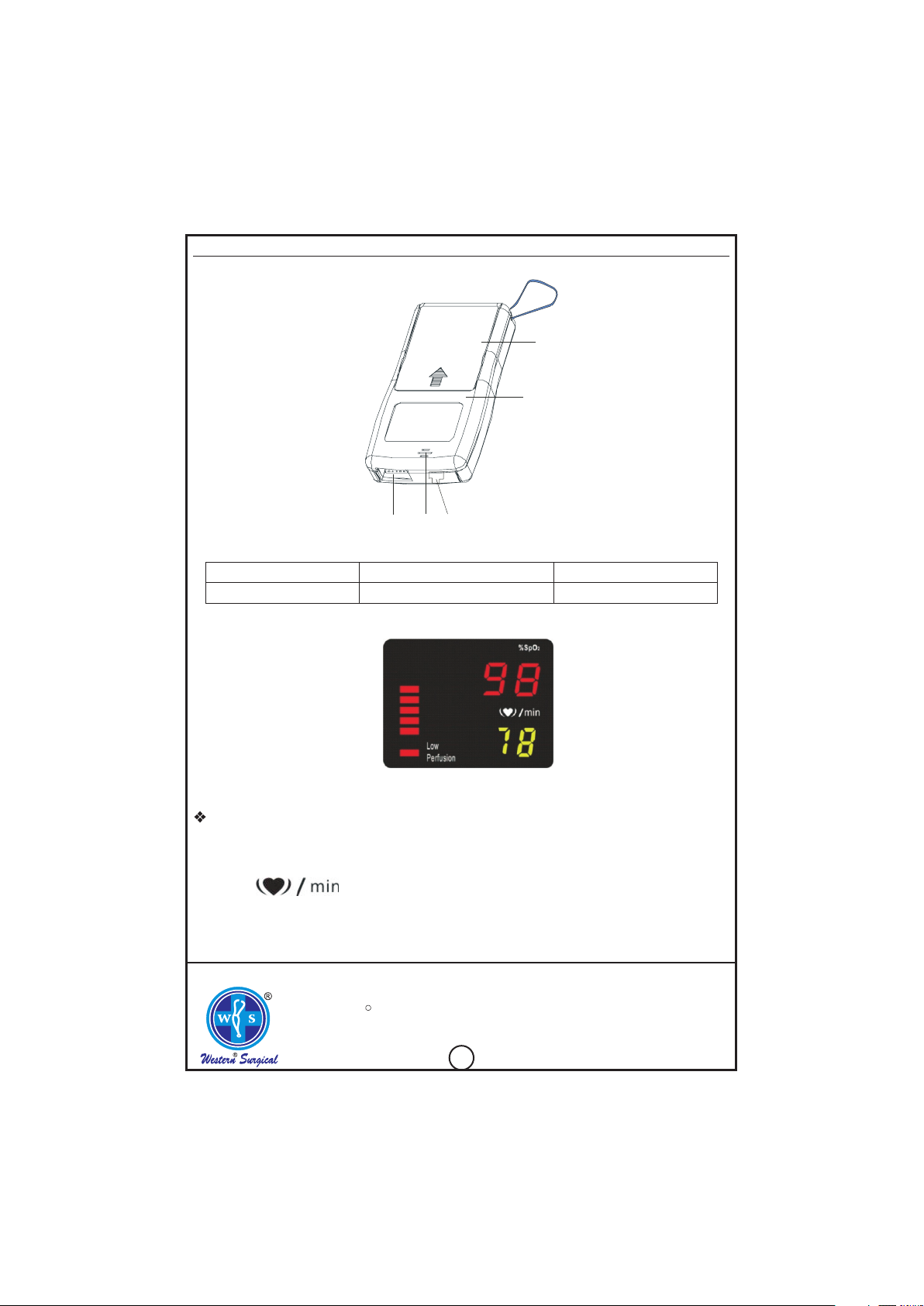

Figure 2-3: Rear view

1. Probe Socket

2. Speaker 3. Rear Panel

4. Battery Door 5.USB socket(For charging)

2.2.2 Display

Figure 2-4：Display View

Symbols

1. %SpO2: Percent oxygen saturation ,valid range is 0～100, “? ? ? ”express

invalid value.

2. : Pulse rate, Pulsation number per minute, valid range is 30～

250. Unit: bpm ; “???”Express invalid value.

3. Low Perfusion：Low perfusion indicator. During the patient pulse strength is low,

red LED will be lit.

www.westernsurgical.in

Email : [email protected]

Ph. : +91-281-2232871 / 2243159

WESTERNSURGICAL

* Carrying Warranty at Rajkot Office only on site warranty not provided free of cost.

* Due to constant upgradation design, price and features are subject to change any time without prior notice.

Supported by : S.M. Pvt. Ltd.

Introduction

Description of visual indicators and displays

1. %SpO2 display area：Three red digital LEDs display，when invalid is displayed,

“? ? ? ”will blink by 1Hz frequency ; While set up Power Mode, “bAt”is

displayed; Apart form that, this area is also used to show error code and software

version as it is turned on.

2. PR display area: Three green digital LEDs display, when invalid is displayed,

“? ? ? ”will blink by 1Hz frequency, while set up power mode; currently set up

is display.

3. Pulse Indicator: 8-segmant red LED, display currently pulse indication.

Note

Pulse Indicator is a visual indication of the patient’s pulse straight, not that display is

proportional to the pulse volume.

The display update period of the HHP-201 in various operating conditions is 1/60

second.

Description of audible indicators

The following are audible indicators for which there are no accompanying symbols, keys or

visual indicators．

1. Power-On--------------------

One tone

2. Probe disconnected---------

the first 1five beep, and after 1 double-beep every 30

seconds

3. Low Battery-----------------1 double–beep every 60 senconds

4. Press key volum----------during the normal press keys, 1 single –beep; invalid

press keys, 1 single-beep

5. Pulse volume----------------1 single-beep

2.2.3 Keys

Figure 2-5: Keys

www.westernsurgical.in

Email : [email protected]

Ph. : +91-281-2232871 / 2243159

WESTERNSURGICAL

* Carrying Warranty at Rajkot Office only on site warranty not provided free of cost.

* Due to constant upgradation design, price and features are subject to change any time without prior notice.

Inhaltsverzeichnis

Andere Western Messgerät Handbücher

Western

Western WRM15 dualB Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
