Westin E Series Bedienungsanleitung
1
Westin Automotive Products, Inc.
320 Covina Blvd
San Dimas, Ca. 91773
Thank You for choosing Westin products
For Additional installation assistance please call
Customer service (800) 793-7846
www.westinautomotive.com
P.N.: 75-3031 RevE ECO #: W18-0193 DATE: 12/18/18

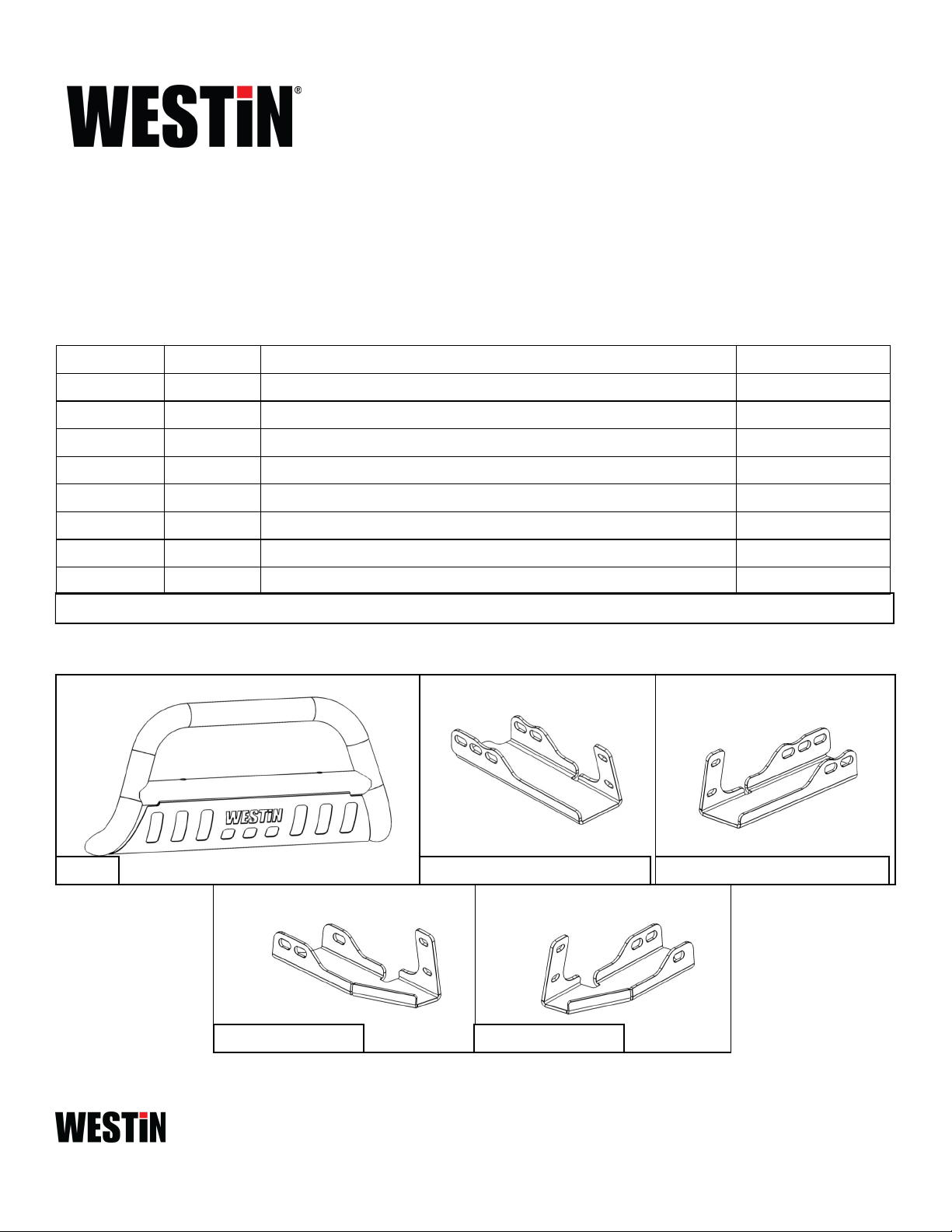

ITEM QUANTITY DESCRIPTION TOOLS NEEDED
11BULL BAR WITH SKID PLATE RATCHET
2,3 2BULL BAR MOUNTING BRACKETS (DRV. & PASS.) SCREWDRIVER
42M12 DOUBLE BOLT PLATE TORQUE WRENCH
52M12 SINGLE BOLT PLATE UTILITY KNIFE
64M10 BELLVILLE WASHERS (STAINLESS) ALLEN WRENCH
76M12 FLANGE NUTS (YELLOW ZINC) 18MM SOCKET
84M10 BUTTON HEAD BOLTS (STAINLESS) 10MM SOCKET
94M10 FLANGE NUTS (STAINLESS) 16MM WRENCH
ANTI-SEIZE LUBRICANT MUST BE USED ON ALL STAINLESS STEEL FASTENERS TO PREVENT THREAD DAMAGE AND GALLING
INSTALLATION INSTRUCTIONS
E-SERIES BULL BAR
APPLICATION:
2014-2015 Chevrolet Silverado / GMC Sierra 1500
PART NUMBER:
31-5980, 31-5985
APPLICATION:
2016-2018 Chevrolet Silverado & 2019 Silverado 1500 LD /
GMC Sierra 1500 and 2019 Sierra 1500 Limited
PART NUMBER:
31-6010, 31-6015
APPLICATION:
2019 Chevrolet Silverado 1500 & GMC Sierra 1500
PART NUMBER:
31-3950, 31-3955
ITEM 1 ITEM 2 (31-5980/85, 31-6010/15) ITEM 3 (31-5980/85, 31-6010/15)
ITEM 2 (31-3950/55) ITEM 3 (31-3950/55)
2
Westin Automotive Products, Inc.
320 Covina Blvd
San Dimas, Ca. 91773
Thank You for choosing Westin products
For Additional installation assistance please call
Customer service (800) 793-7846
www.westinautomotive.com
P.N.: 75-3031 RevE ECO #: W18-0193 DATE: 12/18/18
Fig. 3

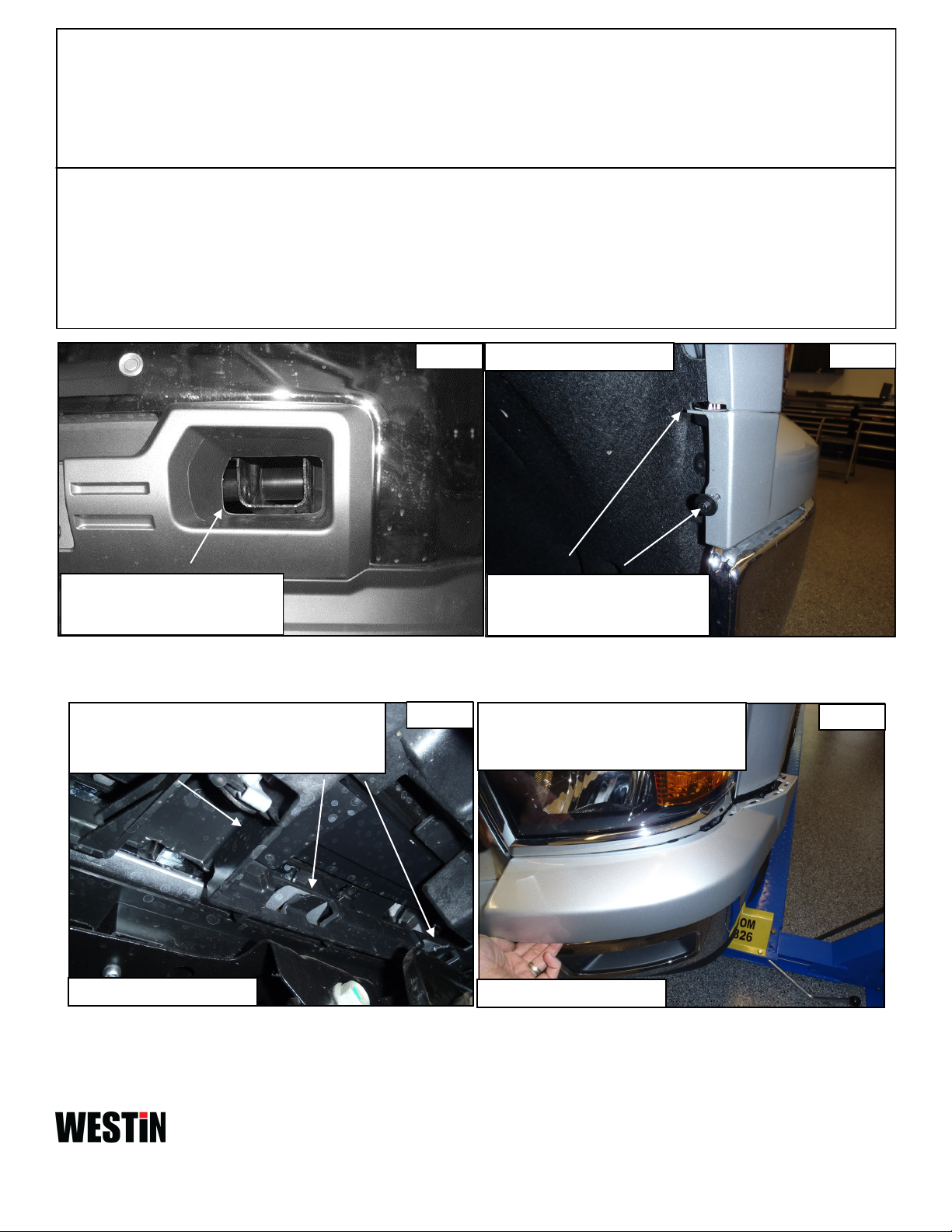

Working from beneath the vehicle use a flathead
screwdriver to pop loose the plastic tabs retain-
ing the filler panel to the grille.
Fig. 4
Once all fasteners have been removed
and the tabs are popped loose carefully
pull the filler panel off of the vehicle.
1. Remove contents from box, verify if all parts listed are present and free from damage. Carefully read and
understand all instructions before attempting installation.
2a. If the vehicle is not equipped with factory tow hooks; carefully trim out the indented tow hook pocket area
with a utility knife (Figure 1) then skip to step 7.
2b. For 2016 and up vehicles with tow hooks, remove tow hooks as shown in Figure 8 then skip to Step 7.
Steps 3-6 are for 2014-15 Applications WITH TOW HOOKS only
3. If the vehicle is equipped with factory tow hooks; remove the filler panel from the front of the vehicle
(Figures 2 - 4).
4. Remove the front bumper assembly (Figures 5 & 6).
5. Remove the factory tow hooks and foam tow hook covers (Figures 7 & 8). They will not be re-used.
Fig. 2
Remove the two fasteners on
each side attaching the filler pan-
Carefully trim out the indented
tow hook pocket area on both
Fig. 1 2014-15 w/ tow hooks only
2014-15 w/ tow hooks only 2014-15 w/ tow hooks only
3
Westin Automotive Products, Inc.
320 Covina Blvd
San Dimas, Ca. 91773
Thank You for choosing Westin products
For Additional installation assistance please call
Customer service (800) 793-7846
www.westinautomotive.com
P.N.: 75-3031 RevE ECO #: W18-0193 DATE: 12/18/18

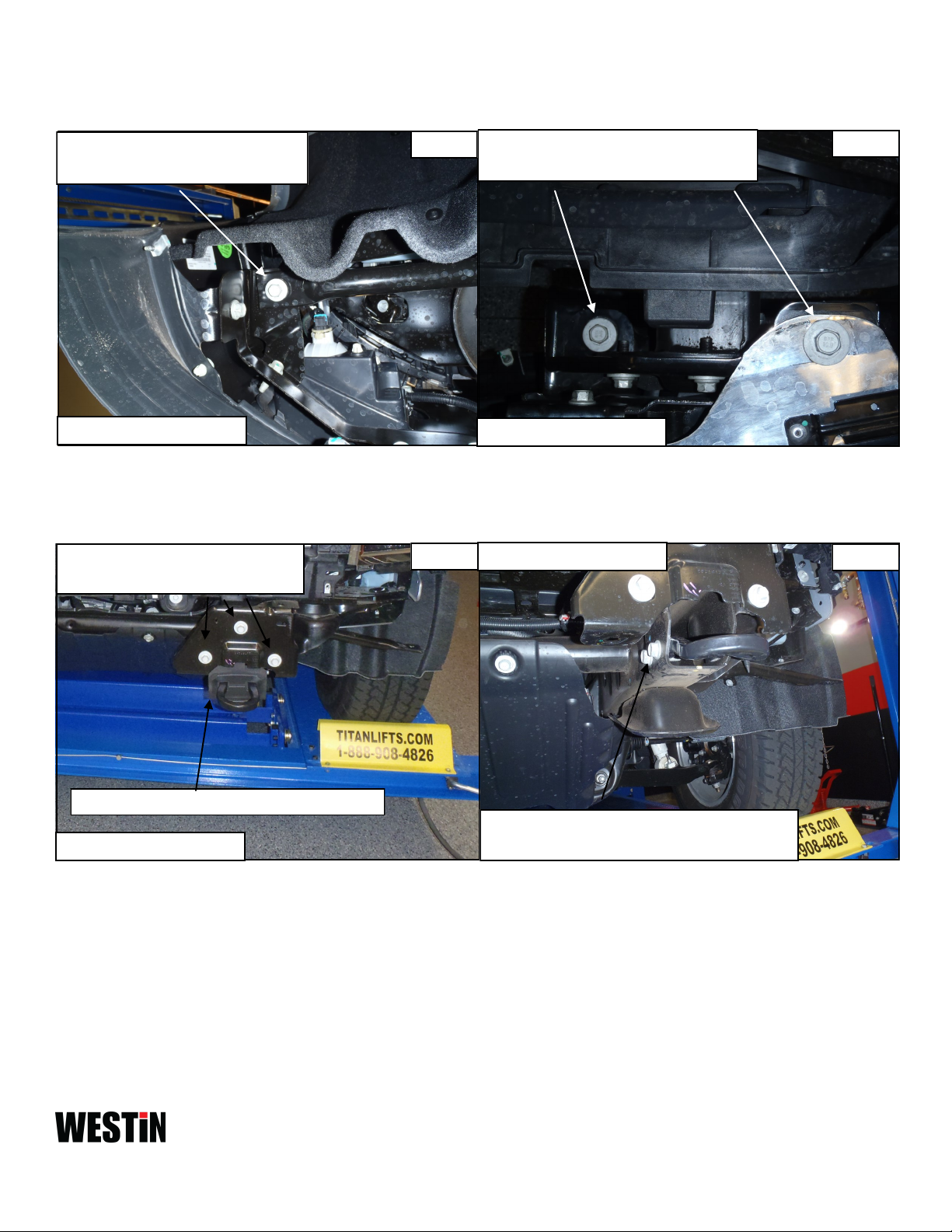

Remove this M10 bolt from each side
of the bumper (Driver side shown).
Remove these M12 bolts from each side of
the bumper (Driver side shown).
Fig. 5 Fig. 6
Remove and discard the foam tow hook covers.
Loosen the (3) bumper bracket bolts
on the Driver Side only.
Remove the two tow hook bolts on each side of
the vehicle then pull out the tow hooks.
Fig. 7 Fig. 8
2014-15 w/ tow hooks only 2014-15 w/ tow hooks only
2014-15 w/ tow hooks only
2014-15 w/ tow hooks only
4
Westin Automotive Products, Inc.
320 Covina Blvd
San Dimas, Ca. 91773
Thank You for choosing Westin products
For Additional installation assistance please call
Customer service (800) 793-7846
www.westinautomotive.com
P.N.: 75-3031 RevE ECO #: W18-0193 DATE: 12/18/18
6. Re-install the bumper and filler panel in the reverse order that they were removed.
All Applications:

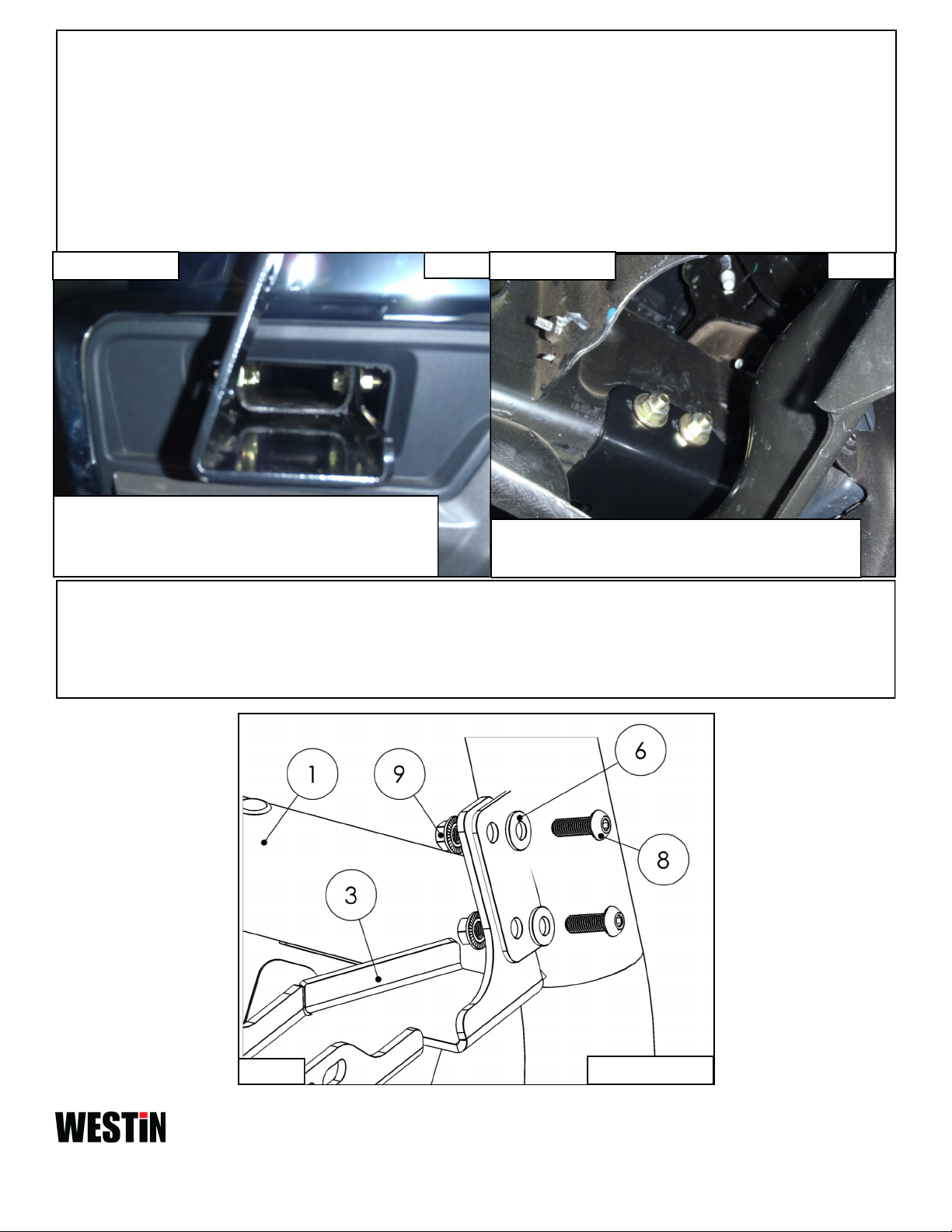

7. Select the Mounting Brackets. Insert the Bracket through the opening in the plastic bumper, (Figure 9).
Line up the (3) holes in the Bracket with the holes in the end of the frame channel.
6. Select the 12mm Double Bolt Plate. Insert the Bolt Plate into the end of the frame channel, through the
holes in the Bracket and out the side of the frame. Secure the Bolt Plate to the Brackets with (2) M12
flange Nuts. Leave loose at this time. Repeat this step to install the 12mm Single Bolt Plate, into the re-
maining hole in the side of the Bracket and frame channel, (Figure 10).
Fig. 9
Slip the mounting brackets into the tow hook pocket open-
ings and around the outside of the frame horn. Line the
holes in the bracket up with the tow hook mounting holes in
Fig. 10
Use the Bolt Plates and Yellow Zinc hardware to secure
the Mounting Brackets. (Passenger Side Shown)

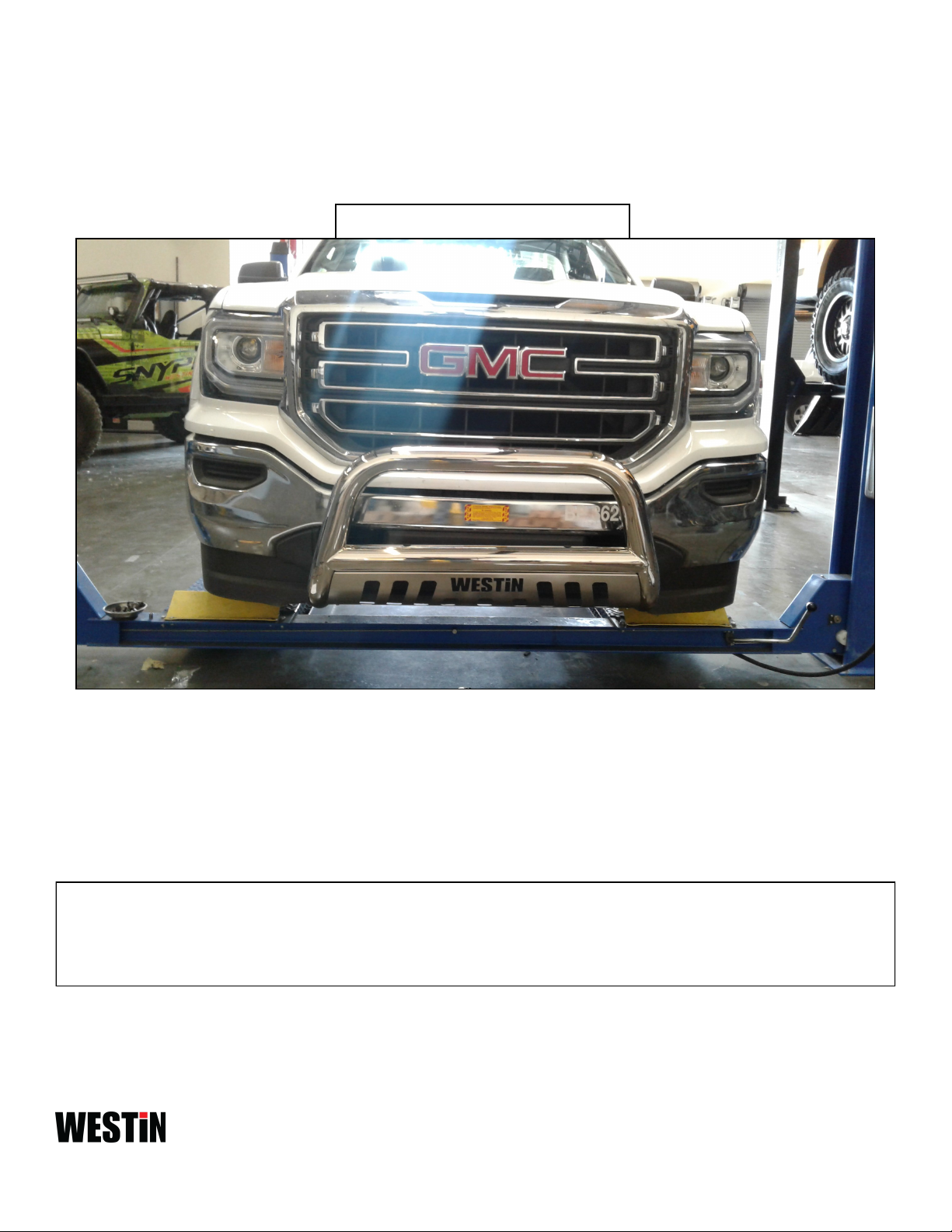

9. Loosely install the Bull Bar to each mounting bracket using (4) M10 Button Head Bolts, (4) M10 Bellville
Washers, (4) M10 Flange Nuts on each side (Figure 11).
10. Align and adjust the Bull Bar and Mounting Brackets as desired. Tighten and torque Yellow Zinc M12
hardware to 60—65 ft-lbs. Tighten and torque M10 Stainless hardware to 25—30 ft-lbs.
Fig. 11 Pass. Side Shown
Pass. Side Shown Pass. Side Shown
5
Westin Automotive Products, Inc.
320 Covina Blvd
San Dimas, Ca. 91773
Thank You for choosing Westin products
For Additional installation assistance please call
Customer service (800) 793-7846
www.westinautomotive.com
P.N.: 75-3031 RevE ECO #: W18-0193 DATE: 12/18/18
CARE INSTRUCTIONS
REGULAR WAXING IS RECOMMENDED. DO NOT USE ANY TYPE OF POLISH OR WAX THAT MAY CONTAIN ABRASIVES.
STAINLESS STEEL PRODUCTS CAN BE CLEANED WITH MILD SOAP AND WATER. STAINLESS STEEL POLISH SHOULD BE USED TO POLISH SMALL SCRATCHES.
GLOSS BLACK FINISHES SHOULD BE CLEANED WITH MILD SOAP AND WATER
INSTALLATION COMPLETE
6
Westin Automotive Products, Inc.
320 Covina Blvd
San Dimas, Ca. 91773
Thank You for choosing Westin products
For Additional installation assistance please call
Customer service (800) 793-7846
www.westinautomotive.com
P.N.: 75-3031 RevE ECO #: W18-0193 DATE: 12/18/18
Failure to follow these instructions could lead to death, personal injury, and / or property
damage.
WARNING
Failure to follow these instructions could lead to death, personal injury, and / or property
damage.
FASTENERS:
All Westin supplied fasteners must be utilized and installed in accordance with the installa-
tion instructions and apply torque to the specifications as defined. DOUBLE CHECK ALL
FASTENERS BEFORE INITIAL USE, AND PERIODICALLY IN THE FUTURE TO ENSURE
PROPER FUNCTION AND SAFETY.
DRILLING:
Most Westin products do not require drilling for installation. If drilling is defined as required,
use caution when drilling a vehicle. FAILURE TO REVIEW AN AREA TO BE DRILLED MAY
RESULT IN PERSONAL INJURY AND/OR INJURY TO OTHERS AS WELL AS VEHICLE DAM-
AGE.
EYE PROTECTION:
ALWAYS WEAR SAFETY GLASSES OR GOGGLES DURING THE INSTALLATION PROCESS
TO AVOID PERSONAL INJURY.
MAXIMUM TOWING/CARRYING CAPACITY: (if applicable)
The Westin Receiver Hitches will have a visible tow rating label affixed directly on the prod-
uct. User should never exceed the vehicle manufacturers maximum tow and weight rating
regardless of the capacity of the hitch. FAILURE TO FOLLOW THESE GUIDELINES WILL
VOID THE WESTIN WARRANTY AND MAY RESULT IN PERSONAL INJURY AND/OR INJURY
TO OTHERS AS WELL AS VEHICLE DAMAGE.
