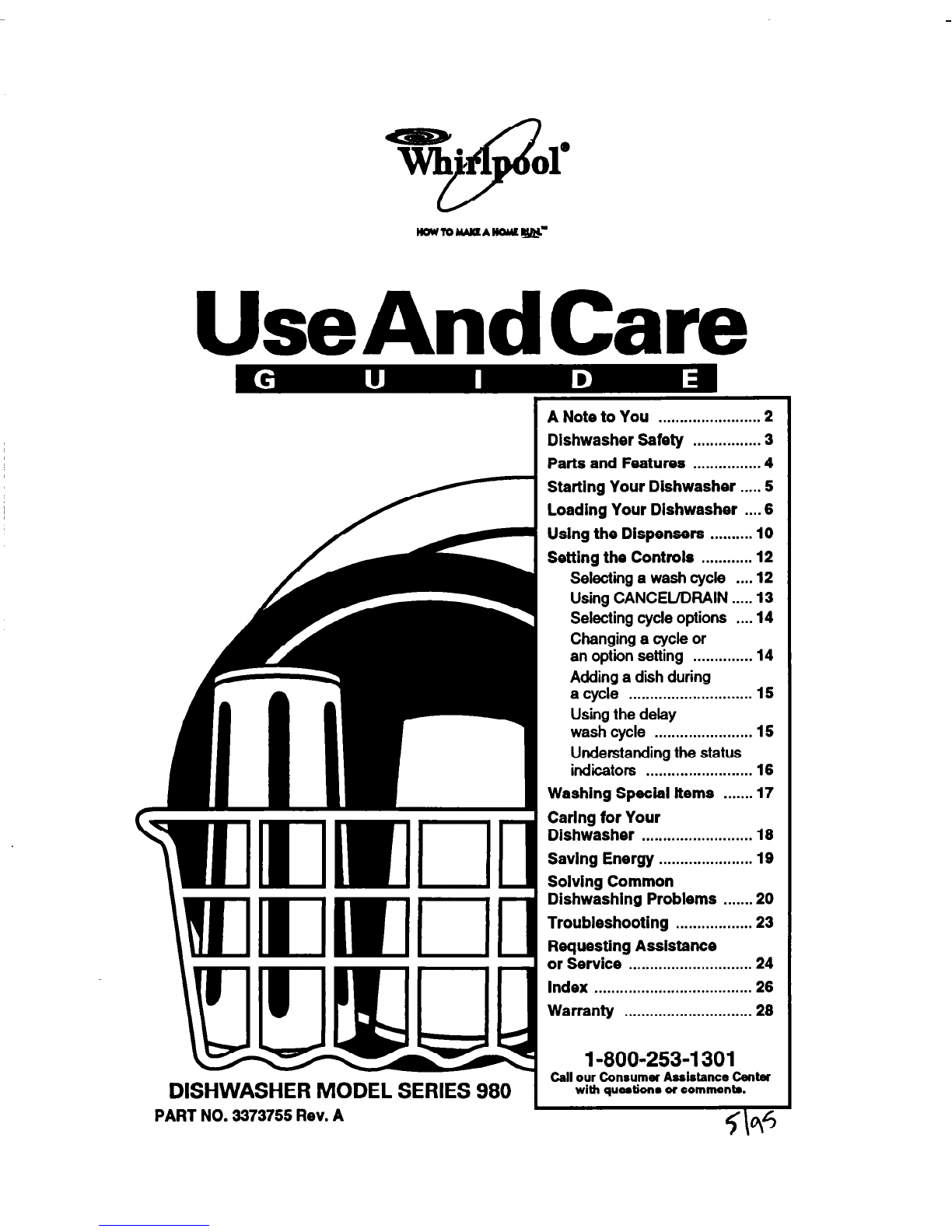

DISHWASHER MODEL SERIES 980

PART NO. 3373755 Rev. A

A Note to You ........................ 2

Dishwasher Safety ................ 3

Parts and Features ............... .4

Starting Your Dishwasher.. ...5

Loading Your Dishwasher ....6

Using the Dispensers .......... 10

Setting the Controls ............ 12

Selecting

a wash cycle ....12

Using

CANCEL/DRAIN.. ...13

Selecting cycle options ....14

Changing

a cycle or

an option setting .............. 14

Adding a dish during

a cycle

............................. 15

Using the delay

wash cycle

....................... 15

Understanding the status

indicators

......................... 16

Washing Special ftems .......17

Carlng for Your

Dishwasher .......................... 18

Saving Energy ...................... 19

Solving Common

Dishwashing Problems .......20

Troubleshooting .................. 23

Requesting Assistance

or Service ............................. 24

Index ..................................... 26

Warranty ..............................

1-800-253-I 301

Call our Consumer Assistance Center

with questione or comments.

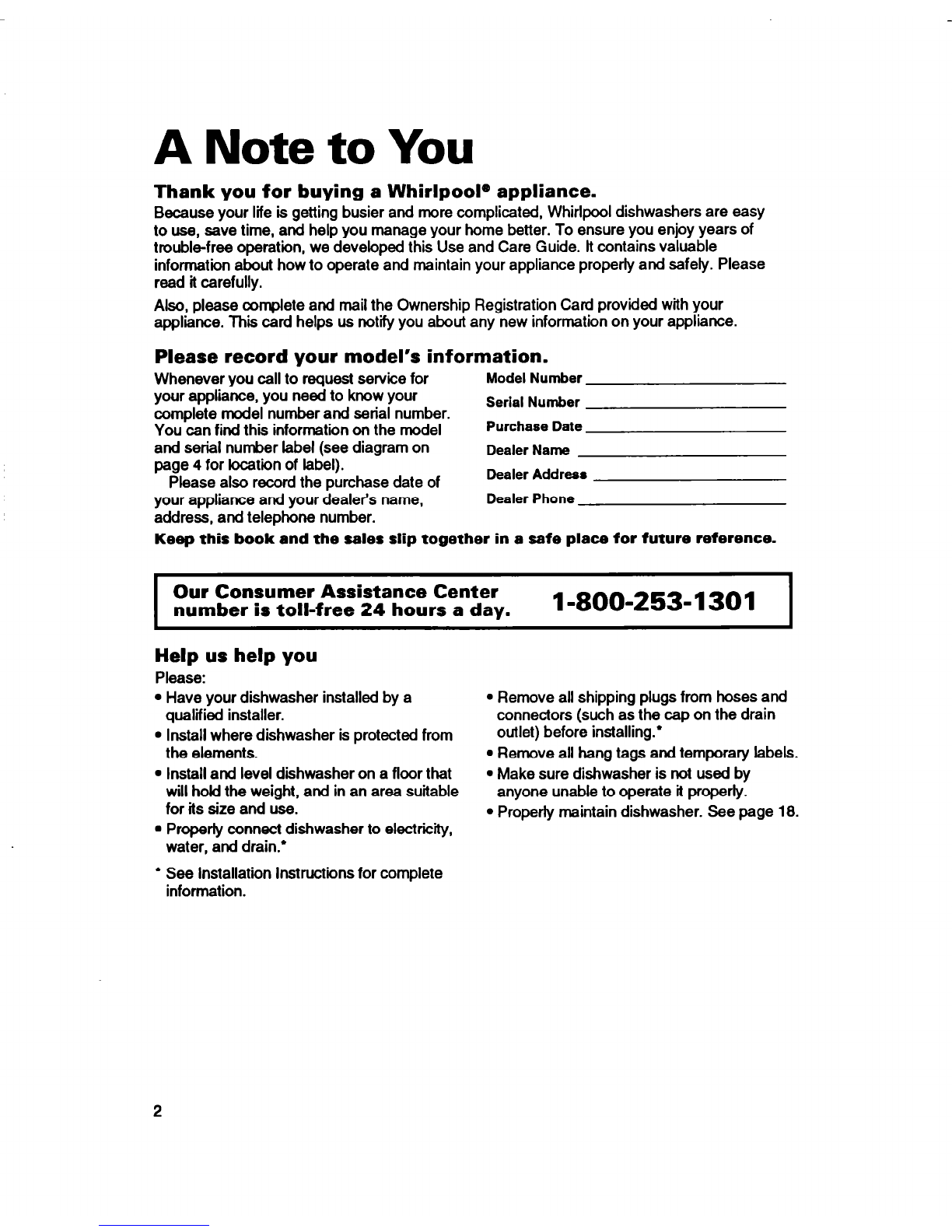

A Note to You

Thank you for buying a Whirlpool@ appliance.

Because your life is getting busier and more complicated, Whirlpool dishwashers are easy

to use, save time, and help you manage your home better. To ensure you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It contains valuable

information about how to operate and maintain your appliance properly and safely. Please

read it carefully.

Also, please complete and mail the Ownership Registration Card provided with your

appliance. Thii card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service for Model Number

your appliance, you need to know your

complete model number and serial number. Serial Number

You can find this information on the model Purchase Date

and serial number label (see diagram on Dealer Name

page 4 for location of label).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-1301 1

Help us help you

Please:

l Have your dishwasher installed by a

qualified installer.

l Install where dishwasher is protected from

the elements.

l Install and level dishwasher on a floor that

will hold the weight, and in an area suitable

for its size and use.

l Properly connect dishwasher to electricii,

water, and drain.’

l Remove all shipping plugs from hoses and

connectors (such as the cap on the drain

outlet) before installing.*

l Remove all hang tags and temporary labels.

l Make sure dishwasher is not used by

anyone unable to operate it properly.

l Properly maintain dishwasher. See page 18.

l See Installation Instructions for complete

information.

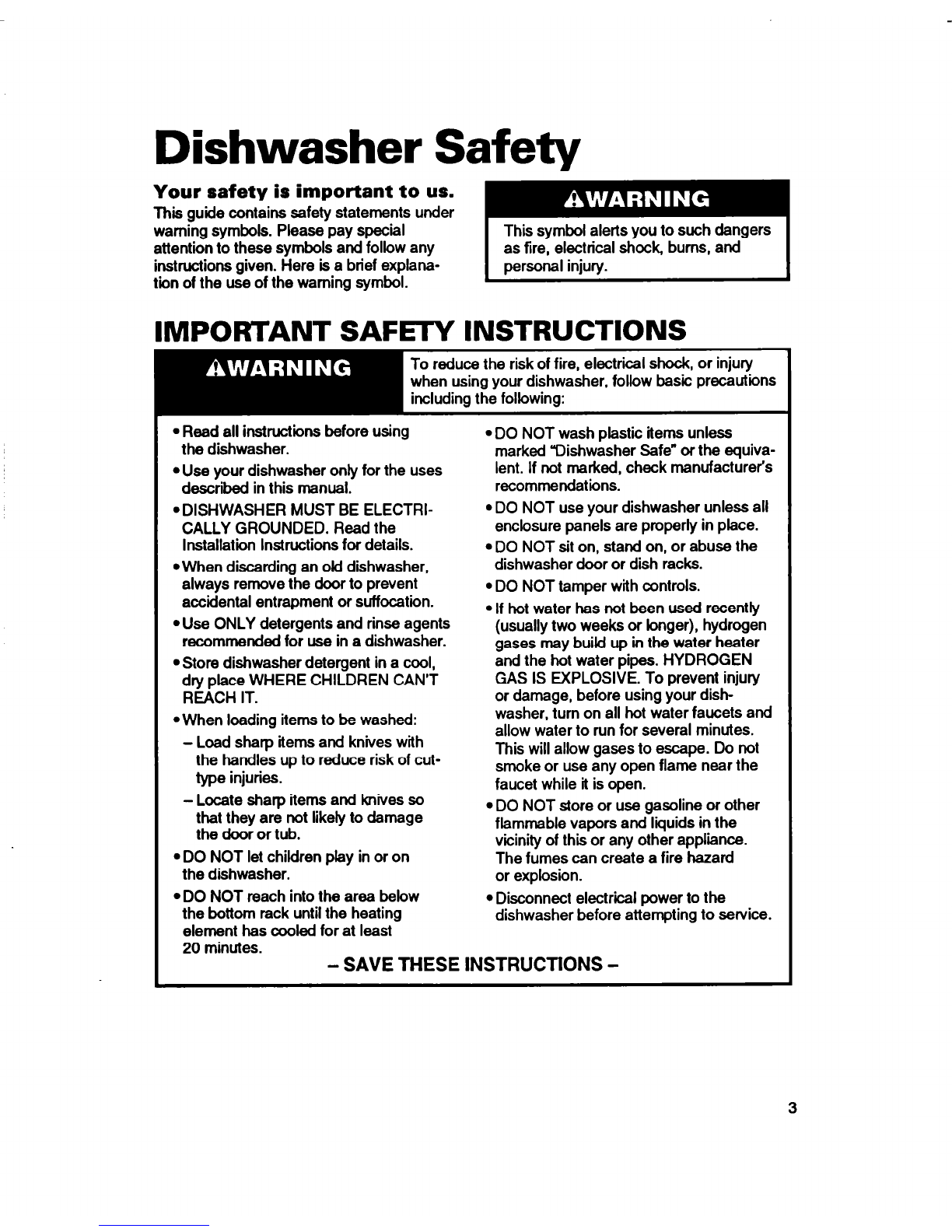

Dishwasher Safety

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the warning symbol.

1 This symbol alerts you to such dangers

;~~~I;~;1 shock, burns, and

IMPORTANT SAFETY INSTRUCTIONS

Read all instructions before using

the dishwasher.

Use your dishwasher only for the uses

described in this manual.

. DISHWASHER MUST BE ELECTRI-

CALLY GROUNDED. Read the

Installation Instructions for details.

When discarding an old dishwasher,

always remove the door to prevent

accidental entrapment or suffocation.

Use ONLY detergents and rinse agents

recommended for use in a dishwasher.

Store dishwasher detergent in a cool,

dry place WHERE CHILDREN CAN’T

REACH IT.

When loading items to be washed:

- Load sharp items and knives with

the handles up to reduce risk of cut-

type injuries.

- Locate sharp items and knives so

that they are not likely to damage

the door or tub.

DO NOT let children play in or on

the dishwasher.

DO NOT reach into the area below

the bottom rack until the heating

element has cooled for at least

20 minutes.

DO NOT wash plastic items unless

marked “Dishwasher Safe” or the equiva-

lent. If

not

marked, check manufacturer’s

recommendations.

DO NOT use your dishwasher unless all

enclosure panels are properly in place.

DO NOT sit on, stand on, or abuse the

dishwasher door or dish racks.

DO NOT tamper with controls.

If hot water has not been used recently

(usually two weeks or longer), hydrogen

gases may buikf up in the water heater

and the hot water pipes. HYDROGEN

GAS IS D(PLOSIVE. To prevent injury

or damage, before using your dish

washer, turn on all hot water faucets and

allow water to run for several minutes.

This will allow gases to escape. Do not

smoke or use any open flame near the

faucet while it is open.

DO NOT store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

The fumes can create a fire hazard

or explosion.

Disconnect electrical power to the

dishwasher before attempting to service.

- SAVE THESE INSTRUCTIONS -

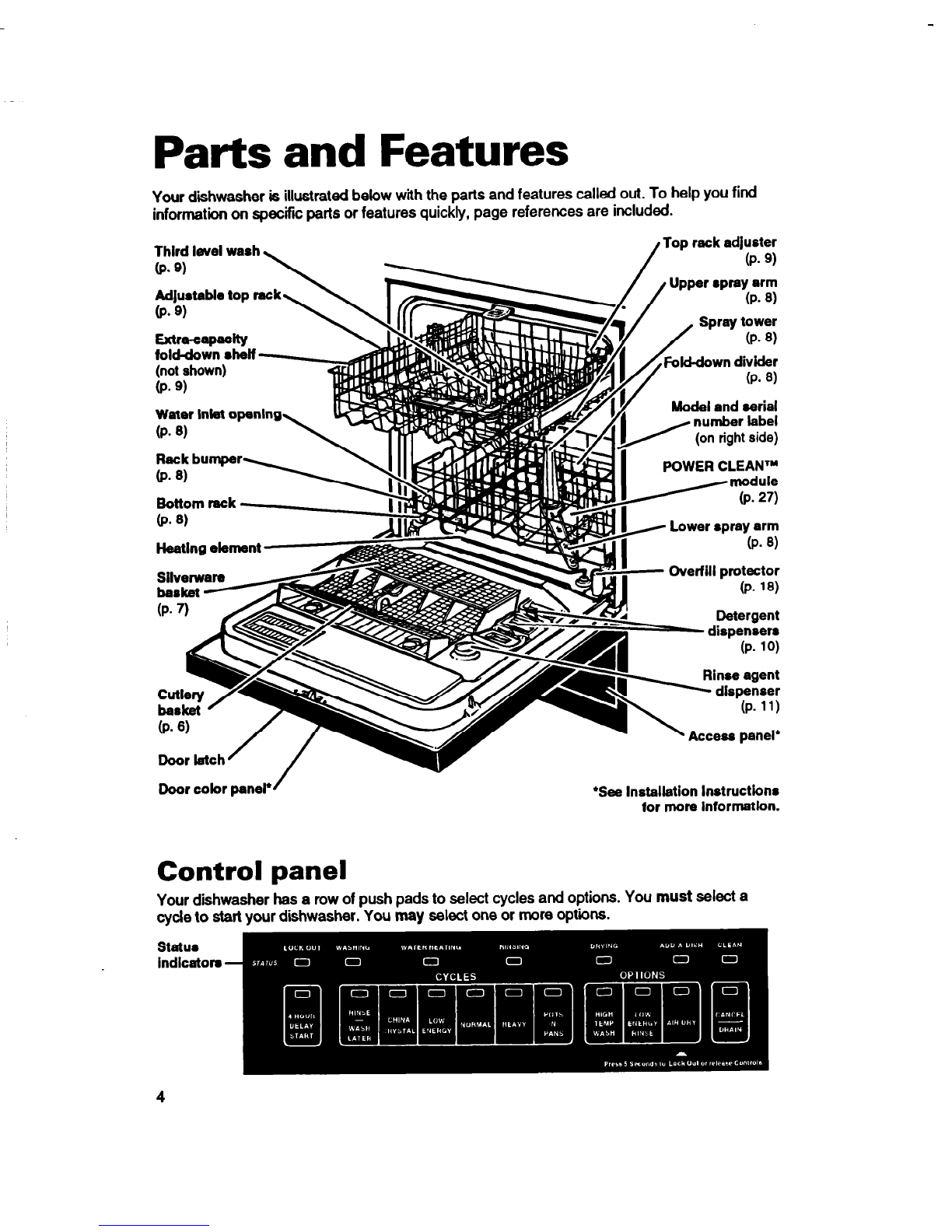

Parts and Features

Your dishwasher is illustrated below with the parts and features called out. To help you find

information on specific parts or features quickly, page references are included.

Third level wash

@a9)

Adjustable top rack

@. 9)

~=ap=ity

folddown shelf

(not shown)

(P. 9)

Top rack adjuster

@- 9)

UDDERs~rav

arm

/ . . . -

(P. 9)

Spray tower

@.8)

Folddown divider

(P. 9)

Water Inlet opening

(P- 9)

Rack bumper

@-8)

Bottom rack

b 8)

Heatlng element - I

DasKel -

:jlrh/ p

Model and serial

number label

(on

right side)

POWER CLEAN’”

4 Lower spray arm

(P- 9)

- Overfill protector

(P- ‘9)

Detergent

- dispensers

(P. 10)

(P- 11)

Access panel*

Door color panePI ‘SW Installation Instructions

for more Information.

Control panel

Your dishwasher has a row of push pads to select cycles and options. You must select a

. --. -_-----

cycle to sta

artyour dishwasher..You may select one or more options.

status

indicators -

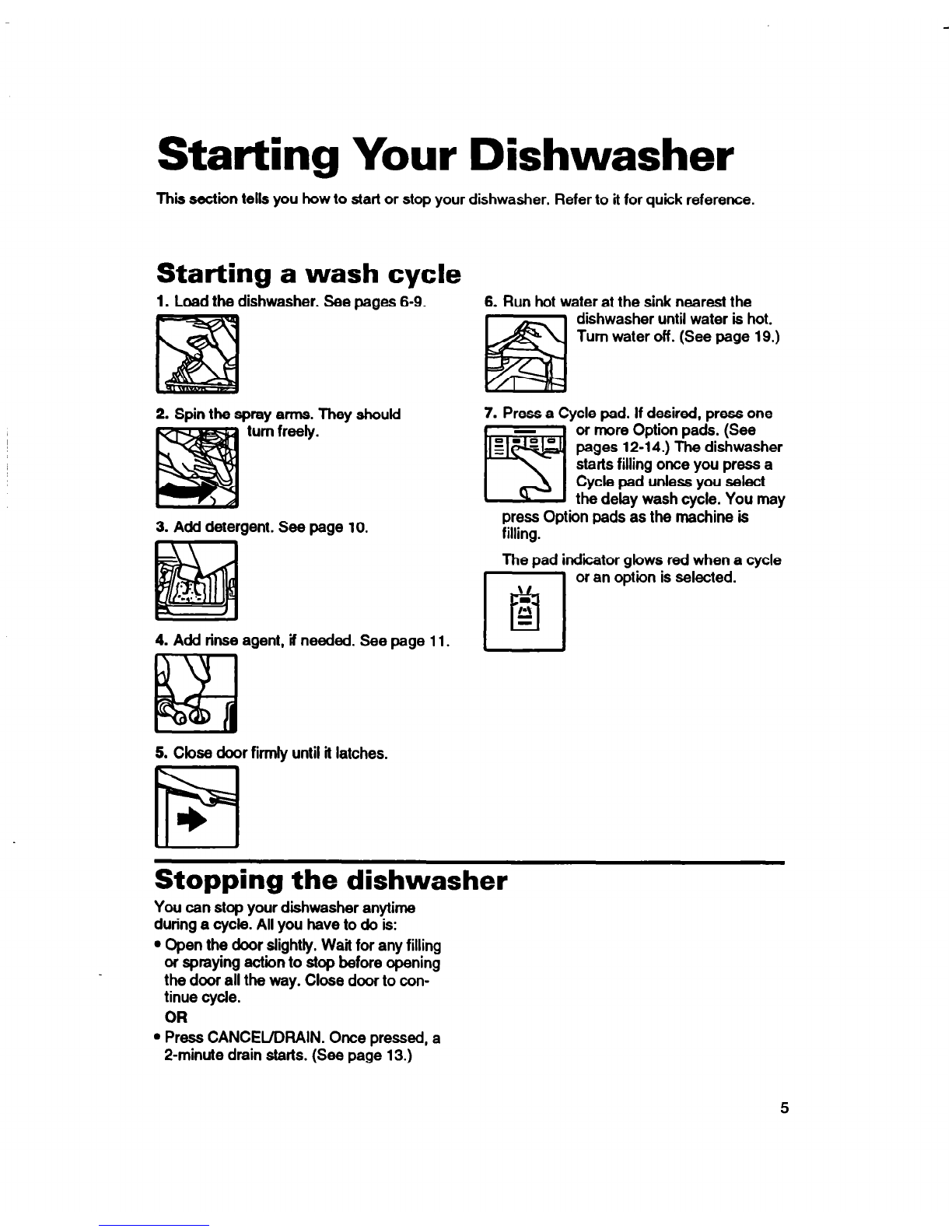

Starting Your Dishwasher

This section tells you how to start or stop your dishwasher. Refer to it for quick reference.

Starting a wash cycle

1. Load the dishwasher. See pages 6-9.

2. Spin the spray arms. They should

turn freely.

3. Add detergent. See page 10.

4. Add rinse agent, if needed. See page 11.

5. Close door firmly until it latches.

6. Run hot water at the sink nearest the

dishwasher until water is hot.

Turn water off. (See page 19.)

7. Press a Cycle pad. If desired, press one

! = = Q

or more Option pads. (See

pages 12-14.) The dishwasher

starts filling once you press a

Cycle pad unless you select

the delay wash cycle. You may

press Option pads as the machine is

filling.

The pad indicator glows red when a cycle

I or an option is selected.

Stopping the dishwasher

You can stop your dishwasher anytime

during a cycle. All you have to do is:

Open the door slightly. Watt for any filling

or spraying action to stop before opening

the door all the way. Close door to con-

tinue cycle.

Press CANCEL/DRAIN. Once pressed, a

2-minute drain starts. (See page 13.)

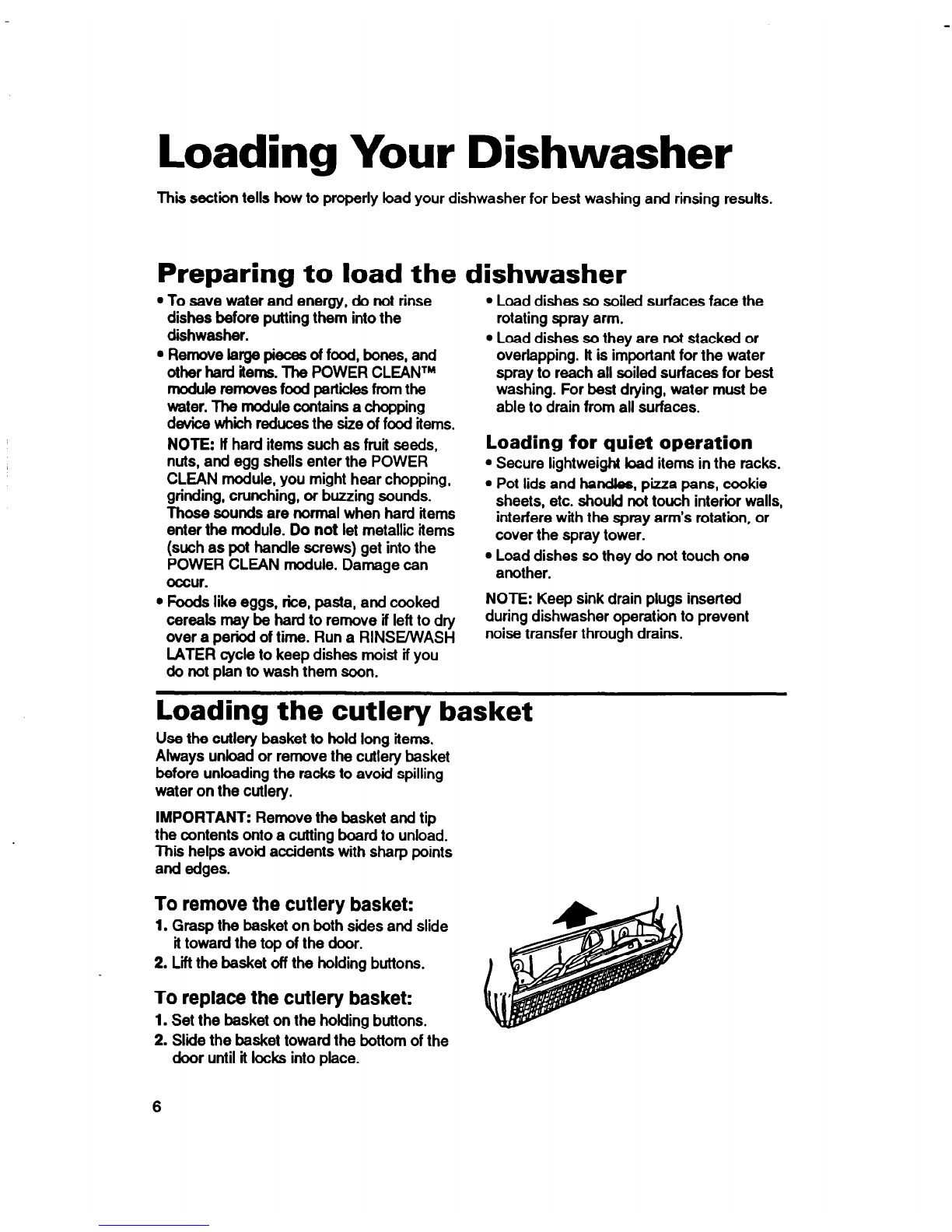

Loading Your Dishwasher

This section tells how to properly load your dishwasher for best washing and rinsing results.

Preparing to load the dishwasher

To save water and energy, do not rinse

dishes before putting them into the

dishwasher.

Remove large pieces of food, bones, and

other hard items. The POWER CLEANTM

module remves food particles from the

water. The module contains a chopping

device whit reduces the size of food items.

NOTE: If hard items such as fruit seeds,

nuts, and egg shells enter the POWER

CLEAN module, you might hear chopping,

grinding, crunching, or buzzing sounds.

Those sounds are normal when hard items

enter the module. Do

not

let metallic items

(such as pot handle screws) get into the

POWER CLEAN module. Damage can

occur.

Foods like eggs, rice, pasta, and cooked

cereals may be hard to remove if left to dry

over a period of time. Run a RINSE/WASH

LATER cycle to keep dishes moist if you

do not plan to wash them soon.

Load dishes so soiled surfaces face the

rotating spray arm.

Load dishes so they are not stacked or

overlapping. lt is important for the water

spray to reach all soiled surfaces for best

washing. For best drying, water must be

able to drain from all surfaces.

Loading for quiet operation

Secure lightweight bad items in the racks.

Pot lids and handles, pizza pans, cookie

sheets, etc. should not touch interior walls,

interfere with the spray arm’s rotation, or

cover the spray tower.

Load dishes so they do not touch one

another.

NOTE: Keep

sink

drain plugs inserted

during dishwasher operation to prevent

noise transfer through drains.

Loading the cutlery basket

Use the cutlery basket to hold long items.

Always unload or remove the cutlery basket

before unloading the racks to avoid spilling

water on the cutlery.

IMPORTANT: Remove the basket and tip

the contents onto a cutting board to unload.

This helps avoid accidents with sharp points

and edges.

To remove the cutlery basket:

1. Grasp the basket on both sides and slide

it toward the top of the door.

2. Lii the basket off the holding buttons.

To replace the cutlery basket:

1. Set the basket on the hokfing buttons.

2. Slide the basket toward the bottom of the

door until it locks into place.

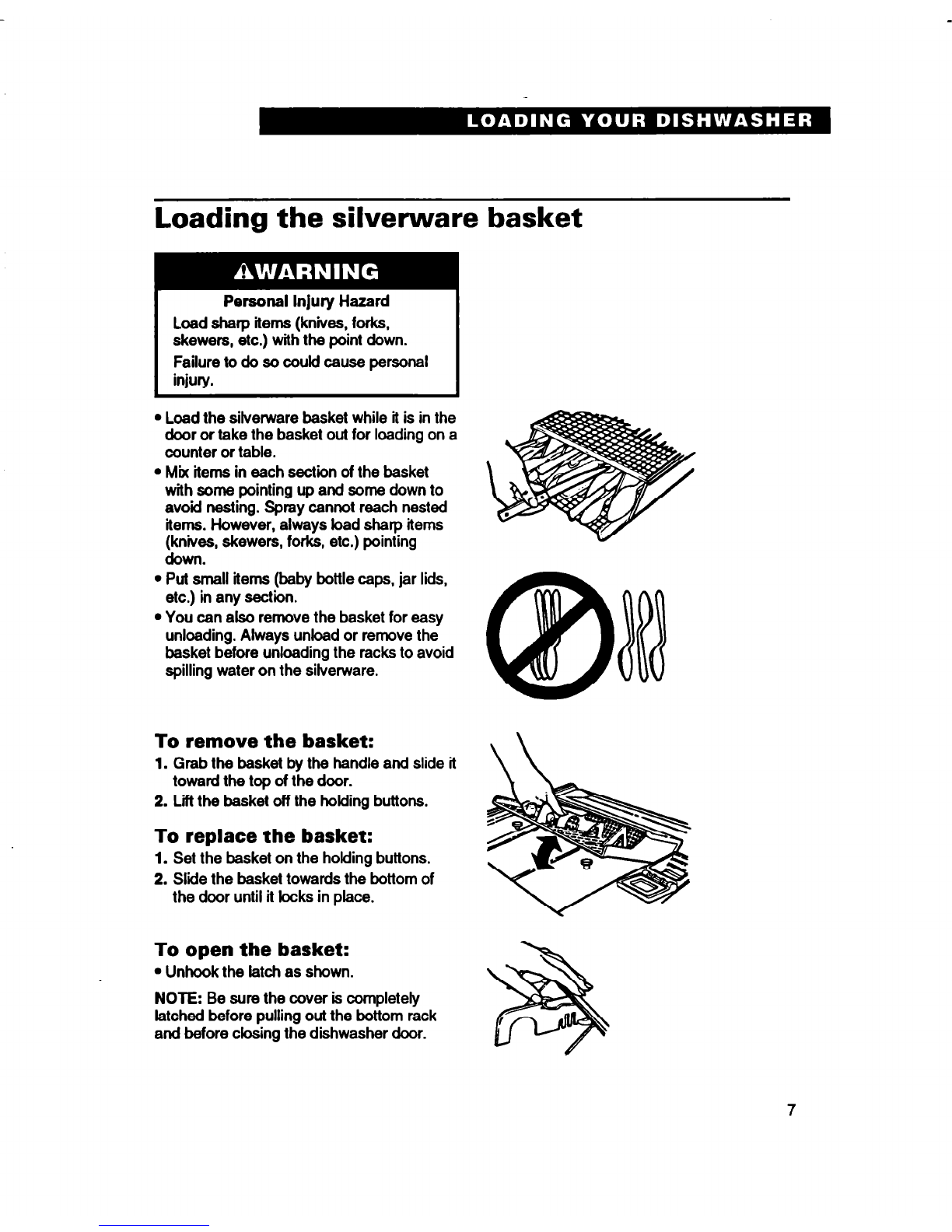

Loading the silverware basket

Personal Injury Hazard

Load sharp items (knives, forks,

skewers, etc.) with the point down.

Failure to do so coukf cause personal

injury.

Load the silvemrare basket while it is in the

door or take the basket out for loading on a

counter or table.

Mix Items in each section of the basket

wfth some pointing up and some down to

avoid nesting. Spray cannot reach nested

items. However, always bad sharp items

(knives, skewers, forks, etc.) pointing

&Wll.

Put small items (baby bottle caps, jar lids,

etc.) in any section.

You can also remove the basket for easy

unloading. Always unload or remove the

basket before unloading the racks to avoid

spilling water on the silverware.

To remove the basket:

1. Grab the basket by the handle and slide it

toward the top of the door.

2. Lii the basket off the holding buttons.

To replace the basket:

1. Set the basket on the holding buttons.

2. Slide the basket towards the bottom of

the door until it locks in place.

To open the basket:

Unhook the latch as shown.

NOTE: Be sure the cover is completely

latched before pulling out the bottom rack

and before closing the dishwasher door.

Loading the bottom rack

Load items with cooked-on or dried-on food

in the bottom rack, with soiled surfaces

facing inward to the spray.

Mixed load

Load plates, soup bowls, etc., between

prongs and facing inward to the spray.

Make sure pot handles and other items do

not stop rotation of the spray arms. Spray

arms must move freely.

Load items so they do not block or cover

the spray tower.

Load heavily-soiled cookware face down

in the rack.

Do not stack or overlap dishes. Water

spray must reach all soiled surfaces for

best results.

Utensil load

Load cookie sheets, cake pans, and other

large items at sides and back. Loading

such items in front may keep water spray

from reaching detergent dispenser and

silverware basket.

NOTE:

Do not load glasses, cups, or plastic items

in the bottom rack.

Do not load items between the bottom rack

and the side of the dishwasher tub. This

can block the water inlet opening.

If you have removed the bottom rack for

unloading or cleaning, replace it with

bumpers in front.

Fold-down divider

Use the fold-down divider at the back of the

rack

to make room for deep bowls, roasters,

etc.

Mixed load

Do not cover spray tower

Utensil load

Bumperr/muot

face dishwasher door

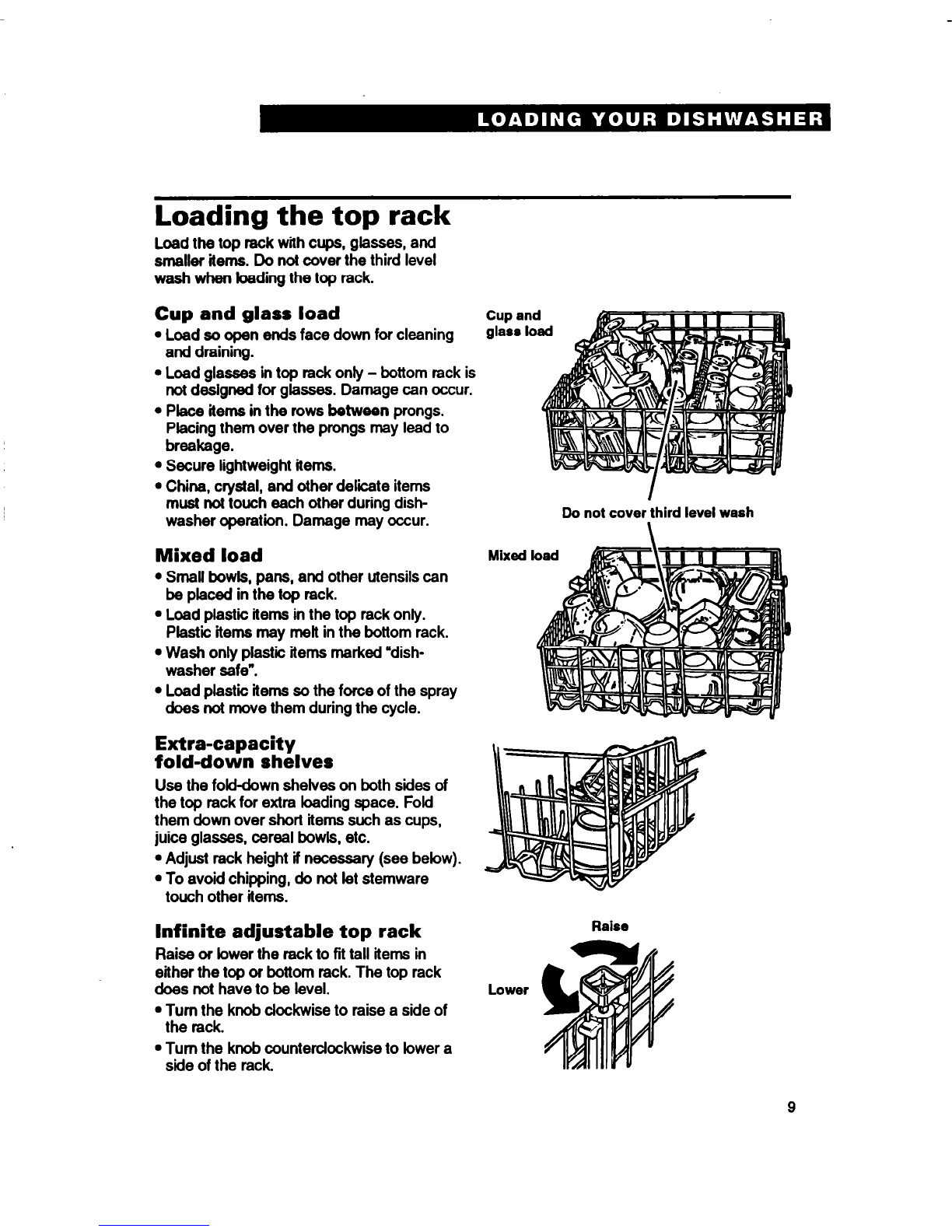

Loading the top rack

Load the top rack with cups, glasses, and

smaller items. Do not cover the third level

wash when bading the top rack.

Cup and glass load

Cup and

Load so open ends face down for cleaning glass load

and draining.

Load glasses in top rack only - bottom rack is

not designed for gbsses. Damage can occur.

Place items in the rows between prongs.

Placing them over the prongs may lead to

breakage.

Secure lightweight items.

China, crystal, and other delicate items

must not touch each other during dish-

washer operation. Damage may occur. Do not cover third level wash

Mixed load

Small bowls, pans, and other utensils can

be placed in the top rack.

Load plastic items in the top rack only.

Plastic items may rneft in the bottom rack.

Wash only plastic items marked “dish-

washer safe”.

Load plastic items so the force of the spray

does not move them during the cycle.

Extra-capacity

fold-down shelves

Use the fold-down shelves on both sides of

the top rack for extra loading space. Fold

them down over short items such as cups,

juice glasses, cereal howls, etc.

Adjust rack height if necessary (see below).

To avoid chipping, do not let stemware

touch other items.

Infinite adjustable top rack

Raise or lower the rack to fit tall items in

either the top or bottom rack. The top rack

does not have to he level.

Turn the knob clockwise to raise a side of

the rack.

Turn the knob counterdockwii to lower a

side of the rack

Mixed

Raise

Lower

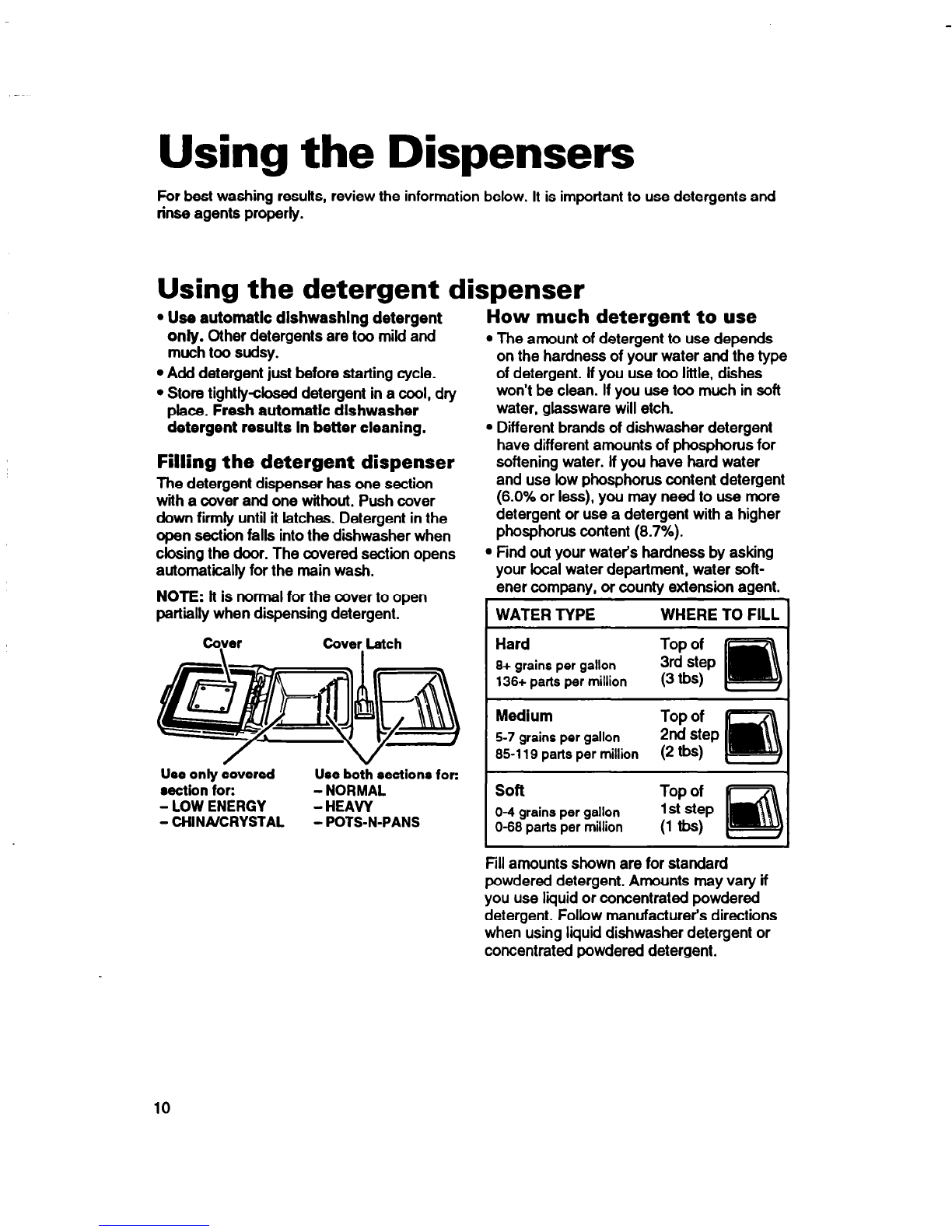

Using the Dispensers

For best washing results, review the information below. It is important to use detergents and

rinse agents properly.

Using the detergent dispenser

Usa automatic dlshwashlng detergent

only.

Other detergents are too mild and

much too sudsy.

Add detergent just before starting cycle.

Store tightly-closed detergent in a cool, dry

place. Fresh automatic dishwasher

detergent results In better cleaning.

Filling the detergent dispenser

The detergent dispenser has one section

with a cover

and

one without. Push cover

down firmly until it latches. Detergent in the

open section falls into the dishwasher when

closing the door. The covered section opens

automatically for the main wash.

NOTE: It is normal for the cover to open

partially when dispensing detergent.

Go\ver Cover, Latch

Use only covered

section for:

- LOW ENERGY

- Cl-llNAlCRYSTAL

Use both sections for:

-NORMAL

- HEAW

- POTS-N-PANS

How much detergent to use

The amount of detergent to use depends

on the hardness of your water and the type

of detergent. If you use too little, dishes

won’t be clean. If you use too much in soft

water, glassware will etch.

Different brands of dishwasher detergent

have different amounts of phosphorus for

softening water. If you have hard water

and use bw phosphorus content detergent

(6.0%

or less), you may need to use more

detergent or use a detergent with a higher

phosphorus content (8.7%).

Find out your water’s hardness by asking

your focal water department, water soft-

ener company, or county extension agent.

WATER TYPE WHERE TO FILL

Hard

8+ grains per gallon

136+

parts par million

Top of

3rd step

(3W

Medium

Top of

5-7

grains per gallon 2nd step

85-l 19

parts per million (2 W

Fill amounts shown are for standard

powdered detergent. Amounts may vary if

you use liquid or concentrated powdered

detergent. Follow manufacturer’s directions

when using liquid dishwasher detergent or

concentrated powdered detergent.

Andere Handbücher für series 980

Inhaltsverzeichnis

Andere Whirlpool Spülmaschine Handbücher

Whirlpool

Whirlpool WFC 3C33 F X Bedienungsanleitung

Whirlpool

Whirlpool ADG 221 Bedienungsanleitung

Whirlpool

Whirlpool WDF518SAFM Bedienungsanleitung

Whirlpool

Whirlpool ADP 4300 Bedienungsanleitung

Whirlpool

Whirlpool 940 series Bedienungsanleitung

Whirlpool

Whirlpool ADP 5600 Bedienungsanleitung

Whirlpool

Whirlpool 8576212 Montageanleitung

Whirlpool

Whirlpool ADG 175 Bedienungsanleitung

Whirlpool

Whirlpool WFC 3C22 P X Installations- und Betriebshandbuch

Whirlpool

Whirlpool WBO 3T341 P X Installations- und Betriebshandbuch

Whirlpool

Whirlpool FD 502.627.92 Bedienungs- und Montageanleitung

Whirlpool

Whirlpool I-93 Bedienungsanleitung

Whirlpool

Whirlpool DU52l6XW Bedienungsanleitung

Whirlpool

Whirlpool ADP 971 Bedienungsanleitung

Whirlpool

Whirlpool ADP 1640 Bedienungsanleitung

Whirlpool

Whirlpool ADP 6730 Bedienungsanleitung

Whirlpool

Whirlpool ADP 5966 WHM Bedienungsanleitung

Whirlpool

Whirlpool GU1200XT Bedienungsanleitung

Whirlpool

Whirlpool ADP 952 WHM Bedienungsanleitung

Whirlpool

Whirlpool DU018DWTQ0 Bedienungsanleitung

Whirlpool

Whirlpool DU7400XS series Bedienungsanleitung

Whirlpool

Whirlpool Gold GU2200 Bedienungsanleitung

Whirlpool

Whirlpool GU3100XTVB - 24" Dishwasher Montageanleitung

Whirlpool

Whirlpool IKEA DWF 416 Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken

Electrolux

Electrolux ESI5211LOX Bedienungsanleitung

KitchenAid

KitchenAid KUDB230B Bedienungsanleitung

Brandt

Brandt BDJ424DB Bedienungsanleitung

Asko

Asko DSD767UXXL.AU Bedienungsanleitung

Beko

Beko DFN26210W Bedienungsanleitung

NEFF

NEFF S153ITX00E Technisches Datenblatt

Midea

Midea SV 4.45 wi Bedienungsanleitung

LG LDF7932 Bedienungsanleitung

Gorenje

Gorenje GV63214 Bedienungsanleitung

Hotpoint

Hotpoint HDA1100ZWH Service-Handbuch

Blomberg

Blomberg LDFN2240W Bedienungsanleitung

AEG

AEG FFB83836PM Bedienungsanleitung

Cylinda

Cylinda DM3220RFD Bedienungsanleitung

Atag

Atag DW8214MB Bedienungsanleitung

GE GLD8000 Series Bedienungsanleitung

Siemens

Siemens SN23HI02KE Technisches Datenblatt

Omega

Omega ODW717X Bedienungsanleitung

BORETTI

BORETTI BVW-683 Bedienungsanleitung

Whirlpool series 980 Bedienungsanleitung

Beliebte Spülmaschine Handbücher anderer Marken
