A Note to You ......................... 2

Dryer Safety......................... 3-4

Parts and Features ................ 5

Operating Your Dryer ............ 6

Before starting your dryer... 6

Starting your dryer.............. 6

Stopping/restarting

your dryer ........................... 7

Selecting the right cycle

and setting.......................... 7

End of cycle signal............ 12

End of cycle signal and

FINISH GUARD® feature... 12

Using the drying rack........ 13

Caring for Your Dryer .......... 14

Laundry Tips ........................ 19

Troubleshooting................... 23

Requesting Assistance

or Service ............................. 25

Index...................................... 26

Warranty ............................... 28

1-800-253-1301

Call our Consumer Assistance Center

with questions or comments.

Home Appliances

A Note to You

Thank you for buying a WHIRLPOOL®appliance.

Because your life is getting busier and more complicated, WHIRLPOOL dryers are easy to

use, save time, and help you manage your home better. To ensure that you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It contains valuable informa-

tion about how to operate and maintain your dryer properly and safely. Please read it care-

fully. Also, please complete and mail in the Ownership Registration Card provided with your

appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on

your appliance, you need to know your

complete model number and serial number.

You can find this information on the model

and serial number label (see diagram on

page 5 for location of label).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free.

Model Number _________________________

Serial Number _________________________

Purchase Date _________________________

Dealer Name __________________________

Dealer Address ________________________

Dealer Phone __________________________

1-800-253-1301

Your safety is important to us.

This guide contains safety statements under

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the symbol.

Dryer Safety

WARNING: For your safety, the information in this manual must be

followed to minimize the risk of fire or explosion, or to prevent prop-

erty damage, personal injury, or loss of life.

– Do not store or use gasoline or other flammable vapors and liquids

in the vicinity of this or any other appliance.

– WHAT TO DO IF YOU SMELL GAS:

•Do not try to light any appliance.

•Do not touch any electrical switch; do not use any phone in

your building.

•Clear the room, building, or area of all occupants.

•Immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions.

•If you cannot reach your gas supplier, call the fire department.

– Installation and service must be performed by a qualified installer,

service agency, or the gas supplier.

This symbol alerts you to

hazards such as fire,

electrical shock, or other

injuries.

continued on next page

IMPORTANT SAFETY INSTRUCTIONS

WARNING – To reduce the risk of fire, electric shock, or injury to

persons when using the dryer, follow basic precautions, including

the following:

servicing unless specifically

recommended in this Use and

Care guide or in published

user-repair instructions that you

understand and have the skills to

carry out.

•Do not use fabric softeners or

products to eliminate static unless

recommended by the manufacturer

of the fabric softener or product.

•Do not use heat to dry articles

containing foam rubber or similarly

textured rubber-like materials.

•Clean lint screen before or after

each load.

•Keep area around the exhaust

opening and adjacent surrounding

areas free from the accumulation

of lint, dust, and dirt.

•The interior of the machine and

exhaust duct should be cleaned

periodically by qualified service

personnel.

•See Installation Instructions for

grounding requirements.

•Read all instructions before using

the dryer.

•Do not dry articles that have been

previously cleaned in, washed in,

soaked in, or spotted with gaso-

line, dry-cleaning solvents, other

flammable, or explosive substan-

ces as they give off vapors that

could ignite or explode.

•Do not allow children to play on

or in the dryer. Close supervision

of children is necessary when the

dryer is used near children.

•Before the dryer is removed from

service or discarded, remove the

door to the drying compartment.

•Do not reach into the dryer if the

drum is moving.

•Do not install or store the dryer

where it will be exposed to the

weather.

•Do not tamper with controls.

•Do not repair or replace any part

of the dryer or attempt any

SAVE THESE INSTRUCTIONS

DRYER SAFETY

Parts and Features

The parts and features of your dryer are illustrated below. Become familiar with all parts and

features before using your dryer. Page references are included next to some features. Refer

to those pages for more information about the features.

NOTE: The drawings in this book may vary from your dryer model. They are designed

to show the different features of all models covered by this book. Your model may not

include all features.

Additional features your

dryer may have:

End of cycle signal selector (p. 12)

FINISH GUARD®feature selector (p. 12)

Drying rack (p. 13)

Lint signal (p. 15)

Drum light (p. 16)

*On some models

LARGE CAPACITYLARGE CAPACITY

3 CYCLE 3 TEMP3CYCLE 3TEMP

AUTOMATICDRY MISERAUTOMATICDRY MISER

ENERGYEFFICIENTENERGYEFFICIENT

OFF

TUMBLEPRESSTUMBLEPRESS

DAMPDRYDAMPDRY

AUTOMATICAUTOMATIC

PERMANENTPERMANENT

PRESSPRESS

HEAVY DUTYHEAVY DUTY

OFF

COOLDOWN

LESSDRY

VERYDRY

LESSDRY

TIMED DRYINGTIMED DRYING

AUTOMATICAUTOMATIC

REGULARREGULAR

PUSHTO STARTPUSH TO START

TEMPERATURESELECTORTEMPERATURESELECTOR

FLUFF

AIR

AIR PERM'T

PERM'T

PRESS

HEAVY

HIGH

GENTLE

LOW

FABRIC

TEMP

KNITS

Wide-opening

hamper door*

Cycle control

knob

(may include

temperature

settings*)

(pp. 6-9)

Model and serial

number label

(p. 2)

Dryer drum

(p. 15)

Start button

(p. 7)

Lint screen

(p. 14)

Temperature selector*

(pp. 7, 10)

Full-width hamper door*

Other doors:

Super wide-opening door*

(Reversible door – see

Installation Instructions)

Small side-swing door*

Large side-swing door*

(Reversible door – see

Installation Instructions)

Your dryer may have a Dryer Features

Guide (usually located on top

of the dryer). Remove it and

place it with your Use and

Care Guide. The Features

Guide provides you with more

information about your dryer.

wWARNING

Fire Hazard

Use a heavy metal vent.

Do not use a plastic vent.

Do not use a metal foil vent.

Failure to do so can result in death

or fire.

wWARNING

Explosion Hazard

Never place items in the dryer that are

dampened with gasoline or other

flammable fluids.

Do not wash or dry items soiled with

vegetable or cooking oils because

they may contain some oil after

laundering.

Doing so can result in death,

explosion, or fire.

Operating Your Dryer

The information in this section helps you learn to use your dryer efficiently and safely. Refer

to “Laundry Tips” on page 19 for additional information on sorting, loading, and drying most

types of washables.

NOTES:

•Make sure your dryer is properly vented before using it. See warning below and your

Installation Instructions.

•Make sure your dryer is properly installed in a well-ventilated room where the temperature is

above 45°F (7°C).

•Make sure your dryer is leveled on a floor that can support the weight.

Before starting your dryer

Before using your dryer, wipe the dryer drum

with a damp cloth to remove

dust from storing and shipping.

Starting your dryer

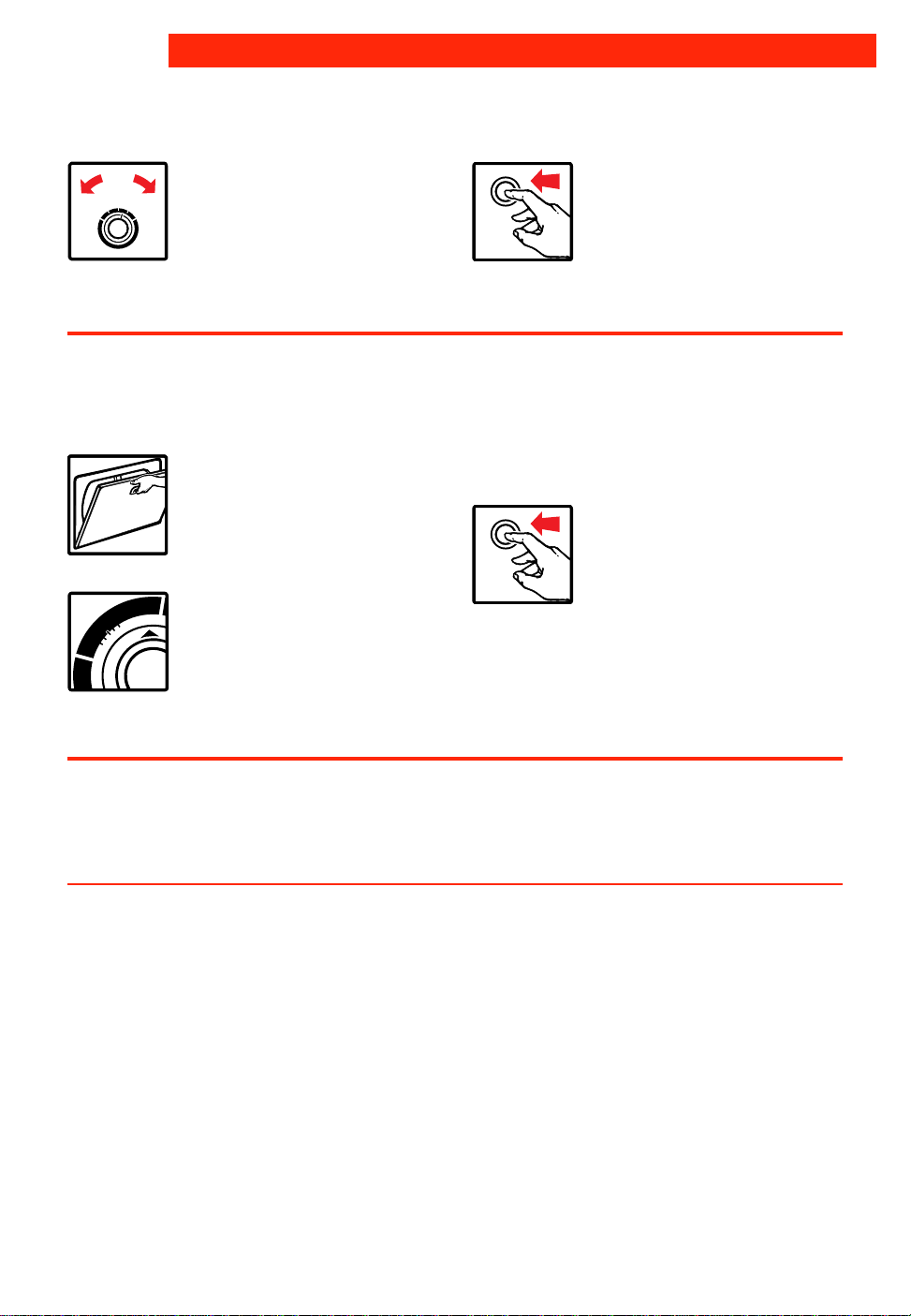

1. Load clothes into the dryer and close

the door. 2. Turn the Cycle Control Knob to the

desired cycle. Use the Energy

Preferred Automatic Setting (*)

to dry most loads (see page 8).

Stopping/restarting your dryer

You can stop your dryer anytime during

a cycle.

To stop the dryer, either:

•Open the dryer door.

OR •Turn the Cycle Control Knob

to Off.

NOTE: The Cycle Control Knob should point

to an Off area when the dryer is not in use.

Selecting the right cycle and setting

The following pages describe the cycles

on your dryer. Refer to the charts on pages

10-11 for help in selecting drying cycles.

Drying guidelines

•Always follow care label directions when

they are available.

•The last few minutes of all cycles are without

heat to make the load cooler to handle.

•To help reduce wrinkling, remove the load

from the dryer as soon as tumbling stops.

This is especially important for permanent

press, knits, and synthetic fabrics.

HighLow

3. If your dryer has a Temperature Selector,

set it to the desired setting

(see page 10). Some dryer

models have either a rotary

knob or tap touch

Temperature Selector.

4. Push the Start Button.

NOTE: Your dryer stops automatically when

a cycle ends.

continued on next page

Off

To restart the dryer:

1. Close the door.

2. Select a new cycle and temperature (if

desired).

3. Push the Start Button.

•Overdrying can cause shrinkage, static

cling, and damage to some fabrics.

•Refer to pages 19-22 for information about:

– sorting clothes for drying

– choosing load sizes

– drying tips

– using dryer fabric softener sheets

– saving energy

– drying special-care items.

OPERATING YOUR DRYER

Off

Dry

Less

Very

Dry

OPERATING YOUR DRYER

Off

10 20

Cycle descriptions

Automatic Cycle(s)

Dry most loads using the Energy

Preferred Automatic Setting (*).Your

Automatic cycle(s) shuts

off when the selected

dryness is reached. The

Cycle Control Knob will

not move until the load

is almost dry. After the

cool-down, the Knob auto-

matically turns to an Off

area and tumbling stops.

•If the load is drier than you like, select a

setting closer to Less Dry the next time

you dry a similar load.

•If the load is not as dry as you like, com-

plete drying using a Timed cycle. Select a

setting closer to Very Dry the next time you

dry a similar load.

Some models offer high heat and low heat

Automatic cycles (see page 10).

NOTES:

•Some Automatic cycles use an electronic

DRY-MISER®control that senses the

amount of moisture in the load.

•Other Automatic cycles use an automatic

DRY-MISER control that senses the

exhaust temperature and determines the

dryness of the load.

Timed Cycle(s)

Use a Timed cycle to complete drying if

some items are damp

after Automatic drying.

Timed drying is also

useful for:

•Delicate items and

small loads that need

a short drying time.

•Bulky items and large

loads that require a

long drying time.

Some models offer high heat and low heat

Timed cycles (see page 10).

Off

Fluff Air Cycle

(on some models)

The Fluff Air cycle has no heat. Use this un-

heated cycle to fluff or air

dry bedding, plastic table-

cloths, foam pillows,

sneakers, etc. See page

11 for more information

about the Fluff Air cycle.

NOTE: If your model

does not have the Fluff

Air cycle, line dry heat-

sensitive items.

Heavy Dry Cycle

(on some models)

Use Heavy Dry and a high heat setting to

dry large items or items

that are thicker or

heavier than a regular

load (such as heavy

cotton bath towels or

robes).

Damp Dry Cycle

(on some models)

Use Damp Dry to dry items to damp level or

to dry items that do not

require an entire drying

cycle. Two examples

are heavy cottons, such

as jeans, which you do

not want to become stiff,

or cotton clothes which

are easier to press

when damp.

Off

Heavy

70 60 50

Cool

Down

Dry

Cool

Down

Off

Damp

Dry

OPERATING YOUR DRYER

TUMBLE PRESS®Cycle

(on some models)

The TUMBLE PRESS cycle removes

wrinkles from clothes that

have been packed in a

suitcase or closet, or

from items not removed

from the dryer at the end

of a cycle. As soon as

the dryer stops, fold or

put the items on hangers.

Towels Feature

(on some models)

When you have large loads of towels to dry,

you may want to use the

Towels feature in the

Automatic cycle. The

Towels setting allows for

more drying time and

automatically shuts off

the dryer when the

selected dryness is

reached. The Towels

feature also can be used for extra heavy

items such as mattress pads and quilts.

FINISH GUARD®Feature

(on some models)

When you are unable to remove a load from

the dryer as soon as it

stops, wrinkles can form.

The FINISH GUARD

feature tumbles the load

without heat every few

minutes up to 45 minutes

after the cycle ends. This

tumbling rearranges and

fluffs the load to avoid

wrinkles. You do not have to set the Cycle

Control Knob for the FINISH GUARD

feature. If you do not open the dryer door

within a few minutes after the cycle stops,

the FINISH GUARD feature takes over to

protect the load.

A signal sounds every few minutes when

FINISH GUARD is running. The signal and

cycle stop when you open the dryer door.

NOTE: See page 12 if your model has a

FINISH GUARD On/Off selector.

Rack Dry Feature

(on some models)

You may want to dry some items without

tumbling (such as wool

sweaters, stuffed toys, or

pillows). Use the drying

rack (see page 13) and

the Rack Dry feature for

these items, and a low

temperature setting.

During the drying cycle,

the drum turns, but the

rack does not move. Drying time depends

on the amount of moisture in the items.

NOTES:

•Be sure to follow the instructions on page

13 for installing the drying rack in your

dryer and placing items on the rack.

•Use the chart on page 13 to determine

temperatures and drying times.

•You may use either the Timed cycle or

Fluff Air cycle for rack drying.

Off

Finish

Guard

70 60 50

Cool

Down

Off

Rack Dry

Cool

Down

Off

Press

Tumble

Off

Very

Dry

Less

Dry

Finish

Guard

Cool

Down

Option

Towels

OPERATING YOUR DRYER

Drying cycles chart

Use the chart below to help you make

drying selections. The chart suggests heat

settings and drying times for various loads.

NOTES:

•Use an Automatic cycle to dry most loads.

•Use a Timed cycle only if the recom-

mended Automatic cycle is not available.

•The check mark (✓) in the chart below

denotes recommended temperature

settings. If some types of loads in the

chart have more than one suggested

temperature setting, choose the lowest

setting available on your dryer.

•Always follow care label directions when

they are available.

COTTONS AND LINENS

Extra Heavy

Bedspreads, mattress pads, quilts

Heavyweight

Towels, jeans, corduroys, work clothes

Mediumweight

Sheets, cotton underwear, diapers

Lightweight

Batistes, organdies, lingerie

PERMANENT PRESS,

SYNTHETICS, AND BLENDS

Heavyweight

Work clothes, jackets, raincoats

Mediumweight

Shirts, play clothes, sheets, slacks

Lightweight

Lingerie, blouses, dresses

KNITS

Heavyweight

Cottons, rayons, blends, T-shirts,

slacks, shirts

Mediumweight

Synthetics (polyester, acrylic, etc.),

dress slacks, skirts, sweaters

Lightweight

Synthetics (polyester, acrylic, etc.) and

blends, lingerie, blouses, dresses

DELICATES**

Sheer curtains (2 or 3 panels),

gauze, lace, etc.

High

✓

Medium*

✓

Low

✓

TIMED CYCLE

(minutes)

High

70-80

50-60

40-50

30-40

40-50

Extra

Low*

✓

Low

20-30

30-40

20-30

15-20

AUTOMATIC CYCLE

(heat settings)

TYPE OF LOAD

* Settings available only on dryer models with separate Temperature Selector.

** If you don’t have low or extra low heat, use Fluff Air cycle (if available). Line drying is also

recommended for delicate fabrics.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool ELECTRONIC DRYER Bedienungsanleitung

Whirlpool

Whirlpool WSI24ABBPH00 Bedienungsanleitung

Whirlpool

Whirlpool WGD9250WL - Duet Lunar - Gas Dryer Bedienungsanleitung

Whirlpool

Whirlpool LE6805XP Bedienungsanleitung

Whirlpool

Whirlpool 3LWED4705FW Bedienungsanleitung

Whirlpool

Whirlpool REC3622B Montageanleitung

Whirlpool

Whirlpool 3RLGR5437KQ1 Bedienungsanleitung

Whirlpool

Whirlpool WED9151YW Bedienungsanleitung

Whirlpool

Whirlpool Gas LG5791XM Bedienungsanleitung

Whirlpool

Whirlpool WGD5200TQ - Dryer Benutzerhandbuch

Whirlpool

Whirlpool WED8300SB - Duet Sport Electric Dryer Bedienungsanleitung

Whirlpool

Whirlpool MAYTAG MLG-52 Bedienungsanleitung

Whirlpool

Whirlpool WED9250 Bedienungsanleitung

Whirlpool

Whirlpool WGD9450WL Bedienungsanleitung

Whirlpool

Whirlpool WED5510VQ Bedienungsanleitung

Whirlpool

Whirlpool CGM2745FQ0 Bedienungsanleitung

Whirlpool

Whirlpool W10224610A Bedienungsanleitung

Whirlpool

Whirlpool Duet WED9500T Service-Handbuch

Whirlpool

Whirlpool LE5800XP Bedienungsanleitung

Whirlpool

Whirlpool LEW0050PQ3 Fehlerbehebungshandbuch

Whirlpool

Whirlpool Electric and Gas Dryers Bedienungsanleitung

Whirlpool

Whirlpool LEQ8800JQ1 Bedienungsanleitung

Whirlpool

Whirlpool LE6600XS Bedienungsanleitung

Whirlpool

Whirlpool WDH3090GW Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
