Cycle control knob

‘emperature selector

I I Cycle signal

Start button

Lint screen

Model and serial

Electronic

DRY-MISEW sensor

SUPERCAPACITY

AUTOMATICDRYERS

LE9500XT LG95OlXT

LE9520XT LG952lXT

Contents

Page

Important Safety

Instructions.

Additional safety instructions

and your responsibilities

Operating Instructions

Starting your dryer

The automatic cycles .

Timed drying .

Using fluff air

Using TUMBLE PRESS@

Using damp dry

End-of-cycle signal

Lint signal.. .

Additional Dryer Features

Gentle heat system

FINISH GUARD@ setting

Caring For Your Dryer

Cleaning the lint screen

Cleaning the dryer interior

Lint removal

If You Need Service Or

Assistance.

Whirlpool Automatic Dryer

Warranty....................

01990 Whirlpool Corporation

Thank you for buying a Whirlpool

appliance. Please complete and mail

the Owner Registration Card provided

with this product. Then complete the

form below. Have this information ready

if you need service or call with a

question.

Copy model and serial numbers

from plate (on the frame behind the

door) and purchase date from sales

slip.

Keep this book, the Dryer Guide and

the sales slip together in a handy

place.

Model Number

Serial Number

Purchase Date

16 Service Company Phone Number

If your dryer has a Consumer Buy

Guide label, remove it. It will be easier

to remove before the dryer is used.

To remove any remaining glue:

Rub briskly with thumb to make a ball,

then remove.

Soak area with liquid hand dishwash-

ing detergent before removing glue

as described above.

Do not use sharp instruments,

rubbing alcohol, flammable fluids or

abrasive cleaners. These can damage

the finish. See “Important Safety

Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels Inside the dryer.

You should wipe out the dryer drum

with a damp cloth before using to re-

move dust from storing or shipping.

FOR YOUR SAFETY

If you smell gas:

1. Open windows.

2. Don’t touch electrical

switches.

3. i;zeguish any open

4. Immediately call your

gas supplier.

FOR YOUR SAFETY

Do not store or use gas-

oline or other flammable

vapors and liquids in the

vicinity of this or any

other appliance. The

fumes can create a fire

hazard or explosion.

ImportantSafetyInstructions

Read all instructions before

You are responsible for

using the dryer. making sure that your

NEVER dry items cleaned, dryer is installed, repaired and

washed, soaked in or spotted with parts replaced by a qualified

wax, paint, gasoline or flammable person.

fluids in the dryer. The fumes can

Use only fabric softeners specifi-

create a FIRE HAZARD or tally labeled as not being harmful

EXPLOSION. ALWAYS hand to the dryer.

launder and air dry fabrics contain- * FIRE HAZARD and DAMAGE to

ing these materials. materials can result from:

NEVER allow children to operate, -drying rubber, rubber-like and

play with or crawl inside the dryer. heat sensitive materials with heat.

Close supervision of children is - allowing lint build-up inside the

necessary when the dryer is used dryer or exhaust system. Clean-

near children. ing should be done periodically

DO NOT reach into a dryer if the by a qualified person.

drum is moving.

Clean lint screen before or after

When discarding an old dryer, each load.

ALWAYS remove the door to

DO NOT let dust, lint, paper, rags,

prevent accidental entrapment. chemicals, etc. pile up around or

DO NOT install or store dryer under the dryer.

where it will be exposed to the

Dryer must be electrically

weather. grounded. See the Installation

DO NOT tamper with the controls. Instructions.

-SAVE THESE INSTRUCTIONS -

Additionalsafetyinstructionsandyourresponsibilities

NEVER operate the dryer if: on a floor that can support the

-it is not working right (i.e. noisy, too hot). weight in a well ventilated room.*

- It is damaged. is located in an area where the

-parts are missing (i.e. door latch). - temperature is above 45°F (7.2%).

- all panels are not in place. - is connected to the proper electrical

-the lint screen is loose, damaged supply, outlet, water supply, plumbing

or missing. fixtures, drain and dryer exhausting

ALWAYS shut off the gas valve system.’

before leaving on vacation if you have - is properly connected to fuel and

a gas dryer. exhaust systems.*

ALWAYS unplug the power supply - is not installed against drapes or

cord or turn off electrical power before curtains.*

attempting to service the dryer. Shut - is used only for jobs normally

off GAS VALVE if you have a gas dryer. expected of home clothes dryers.

You are responsible for making -is not used by anyone unable to

sure that your dryer: operate it properly.

- is properly maintained. ‘See the Installation Instructions for

- is properly installed and leveled complete information.

i I

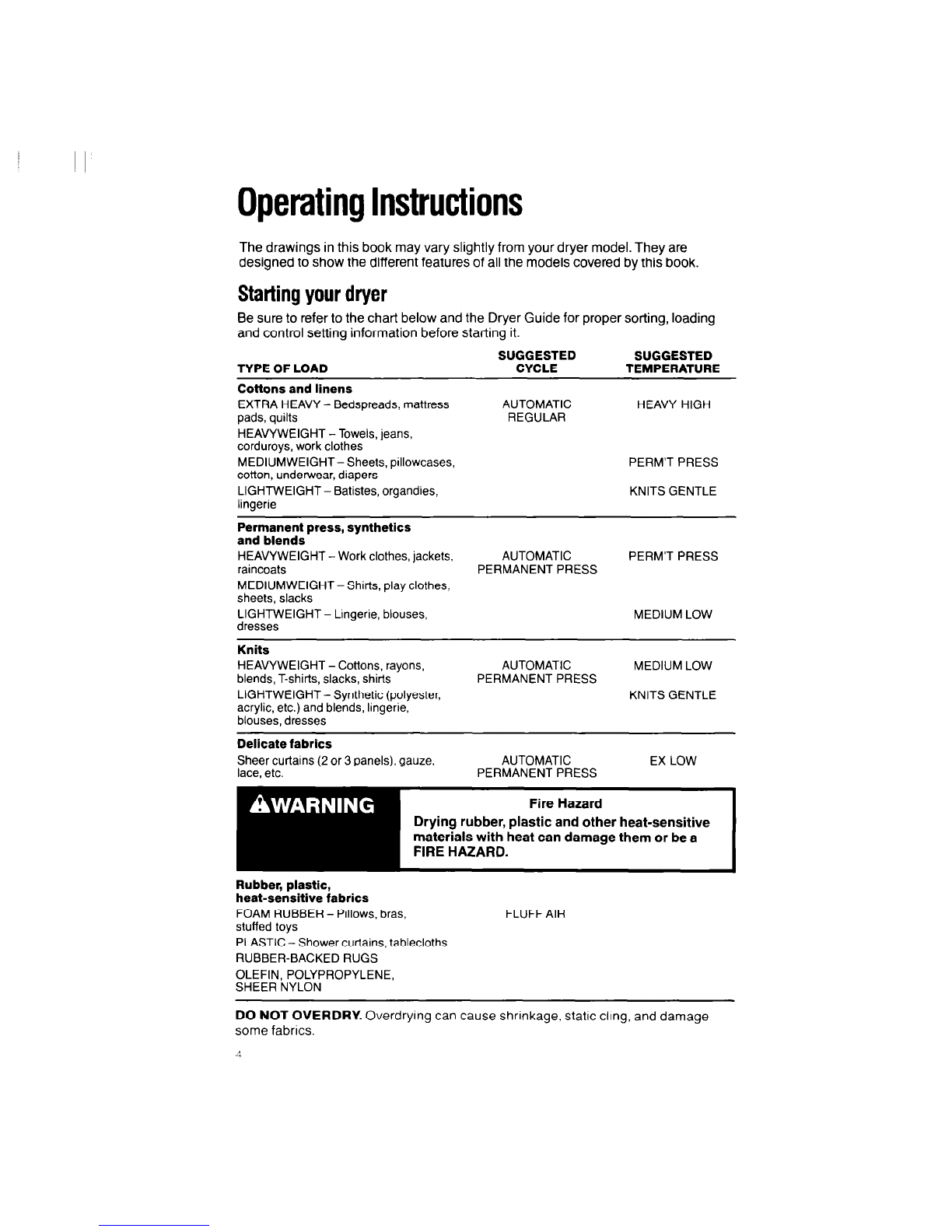

OperatingInstructions

The drawings in this book may vary slightly from your dryer model. They are

designed to show the different features of all the models covered by this book.

Startingyourdryer

Be sure to refer to the chart below and the Dryer Guide for proper sorting, loading

and control setting information before starting it.

TYPE OF LOAD

Cottons and linens

EXTRA HEAVY - Bedspreads, mattress

pads, quilts

HEAVYWEIGHT - Towels, jeans,

corduroys, work clothes

MEDIUMWEIGHT- Sheets, pillowcases,

cotton, underwear, diapers

LIGHTWEIGHT - Batistes, organdies,

lingerie

SUGGESTED SUGGESTED

CYCLE TEMPERATURE

AUTOMATIC HEAVY HIGH

REGULAR

PERM’T PRESS

KNITS GENTLE

Permanent press, synthetics

and blends

HEAVYWEIGHT-Work clothes, jackets, AUTOMATIC PERM’T PRESS

raincoats PERMANENT PRESS

MEDIUMWEIGHT - Shirts, play clothes,

sheets, slacks

LIGHTWEIGHT - Lingerie, blouses, MEDIUM LOW

dresses

Knits

HEAVYWEIGHT - Cottons, rayons,

blends, T-shins, slacks, shirts

LIGHTWEIGHT - Synthetic (polyester,

acrylic, etc.) and blends, lingerie,

blouses, dresses

AUTOMATIC MEDIUM LOW

PERMANENT PRESS KNITS GENTLE

Delicate fabrics

Sheer curtains (2 or 3 panels), gauze,

lace, etc. AUTOMATIC EX LOW

PERMANENT PRESS

Rubber, plastic,

heat-sensitive fabrics

FOAM RUBBER - Pillows, bras,

stuffed toys

PLASTIC - Shower curtains, tablecloths

RUBBER-BACKED RUGS

OLEFIN, POLYPROPYLENE,

SHEER NYLON

FLUFF AIR

DO NOT OVERDRY.

Overdrying can cause shrinkage, static cling. and damage

some fabrics.

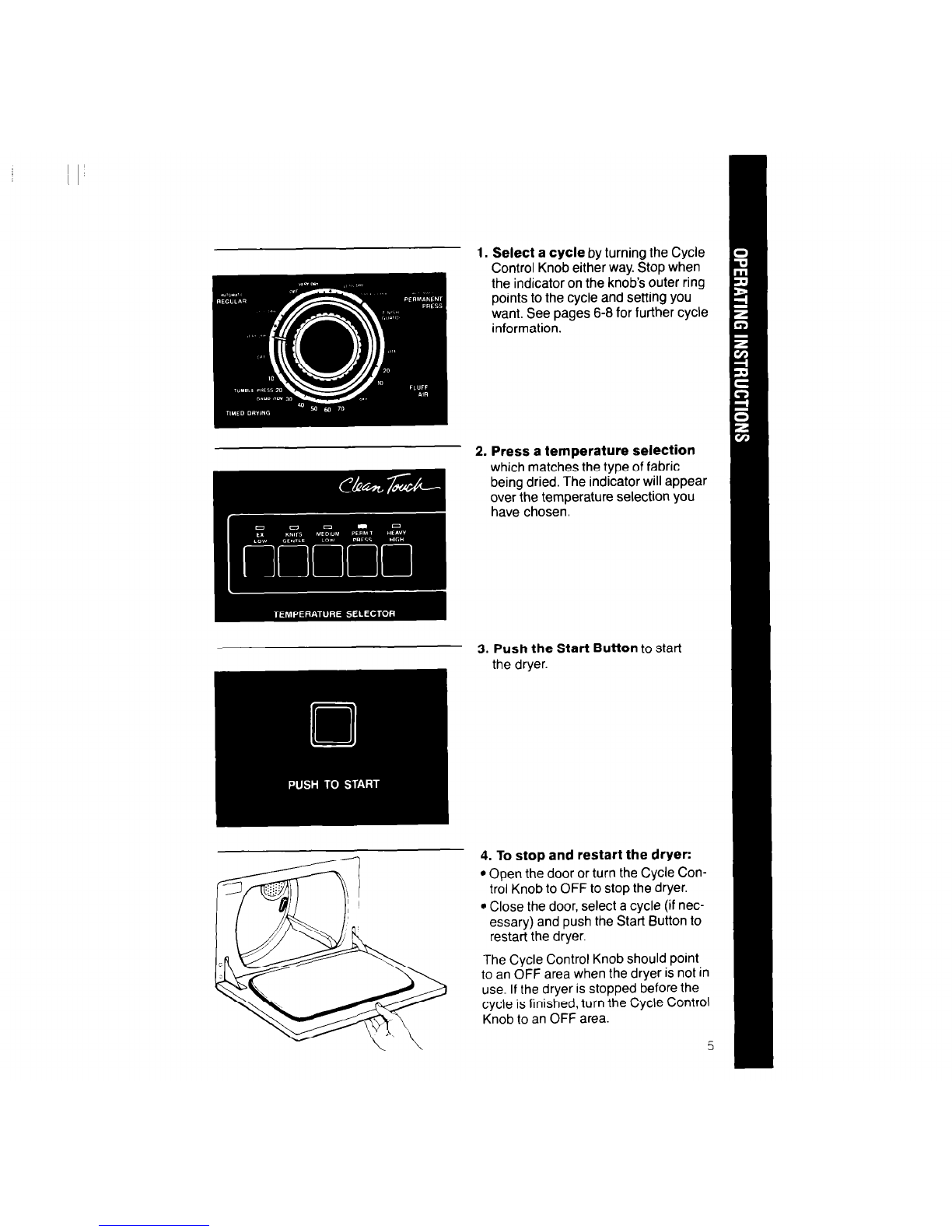

1. Select a cycle by turning the Cycle

Control Knob either way. Stop when

the indicator on the knob’s outer ring

points to the cycle and setting you

want. See pages 6-8 for further cycle

information.

2. Press a temperature selection

which matches the type of fabric

being dried. The indicator will appear

over the temperature selection you

have chosen.

3. Push the Start Button to start

the dryer.

4. To stop and restart the dryer:

Open the door or turn the Cycle Con-

trol Knob to OFF to stop the dryer.

0 Close the door, select a cycle (if nec-

essary) and push the Start Button to

restart the dryer.

The Cycle Control Knob should point

to an OFF area when the dryer is not in

use. If the dryer is stopped before the

cycle is finished, turn the Cycle Control

Knob to an OFF area.

Operating Instructions

Continued

Theautomaticcycles

The automatic cycles allow you to

select the degree of dryness you prefer

for the clothes being dried.

The electronic DRY-MISER@ control

is an electronic sensor that determines

the amount of moisture in the clothes.

The dryer automatically shuts off when

the proper dryness is reached.

The Cycle Control Knob will not move

until the clothes load is almost dry, or

the Cool-Down portion of the cycle has

been reached. After the Cool-Down

portion is complete, the Cycle Control

Knob automatically moves to an OFF

area and tumbling stops.

NOTE: Overdrying can cause

shrinkage, static cling and damage to

some fabrics.

TIMEDDRYING

UsinaFLUFFAIR

Fire Hazard

Do not dry plastic or rubber items

with heat. Use FLUFF AIR setting,

or line dry. Failure to do so could

result in fire or damaged items.

The dryer does not heat when the Cycle

Control Knob is set in FLUFF AIR. This

cycle can be used to fluff or air dry bed-

ding, plastic tablecloths, foam rubber

pillows, stuffed toys, sneakers, etc.

1. Turn the Cycle Control Knob to

the number of minutes you want

in FLUFF AIR.

2. Push the Start Button.

UsingTUMBLEPRESS”

The TUMBLE PRESS setting removes

wrinkles from clothing that has been

packed in a suitcase or closet, and from

items not removed from the dryer at the

end of a cycle.

1. Set the Cycle Control Knob on

TUMBLE PRESS.

2. Press the PERM’T PRESS Tempera-

ture Selector.

3. Push the Start Button.

The load will tumble in heated air for

15 minutes. Then the dryer will tumble

the clothes for 5 more minutes without

heat.

For best results, put only a few items

at a time in this cycle. As soon as the

dryer stops, put the items on hangers or

fold them.

Operating Instructions

Continued

UsingDAMPDRY

Use this setting to dry damp items that

do not require an entire drying cycle, or

to dry items to damp level. (Two exam-

ples are heavy cottons, such as jeans,

which you do not want to become stiff,

or cotton clothes which are easier to

press when damp.)

1. Set the Cycle Control Knob on

DAMP DRY in the TIMED DRYING

cycle.

2. Push the Start Button.

The dryer tumbles the load with heat

for 25 minutes, then without heat for

5 minutes.

End-of-cyclesignal

The dryer sounds a signal to let you

know when the cycle is finished. The

signal can be turned on or off.

The signal is helpful when you are

drying permanent press, synthetics and

other items that should be taken out as

soon as the dryer stops. To use the

Cycle Signal:

Press the Cycle Signal ON pad before

a cycle starts. The ON indicator will

show. The signal will sound when the

cycle is finished.

If no signal is desired, press the Cycle

Signal OFF pad. Make sure the OFF

indicator is showing.

Lintsignal

Clean the lint screen before each

load. If you neglect to clean your lint

screen, a signal will sound. The (whistle

tone) signal lets you know the air flow is

being restricted. Restricted air flow

reduces drying efficiency.

Turn off the dryer and clean the lint

screen as shown on page 10.

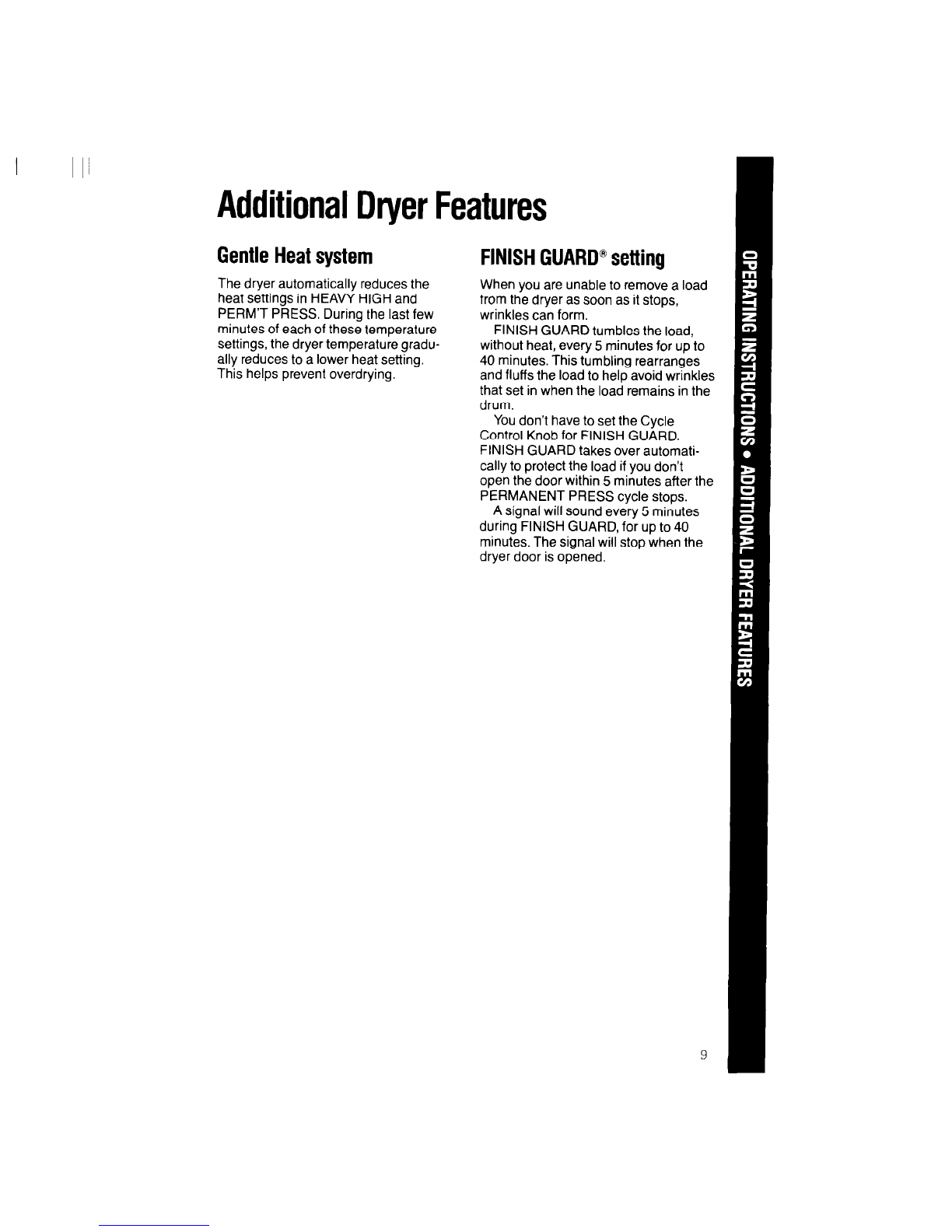

AdditionalDryerFeatures

GentleHeatsystem FINISHGUARD@setting

The dryer automatically reduces the

heat settings in HEAVY HIGH and

PERM’T PRESS, During the last few

minutes of each of these temperature

settings, the dryer temperature gradu-

ally reduces to a lower heat setting.

This helps prevent overdrying.

When you are unable to remove a load

from the dryer as soon as it stops,

wrinkles can form.

FINISH GUARD tumbles the load,

without heat, every 5 minutes for up to

40 minutes. This tumbling rearranges

and fluffs the load to help avoid wrinkles

that set in when the load remains in the

drum.

You don’t have to set the Cycle

Control Knob for FINISH GUARD.

FINISH GUARD takes over automati-

cally to protect the load if you don’t

open the door within 5 minutes after the

PERMANENT PRESS cycle stops.

A signal will sound every 5 minutes

during FINISH GUARD, for up to 40

minutes. The signal will stop when the

dryer door is opened.

CaringForYourDryer

Cleaningthelint screen

The lint screen is located under a lid on top of the dryer. Clean it before each

load. A screen blocked by lint can increase drying time.

1. Open the lid and pull the lint screen

straight out.

2. Roll lint off the screen with your

fingers. Do not rinse or wash the

screen. Wet lint is hard to remove.

3. Push the lint screen firmly back into

place and close the lid.

\ \

Cleaningthedryerinterior

Electric Shock Hazard

Unplug the power supply cord

or turn off the electrical power

before cleaning the interior.

Failure to do so could result in

electrical shock or injury.

Garments which contain unstable dyes,

such as denim blue jeans or brightly

colored cotton items, may discolor the

dryer interior. If the interior is discolored,

clean with one of the following methods

to avoid staining later load items.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool WGD9500TC - DUET FRONT LOAD STEAM DRYERS Bedienungsanleitung

Whirlpool

Whirlpool 3RLER5437 Bedienungsanleitung

Whirlpool

Whirlpool WGD6400SB Bedienungsanleitung

Whirlpool

Whirlpool WED4985EW Bedienungsanleitung

Whirlpool

Whirlpool HybridCare Bedienungsanleitung

Whirlpool

Whirlpool WED9250WR - Duet Cranberry - Electric Dryer Bedienungsanleitung

Whirlpool

Whirlpool AWZ 7913 WP Bedienungsanleitung

Whirlpool

Whirlpool LE4900XM Bedienungsanleitung

Whirlpool

Whirlpool LEV7646AW1 Bedienungsanleitung

Whirlpool

Whirlpool cabrio WED6200S Handbuch

Whirlpool

Whirlpool Duet Steam WED 9750W 0 Series Bedienungsanleitung

Whirlpool

Whirlpool WGD9600TA1 Bedienungsanleitung

Whirlpool

Whirlpool LDR3422AW0 Bedienungsanleitung

Whirlpool

Whirlpool CSP2761TQ Bedienungsanleitung

Whirlpool

Whirlpool WGD9500T Bedienungsanleitung

Whirlpool

Whirlpool Gas LG5791XM Bedienungsanleitung

Whirlpool

Whirlpool WED94HEA Handbuch

Whirlpool

Whirlpool LE3000XM Bedienungsanleitung

Whirlpool

Whirlpool Cabrio W10164159B Bedienungsanleitung

Whirlpool

Whirlpool 3LWED4915 Bedienungsanleitung

Whirlpool

Whirlpool WGD97HEXL0 Bedienungsanleitung

Whirlpool

Whirlpool DWFC8002GW Bedienungsanleitung

Whirlpool

Whirlpool CGM2941TQ Bedienungsanleitung

Whirlpool

Whirlpool LE5780XM Bedienungsanleitung

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
