COMPACT ELECTRIC AND GAS DRYERS

MODELS LDR3822D LER3622D LGR3622D

PART NO. 9831699 5/95

‘lq5

A Note to You

Thank you for buying a WHIRLPOOL@ appliance.

Because your life is getting busier and more complicated, WHIRLPOOL dryers are easy to

use, save time, and help you manage your home better. To ensure that you enjoy years of

trouble-free operation, we developed this Use and Care Guide. It contains valuable informa-

tion about how to operate and maintain your dryer properly and safely. Please read it

carefully. Also, please complete and mail in the Ownership Registration Card provided with

your appliance. The card helps us notify you about any new information on your appliance.

Please record your model’s information.

Whenever you call to request service on

Model Number

your appliance, you need to know your

complete model number and serial number.

Serial Number

You can find this information on the model

Purchase Date

and serial number label in the door well (see

Dealer Name

diagram on page 5 for location of label).

Please also record the purchase date of

your appliance and your dealer’s name,

address, and telephone number.

Dealer Address

Dealer Phone

Keep this book and the sales slip together in a safe place for future reference.

Our Consumer Assistance Center

number is toll-free 24 hours a day.

1-800-253-I 30 1

Dryer Safety

warning symbols. Please pay special

attention to these symbols and follow any

instructions given. Here is a brief explana-

tion of the use of the symbol.

This symbol will help alert you to such

1 and personal iijury.

dangers as fire electrical shock burns

’ ’

IMPORTANT SAFETY INSTRUCTIONS

For your safety, the information in this

manual must be followed to minimize the

risk of explosion or fire, or to prevent

loss of life, personal injury, or property

- Do not store or use gasoline or other flammable vapors and liquids

in the vicinity of this or any other appliance.

-WHAT TO DO IF YOU SMELL GAS:

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in your

building.

@Clear the room, building, or area of all occupants.

Immediately call your gas supplier from a neighbor’s phone.

Follow the gas supplier’s instructions.

If you cannot reach your gas supplier, call the fire department.

Installation and service must be performed by a qualified installer,

service agency, or the gas supplier.

continued on next page

IMPORTANT SAFETY INSTRUCTIONS

----- ----- ---- -- -- -- - ---- ---- - ------

*Read all instructions before using your should be done periodically by a qualified

dryer. person.

*Dryer must be electrically grounded. See *Do not allow children to operate, play

the Installation Instructions. with, or crawl inside your dryer. Supervise

~DO not machine wash or machine dry children when your dryer is used near

items cleaned, washed, soaked in, or children.

spotted with wax, paint, gasoline, oil, dry *Do not reach into a dryer if the drum is

cleaning solvents, or other flammable moving.

fluids. The fumes can create a fire hazard

or explosion. Always hand wash and line *Install and/or store dryer where it will not

dry items containing these materials. be exposed to the weather.

ADOnot wash or dry items that are soiled ADOnot tamper with the controls.

with vegetable or cooking oil. These *Do not dry rubber, rubber-like, or heat-

items may contain some oil after laun- sensitive materials with heat.

dering. Due to the remaining oil, the *Unplug the power supply cord or turn off

fabric may smoke or catch fire by itself. electrical power before attempting to

Gtore flammable solvents or fluids away service your dryer. Also, shut off gas

from your dryer. valve if you have a gas dryer.

*Dry cleaning solvents or fluids should

When removing from service or discard-

never be put directly into your dryer. ing a dryer, always remove the door to

*Do not let dust, lint, paper, rags, chemi- prevent accidental entrapment.

cals, etc., pile up around or under the

Clean lint screen before or after each

dryer. load.

ADOnot allow lint to build up inside the *Use only fabric softeners specifically

dryer or exhaust system. Cleaning labeled as not being harmful to the dryer.

Understanding your responsibilities

*Be sure that your dryer: -is used only for jobs normally expected

-is located in an area where the of home clothes dryers.

temperature is above 45°F (7°C). -is not used by anyone unable to operate

-is properly installed in a well-ventilated it properly.

room and leveled on a floor that can *Never operate the dryer if:

support the weight.*

-is connected to the proper outlet and

electrical supply.*

-is properly connected to fuel and

- it is not working right (i.e. noisy, too hot)

- it is damaged.

-parts are missing.

exhaust systems (gas dryers must be all panels are not in place.

vented outdoors).* -the lint screen is loose, damaged, or

-is not installed against draperies or missing.

curtains, or on carpet.* *See the Installation Instructions for

-is properly maintained, repaired, and has complete information.

parts replaced by a qualified person.

- SAVE THESE INSTRUCTIONS -

Parts and Features

The parts and features of your dryer are illustrated below. Become familiar with all parts and

features before using your dryer.

NOTE:

The drawings in this book may vary from your dryer model. They are designed to

show the different features of all models covered by this book. Your model may not include all

features.

Start button

Lint screen

Model and serial

number label -

Access door -

(gas models only)

Cycle and

temperature

control

knob

Moisture sensor

(12OV

models

only)’

Dryer drum

Other feature:

End of cycle signal

(see

page

*Automatic DRY-MISER@

Control

(240V models)

Optional mounting kits

You can mount your compact dryer above your l Dryer Wall-Mounting Kit for securing the

compact washer using one of the following kits: dryer to the wall with a steel bracket.

Part No. 345994 (electric only)

NOTE:

The wall must be strong enough to

Fire and Explosion Hazard support the dryer’s weight. (Do not use in

mobile homes.)

If mounting a gas dryer, use only Dryer

Stand Kit, Part No. 49971 or 49978.

Using any other kit could result in a gas

leak.

Failure to follow the above instructions

could cause explosion or fire.

Optional deflector kit

l Exhaust Deflector Kit to move dryer

exhaust up, down, or to the side.

Part No. 346001 (electric)

l Dryer Stand Kit for permanent installation,

secured to the wall.

Part No. 49971 (white) or 49978 (almond)

Operating Your Dryer

The information in this section helps you learn to use your dryer efficiently and safely. Refer

to “Laundry Tips” on page 13 for additional information on sorting, loading, and drying most

types of washables.

Before starting your dryer

Before using your dryer, wipe the dryer drum

with a damp cloth to remove

dust from storing and shipping.

Starting your dryer

1. Load clothes into the dryer and close

the door. 3. Push the Start Button

2. Turn the Cycle Control Knob either way

to the desired cycle. Use the

Energy Preferred Automatic

Setting (*) to dry most loads

(see page 7).

NOTE: Your dryer stops automatically when

a cycle ends.

Stopping/restarting your dryer

You can stop your dryer anytime during

a cycle.

To stop the dryer, either:

l Open the dryer door.

To restart the dryer:

1. Close the door.

2. Select a new cycle and temperature (if

desired).

3. Push the Start Button.

l Turn the Cycle Control Knob

to OFF.

0 YV

NOTE: The Cycle Control Knob should point

to an OFF area when the dryer is not in use.

End of cycle signal

The dryer sounds a signal to let you know

when the cycle is finished. The signal is not

adjustable and cannot be turned off.

The signal is helpful when you are drying

permanent press, synthetics, and other

items that should be taken out as soon as

the dryer stops.

Selecting the right cycle and setting

The following pages describe the cycles on

your dryer. Refer to the chart on page 9 for

help in selecting drying cycles.

Drying guidelines

l Always follow care label directions when

they are available.

l Use the Air cycle, or line dry rubber,

plastic, delicate, and heat-sensitive fabrics

(see page 8).

l The last few minutes of all cycles are without

heat to make the load easier to handle.

l To help reduce wrinkling, remove the load

from the dryer as soon as tumbling stops.

This is especially important for permanent

press, knits, and synthetic fabrics.

l Overdrying can cause shrinkage, static

cling, and damage to some fabrics.

. Refer to pages 13-15 for information *

about:

- sorting clothes for drying

- choosing load sizes

- drying tips

- using dryer fabric softeners

- saving energy

- drying special-care items. .

Cycle descriptions

Automatic Permanent Press/

Regular Cycle(s)

Dry most loads using the Energy

Preferred Automatic Setting (*). Your

Automatic cycle(s) shuts off when the se-

lected dryness is reached. The Cycle Control

Knob will not move until the load is almost

dry. After the cool-down, the Knob automati-

tally turns to an OFF area and tumbling

stops.

l If the load is drier than you like, select a

setting closer to LESS DRY the next time

you dry a similar load.

. If the load is not as dry as you like, com-

plete drying using a Timed cycle. Select a

setting closer to VERY DRY the next time

you dry a similar load.

LDR3622D LER3622D LGR3622D

Timed Cycle(s)

Use a Timed cycle to complete drying if

some items are damp after Automatic dry-

ing. Timed drying is also useful for:

l Delicate items and small loads that need

a short drying time.

l Bulky items and large loads that require

a long drying time.

Air Cycle

The Air cycle has no heat. Use this un-

heated cycle to fluff or air dry bedding,

plastic tablecloths, foam pillows, sneakers,

etc. See page 9 for more information about

the Air cycle.

Fire Hazard

Do not dry heat-sensitive fabrics, plastic,

rubber, or some stuffed items with heat.

Use the Fluff Air cycle, if available, or

dry these items on a line or rack.

Failure to do so could result in fire or

damaged items.

II ,

LDR3822D LER3622D LGR3622D

Selecting the right cycle and setting

MODELS

LER3622D

TYPE OF LOAD CYCLE LDR3822D LGR3622D

COlTONS AND LINENS

Extra Heavy-Bedspreads, mattress pads, quilts Timed Drying 90-105 min 45-55 min

Heavyweight-Towels, jeans, corduroys, work Perm. Press/Reg.

clothes

MEDIUM WEIGHT-Sheets, cotton underwear, Perm. Press/Reg.

diapers

Lightweight-Batistes, organdies, lingerie Perm. Press/Reg.

PERMANENT PRESS, SYNTHETICS AND

BLENDS

Heavyweight-Work clothes, jackets, raincoats Perm. Press/Reg.

MEDIUM WEIGHT-Shirts, play clothes, sheets, Perm. Press/Reg.

slacks

Lightweight-Lingerie, blouses, dresses Perm. Press/Reg.

KNITS

Heavyweight-Cottons, rayons, blends, T-shirts, Perm. Press/Reg.

slacks, shirts

Medium weight-synthetics (polyester, acrylic, Perm. Press/Reg.

etc.), dress slacks, skirts, sweaters

Lightweight-Synthetics (polyester, acrylic, etc.) Perm. Press/Reg.

and blends, lingerie, blouses, dresses

DELICATE FABRICS

Sheer curtains (2 or 3 panels), gauze, lace, etc.

RUBBER, PLASTIC, HEAT-SENSITIVE

FABRICS

Air 20-30 min* 20-30 min*

Foam Rubber-Pillows, bras, stuffed toys Air

Plastic-Shower curtains, tablecloths Air

Rubber-backed rugs Air

Olefin, Polypropylene, Sheer nylon Air

20-30 min’ 20-30 mint

20-30 mint 20-30 mint

40-50 mint 40-50 min+

15-20 min* 15-20 min’

COlTON AND CANVAS SHOES

Place several bath towels in the dryer to act

as a buffer, or place shoes on a drying rack

if your dryer has one.

Air 30-40 min’ 30-40 min*

Remove shoes from dryer while still damp.

Stretch shoes and allow to air dry.

*Reset Air cycle as needed to complete drying.

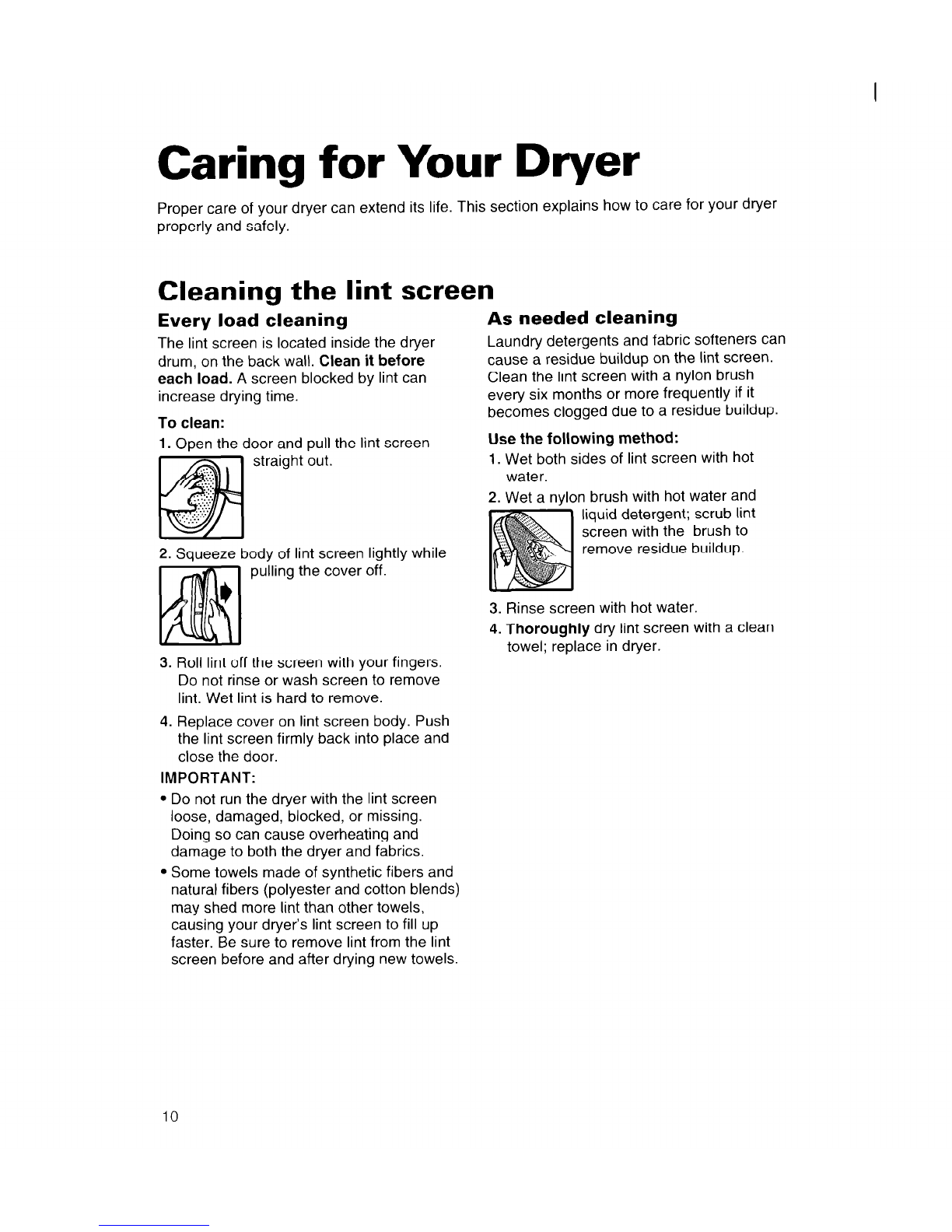

Caring for Your Dryer

Proper care of your dryer can extend its life. This section explains how to care for your dryer

properly and safely.

Cleaning the lint screen

Every load cleaning

The lint screen is located inside the dryer

drum, on the back wall. Clean it before

each load. A screen blocked by lint can

increase drying time.

To clean:

1. Open the door and pull the lint screen

straight out.

ody of lint screen lightly while

pulling the cover off.

As needed cleaning

Laundry detergents and fabric softeners can

cause a residue buildup on the lint screen.

Clean the lint screen with a nylon brush

every six months or more frequently if it

becomes clogged due to a residue buildup.

Use the following method:

1. Wet both sides of lint screen with hot

water. n brush with hot water and

liquid detergent; scrub lint

screen with the brush to

remove residue buildup.

3. Rinse screen with hot water.

4. Thoroughly dry lint screen with a clean

towel: replace in drver.

3. Roll lint off the screen with your fingers.

Do not rinse or wash screen to remove

lint. Wet lint is hard to remove.

4. Replace cover on lint screen body. Push

the lint screen firmly back into place and

close the door.

IMPORTANT:

l Do not run the dryer with the lint screen

loose, damaged, blocked, or missing.

Doing so can cause overheating and

damage to both the dryer and fabrics.

l Some towels made of synthetic fibers and

natural fibers (polyester and cotton blends)

may shed more lint than other towels,

causing your dryer’s lint screen to fill up

faster. Be sure to remove lint from the lint

screen before and after drying new towels.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Whirlpool Trockner Handbücher

Whirlpool

Whirlpool WED8300SW - w/ Accents Duet Sport Electric... Bedienungsanleitung

Whirlpool

Whirlpool LI._7681XM Bedienungsanleitung

Whirlpool

Whirlpool WGD8300S Handbuch

Whirlpool

Whirlpool Duet GEW9250PW Bedienungsanleitung

Whirlpool

Whirlpool ELECTRIC LE5795XM Bedienungsanleitung

Whirlpool

Whirlpool WED7990XG0 Bedienungsanleitung

Whirlpool

Whirlpool LE668OXS Bedienungsanleitung

Whirlpool

Whirlpool ELECTRONIC DRYER Bedienungsanleitung

Whirlpool

Whirlpool AZA-HP 7572 Bedienungsanleitung

Whirlpool

Whirlpool CGM2745FQ0 Bedienungsanleitung

Whirlpool

Whirlpool LE5200XT Bedienungsanleitung

Whirlpool

Whirlpool 8527809 Bedienungsanleitung

Whirlpool

Whirlpool cabrio WED6400S Bedienungsanleitung

Whirlpool

Whirlpool WGD4910XQ Bedienungsanleitung

Whirlpool

Whirlpool W10296184B Bedienungsanleitung

Whirlpool

Whirlpool WED95HEDW Bedienungsanleitung

Whirlpool

Whirlpool WGD9500TC - DUET FRONT LOAD STEAM DRYERS Bedienungsanleitung

Whirlpool

Whirlpool BYCD3722W0 Bedienungsanleitung

Whirlpool

Whirlpool LGT6634AW0 Bedienungsanleitung

Whirlpool

Whirlpool CEM2750JQ0 Bedienungsanleitung

Whirlpool

Whirlpool AWZ 3520 WP Bedienungsanleitung

Whirlpool

Whirlpool Duet Sport YWED8300SB2 Bedienungsanleitung

Whirlpool

Whirlpool WED97HEDW Bedienungsanleitung

Whirlpool

Whirlpool WGD9050X Handbuch

Beliebte Trockner Handbücher anderer Marken

Bosch

Bosch WTA79200GB Bedienungsanleitung

Amana

Amana W10233410A Bedienungsanleitung

Miele

Miele TWH 780 WP Bedienungsanleitung

Asko

Asko T760 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Bedienungsanleitung

Bosch

Bosch Logixx 10 WTB76556GB Technisches Datenblatt

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Bedienungsanleitung

Electrolux

Electrolux EW2H328R2 Bedienungsanleitung

Beko

Beko DS8433RX1M Bedienungsanleitung

Dawlance

Dawlance Spinner DS 6000 C Bedienungsanleitung

Electrolux

Electrolux TP5080TW Bedienungsanleitung

AEG

AEG TR838P4OB Bedienungsanleitung

Indesit

Indesit IDV 75 Bedienungsanleitung

Infiniton

Infiniton SD-DG85C Bedienungsanleitung

BOMANN

BOMANN WT 5019 Bedienungsanleitung

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Bedienungsanleitung

Asko

Asko T793C Bedienungsanleitung

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Bedienungsanleitung
