OVEN PARTS
1
For Models:GBD277PRS02
(Stainless)
9−07 Litho in U.S.A. (amd) PART NO. W10162396 Rev. A
27" BUILT−IN ELECTRIC
DOUBLE OVEN
CONVECTION − UPPER OVEN
SELF−CLEAN (GOLD LINE)
OVEN PARTS
2
For Models:GBD277PRS02
(Stainless)
W10162396
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 Literature Parts
8303648 Installation
Instructions
Owners Manual
8304075 English
8304076 French
8302068 Tech Sheet (Oven)
Safer Cooking Tips
3191638 English
9759133 French
2 Trim, Side
W10136339
Right
W10136338
Left
3 Receiver, Hinge
4455605 Left
4455606 Right
4
W10105790
Bumper, Door
5 4449809 Screw
6 8302348 Divider, Vent
7 4455864 Top Chassis
8 4452490 Spacer, Foam
9 4452158 Tube, Vent
10
W10067870
Lens, Light
11
W10009930
Assembly, Light
12 4452166 Bulb, Light
13 3400832 Screw
14
W10130370
Frame, Front
15 4455381 Gasket, Door
16 3196176 Screw
17 4449040 Screw
18 4452152 Bracket, Mounting
19 4451477 Support, Insulation
20 4449154 Screw
21 Rail, Side
8302793 Right
8302794 Left
22 4448444 Grommet
23 4450118 Nut
24 9760888 Latch, Motorized
25 4455641 Side, Chassis
26 4452233 Back, Chassis
27 Liner, Oven
(Not serviceable)
28 4455636 Sensor
29 9760676 Deflector, Vent
30 4452266 Vent, Center
31 Safety (TOD) Swtch
Thermostat (temp)
9759242 Upper
9759243 Lower
32 4455529 Base, Chassis
33 4448933 Retainer, Gasket
34 4451747 Cover, Back
35 8302940 Trim, Bottom
36 4449845 Support, Bracket
FOLLOWING PARTS
NOT ILLUSTRATED
INSULATION
4449315 Insulation, Wrap
4450364 Insulation, Back

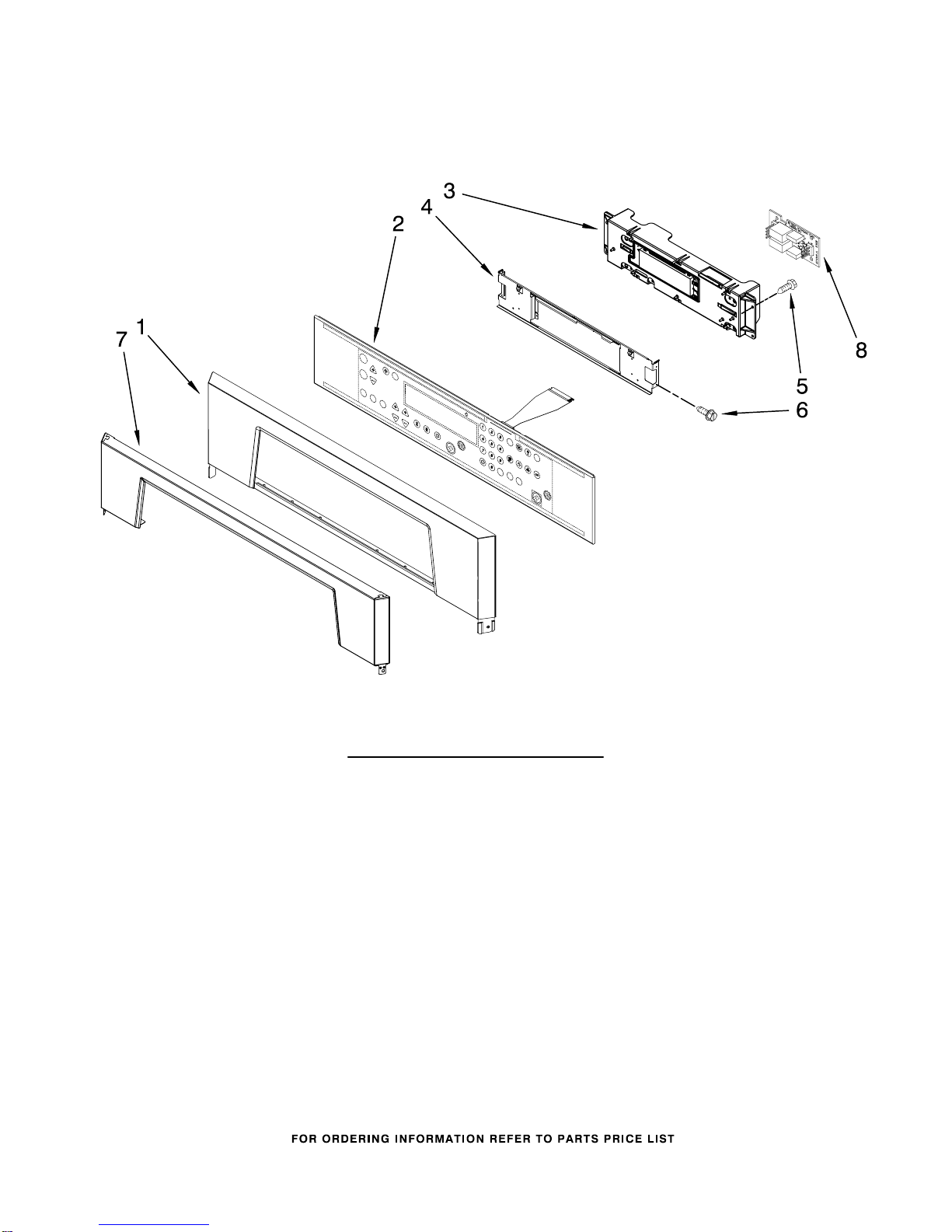

CONTROL PANEL PARTS
3
For Models:GBD277PRS02
(Stainless)
W10162396
Illus. Part
No. No. DESCRIPTION
1 8302844 Control Panel
2
W10112115
Assembly, Switch
3 8303883 Assembly, Control
4
W10153087
Backer, Control
Panel
5 3400832 Screw
6 4449745 Screw
7
W10144999
Cladding, Control
Panel
8 8301848 Latch, Sister
Board
OVEN DOOR PARTS
4
For Models:GBD277PRS02
(Stainless)
W10162396
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 8303699 Door Liner
2 4451040 Screw
3 4449253 Glass, Inner
4 4451721 Insulation, Door
5
W10136472
Bracket, Handle
6 3400832 Screw
7 9759224 Glass, Inner
8 4449809 Screw
9 4449743 Screw
10 4448520 Bumper, Door
11 9759227 Glass, Inner
12 Assembly, Door
Glass
W10151077
Upper
W10151078
Lower
13 8303163 Door Handle
14 8303877 Seal−Door
15 9759229 Bracket(2nd Glass)
16 9759230 Bracket(3rd Glass)
19 4457102 Shield, Heat
20 4457131 Retainer, Glass
21 8303810 Nameplate
22 4457113 Shield, Heat
Bottom
23
8303388BL
Clip, Door
24 Hinge, Door
9760575 Right
9760576 Left
5
INTERNAL OVEN PARTS
For Models:GBD277PRS02
(Stainless)
W10162396
Illus. Part
No. No. DESCRIPTION
1 4449154 Screw
2 9760771 Element, Broil
3 4448715 Rack, Oven
4 9760766 Element, Bake
5 4451583 Motor, Convection
6 4452226 Blade, Fan
7 4452227 Nut
8 4448988 Cover, Fan
TOP VENTING PARTS
6
For Models:GBD277PRS02
(Stainless)
W10162396
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
1 4451759 Vent, Exhaust
2 4455178 Elbow, Vent−Top
3 Blower
W10016550
Lower
4457289 Upper
4 4455177 Elbow, Vent−Bottom
5 8300642 Transformer,
Control
6 4449809 Screw
7 8302390 Bracket, Control
Air Stop
8 3400080 Screw
9 4450038 Screw
10 4449154 Screw
11 4449868 Block, Terminal
13 8303498 Vent,
Control Panel
14 Side, Control Top
4451597 Right
4451598 Left
15 9759135 Back, Control
16 4450550 Cover, Top Rear
17 4448664 Clamp
18 4452366 Cover, Top Front
20 4451758 Seal, Foam
21 8302143 Suppressor
4452260 Spacer, Foam
OPTIONAL PARTS
7
For Models:GBD277PRS02
(Stainless)
W10162396
Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION Illus. Part
No. No. DESCRIPTION
PAINT, TOUCH−UP (1/2oz.)
72017 White
261869 Cord Brown
72032 Black
PAINT, SPRAY
350930 White
261900 Citrine White
830864 Black
ADHESIVE
591014 Adhesive
Loctite (1/3 oz.)
482338 Sealer, Silastic
(3 oz.)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire (12 Ga.
150 c Black)
242820 Wire (14 Ga.
150 c Black)
242821 Wire (14 Ga.
150 c Blue)
242822 Wire (14 Ga.
150 c Brown)
242830 Wire (14 Ga.
200 c Brown)
242823 Wire (14 Ga.
150 c Green)
242824 Wire (14 Ga.
150 c Orange)
242825 Wire (14 Ga.
150 c Red)
242831 Wire (14 Ga.
200 c Red)
242827 Wire (14 Ga.
150 c Yellow)
WIRING HARNESS PARTS
8301909 Harness, Latch
4450953 Conduit, Double
4448664 Clamp
4449809 Screw
112432 Nut
4450800 Screw, Ground
4452400 Lead − Grnd Strp
8301777 Harness, Main
4452222 Spacer, Harness
4454835 Tie, Cable
98997 Clip
4451761 Support, Wiring
4454842 Tie, Cable
Miscellaneous
814381 Pin Hinge Kit
4448950 Screw, Install (4)
