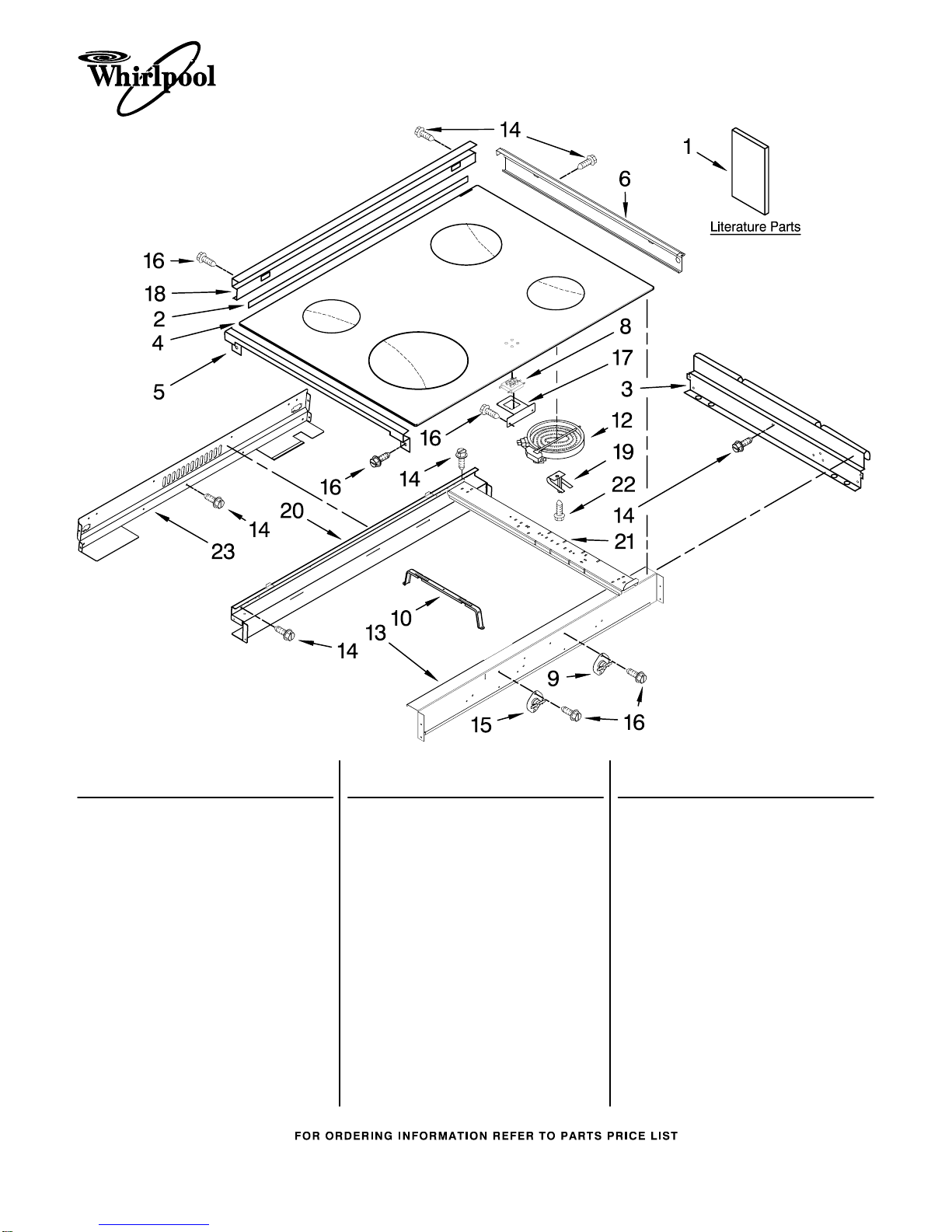

COOKTOP PARTS

For Models: GY396LXPB03, GY396LXPQ03, GY396LXPT03, GY396LXPS03

(Black) (White) (Biscuit) (Stainless)

3−07 Litho in U.S.A. (amd) Part No. W10129038 Rev. A

30" Slide−In

ELECTRIC OVEN

SELF CLEAN

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literaturre Parts

9762035 Installation

Instructiions

9762257 Use & Care Guide

9761388 Tech Sheet

9757680 Anti−Tip

Instructions

Safe Cooking Tips

3191638 English

9759133 French

2 9756450 Gasket

3 4454023 Bracket, Mounting

4 Cooktop

9762069BL

Black

9756788WH

White

9756788BT

Biscuit

5 4453764 Clip, Ceran (2)

6 Trim, Cooktop SI

Right

9759530BL

Black

9759530WH

White

9759530BT

Biscuit

9759530SS

Stainless

Left

9759531BL

Black

9759531WH

White

9759531BT

Biscuit

9759531SS

Stainless

8 8523739 Light, Indicator

9 9759944 Thermostat

10 9756821 Support, Wiring

12 Element, Surface

8523698 1200W LR,RF

8523696 1800W RR

8523692 2500W LF

13 9757800 Bracket, Front

Support

14 3196537 Screw

15 341196 Thermostat

16 3196160 Screw

17 9758799 Bracket, Indicator

Lamp

18 Trim, Extension

9760520BL

Black

9760520WH

White

9760520BT

Biscuit

9760520SS

Stainless

19 9759094 Spring, Locator

20 9759963 Bracket, Rear

Support

21 8285962 Rail, Element (2)

22 246119 Screw

23 9759628 Cover, Cooktop

Rear

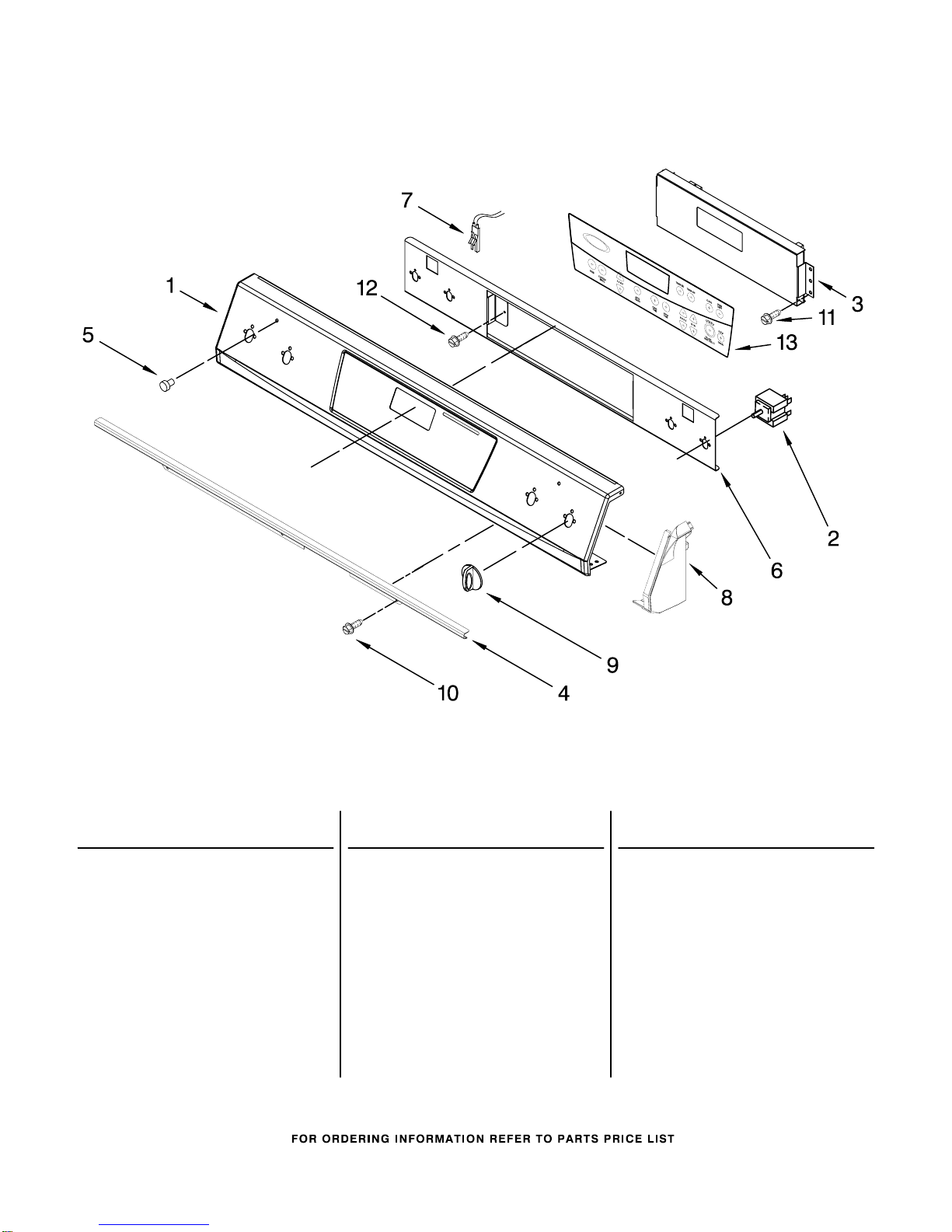

CONTROL PANEL PARTS

For Models: GY396LXPB03, GY396LXPQ03, GY396LXPT03, GY396LXPS03

(Black) (White) (Biscuit) (Stainless)

W10129038

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Control Panel

W10036010

Black

W10036000

White

W10035990

Biscuit

W10035980

Stainless

2 Switch, Infinite

9750638 LR, RF

9750639 RR

9750641 LF

3 9757476 Control, Migration

4 9757119 Bracket, Console

5 3196068 Lens, Indictor (2)

W10036100

Bracket, Oven

Control

7 8523265 Housing, Indicator

Light (2)

8 Endcap

Right

9756611BL

Black

9756611WH

White

9756611BT

Biscuit

Left

9756614BL

Black

9756614WH

White

9756614BT

Biscuit

9 Knob

9756659BL

Black

9756659WH

White

9756659BT

Biscuit

10 3196537 Screw

11 9780271 Screw

12 311865 Screw

W10078570

Membrane, Switch

Assembly

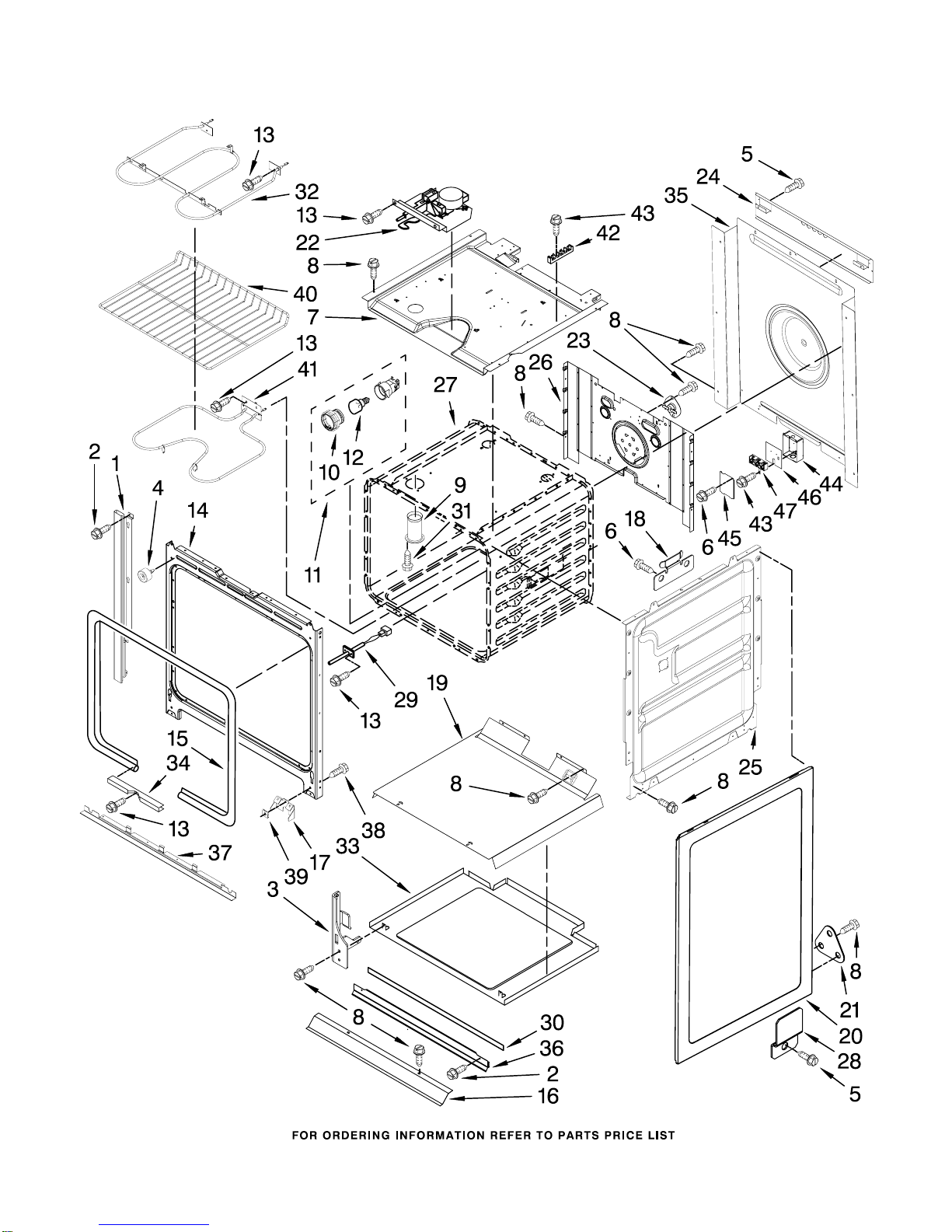

OVEN PARTS

For Models: GY396LXPB03, GY396LXPQ03, GY396LXPT03, GY396LXPS03

(Black) (White) (Biscuit) (Stainless)

W10129038

OVEN PARTS

For Models: GY396LXPB03, GY396LXPQ03, GY396LXPT03, GY396LXPS03

(Black) (White) (Biscuit) (Stainless)

W10129038

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Trim, Side

Right

9757735BL

Black

9757735WH

White

9757735BT

Biscuit

9757735SS

Stainless

Left

9757734BL

Black

9757734WH

White

9757734BT

Biscuit

9757734SS

Stainless

2 3400832 Screw (2)

3 Hinge Receiver

4455606 Right

4455605 Left

W10105790

Bumper, Door (2)

5 3196537 Screw

6 3196160 Screw

7 8303099 Top Chassis

8 4449809 Screw

9 4452158 Tube, Vent

W10067870

Lens, Light (2)

W10009930

Oven Light,

Assembly (2)

12 4452166 Bulb, Light (2)

13 4449154 Screw

14 9760756 Frame, Front

W10074200

Gasket, Door

16 4453951 Deflector, Vent

Bottom

17 4452152 Bracket, Mounting

18 9757685 Guide, Side Panel

19 4451478 Support, Insulation

20 Body, Side

9760723PB

Black

9760723PW

White

9760723PC

Biscuit

21 9757461 Bracket,Side Panel

22 9760888 Latch, Motorized

23 9759243 Thermostat

24 9757811 Brace, Side Panel

25 4455641 Side, Chassis

26 4452234 Back, Chassis

27 Liner, Oven

(Not Serviceable)

28 9759890 Clip, Side Panel

29 4455636 Sensor

30 9757717 Insulation

31 3196176 Screw

32 9760771 Broil, Element

33 9759713 Base, Chassis

34 4448933 Retainer, Gasket

35 4451747 Cover, Back

36 Vent, Bottom Upper

9756481BL

Black

9756481WH

White

9756481BT

Biscuit

9756481SS

Stainless

37 Trim, Bottom Vent

9756485BL

Black

9756485WH

White

9756485BT

Biscuit

9756485SS

Stainless

38 4449743 Screw

39 4450118 Nut

40 4448717 Rack, Oven

41 9760766 Element,

Convention Bake

42 4449868 Block, Terminal

43 3400080 Screw

44 9757404 Box, Terminal

45 9757405 Cover, Termianl

Box

46 9759721 Insulator,

Termianl Box

47 9761958 Block, Terminal

FOLLOWING PARTS

NOT ILLUSTRATED

INSULATION

9756817 Insulation, Wrap

9756470 Insulation, Back

DOOR PARTS

For Models: GY396LXPB03, GY396LXPQ03, GY396LXPT03, GY396LXPS03

(Black) (White) (Biscuit) (Stainless)

W10129038

DOOR PARTS

For Models: GY396LXPB03, GY396LXPQ03, GY396LXPT03, GY396LXPS03

(Black) (White) (Biscuit) (Stainless)

W10129038

Illus. Part

No. No. DESCRIPTION

1 9759413 Panel, Door

2 9757706 Glass, Inner

3 4451722 Insulation, Door

4 4457132 Retainer, Glass

5 Hinge, Oven Door

9760571 Right

9760572 Left

6 9759225 Glass, Inner

7 4457114 Shield, Heat

Bottom

8 9759229 Bracket, Glass

Side

9 4457103 Shield, Heat Top

10 9759225 Glass, Inner Door

11 9759230 Bracket, Central

12 4450813 Bracket, Handle

13 Pad, Handle

9759638 Right

9759637 Left

14 9759641 Assembly, Door

Kit

15 4448854 Handle, Door

17 4450863 Retainer, Glass

Clip

18 9759635 Spacer, Door Glass

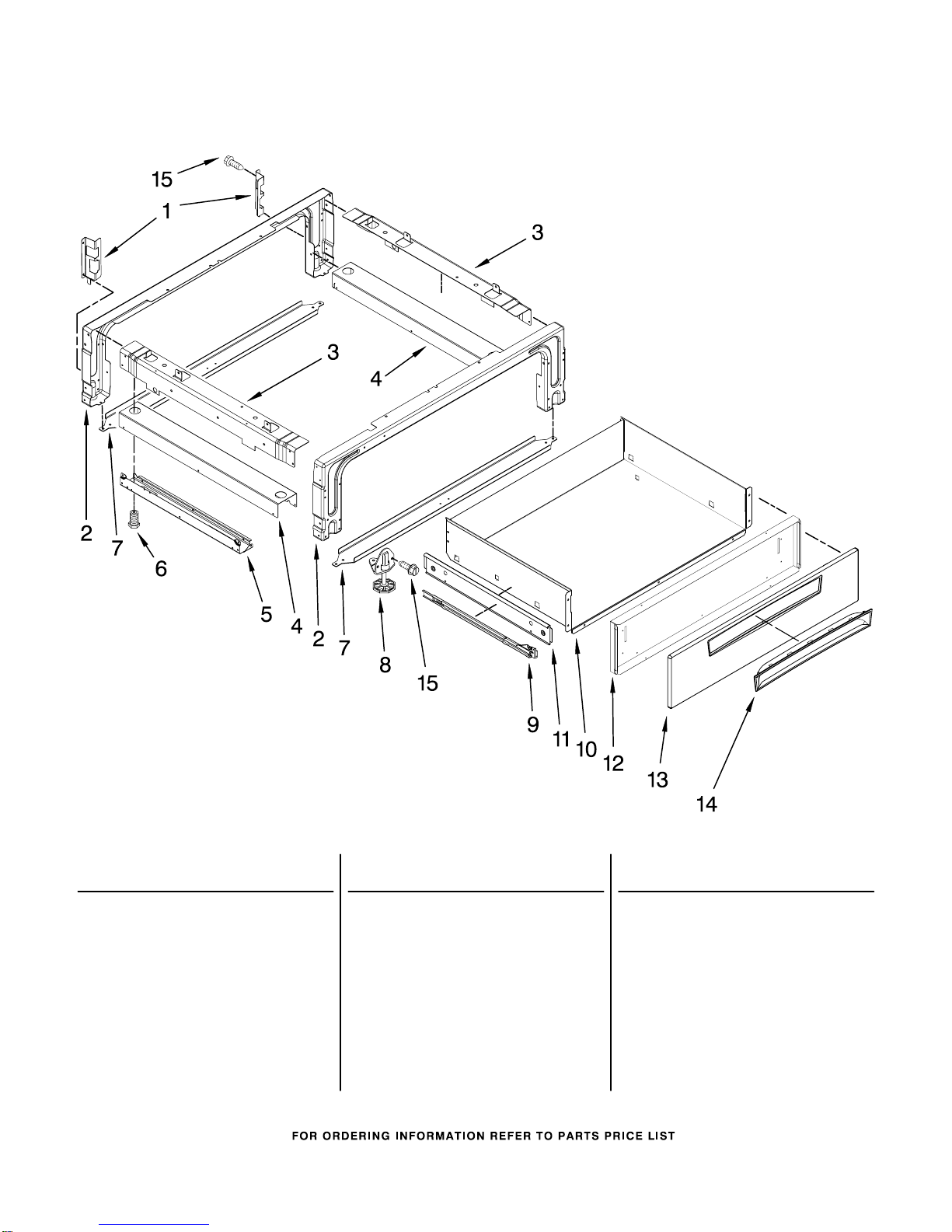

DRAWER PARTS

For Models: GY396LXPB03, GY396LXPQ03, GY396LXPT03, GY396LXPS03

(Black) (White) (Biscuit) (Stainless)

W10129038

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Support, Drawer

Rail

9757687 Right

9757686 Left

9763501BL

Support, Front

& Rear

3 Brace, Drawer

4453720 Right

4453721 Left

4 9759965 Bracket, Base

5 Side, Base

9759953 Right

9759954 Left

W10058460

Foot

7 9759943 Brace, Front

8 3196037 Foot Assembly

9 Rail, Storage

9756836 Right

9756838 Left

10 9757806 Drawer

11 Guide, Roller

Includes Roller

9756841 Right

9756842 Left

12 9760592 Panel, Drawer

13 Front, Drawer

4453921BL

Black

4453921WH

White

4453921BT

Biscuit

4453921SS

Stainless

14 Handle, Drawer

9756674BL

Black

9756674WH

White

9756674BT

Biscuit

15 3196537 Screw

TOP VENTING PARTS

For Models: GY396LXPB03, GY396LXPQ03, GY396LXPT03, GY396LXPS03

(Black) (White) (Biscuit) (Stainless)

W10129038

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 4451759 Vent, Exhaust

2 4455178 Elbow, Vent Top

3 9759320 Blower

4 4451758 Block, Foam

5 4455177 Elbow, Vent Bottom

6 9759938 Bracket, Terminal

Box

7 4449809 Screw (2)

9757118BL

Vent, Control

Panel

9 4450038 Screw

10 4449040 Screw

11 4455352 Bracket, Blower

OPTIONAL PARTS

For Models: GY396LXPB03, GY396LXPQ03, GY396LXPT03, GY396LXPS03

(Black) (White) (Biscuit) (Stainless)

W10129038

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

261869 Cord Brown

72032 Black

PAINT, SPRAY

350930 White

261900 Citrine White

830864 Black

ADHESIVE

591014 Adhesive

Loctite (1/3 oz.)

482338 Sealer, Silastic

(3 oz.)

SPLICING WIRES−−25FT.

LENGTH

242828 Wire (12 Ga.

150 c Black)

242820 Wire (14 Ga.

150 c Black)

242821 Wire (14 Ga.

150 c Blue)

242822 Wire (14 Ga.

150 c Brown)

242830 Wire (14 Ga.

200 c Brown)

242823 Wire (14 Ga.

150 c Green)

242824 Wire (14 Ga.

150 c Orange)

242829 Wire (12 Ga.

150 c Red)

242825 Wire (14 Ga.

150 c Red)

242831 Wire (14 Ga.

200 c Red)

242826 Wire (14 Ga.

150 c White)

242827 Wire (14 Ga.

150 c Yellow)

242832 Wire (14 Ga.

200 c Yellow)

WIRING HARNESS PARTS

9759537 Harness, Wire

(Main)

9759702 Harness, Wire

(Cooktop Power)

9759701 Harness, Wire

(Cooktop Left)

9759703 Harness, Wire

(Cooktop Right)

9759715 Conduit

3196173 Screw (Conduit)

313660 Clip, Ground Wire

4448664 Clamp

4449809 Screw

112432 Nut

4450800 Screw, Ground

4452222 Spacer, Harness

3400015 Screw, Ground

Miscellaneous

9782676 Anti−Tip Assembly
