NO-FROST REFRIGERATOR-FREEZER

B MODEL 4ED20ZK

A Note To You

Thank you for buying a Whirlpool* appliance.

You have purchased a quality, wor/cMass home appliance. Years of engineering experience

went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,

we developed this Use and Care Guide. It is full of valuable information on how to operate

and maintain your appliance properly and safely. Please read it carefully. Also, please com-

plete and mail the Ownership Registration Card provided with your appliance. This will help

us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire

and electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

your personal property.

Help when you need it.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 20. If you need further help, feel free to call

an authorized Whirlpool* service company. When calling, you will need to know your

appliance’s complete model number and serial number. You can find this information on the

model and serial number label (see diagram on page 4). For your convenience, we have

included a handy place below for you to record these numbers, the purchase date from the

sales slip and your dealer’s name and telephone number. Keep this book and the sales slip

together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

l Read all instructions before using the

refrigerator.

l Child entrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still danger-

ous ... even if they will “just sit in the

garage a few days.”

If you are getting rid of your old refrig-

erator, do it safely.

l Never allow children to operate, play

with, or crawl inside the refrigerator.

l Never clean refrigerator parts with

flammable fluids. The fumes can create a

fire hazard or explosion.

l FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

l Do not install the refrigerator near an oven,

radiator or other heat source.

l Do not use the refrigerator in an area

where the room temperature will fall below

13°C (55°F).

l Keep the refrigerator out of the weather.

l Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding.

l Do not load the refrigerator with food

before it has time to get properly cold

l Use the refrigerator only for the uses

described in this manual.

l Properly maintain the refrigerator.

l Be sure the refrigerator is not used by

anyone unable to operate it properly.

Parts And Features

This section contains captioned illustrations. Use them to become familiar with where all parts

and features are located and what they look like.

Control panel Light

\ / Model and

Removable

freezer

shelves .

Freezer light

Ice cube

trays and

ice bin -

Crisper cov

Crisper -

Meat drawe

Freezer bin

serial number

- label

(on side wall)

Utility

compartment

rrup3,awr

. . ..-a -I--I .-a.

rer -

mr-

- Egg bin

- Shelf glide

Gallon-deep

door shelves

Leveling

rollers -

(behind base

grille) \

Base grille

Control panel REFRIGERATOR

,l=d@%k@jj

4 Freezer control Refrigerator control

Before Using Your

Refrigerator

In This Section

Page Page I

Cleaning it ........................................... 5 Installing it properly ........................... 6

Plugging it in ....................................... 5 Leveling it ............................................ 6 I

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

l Rub briskly with thumb to make a ball, then

remove.

l Soak area with liquid hand-dishwashing

detergent before removing glue as

described above. Do not use sharp

instruments, rubbing alcohol, flammable

fluids or abrasive cleaners. These can

damage the material. See “Important

Safety Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 14-l 5.

Plugging it in

Recommended Grounding Method

A 220 Volt, 60 Hz., AC only 15 or 20 ampere

fused and properly grounded electrical

supply is required. It is recommended that a.

separate circuit serving only this appliance

be provided. Use a receptacle which cannot

be turned off with a switch or pull chain. Do

not use an extension cord.

nstalling it properly

?. Allow 1.25 cm (% inch) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the refrigerator is to be against a wall,

you might want to leave extra space on

the hinge side closest to the wall so the

door can be opened wider.

3. The refrigerator can be flush against the

wall.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

To adjust one or both of these, follow the

directions below.

Remove base grille. (See page 12.)

2. To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

Right to raise;

left to lower

Use a screw-

driver to adjust

wise.

4. Check with level.

5. Replace base grille. (See page 12.)

Using Your Refrigerator

In This Section

Page

Setting the controls ............................7

Changing the control settings ...........8

Adjusting the shelf glide ....................8

Adjusting the refrigerator shelves ....9

Using the egg bin ...............................9

Removing the crisper and

crisper cover .....................................10

Removing the meat drawer

and cover ...........................................10

Page

Removing the freezer shelves.. ...... .I1

Removing the freezer bin.. .............. .ll

Using the ice cube trays.. ................... .I1

Removing the base grille ................ .12

Changing the light bulbs ................ .12

Understanding the sounds

you may hear .................................... 13

Saving energy ................................... 13

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the controls, remove and adjust some of the fea-

tures in your refrigerator, and how to save energy.

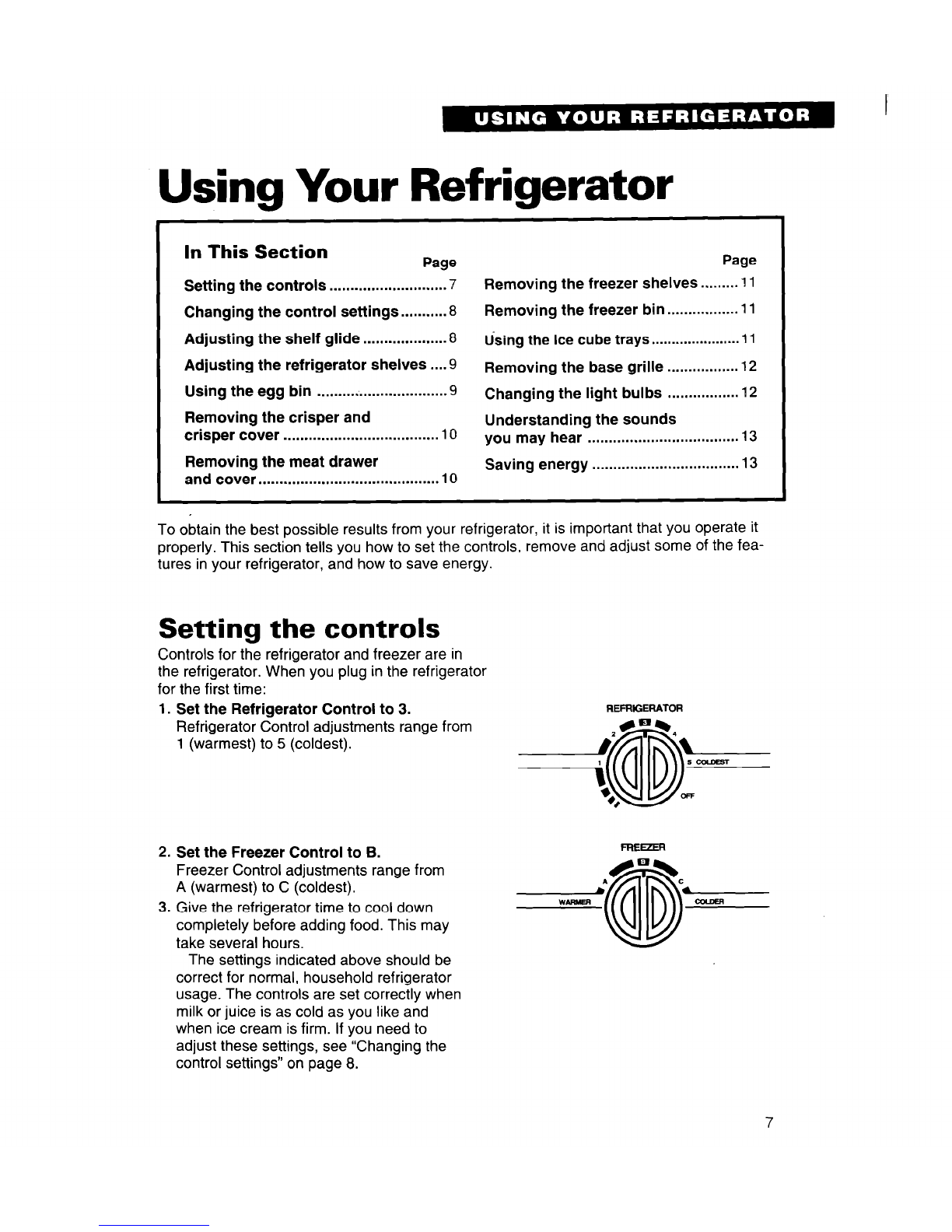

Setting the controls

Controls for the refrigerator and freezer are in

the refrigerator. When you plug in the refrigerator

for the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down

completely before adding food. This may

take several hours.

The settings indicated above should be

correct for normal, household refrigerator

usage. The controls are set correctly when

milk or juice is as cold as you like and

when ice cream is firm. If you need to

adjust these settings, see ‘Changing the

control settings” on page 8.

E The Automatic Exterior Moisture

control continuously guards against moisture

build-up on the outside of your refrigerator

cabinet. This control does not have to be set

or adjusted.

Chmging the control settings

If you need to adjust temperatures in l Adjust the Refrigerator Control first.

refrigerator or freezer, use the settings listed l Wait at least 24 hours between adjustments.

in the chart below as a guide. l Then adjust the Freezer Control if needed.

-._ -- .__ RECOMMENDED

CONDITION: REASON: CONTROL SETTINGS:

Refrigerator l Door opened often Refrigerator 4

section . Large amount of food added Freezer A

too warm l Room temperature too warm

Freezer

section

too warm

l Door opened often

l Large amount of food added

l Very cold room temperature

(can’t cvcle often enouoh)

Refrigerator 3

Freezer C

Refrigerator

section

too cold

l Controls not set correctly

for your conditions Refrigerator 2

Freezer B

Ice not

made fast

enough

l Heavy ice usage

l Very cold room temperature

(can’t cycle often enough)

Refrigerator 3

Freezer C

Both

sections

too warm

l Door opened often

l Large amount of food added

l Very warm or very cold room

temperatures

Refrigerator 4

Freezer B

Adjusting the shelf glide

Use the shelf glide to secure odd-shaped

items or to separate other items.

1. Grasp glide.

2. Slide guide along track.

NOTE: Shelf glides cannot be removed.

Adjusting the refrigerator shelves

Adjust shelves to match the way you use

your refrigerator.

To remove the shelves:

1. Remove items from the shelf.

2. Tilt shelf up at front.

3. Lift shelf up at back.

4. Pull shelf straight out.

To replace the shelves:

1. Guide the rear shelf hooks into the slots

in the shelf supports on the back liner

wall.

Tilt front of shelf up until hooks drop into

slots.

3. Lower front of shelf to a level position.

Using the egg bin

The egg bin has two pieces -the lid and

the bin. Use the egg bin to hold one, two or

three dozen eggs.

To hold one dozen eggs:

Place a dozen eggs (in or out of carton) in

the bin and cover with the lid.

To hold two dozen eggs:

Place two dozen eggs loose in the bin and

cover with the lid.

To hold three dozen eggs:

Place two dozen eggs loose in the bin.

Invert the lid and place it on the bin. Put a

dozen eggs, in their carton, on top of the lid.

Lid

Bin

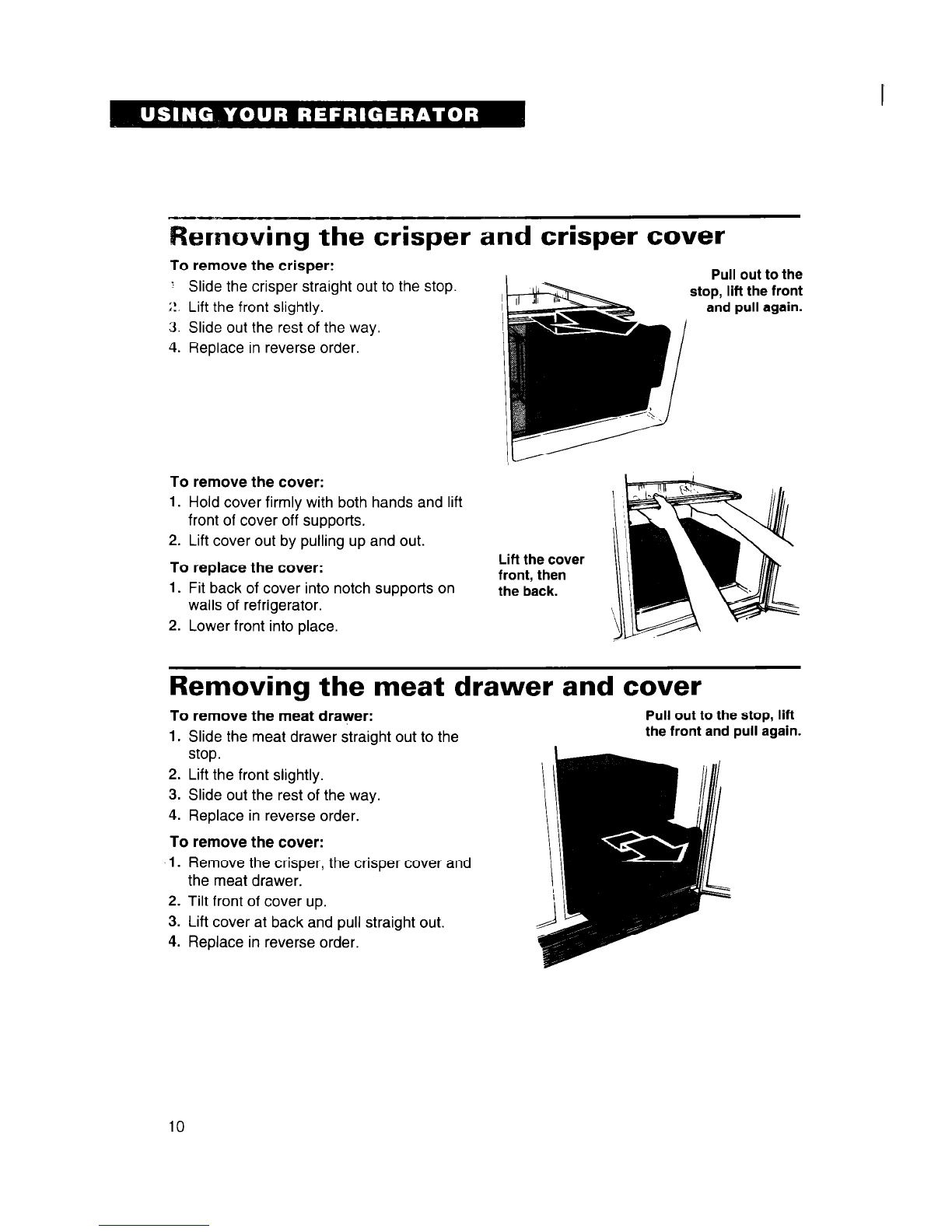

emsving the crisper and crisper cover

To remove the crisper:

1 Slide the crisper straight out to the stop.

2 Lift the front slightly.

3. Slide out the rest of the way.

4. Replace in reverse order.

Pull out to the

To remove the cover:

Hold cover firmly with both hands and lift

front of cover off supports.

2. Lift cover out by pulling up and out.

To replace the cover:

Fit back of cover into notch supports on

walls of refrigerator.

2. Lower front into place.

Lift the cover

front, then

the back.

Removing the meat drawer and cover

To remove the meat drawer:

Slide the meat drawer straight out to the

stop.

Pull out to the stop, lift

the front and pull again.

2. Lift the front slightly.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

1. Remove the crisper, the crisper cover and

the meat drawer.

2. Tilt front of cover up.

3. Lift cover at back and pull straight out.

4. Replace in reverse order.

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool GB9SHKXMQ02 Bedienungsanleitung

Whirlpool

Whirlpool TOP-MOUNT REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool ED22DK Bedienungsanleitung

Whirlpool

Whirlpool ED5FHAXVT - 25' Dispenser Refrigerator Gebrauchsanweisung

Whirlpool

Whirlpool 3ET16NK Bedienungsanleitung

Whirlpool

Whirlpool W8FRNGFVD - Top Freezer Refrigerator Benutzerhandbuch

Whirlpool

Whirlpool ET8WTMXKQ05 Bedienungsanleitung

Whirlpool

Whirlpool GR2FHMXVB00 Bedienungsanleitung

Whirlpool

Whirlpool ED22MK Bedienungsanleitung

Whirlpool

Whirlpool W10321469A Bedienungsanleitung

Whirlpool

Whirlpool ED22RQ Bedienungsanleitung

Whirlpool

Whirlpool RT14DKXE Montageanleitung

Whirlpool

Whirlpool WRS322FDA Gebrauchsanweisung

Whirlpool

Whirlpool RT25BK Montageanleitung

Whirlpool

Whirlpool WRM22CK Bedienungsanleitung

Whirlpool

Whirlpool WRS311SDHT Bedienungsanleitung

Whirlpool

Whirlpool ETl4EK Bedienungsanleitung

Whirlpool

Whirlpool ET8WTKXKB - 18 cu. Ft. Refrigerator Montageanleitung

Whirlpool

Whirlpool REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool GC5SHGXKB00 Bedienungsanleitung

Whirlpool

Whirlpool ED25RQ Bedienungsanleitung

Whirlpool

Whirlpool GC3SHAXVB - 23.1 cu. ft Bedienungsanleitung

Whirlpool

Whirlpool WRF535SMBB Bedienungsanleitung

Whirlpool

Whirlpool 8VET8WPKLQ00 Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
