NO-FROST REFRIGERATOR-FREEZER

B MODEL 6ED22ZR

A Note To You

Thank you for buying a Whirlpool’ appliance.

You have purchased a quality, world-class home appliance. Years of engineering experience

went into its manufacturing. To ensure that you enjoy many years of trouble-free operation,

we developed this Use and Care Guide. It is full of valuable information on how to operate

and maintain your appliance properly and safely. Please read it carefully. Also, please com-

plete and mail the Ownership Registration Card provided with your appliance. This will help

us notify you about any new information on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these

symbols and follow any instructions given. Here is a brief explanation of the use of each

symbol.

This symbol will help alert you to such

dangers as personal injury, burns, fire

and electrical shock.

This symbol will help you avoid actions

which could cause product damage

(scratches, dents, etc.) and damage to

your personal property.

Help when you need it.

If you ever have a question concerning your appliance’s operation, or if you need service, first

see “If You Need Assistance Or Service” on page 24. If you need further help, feel free to call

an authorized Whirlpool service company. When calling, you will need to know your

appliance’s complete model number and serial number. You can find this information on the

model and serial number label (see diagram on page 4). For your convenience, we have

included a handy place below for you to record these numbers, the purchase date from the

sales slip and your dealer’s name and telephone number. Keep this book and the sales slip

together in a safe place for future reference.

Model Number

Serial Number

Purchase Date

Dealer Name

Dealer Phone

Important Safety Instructions

l Read all instructions before using the

refrigerator.

l Child entrapment and suffocation are

not problems of the past. Junked or

abandoned refrigerators are still danger-

ous ... even if they will “just sit in the

garage a few days.”

If you are getting rid of your old refrig-

erator, do it safely.

l Never allow children to operate, play

with, or crawl inside the refrigerator.

l Never clean refrigerator parts with

flammable fluids. The fumes can create a

fire hazard or explosion.

l FOR YOUR SAFETY l

DO NOT STORE OR USE GASOLINE OR

OTHER FLAMMABLE VAPORS AND

LIQUIDS IN THE VICINITY OF THIS OR

ANY OTHER APPLIANCE. THE FUMES

CAN CREATE A FIRE HAZARD OR

EXPLOSION.

- SAVE THESE INSTRUCTIONS -

Help us help you

Please:

l Install and level the refrigerator on a floor

that will hold the weight and in an area

suitable for its size and use.

l Do not install the refrigerator near an oven,

radiator or other heat source.

l Do not use the refrigerator in an area

where the room temperature will fall below

13°C (55°F).

l Keep the refrigerator out of the weather.

l Connect the refrigerator only to the proper

kind of outlet, with the correct electrical

supply and grounding.

l Do not load the refrigerator with food

before it has time to get properly cold.

l Use the refrigerator only for the uses

described in this manual.

l Properly maintain the refrigerator.

l Be sure the refrigerator is not used by

anyone unable to operate it properly.

Parts And Features

This section contains captioned illustrations. Use them to become familiar with where all parts

and features are located and what they look like.

Contral aanel Liaht

Automatic

ice maker and

ice bin <

Freezer light.

Adjustable

freezer

shelves <

Crisper light -

Freezer bin +

Leveling

rollers (behind

base grille) \

\ -- l

Model and

III

serial number

‘rllll

- label (on side

door shelves

Meat drawer

Door shelves

Base grille

Control panel

FREBR REFRlGERAl’OFl

I I

Freezer control Refrigerator control

Before Using Your

Refrigerator

In This Section

Page Page

Cleaning it ...........................................5 Installing it properly ...........................6

Plugging it in .......................................5 Leveling it ............................................6

It is important to prepare your refrigerator for use. This section tells you how to clean it,

connect it to a power source, install it and level it.

Cleaning it

Removing packaging materials

Remove tape and any inside labels (except

the model and serial number label) before

using the refrigerator.

To remove any remaining glue:

l Rub briskly with thumb to make a ball, then

remove.

l Soak area with liquid hand-dishwashing

detergent before removing glue as

described above. Do not use sharp

instruments, rubbing alcohol, flammable

fluids or abrasive cleaners. These can

damage the material. See “Important

Safety Instructions” on page 3.

NOTE: Do not remove any permanent

instruction labels inside your refrigerator. Do

not remove the Tech Sheet fastened under

the refrigerator at the front.

Cleaning it before use

After removing all packaging materials,

clean your refrigerator before using it, if

necessary. See cleaning instructions on

pages 19-20.

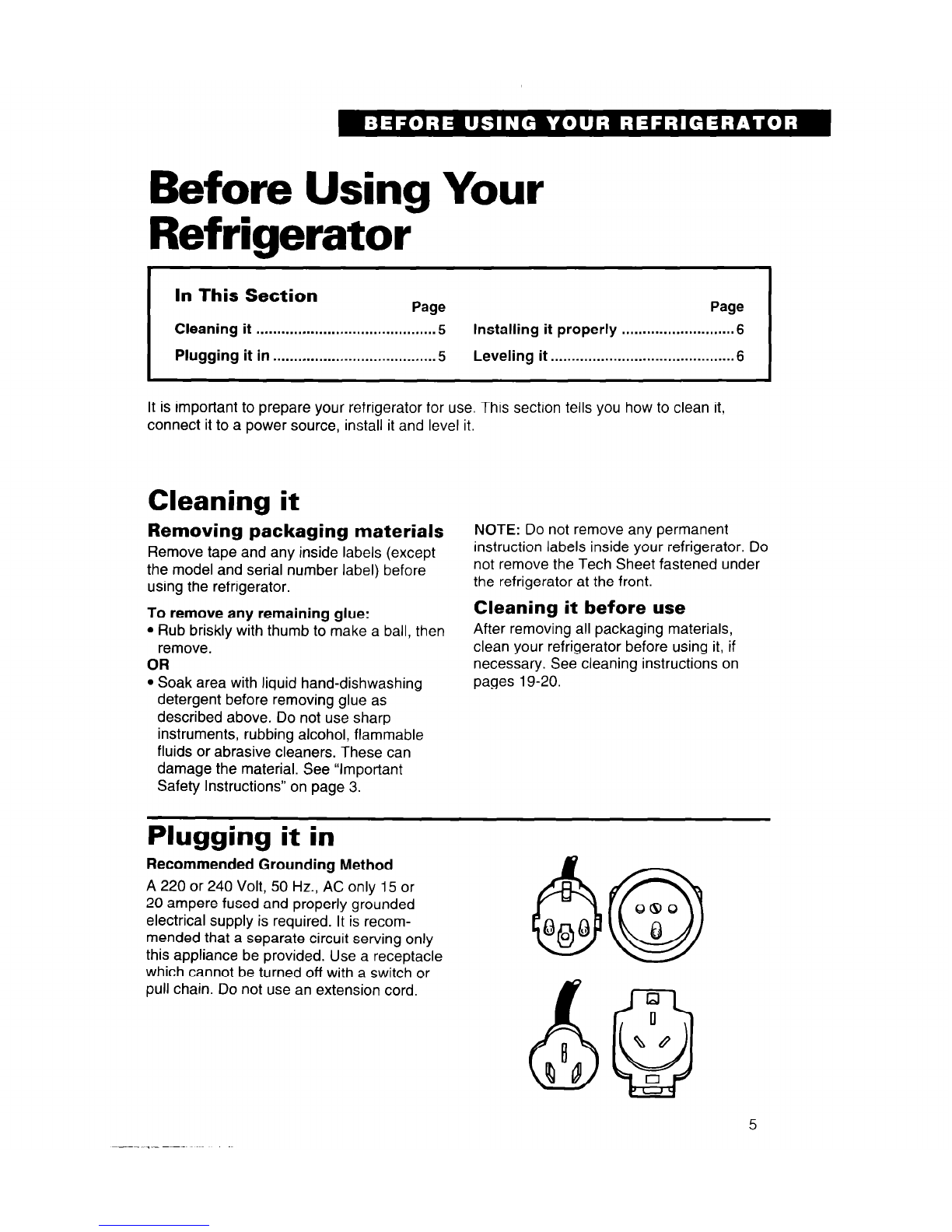

Plugging it in

Recommended Grounding Method

A 220 or 240 Volt, 50 Hz., AC only 15 or

20 ampere fused and properly grounded

electrical supply is required. It is recom-

mended that a separate circuit serving only

this appliance be provided. Use a receptacle

which cannot be turned off with a switch or

pull chain. Do not use an extension cord.

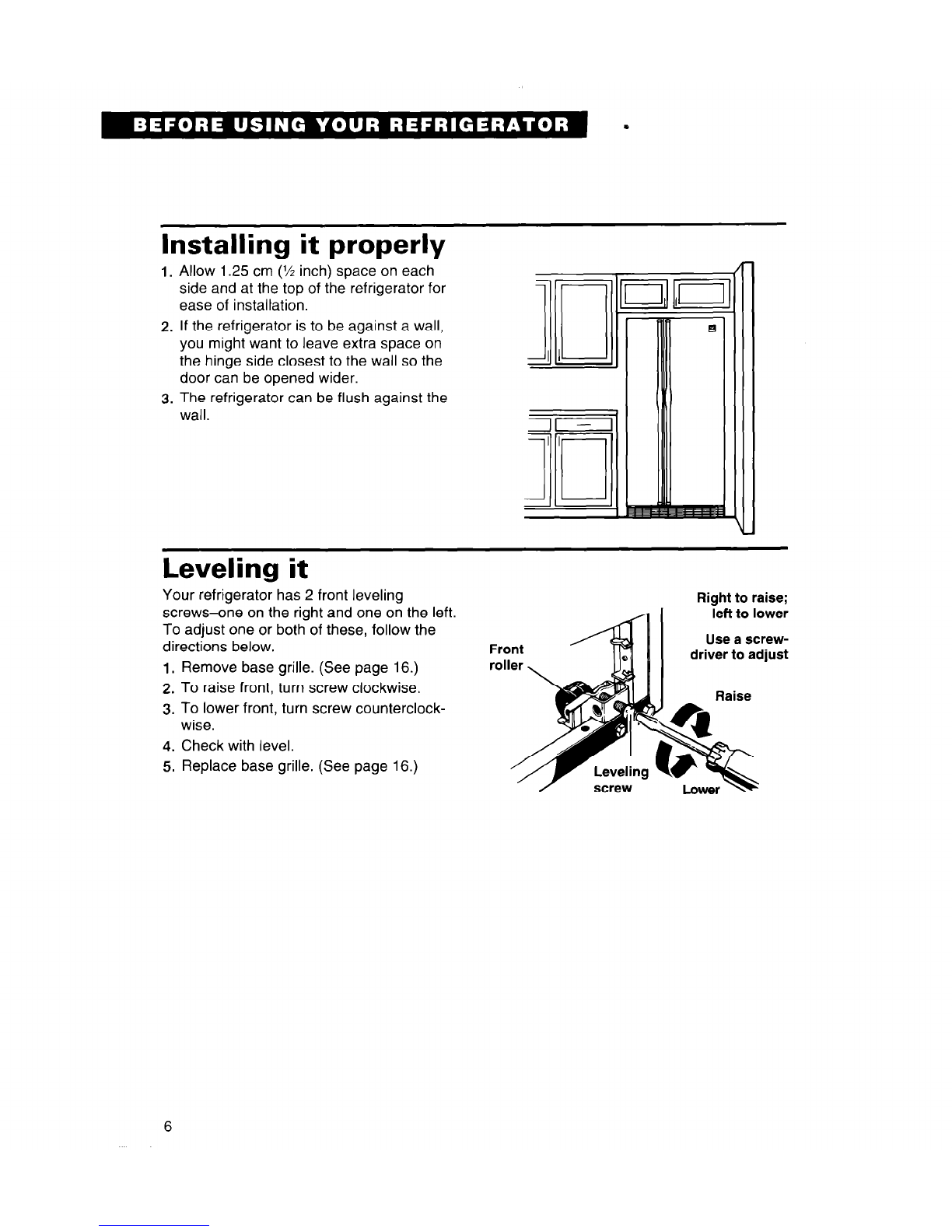

Installing it properly

1. Allow 1.25 cm (% inch) space on each

side and at the top of the refrigerator for

ease of installation.

2. If the refrigerator is to be against a wall,

you might want to leave extra space on

the hinge side closest to the wall so the

door can be opened wider.

3. The refrigerator can be flush against the

wall.

Leveling it

Your refrigerator has 2 front leveling

screws-one on the right and one on the left.

To adjust one or both of these, follow the

directions below.

1. Remove base grille. (See page 16.)

To raise front, turn screw clockwise.

3. To lower front, turn screw counterclock-

wise.

4. Check with level.

5. Replace base grille. (See page 16.)

Using Your Refrigerator

In This Section

Page

Setting the controls ............................7

Changing the control settings ...........8

Adjusting the shelf glide ....................9

Adjusting the refrigerator shelves ....9

Removing the crisper and

crisper cover ..................................... 10

Removing the meat drawer

and cover ...........................................10

Removing the freezer shelves .........11

Removing the freezer bin .................11

Removing the freezer door shelves ..11

Page

Using the ice dispenser ................... 12

Using the automatic ice maker ........13

Removing the ice maker

storage bin ........................................ 14

Solving common ice maker/

dispenser problems .........................15

Removing the base grille .................16

Changing the light bulbs .................16

Understanding the sounds you

may hear ............................................18

Saving energy ................................... 18

To obtain the best possible results from your refrigerator, it is important that you operate it

properly. This section tells you how to set the controls, remove and adjust some of the fea-

tures in your refrigerator, and how to save energy.

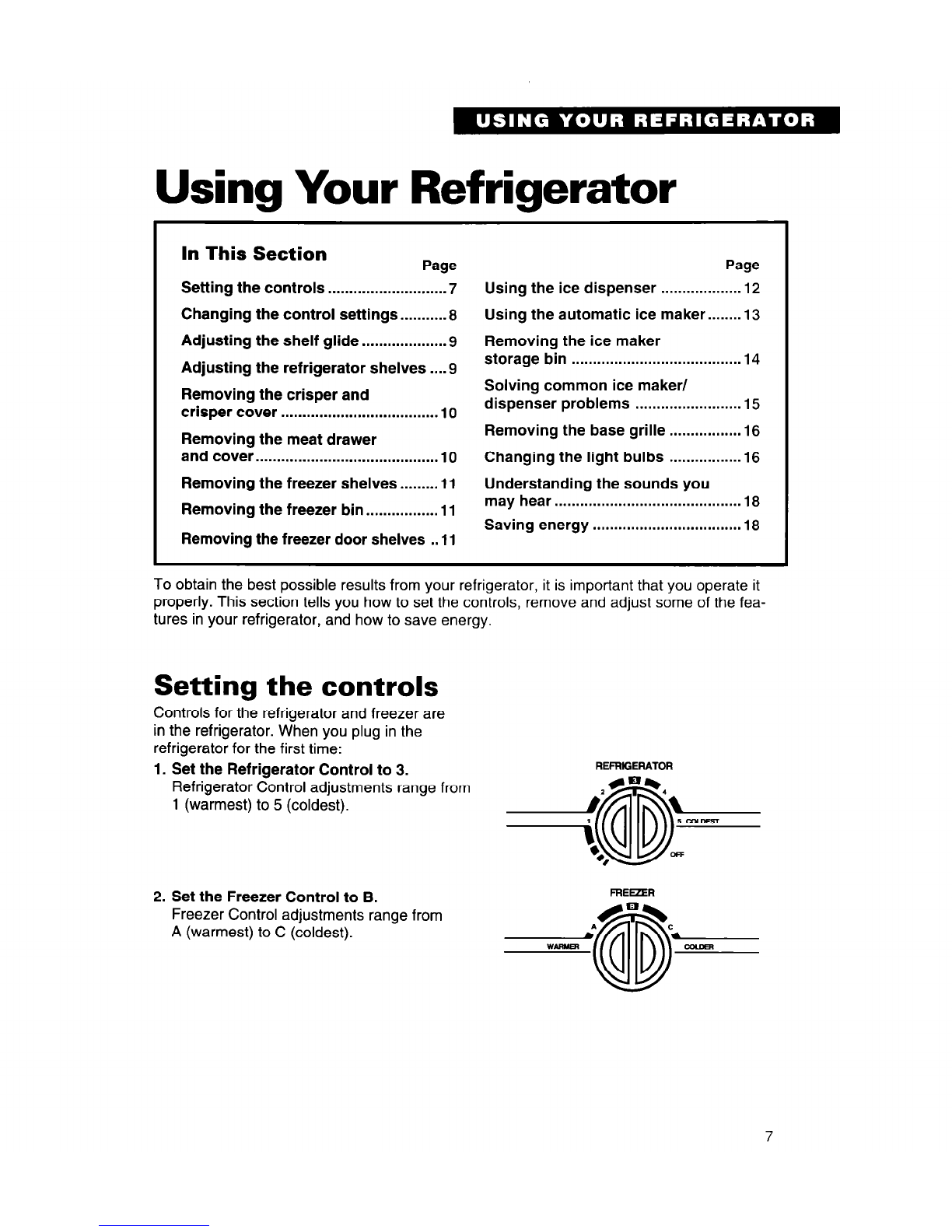

Setting the controls

Controls for the refrigerator and freezer are

in the refrigerator. When you plug in the

refrigerator for the first time:

1. Set the Refrigerator Control to 3.

Refrigerator Control adjustments range from

1 (warmest) to 5 (coldest).

REFRIGERATOR

2. Set the Freezer Control to B.

Freezer Control adjustments range from

A (warmest) to C (coldest).

3. Give the refrigerator time to cool down

NOTE:

The Automatic Exterior Moisture

completely before adding food. This may control continuously guards against moisture

take several hours. build-up on the outside of your refrigerator

The settings indicated above should be cabinet. This control does not have to be set

correct for normal, household refrigerator or adjusted.

usage. The controls are set correctly

when milk or juice is as cold as you like

and when ice cream is firm. If you need to

adjust these settings, see “Changing the

control settings” below.

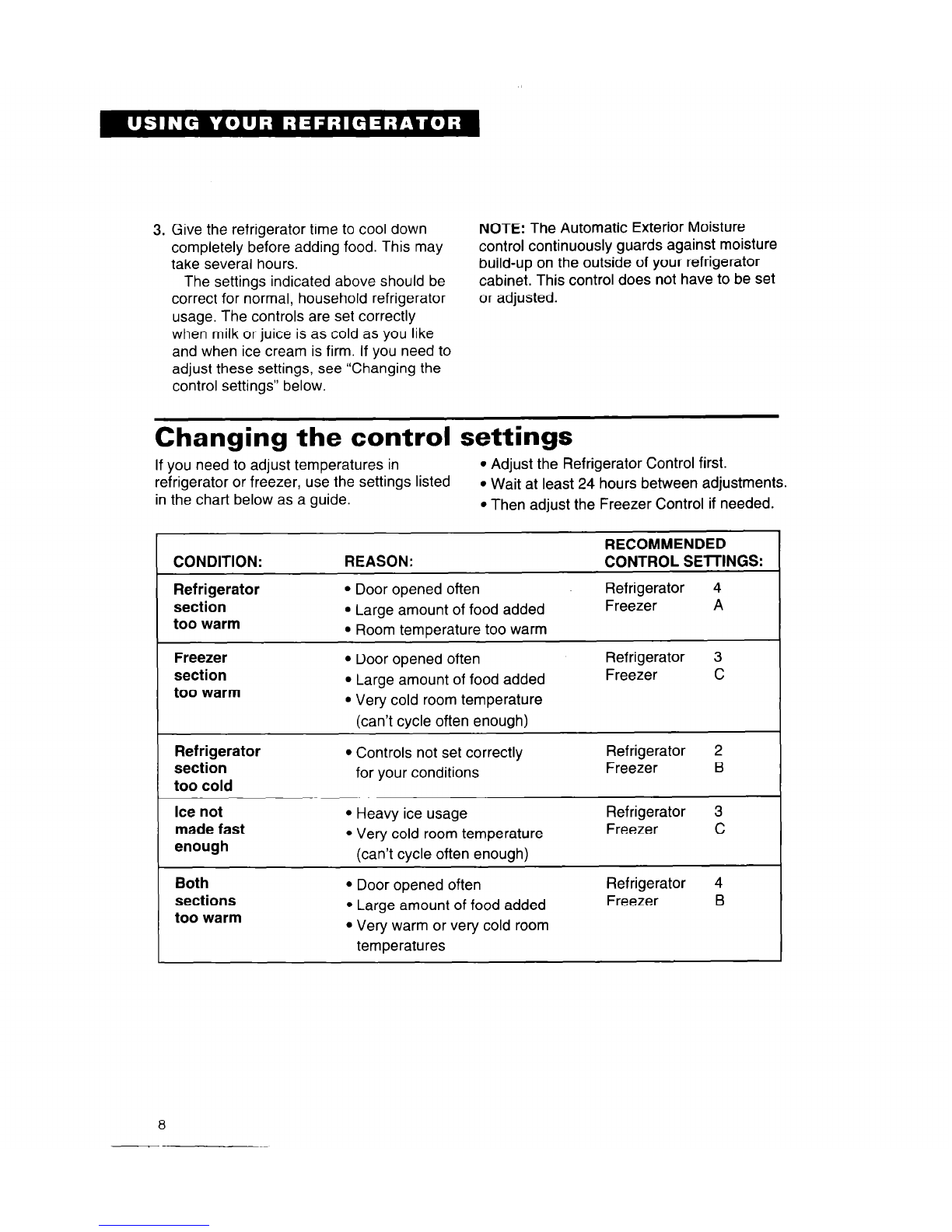

Changing the control settings

If you need to adjust temperatures in l Adjust the Refrigerator Control first.

refrigerator or freezer, use the settings listed l Wait at least 24 hours between adjustments.

in the chart below as a guide. l Then adjust the Freezer Control if needed.

CONDITION: REASON:

Refrigerator l Door opened often

section l Large amount of food added

too warm l Room temperature too warm

RECOMMENDED

CONTROL SETTINGS:

Refrigerator 4

Freezer A

Freezer

section

too warm

l Door opened often

l Large amount of food added

l Very cold room temperature

(can’t cycle often enough)

Refrigerator 3

Freezer C

Refrigerator

section

too cold

l Controls not set correctly

for your conditions Refrigerator 2

Freezer B

Ice not

made fast

enough

l Heavy ice usage

l Very cold room temperature

(can’t cycle often enough)

Refrigerator 3

Freezer C

Both

sections

too warm

l Door opened often

l Large amount of food added

l Very warm or very cold room

temperatures

Refrigerator 4

Freezer B

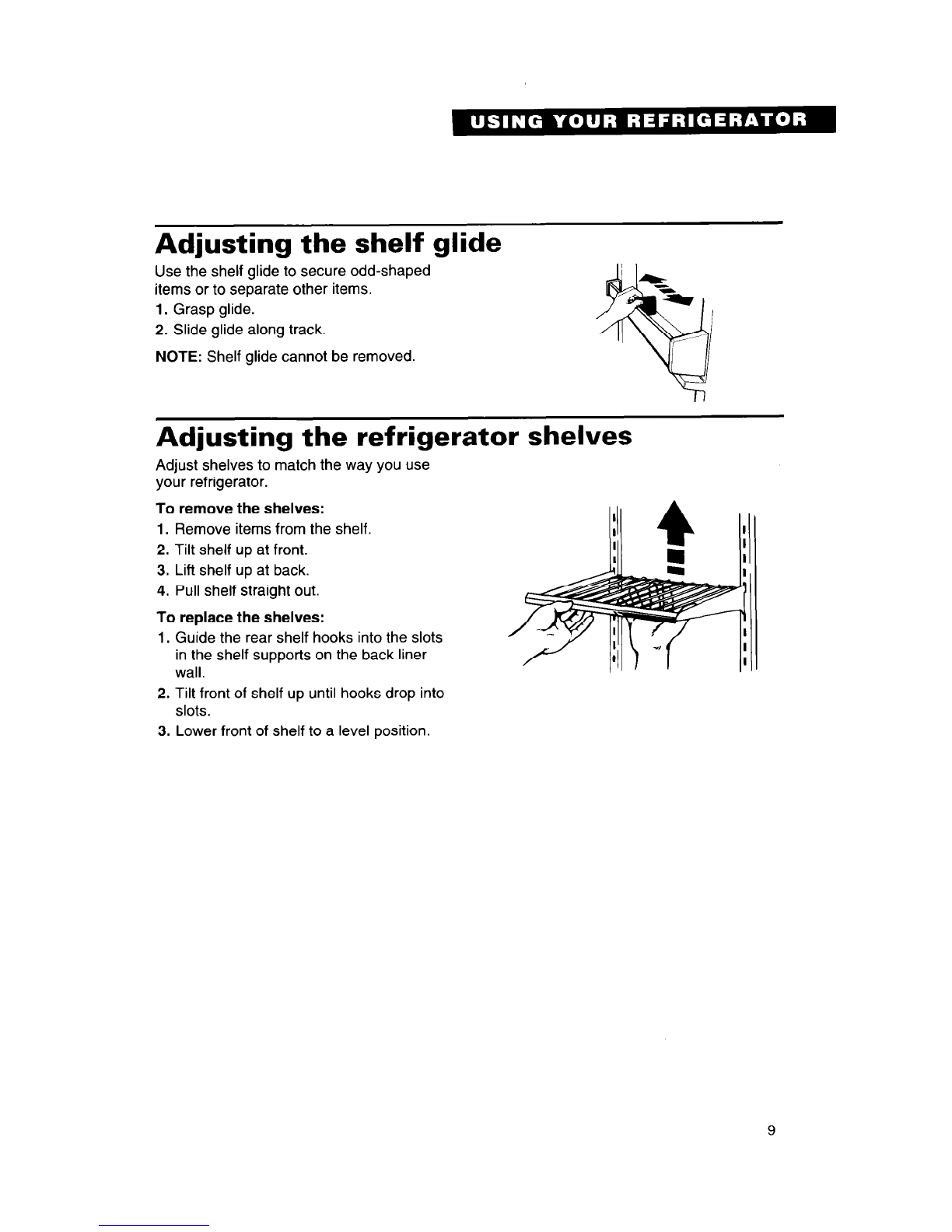

Adjusting the shelf glide

Use the shelf glide to secure odd-shaped

items or to separate other items.

1. Grasp glide.

2. Slide glide along track.

NOTE: Shelf glide cannot be removed.

Adjusting the refrigerator shelves

Adjust shelves to match the way you use

your refrigerator.

To remove the shelves:

1. Remove items from the shelf.

2. Tilt shelf up at front.

3. Lift shelf up at back.

4. Pull shelf straight out.

To replace the shelves:

1. Guide the rear shelf hooks into the slots

in the shelf supports on the back liner

wall.

2. Tilt front of shelf up until hooks drop into

slots.

3. Lower front of shelf to a level position.

Removing the crisper and crisper cover

To remove the crisper:

Slide the crisper straight out to the stop

2. Lift the front slightly.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Hold cover firmly with both hands and lift

front of cover off supports.

2. Lift cover out by pulling up and out.

To replace the cover:

Fit back of cover into notch supports on

walls of refrigerator.

2. Lower front into place.

Pull out to the

stop, lift the front

Lift the cover

the back.

Removing the meat drawer and cover

To remove the meat drawer:

Slide the meat drawer straight out to the

Pull out to the stop, lift

the front and pull again.

stop.

2. Lift the front slightly.

3. Slide out the rest of the way.

4. Replace in reverse order.

To remove the cover:

Remove the crisper, the crisper cover and

the meat drawer.

2. Tilt front of cover up.

3. Lift cover at back and pull straight out.

4. Replace in reverse order.

Inhaltsverzeichnis

Andere Whirlpool Kühlschrank Handbücher

Whirlpool

Whirlpool ET4WSKXS Stücklistenhandbuch

Whirlpool

Whirlpool ED25EM Bedienungsanleitung

Whirlpool

Whirlpool TOP-FREEZER REFRIGERATOR Bedienungsanleitung

Whirlpool

Whirlpool W1TXEMMWT - 21 cu. Ft. Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool Inglis IT14DKXRQ00 Bedienungsanleitung

Whirlpool

Whirlpool WTC 3746 Abmessungen

Whirlpool

Whirlpool EL87TRRRQ - on 35.3 Cu. Ft. SideKicks Bedienungsanleitung

Whirlpool

Whirlpool ARC 4130 WH Bedienungsanleitung

Whirlpool

Whirlpool ET20RM Bedienungsanleitung

Whirlpool

Whirlpool Inglis IT14DKXSQ00 Bedienungsanleitung

Whirlpool

Whirlpool 2326107B Bedienungsanleitung

Whirlpool

Whirlpool 7S21FNI SL Bedienungsanleitung

Whirlpool

Whirlpool ART 841/G Bedienungsanleitung

Whirlpool

Whirlpool CB310 Bedienungsanleitung

Whirlpool

Whirlpool Freezer Refrigerator Bedienungsanleitung

Whirlpool

Whirlpool GB2SHTXTS - Fridge Bottom Mount Bedienungsanleitung

Whirlpool

Whirlpool WBA 3399 NFC IX Bedienungsanleitung

Whirlpool

Whirlpool ET8WTKXKB07 Bedienungsanleitung

Whirlpool

Whirlpool ETl8EK Bedienungsanleitung

Whirlpool

Whirlpool WF-L200V Bedienungsanleitung

Whirlpool

Whirlpool ED22DF Bedienungsanleitung

Whirlpool

Whirlpool GS6NHAXVB - 25 Cubic Foot Qualified Refrige Bedienungsanleitung

Whirlpool

Whirlpool EL88TRRWS Bedienungsanleitung

Whirlpool

Whirlpool WF1D061RXG Series Bedienungsanleitung

Beliebte Kühlschrank Handbücher anderer Marken

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Bedienungsanleitung

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Bedienungsanleitung

Sharp

Sharp SJ-BA31IEXW2-EU Bedienungsanleitung

CORBERO

CORBERO CC2300MCW Bedienungsanleitung

KitchenAid

KitchenAid 2205264 Bedienungsanleitung

Stengel

Stengel KU 1101 A++ Bedienungsanleitung

NEFF

NEFF KI181 Series Bedienungsanleitung

Hoshizaki

Hoshizaki Reach-In Bedienungsanleitung

Amana

Amana ASD2524VES00 Bedienungsanleitung

BOMANN

BOMANN KGC 213 Bedienungsanleitung

Danby

Danby DAR044A1SLDD Montageanleitung

Samsung

Samsung RF323TE Bedienungsanleitung

Beko

Beko CSA31022 Bedienungsanleitung

IKEA

IKEA FROSTIG C 185 E Bedienungsanleitung

Electrolux

Electrolux ER 6821 D Bedienungsanleitung

True

True TS-28 Bedienungsanleitung

Frigidaire

Frigidaire FSC23R5DW9 Bedienungsanleitung

Beko

Beko LSP4579W Bedienungsanleitung
