Whirlpool W8RXEGMV Gebrauchsanweisung

Top Mount Refrigerator

PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS

LOCATION REQUIREMENTS

ER6AHKXS

ER8AHKXR

ER8AHMXR

ER8YHMXS

W6RXNGFW

W8RXEGMV

W8RXNGMW

Electrical: A 115-volt, 60-Hz, AC-only, 15-

or 20-amp fused, grounded electrical supply

is required. It is recommended that a separate

circuit serving only your refrigerator be

provided. Use an outlet that cannot be turned

off by a switch. Do not use an extension cord.

Water: Connect the ice maker to a cold water

line with water pressure between 30 and 120

psi (207 and 827 kPa).

IMPORTANT: The pressure of the water

coming out of a reverse osmosis system

going to the water inlet valve of the

refrigerator needs to be between 30 and 120

psi (207 and 827 kPa).

If a reverse osmosis water filtration system is

connected to your cold water supply, the

water pressure to the system needs to be a

minimum of 40 to 60 psi (276 to 414 kPa).

Because Whirlpool Corporation policy includes a continuous commitment to improve

our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation

Instructions packed with product. Specifications subject to change without notice.

Ref. 2316016ER

03-18-09

" (1.3 cm)

2" (5.1 cm)

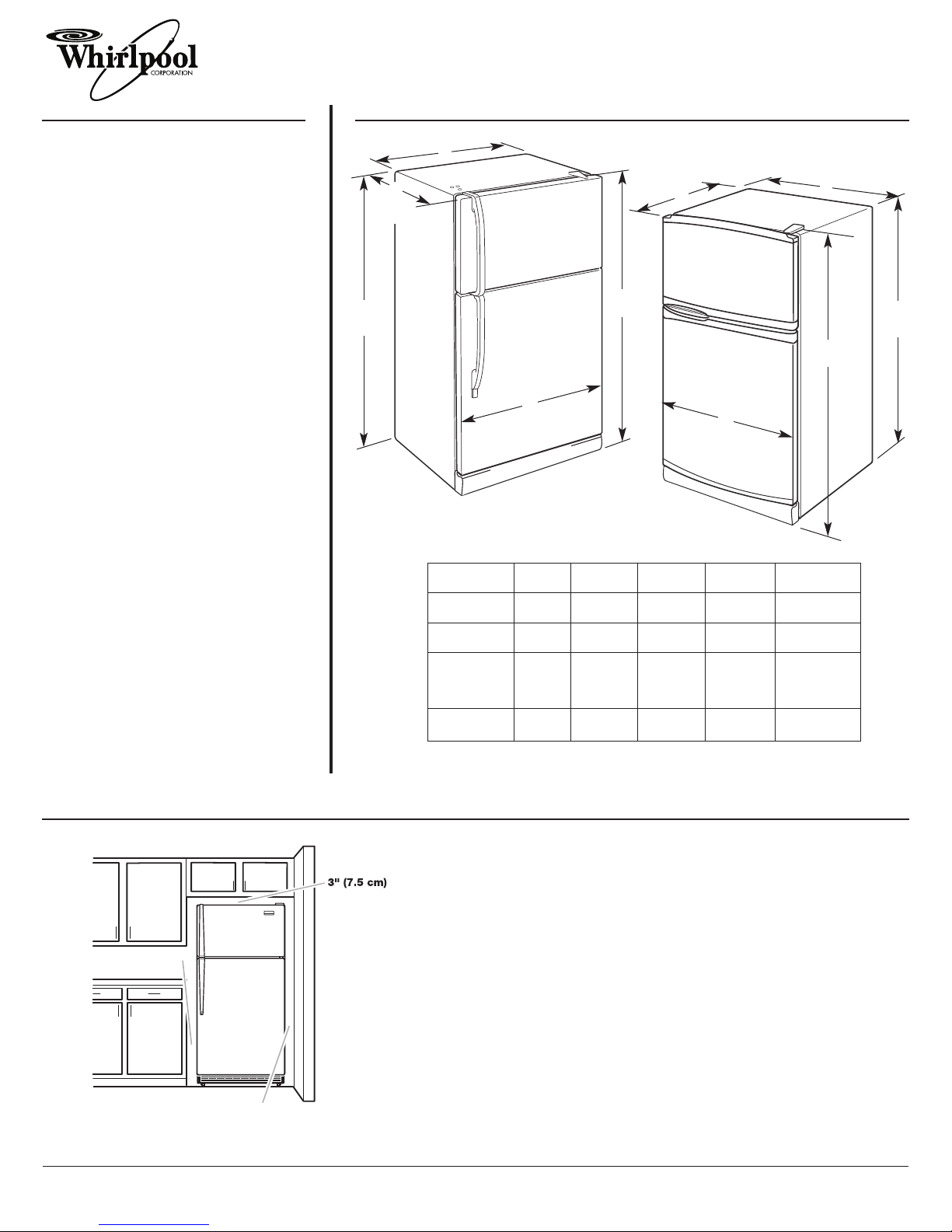

To ensure proper ventilation for your refrigerator, allow for a 1⁄2" (1.3 cm) space on

each side. Allow 3" (7.5 cm) of space between overhead cabinets and refrigerator

top. Allow at least 1" (2.5 cm) between back of cabinet and the wall. If your

refrigerator has an ice maker, make sure you leave some extra space at the back for

the water line connections.

If you are installing your refrigerator next to a fixed wall, leave 2" (5.1 cm) minimum

on the hinge side (depending on your model) to allow for the door to swing open.

NOTE: Do not install the refrigerator near an oven, radiator, or other heat source, nor

in a location where the temperature will fall below 55°F (13°C).

Depth Cab. Width Door Width Cab. Height Overall Height

Model size "A" "B" "C" "D" "E"

14 cu.ft. 31-1/4" 28" 28-1/8" 62-3/8" 63"

W6RXNGFW (79.4 cm) (71.1 cm) (71.4 cm) (158.4 cm) (160 cm)

16 cu.ft. 29" 28" 28-1/8" 65-3/8" 66"

ER6AHKXS (73.7 cm) (71.1 cm) (71.4 cm) (166.1 cm) (167.6 cm)

18 cu.ft. 30-7/8" 28" 28-1/8" 67-3/8" 68"

ER8AHKXR (78.4 cm) (71.1 cm) (71.4 cm) (171.1 cm) (172.7 cm)

ER8AHMXR

ER8YHMXS

18 cu. ft. 29-1/8" 28" 28-1/8" 67-3/8" 68"

W8RXNGMW (74 cm) (71.1 cm) (71.4 cm) (171.1 cm) (172.7 cm)

overall

top of

cabinet

not incl.

handle

top of

cabinet

overall

Dimensions “D” and “E” include rollers

extended 3/4" (1.9 cm)
