Whispbar K090W Bedienungsanleitung

K090W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema de transporte.

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de transporte.

RU Установочные Инструкции для Поперечных Балок

x 1 x 4 x 4 x 2

x 2 x 4

Revision No: 4C 1

Fitting Kit K090W

MAX kgs (lbs)

W/P WHD

Peugeot

306 , 4dr Sedan 93-02 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

306 , 4dr Sedan Aug 93-02 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

306 , 4dr Sedan Mar 94-Dec 01 AU 50 kgs (110 lbs) 50 kgs (110 lbs)

306 , 5dr Hatch 93-02 AU 45 kgs (99 lbs) 45 kgs (99 lbs)

306 , 5dr Hatch 93-02 NZ 45 kgs (99 lbs) 45 kgs (99 lbs)

306 , 5dr Hatch 93-02 US 45 kgs (99 lbs) 45 kgs (99 lbs)

306 , 5dr Hatch 93-02 EU 45 kgs (99 lbs) 45 kgs (99 lbs)

405 , 4dr Sedan 87-97 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

405 , 4dr Sedan Feb 93-Jun 97 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

405 , 5dr Estate 87-97 EU 50 kgs (110 lbs) 50 kgs (110 lbs)

405 , 5dr Wagon Jun 93-Oct 97 NZ 50 kgs (110 lbs) 50 kgs (110 lbs)

Fitting Kit EN

K090W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K090W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K090W

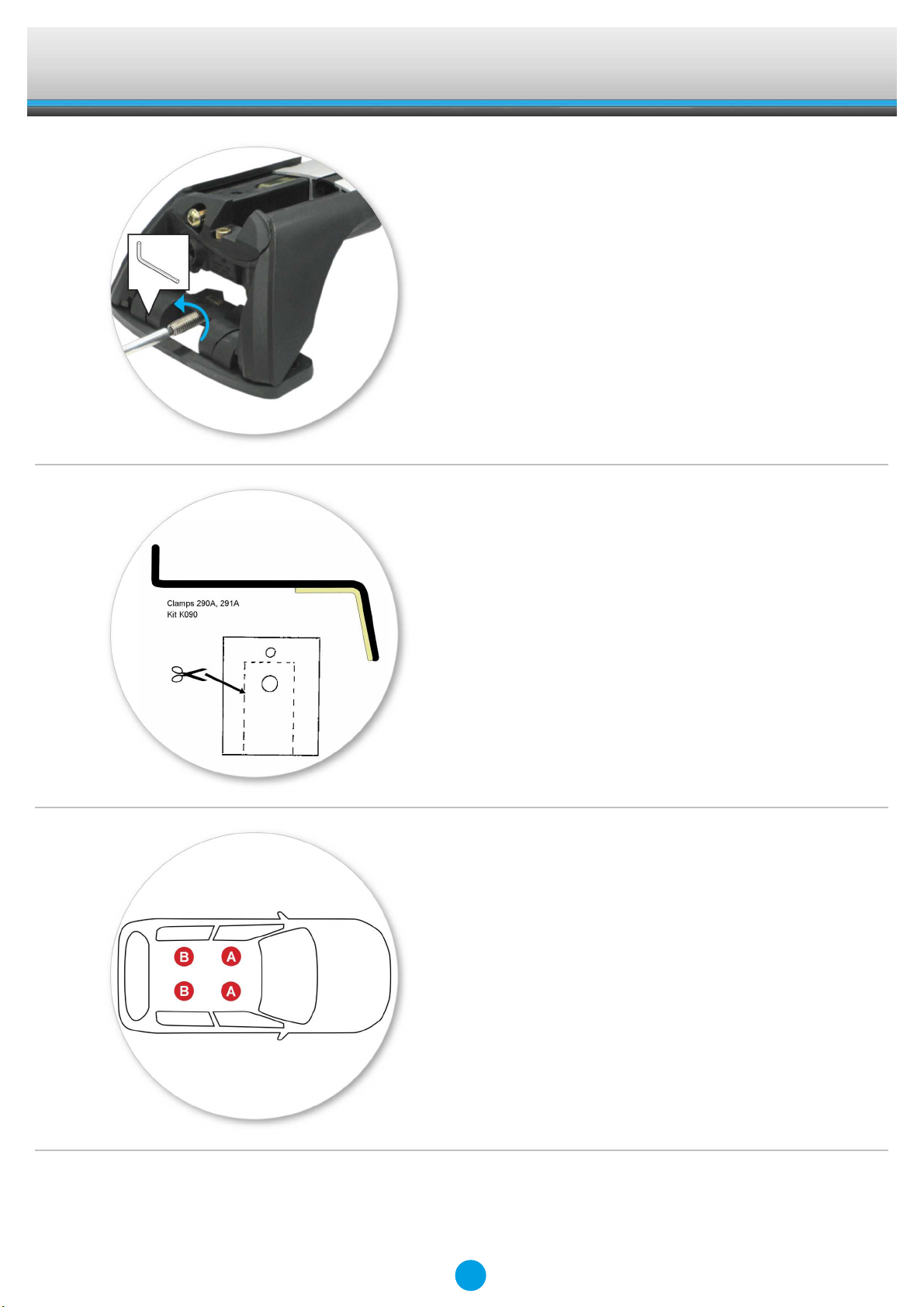

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 290A

B = 291A

Fitting Kit EN

K090W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pad (supplied with crossbar) to

foot.

Fitting Kit EN

K090W

●Make sure the pad fits into the holes

underneath the foot.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors, pin locates in hole on vehicle

●Please check the rear of this manual for

information relating specifically to your

vehicle.

Fitment

●Pull back rubber seal to expose fixed points

on vehicle body.

Fitting Kit EN

K090W

●Reveal the fixed points. They may be

concealed behind a painted sticker.

●Press adjusting screw to adjust the leg

positions on the crossbar.

●Tighten adjusting screw to 5 Nm (3.7 ft lb).

Fitting Kit EN

K090W

●Place clamp over the mounting hole

●Fit a fibre washer on each capscrew and

attach clamps to the vehicle body using the

capscrews.

●Tighten clamp to roof.

●Do not over tighten.

●Tighten locking screw on both legs evenly.

Fitting Kit EN

K090W

●Refit rubber seal over the clamp.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers
