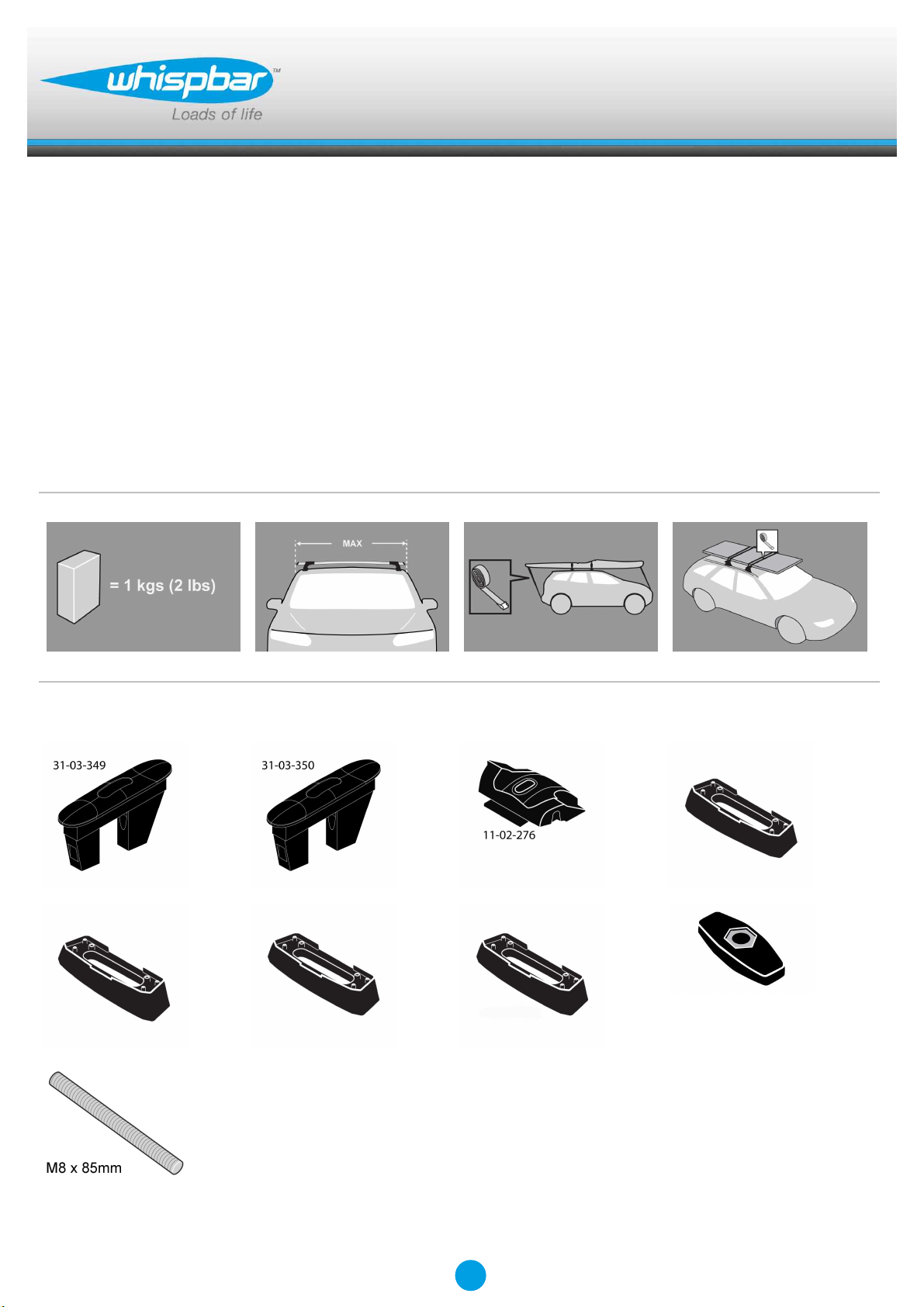

K1012W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 2 x 2 x 4 x 1

x 1 x 1 x 1 x 4

x 4

Revision No: 2B 1

Fitting Kit K1012W

MAX kgs (lbs)

W/P WHD

Mercedes-Benz

E-Class W213, 4dr Sedan Jun 16-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

E-Class W213, 4dr Sedan Jun 16-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

E-Class W213, 4dr Sedan Jun 16-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

E-Class W213, 4dr Sedan Sep 16-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

E-Class W213, 4dr Sedan Sep 16-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K1012W

X

A B C 1 2 3

E-Class W213, 4dr Sedan Jun 16-+ (AU) -375mm 405mm - 927mm 845mm -

-14 -3/4ths" 15 15/16ths" - 36 1/2ths" 33 1/4ths" -

E-Class W213, 4dr Sedan Jun 16-+ (NZ) -375mm 405mm - 927mm 845mm -

-14 -3/4ths" 15 15/16ths" - 36 1/2ths" 33 1/4ths" -

E-Class W213, 4dr Sedan Jun 16-+ (EU) -375mm 405mm - 927mm 845mm -

-14 -3/4ths" 15 15/16ths" - 36 1/2ths" 33 1/4ths" -

E-Class W213, 4dr Sedan Sep 16-+ (ZA) -375mm 405mm - 927mm 845mm -

-14 -3/4ths" 15 15/16ths" - 36 1/2ths" 33 1/4ths" -

E-Class W213, 4dr Sedan Sep 16-+ (CN) -375mm 405mm - 927mm 845mm -

-14 -3/4ths" 15 15/16ths" - 36 1/2ths" 33 1/4ths" -

3

Fitting Kit EN

K1012W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●This kit fits type A, B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K1012W

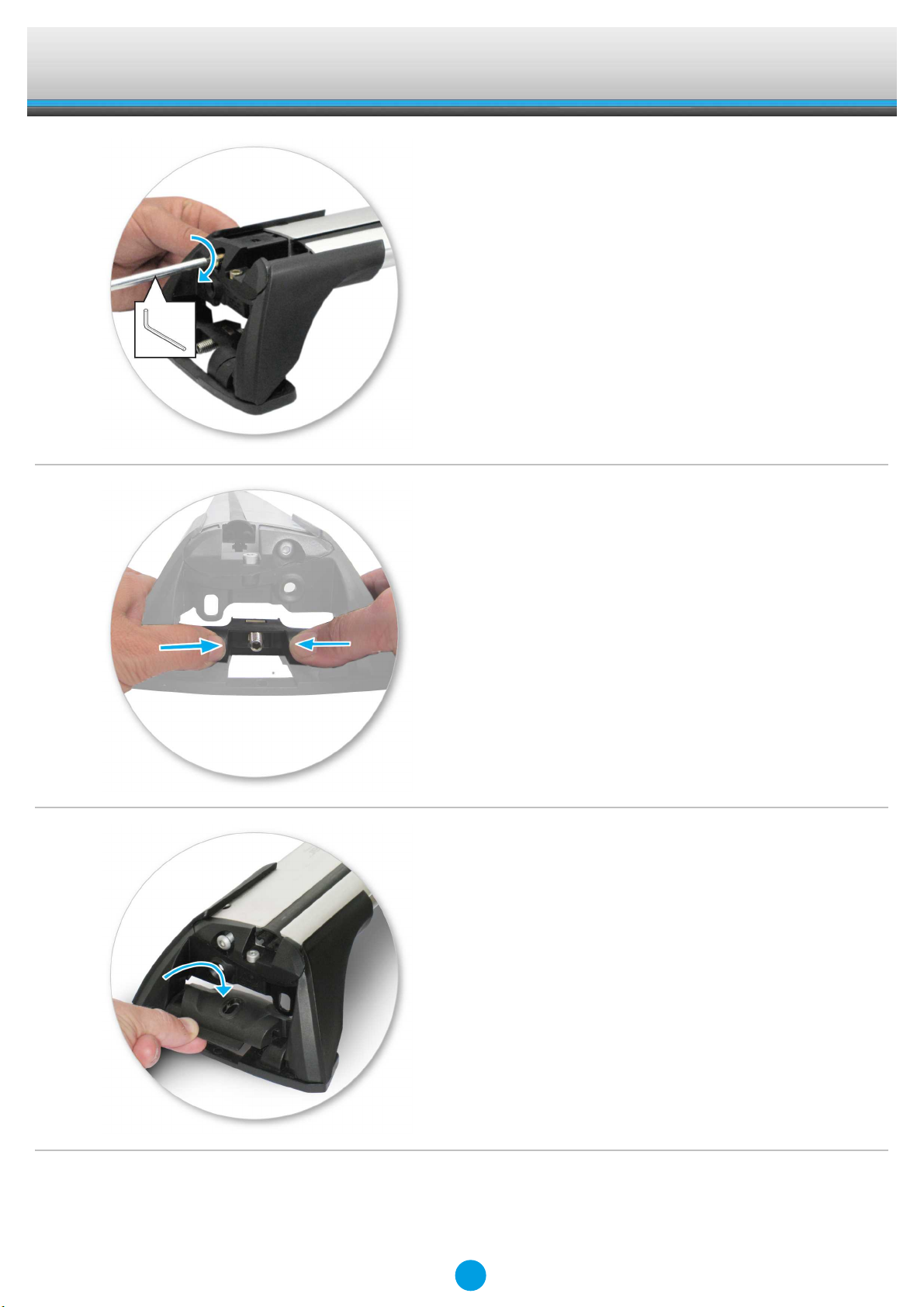

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Attaches to factory-fitted mounting points

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

5

Fitting Kit EN

K1012W

●Tighten adjusting screw to 2 Nm (1.5 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

6

Fitting Kit EN

K1012W

Fitment

●Open or remove fixed-point covers.

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

●Letters refer to the load supports numbers

and position.

●It is important to put the load supports in

the correct position on the vehicle.

●Load Support Number:

A = 349F

B = 350F

7

Fitting Kit EN

K1012W

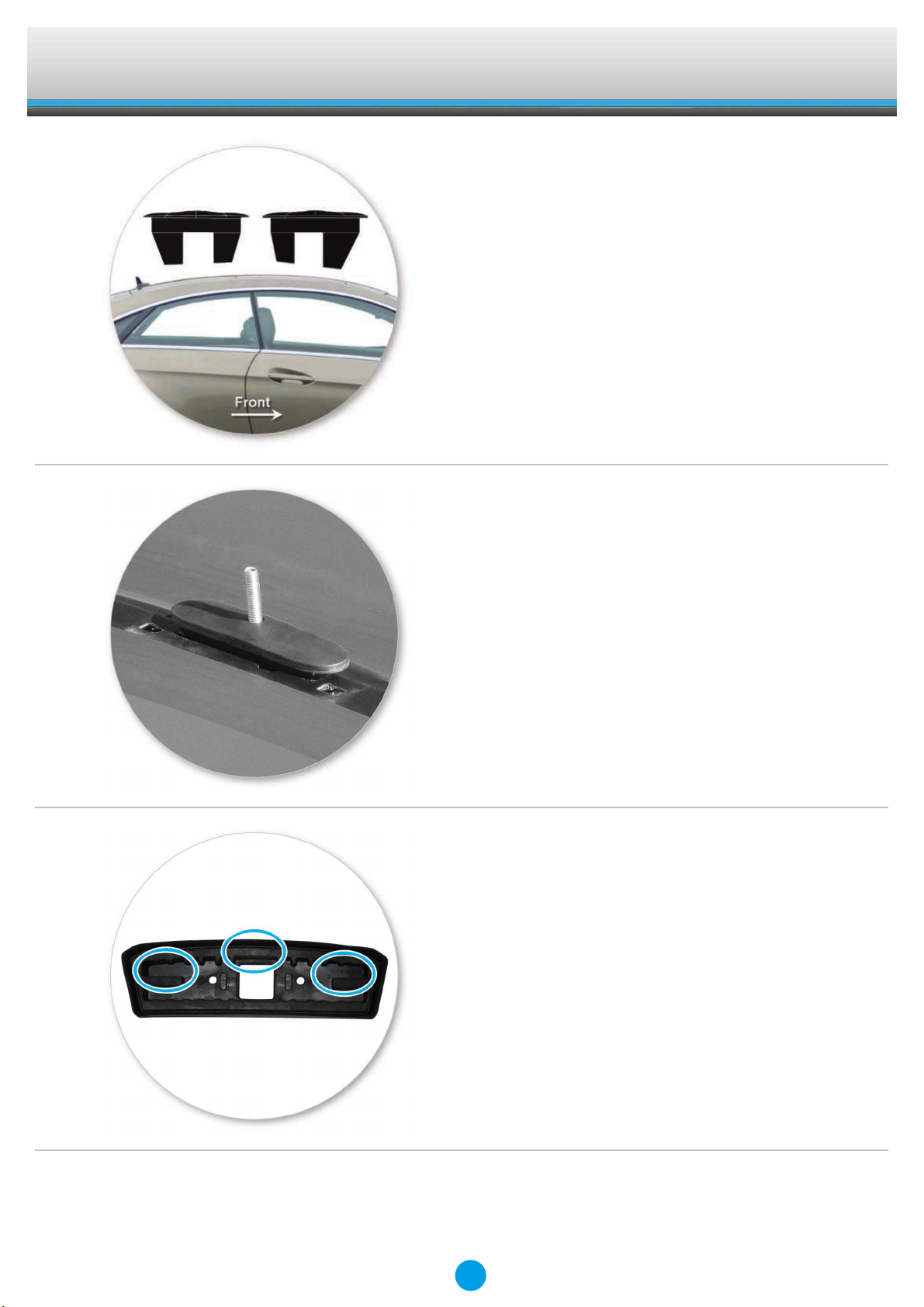

●Place load supports as shown

●Place load support over grubscrew as

shown.

●Refer to the underside of the pad for the

part number.

8

Fitting Kit EN

K1012W

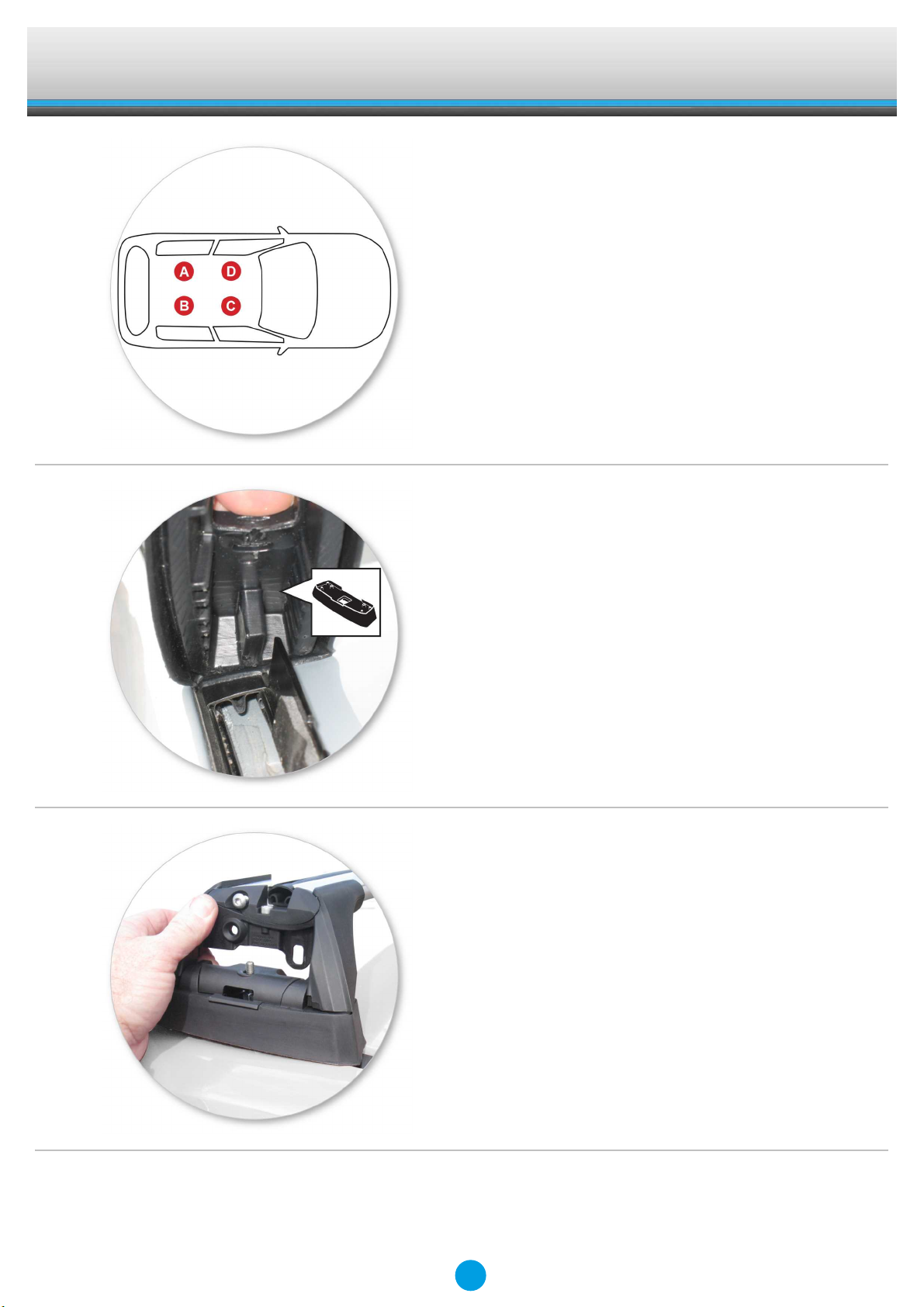

●Letters refer to the pad part numbers and

position.

●It is important to put the pads in the correct

position on the vehicle.

●Pad Part Number:

A = 11-04-231A

B = 11-04-232A

C = 11-04-235A

D = 11-04-236A

●Ensure the fixed-point covers sit vertically

in the recess in the pads.

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew passes through the hole in

the foot.

●Repeat for all four positions.

9

Fitting Kit EN

K1012W

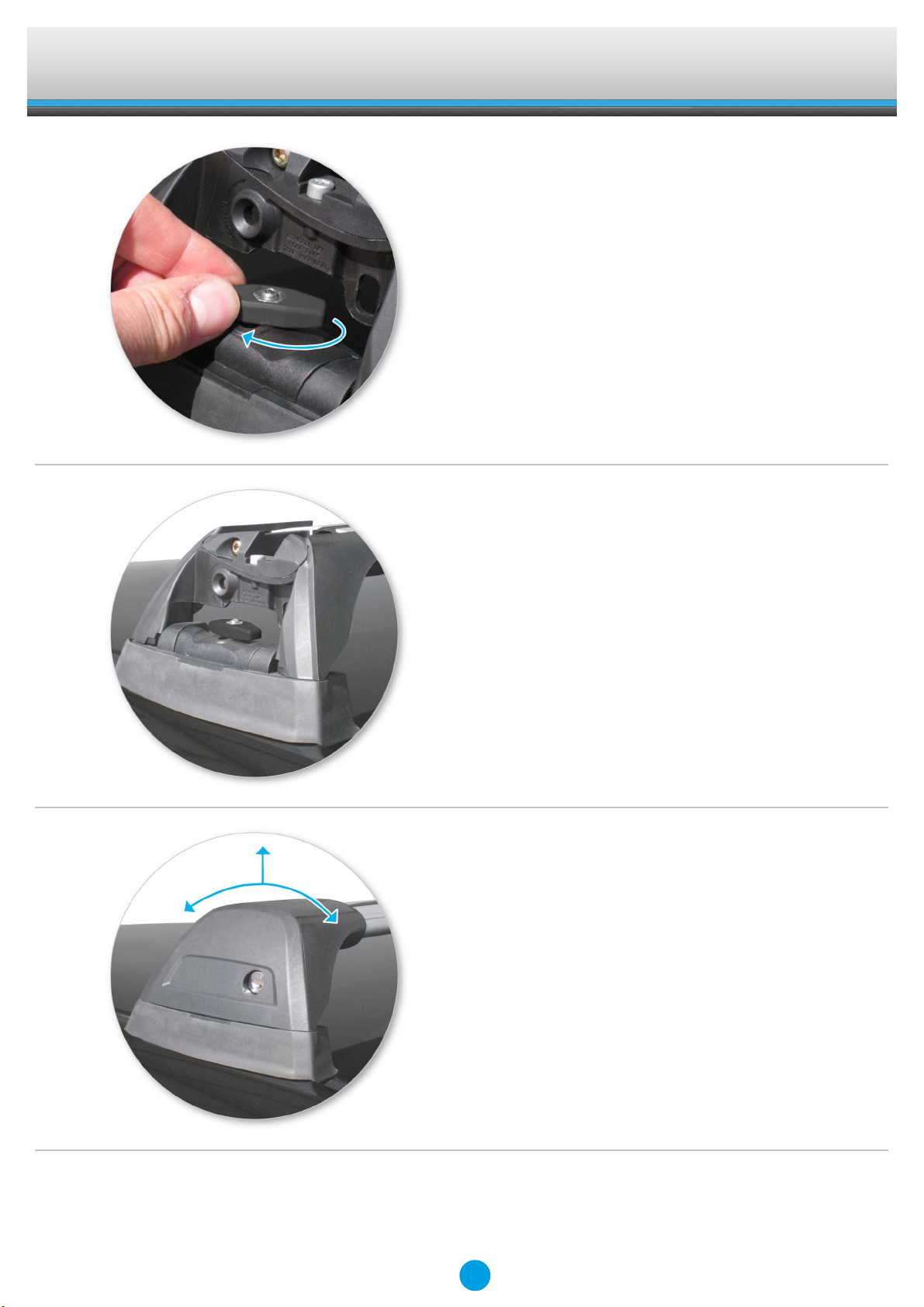

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all legs.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

10
