Whispbar K366W Bedienungsanleitung

K366W

Fitting Kit

EN Fitting Instructions for Basic Carrier

PL Instrukcja systemu montażu

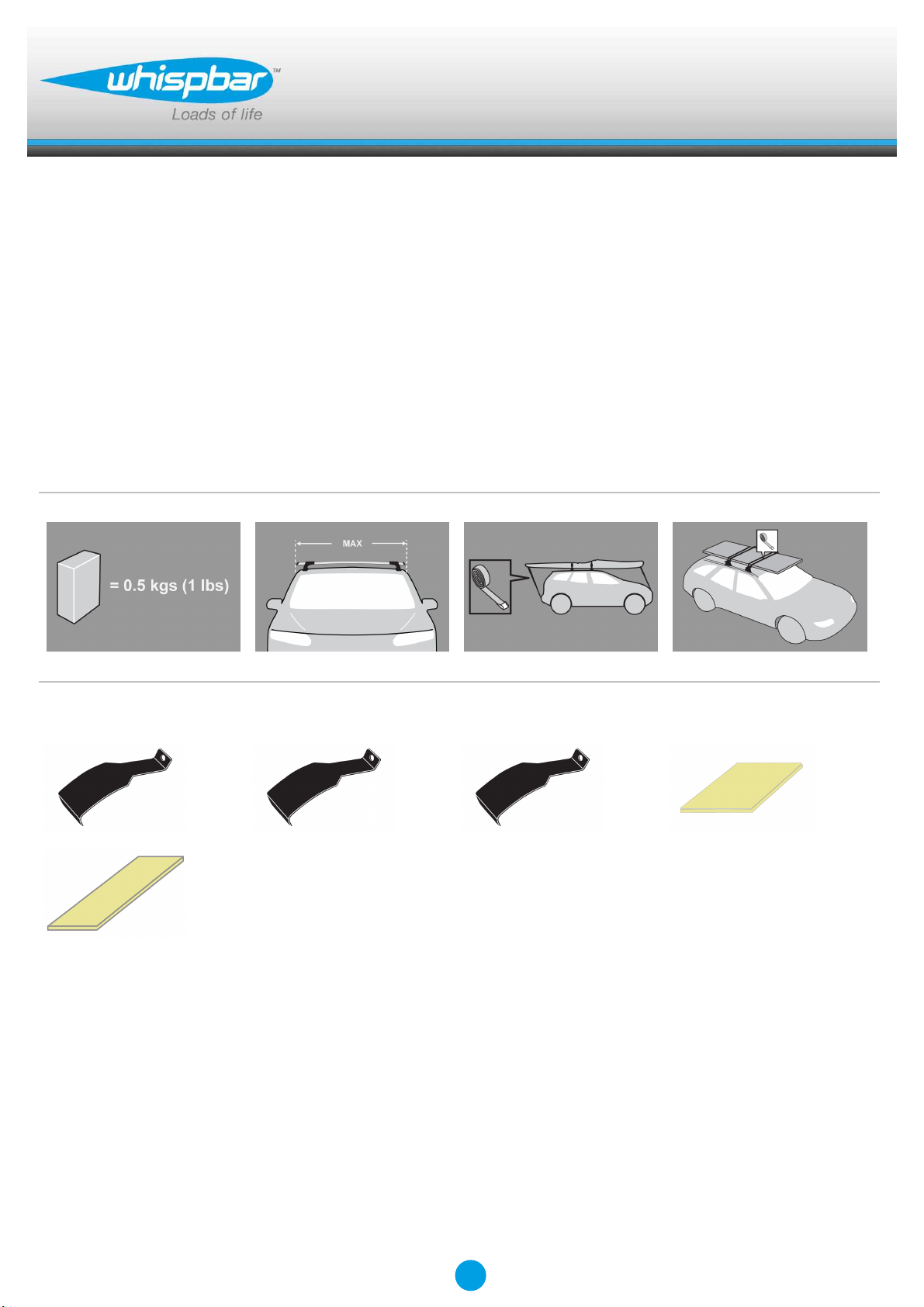

x 2 x 1 x 1 x 2

x 2

Revision No: 6D 1

Fitting Kit K366W

MAX kgs (lbs)

W/P WHD

Toyota

Corolla, 5dr Estate 02-07 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Corolla, 5dr Wagon Dec 01-Apr 07 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Corolla, 5dr Wagon Dec 01-Apr 07 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K366W

A B C 1 2 3

Corolla, 5dr Estate 02-07 (EU) -230mm 470mm - 762mm 744mm -

-9 -1/16ths" 18 1/2ths" - 30" 29 5/16ths" -

Corolla, 5dr Wagon Dec 01-Apr 07 (NZ) -230mm 470mm - 762mm 744mm -

-9 -1/16ths" 18 1/2ths" - 30" 29 5/16ths" -

Corolla, 5dr Wagon Dec 01-Apr 07 (AU) -230mm 470mm - 762mm 744mm -

-9 -1/16ths" 18 1/2ths" - 30" 29 5/16ths" -

Fitting Kit EN

K366W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

Fitting Kit EN

K366W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

Fitting Kit EN

K366W

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 352A

B = 481A

C = 482A

Fitting Kit EN

K366W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●Fit rubber pad (supplied with crossbar) to

foot.

Fitting Kit EN

K366W

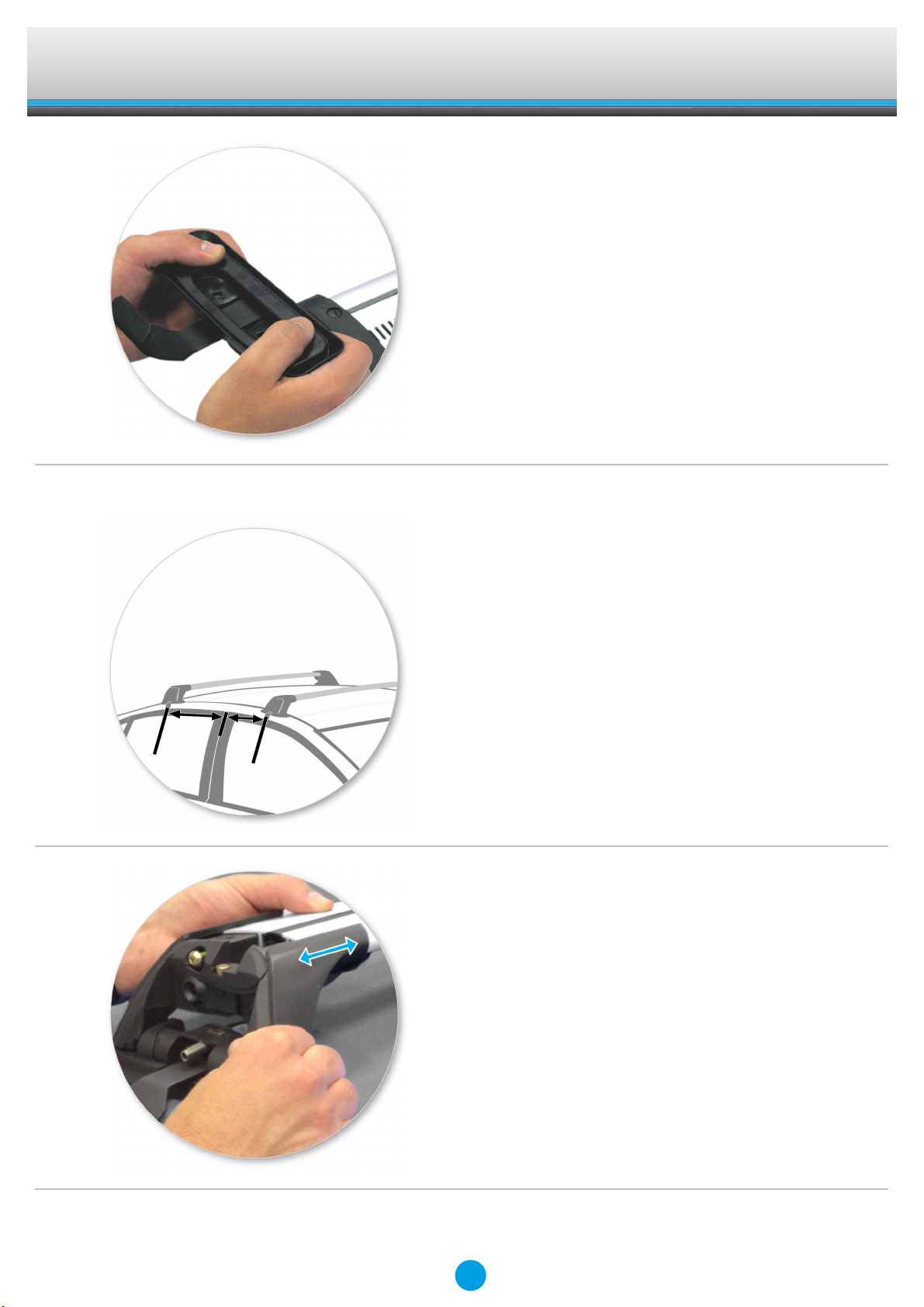

●Make sure the pad fits into the holes

underneath the foot.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Clamps directly to edge of roof under the

doors

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

Fitting Kit EN

K366W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.

Fitting Kit EN

K366W

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
