K436W

Fitting Kit

EN Fitting Instructions for Basic Carrier

PL Instrukcja systemu montażu

x 1 x 4 x 4 x 4

x 4

Revision No: 4D 1

Fitting Kit K436W

MAX kgs (lbs)

W/P WHD

Land Rover

Discovery 3, 5dr SUV 04-05 ZA 75 kgs (165 lbs) 100 kgs (220 lbs)

Discovery 3, 5dr SUV 04-09 NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Discovery 3, 5dr SUV 04-09 AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Discovery 3, 5dr SUV 04-09 EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Discovery 4, 5dr SUV 09-Mar 17 ZA 75 kgs (165 lbs) 100 kgs (220 lbs)

Discovery 4, 5dr SUV 09-Mar 17 NZ 75 kgs (165 lbs) 100 kgs (220 lbs)

Discovery 4, 5dr SUV 09-Mar 17 AU 75 kgs (165 lbs) 100 kgs (220 lbs)

Discovery 4, 5dr SUV 09-Mar 17 EU 75 kgs (165 lbs) 100 kgs (220 lbs)

Discovery, 5dr SUV 10-16 CN 75 kgs (165 lbs) 100 kgs (220 lbs)

LR3, 5dr SUV 04-09 US 75 kgs (165 lbs) 100 kgs (220 lbs)

LR4, 5dr SUV 09-+ US 75 kgs (165 lbs) 100 kgs (220 lbs)

Range Rover Sport, 5dr SUV 04-12 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Range Rover Sport, 5dr SUV 04-12 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Range Rover Sport, 5dr SUV 05-12 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Range Rover Sport, 5dr SUV 05-12 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Range Rover Sport, 5dr SUV 05-13 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Range Rover Sport, 5dr SUV 06-12 US 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K436W

X

A B C 1 2 3

Discovery 3, 5dr SUV 04-05 (ZA) -330mm 250mm 840mm - 950mm 935mm

-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery 3, 5dr SUV 04-09 (NZ) -330mm 250mm 840mm - 950mm 935mm

-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery 3, 5dr SUV 04-09 (AU) -330mm 250mm 840mm - 950mm 935mm

-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery 3, 5dr SUV 04-09 (EU) -330mm 250mm 840mm - 950mm 935mm

-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery 4, 5dr SUV 09-Mar 17 (ZA) -330mm 250mm 840mm - 950mm 935mm

-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery 4, 5dr SUV 09-Mar 17 (NZ) -330mm 250mm 840mm - 950mm 935mm

-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery 4, 5dr SUV 09-Mar 17 (AU) -330mm 250mm 840mm - 950mm 935mm

-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery 4, 5dr SUV 09-Mar 17 (EU) -330mm 250mm 840mm - 950mm 935mm

-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery, 5dr SUV 10-16 (CN) -330mm 250mm 840mm - 950mm 935mm

-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

LR3, 5dr SUV 04-09 (US) -330mm 250mm 840mm - 950mm 935mm

-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

LR4, 5dr SUV 09-+ (US) -330mm 250mm 840mm - 950mm 935mm

-13" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Range Rover Sport, 5dr SUV 04-12 (ZA) -200mm 380mm 940mm 1040mm 1030mm 1015mm

-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"

Range Rover Sport, 5dr SUV 04-12 (EU) -200mm 380mm 940mm 1040mm 1030mm 1015mm

-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"

Range Rover Sport, 5dr SUV 05-12 (AU) -200mm 380mm 940mm 1040mm 1030mm 1015mm

-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"

Range Rover Sport, 5dr SUV 05-12 (NZ) -200mm 380mm 940mm 1040mm 1030mm 1015mm

-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"

3

Fitting Kit K436W

Range Rover Sport, 5dr SUV 05-13 (CN) -200mm 380mm 940mm 1040mm 1030mm 1015mm

-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"

Range Rover Sport, 5dr SUV 06-12 (US) -200mm 380mm 940mm 1040mm 1030mm 1015mm

-7 -7/8ths" 14 15/16ths" 37" 40 15/16ths" 40 9/16ths" 39 15/16ths"

4

Fitting Kit EN

K436W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

5

Fitting Kit EN

K436W

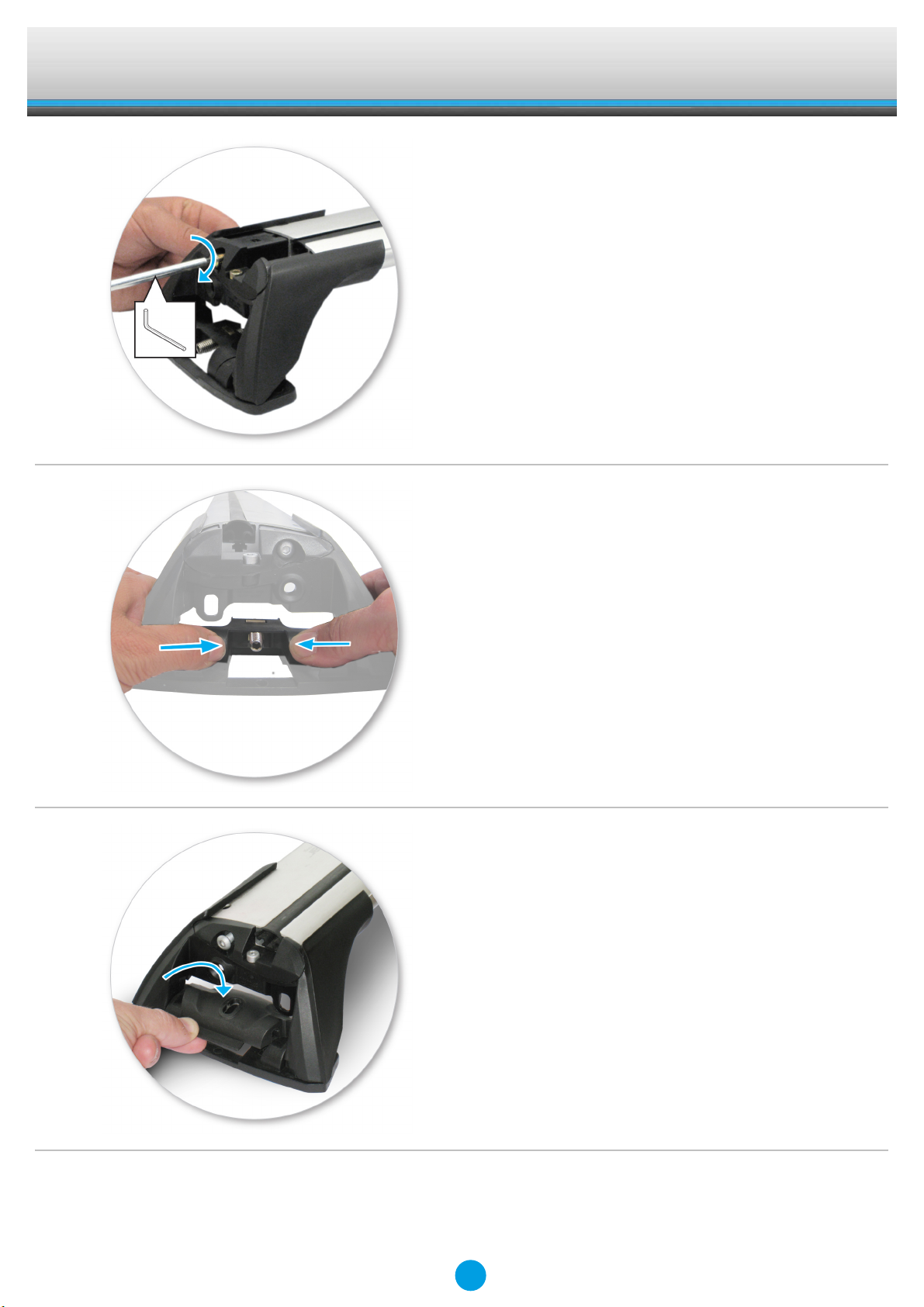

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Please check the front of this manual for

information relating specifically to your

vehicle.

6

Fitting Kit EN

K436W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

7

Fitting Kit EN

K436W

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

●Repeat for all legs.

Fitment

●NOTE: Land Rover Discovery - Do not use

front fixpoint

●Locate and remove the small plastic bungs

on the roof.

●Store items away in a safe place.

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

8

Fitting Kit EN

K436W

●Place crossbar foot over grubscrews.

●Ensure the pads are in the correct position

and the clamp threads pass through the

crossbar feet.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

9

Fitting Kit EN

K436W

●In the fully tightened position, the knobs

should be parallel with the vehicle.

●Repeat for all four positions.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
