Whispbar K439W Bedienungsanleitung

K439W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DMontageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema de transporte.

FInstructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de transporte.

RU Установочные Инструкции для Поперечных Балок

x 1 x 4 x 4 x 4

x 2 x 2

Revision No: 4C 1

Fitting Kit K439W

MAX kgs (lbs)

W/P WHD

BMW

3 Series E92, 2dr Coupe 06-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

3 Series E92, 2dr Coupe 06-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

3 Series E92, 2dr Coupe 06-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

3 Series E92, 2dr Coupe 06-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

3 Series E92, 2dr Coupe 06-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Mercedes

E Class W211, 4dr Sedan 02-08 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

E Class W211, 4dr Sedan 02-09 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

E Class W211, 4dr Sedan 02-09 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

E Class , 4dr Sedan 02-09 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

E Class W211, 4dr Sedan 03-09 US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K439W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K439W

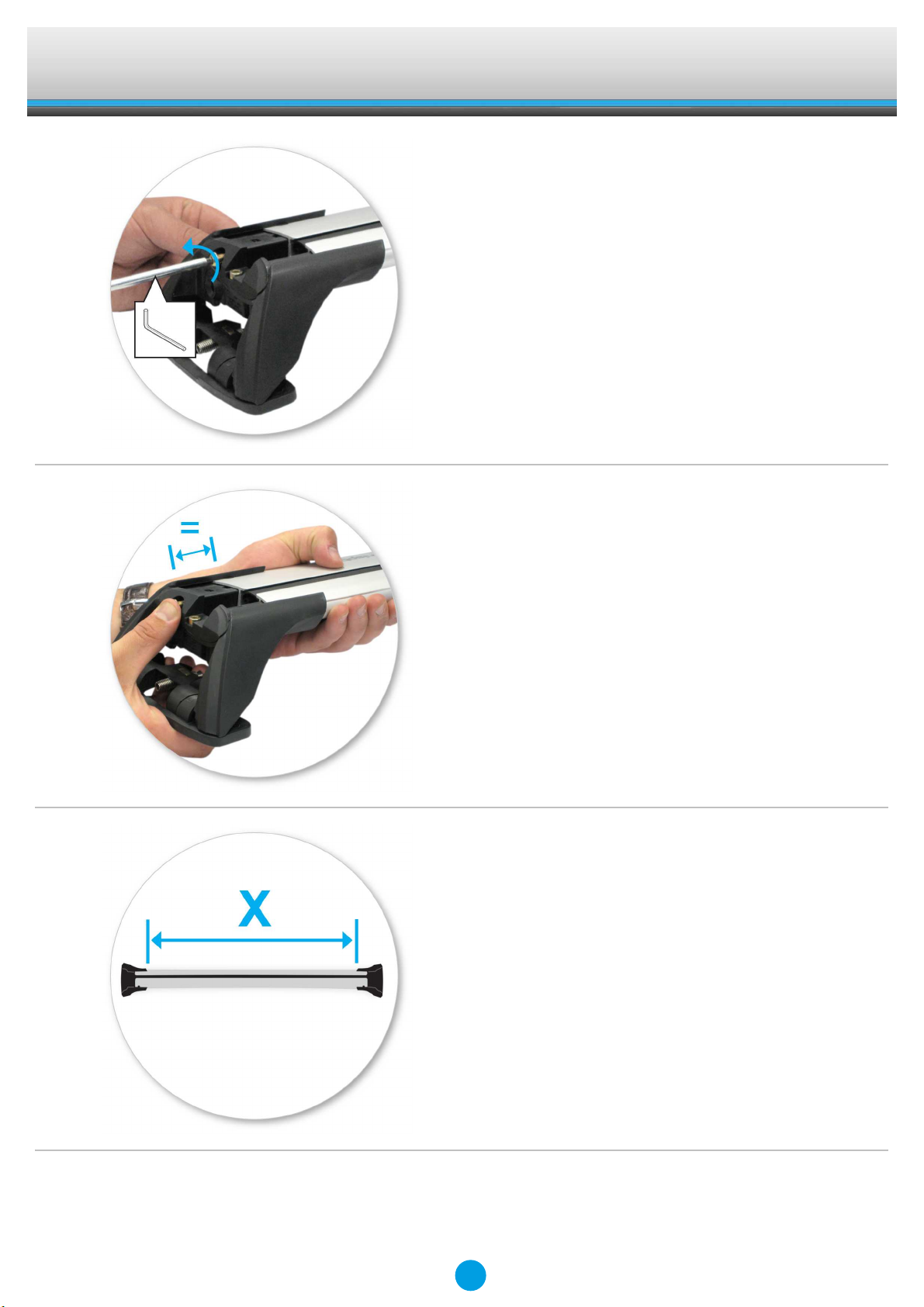

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment.

●Ensure each end of the crossbar is

adjusted equally.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

●Please check the rear of this manual for

information relating specifically to your

vehicle.

Fitting Kit EN

K439W

●Tighten adjusting screw to 5 Nm (3.7 ft lb).

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

Fitting Kit EN

K439W

Fitment

●Open or remove fixed-point covers.

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

●Refer to the underside of the pad for the

part number.

Fitting Kit EN

K439W

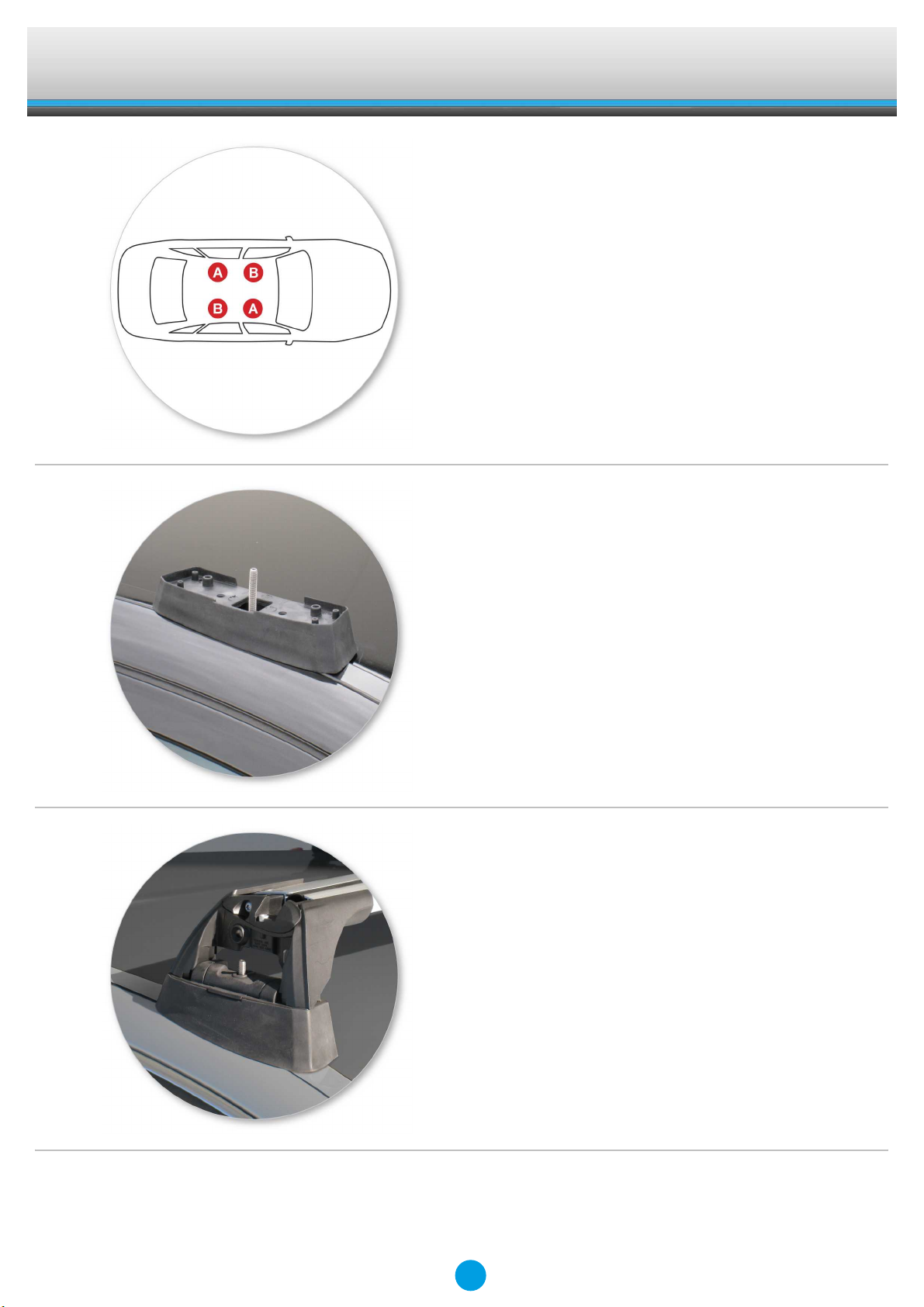

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-224

B = 11-04-225

●Close all fixed-point covers so they rest on

the grubscrew and place pads over

grubscrews.

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew pass through the hole in the

foot.

Fitting Kit EN

K439W

●Tighten the red plastic knob. The side with

the nut showing should be facing up.

●In the fully tightened position, the knobs

should be parallel with the vehicle.

●Repeat for all four positions.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitting Kit EN

K439W

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

Fitting Kit EN

K439W

Maintenance

●Clean the car roof and surfaces of the

product that will be in contact with the car

roof.

●Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps

are carried out in order.

●Set crossbars a minimum distance of

700mm (27 1/2") apart where no other

distance is specified in the fitting

instructions. This is especially important

when carrying long loads.

●Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels

loose, refer to the fitting instructions and

readjust.

●Some glass/panoramic roofs and radio

antennae may not be able to be used when

the product is fitted.

●Do not modify this product.

●Refer to the maximum permitted load

capacity specified in the fitting instructions.

Do not exceed the vehicle manufacturers

roof load rating if it is lower than the

maximum load capacity specified in the

fitting instructions.

●Loads should not overhang the sides of the

product and be evenly distributed with the

lowest possible centre of gravity.

●Long loads should be secured with non-

elastic straps to the front and rear of the

vehicle.

●Objects with pointed ends (e.g. ski poles)

should be carried with the pointed ends to

the rear of the vehicle.

●Remove all loose or removable objects

from the load prior to loading.

●Make sure all loads are securely fastened

with non-elastic straps. Check regularly

during longer journeys.

●A loaded roof rack system can alter the

performance of your vehicle. Be especially

aware of the effects of side winds,

changing of direction, and braking

performance. Avoid rapid acceleration and

deceleration. Drive carefully.

●Note that the total height of the vehicle

increases when upright loads are carried.

●Products should be locked during transport

if they have locks fitted.
