Whispbar K537 Bedienungsanleitung
Fitting Kit
K537
ES
ESES
ES
Instrucciones de montaje para el
sistema de transporte.
F
FF
F
Instructions de montage pour Basic
Carrier
GB
GBGB
GB
Fitting Instructions for Basic Carrier
x 4 x 4 x 4 x 4
x 4 x 4
1
Revision No: 1.1B
Fitting Kit
K537
GB
MAX lbs
MAX lbs
W/P WHD W/P WHD
Mitsubishi
Outlander , 5dr SUV 05-+ EU 165 165 Outlander , 5dr SUV 05-+ NZ 165 165
Outlander , 5dr SUV 05-+ AU 165 165
2
Fitting Kit
K537
GB
First Time Installation
Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
This kit fits type A, B, C and D.
These instructions show type A crossbar
fitted. They also apply to type B, C and D.
Use keys to remove covers.
3
Fitting Kit
K537
GB

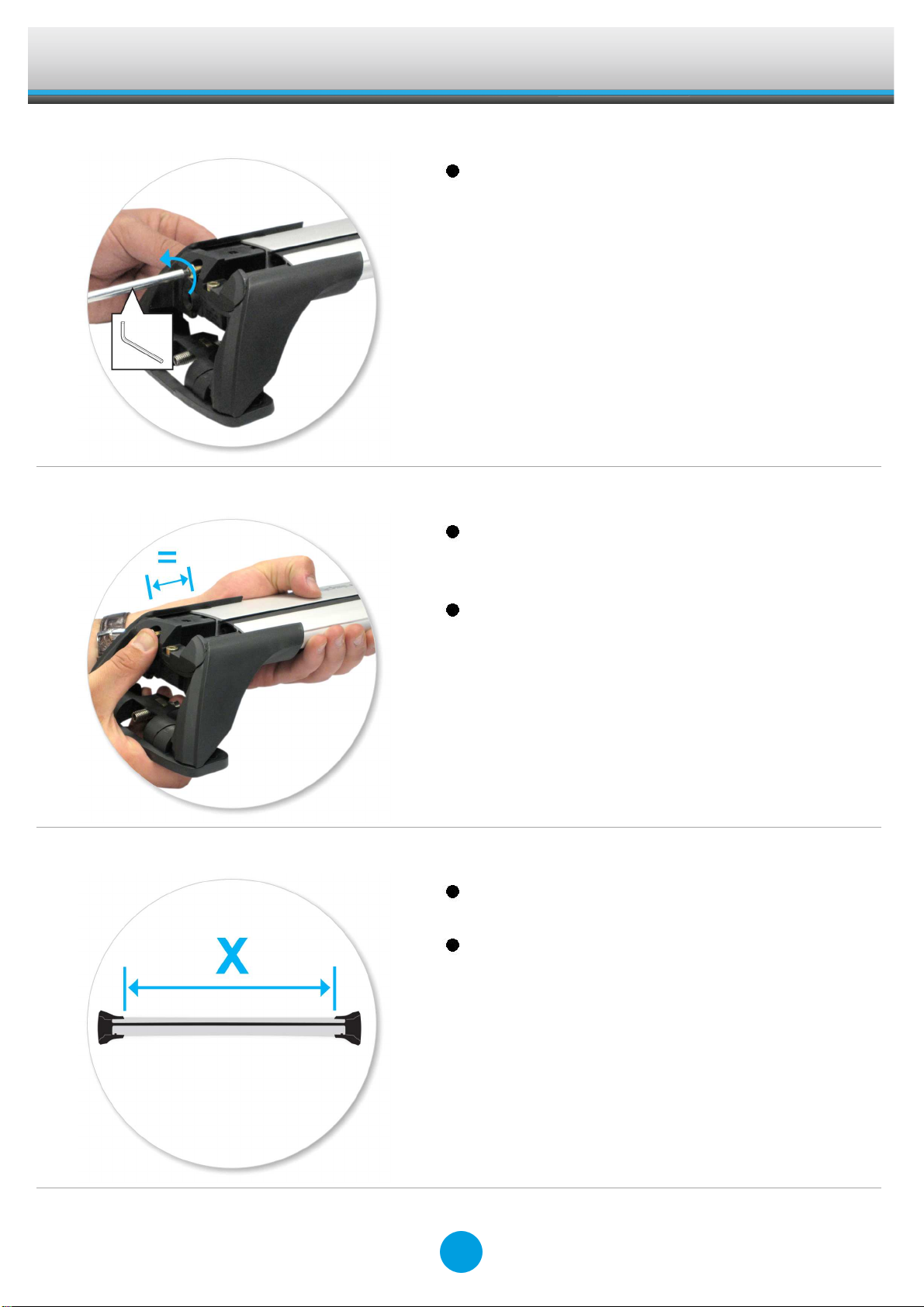

Use hex screwdriver to reverse adjusting
screw 10 turns.
Press adjusting screw and pull crossbar legs
out. Refer to the crossbar instructions for
crossbar adjustment.
Ensure each end of the crossbar is adjusted
equally.
Set bars to length (refer to the crossbar
instructions for crossbar adjustment).
Please check the rear of this manual for
information relating specifically to your
vehicle.
4
Fitting Kit
K537
GB
Tighten adjusting screw to 5 Nm (3.7 ft lb).
Remove clamp block by pressing backwards.
Select plastic internal block (from fitting kit)
and insert into foot.
Repeat for all legs.
5
Fitting Kit
K537
GB
Fit rubber pads (supplied with fitting kit) to
foot. Pad may vary in shape to that shown.
Make sure the pad fits into the holes
underneath the foot.
Fitment
Run your finger along the inboard edge of
the moulding and locate fixed points.
Apply protective strip as shown.
Trim if required.
6
Fitting Kit
K537
GB
Hook clamps into the fixed point on the
vehicle using inner slots.
A= Clamp
B= Roof line
C= Body trim
D= Vehicle fixpoint
E= Protective strip
Ensure internal clamp sits upright.
Repeat for all four positions.
7
Fitting Kit
K537
GB
Place crossbar foot over clamp bolt.
Place washer over clamp thread as shown.
Ensure that tab is inserted into clamp block.
Tighten the red plastic knob. The side with
the nut showing should be facing up.
8
Fitting Kit
K537
GB
Ensure the red plastic knob is in the position
shown when fully tightened.
Repeat for all four positions.
Check crossbar is securely attached to the
vehicle.
Use keys to fit and lock covers
CAUTION:
CAUTION:CAUTION:
CAUTION:
Recheck all fasteners immediately after a load is
Recheck all fasteners immediately after a load is Recheck all fasteners immediately after a load is
Recheck all fasteners immediately after a load is
applied to the crossbars.
applied to the crossbars.applied to the crossbars.
applied to the crossbars.
Regularly check screws are tight.
Regularly check screws are tight.Regularly check screws are tight.
Regularly check screws are tight.
9
Fitting Kit
K537
GB
Maintenance
Clean the car roof and surfaces of the
product that will be in contact with the car
roof.
Follow the fitting instructions for fitting the
product to your vehicle. Make sure all steps
are carried out in order.
Set crossbars a minimum distance of 700mm
(27 4/8") apart where no other distance is
specified in the fitting instructions. This is
especially important when carrying long
loads.
Check unit is securely attached whenever
you refit it to the vehicle. If the unit feels
loose, refer to the fitting instructions and
readjust.
Some sunroofs and radio antennae cannot
be used when the product is fitted.
Do not modify this product.
Refer to the maximum permitted load
capacity specified in the fitting instructions.
Do not exceed the vehicle manufacturers
roof load rating if it is lower than the
maximum load capacity specified in the fitting
instructions.
Loads should not overhang the sides of the
product and be evenly distributed with the
lowest possible centre of gravity.
Long loads should be secured with non-
elastic straps to the front and rear of the
vehicle.
Objects with pointed ends (skis) should be
carried with the pointed ends to the rear of
the vehicle.
Remove all loose or removable objects from
the load prior to loading.
Make sure all loads are securely fastened
with non-elastic straps. Check regularly
during longer journeys.
