Whispbar K621W Bedienungsanleitung

K621W

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 2 x 2

x 4 x 4 x 4 x 4

x 1 x 1

Revision No: 6C 1

Fitting Kit K621W

MAX kgs (lbs)

W/P WHD

Mercedes

CLS Class W219, 4dr Sedan 04-10 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

CLS Class W219, 4dr Sedan 05-10 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

CLS Class W219, 4dr Sedan 05-10 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

CLS Class W219, 4dr Sedan 05-10 US 75 kgs (165 lbs) 75 kgs (165 lbs)

CLS Class W219, 4dr Sedan 05-10 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

S Class W221, 4dr Sedan 06-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

S Class W221, 4dr Sedan 06-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

S Class W221, 4dr Sedan 06-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

S Class W221, 4dr Sedan 06-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

S Class W221, 4dr Sedan 06-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Subaru

WRX , 4dr Sedan 11-14 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

WRX , 4dr Sedan 11-14 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

WRX , 4dr Sedan 11-14 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

WRX , 4dr Sedan 11-14 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

WRX , 4dr Sedan 11-14 US 75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit EN

K621W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

Fitting Kit EN

K621W

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Attaches to factory-fitted mounting points

●Please check the rear of this manual for

information relating specifically to your

vehicle.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

Fitting Kit EN

K621W

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

Fitting Kit EN

K621W

●Repeat for all four positions.

●Open or remove fixed-point covers.

●Select four grubscrews and assemble them

into the adaptor using 3 mm (1/8") Hex

Key.

●NOTE: Mercedes only

●Select grubscrews and screw into the

vehicle's fixed points.

●Do not over tighten.

●Repeat for all four positions.

Fitting Kit EN

K621W

●Sort M6 grubscrews into lengths.

●A = Mercedes CLS Class

B = Mercedes S Class / Subaru WRX

C = Not applicable unless advised

●Using the supplied Hex Key, tighten

grubscrew into position.

●Repeat for all four positions.

Fitment

●Refer to the underside of the pad for the

part number.

Fitting Kit EN

K621W

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 224A

B = 225A

●Close all fixed-point covers so they rest on

the grubscrew and place pads over

grubscrews.

●It is important to put the pads in the correct

position on the vehicle.

Fitting Kit EN

K621W

●Place crossbars on pads ensuring the pads

fit into the holes underneath the foot and

the grubscrew passes through the hole in

the foot.

All Configurations:

●Tighten the plastic knob. The side with the

nut showing should be facing up.

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all four positions.

Fitting Kit EN

K621W

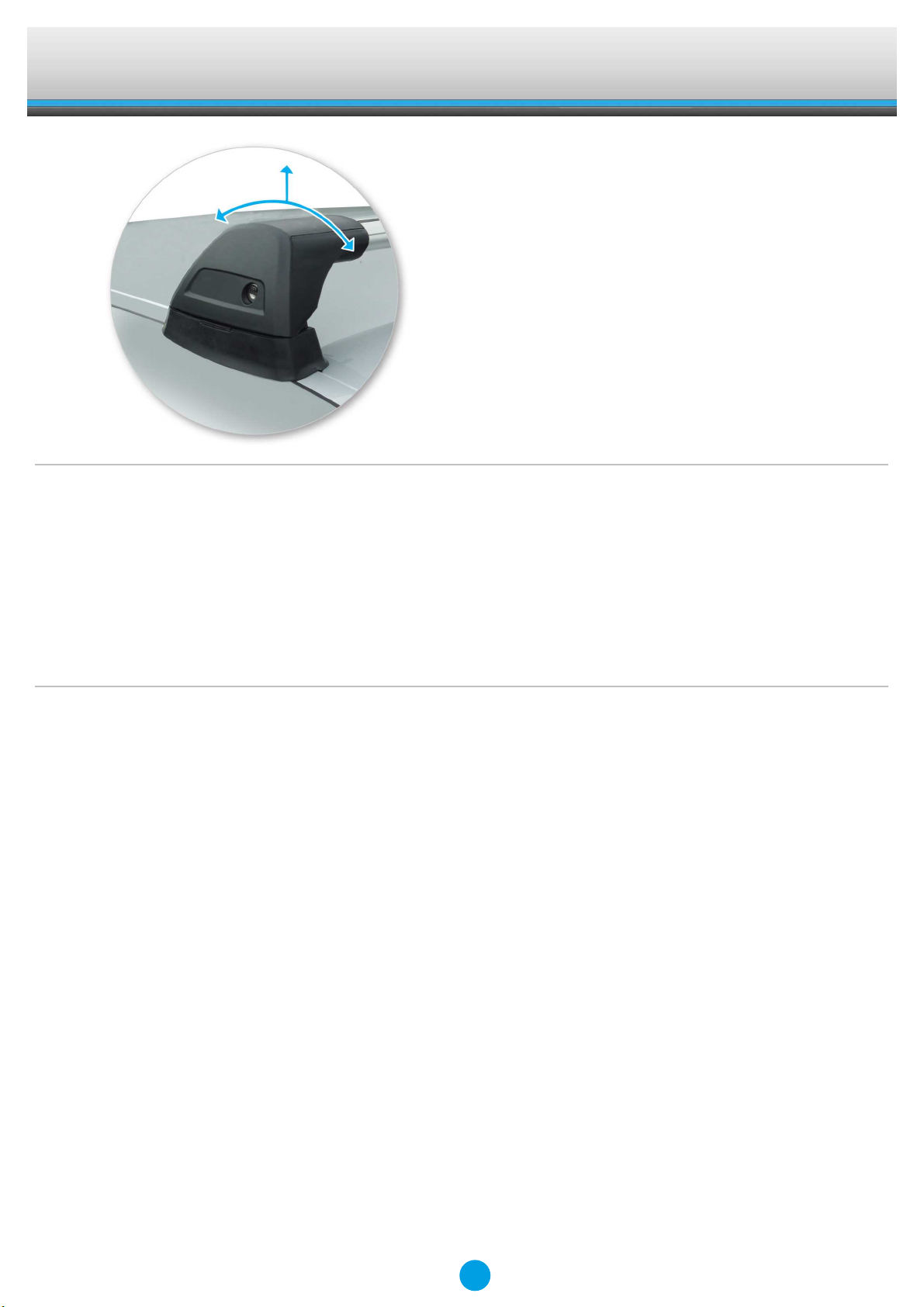

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.
