K746W

Fitting Kit

EN Fitting Instructions for Basic Carrier

DE Montageanleitung für Basisträgersystem

ES Instrucciones de montaje para el sistema

de transporte

FR Instructions de montage pour Basic Carrier

NO Monteringsanvisning for takstativ

PT Instruções de Montagem para sistema de

transporte.

RU Установочные Инструкции для

Поперечных Балок

x 1 x 1 x 1 x 1

x 1 x 1 x 2 x 2

x 2

Revision No: 3C 1

Fitting Kit K746W

MAX kgs (lbs)

W/P WHD

Volkswagen

CC, 4dr Coupe 12-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

CC, 4dr Coupe 12-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

CC, 4dr Coupe 12-17 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

CC, 4dr Coupe 12-17 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

CC, 4dr Coupe 12-17 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

CC, 4dr Coupe 12-17 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat CC, 4dr Coupe 08-11 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat CC, 4dr Coupe 08-11 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat CC, 4dr Coupe 08-11 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat CC, 4dr Coupe 08-11 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Passat CC, 4dr Coupe 09-12 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K746W

X

A B C 1 2 3

CC, 4dr Coupe 12-+ (US) -290mm 410mm - 922mm 870mm -

-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -

CC, 4dr Coupe 12-+ (CN) -290mm 410mm - 922mm 870mm -

-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -

CC, 4dr Coupe 12-17 (NZ) -290mm 410mm - 922mm 870mm -

-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -

CC, 4dr Coupe 12-17 (AU) -290mm 410mm - 922mm 870mm -

-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -

CC, 4dr Coupe 12-17 (EU) -290mm 410mm - 922mm 870mm -

-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -

CC, 4dr Coupe 12-17 (ZA) -290mm 410mm - 922mm 870mm -

-11 -7/16ths" 16 1/8ths" - 36 5/16ths" 34 1/4ths" -

Passat CC, 4dr Coupe 08-11 (AU) -290mm 405mm - 925mm 865mm -

-11 -7/16ths" 15 15/16ths" - 36 7/16ths" 34 1/16ths" -

Passat CC, 4dr Coupe 08-11 (EU) -290mm 405mm - 925mm 865mm -

-11 -7/16ths" 15 15/16ths" - 36 7/16ths" 34 1/16ths" -

Passat CC, 4dr Coupe 08-11 (NZ) -290mm 405mm - 925mm 865mm -

-11 -7/16ths" 15 15/16ths" - 36 7/16ths" 34 1/16ths" -

Passat CC, 4dr Coupe 08-11 (ZA) -290mm 405mm - 925mm 865mm -

-11 -7/16ths" 15 15/16ths" - 36 7/16ths" 34 1/16ths" -

Passat CC, 4dr Coupe 09-12 (CN) -290mm 405mm - 925mm 865mm -

-11 -7/16ths" 15 15/16ths" - 36 7/16ths" 34 1/16ths" -

3

Fitting Kit EN

K746W

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

4

Fitting Kit EN

K746W

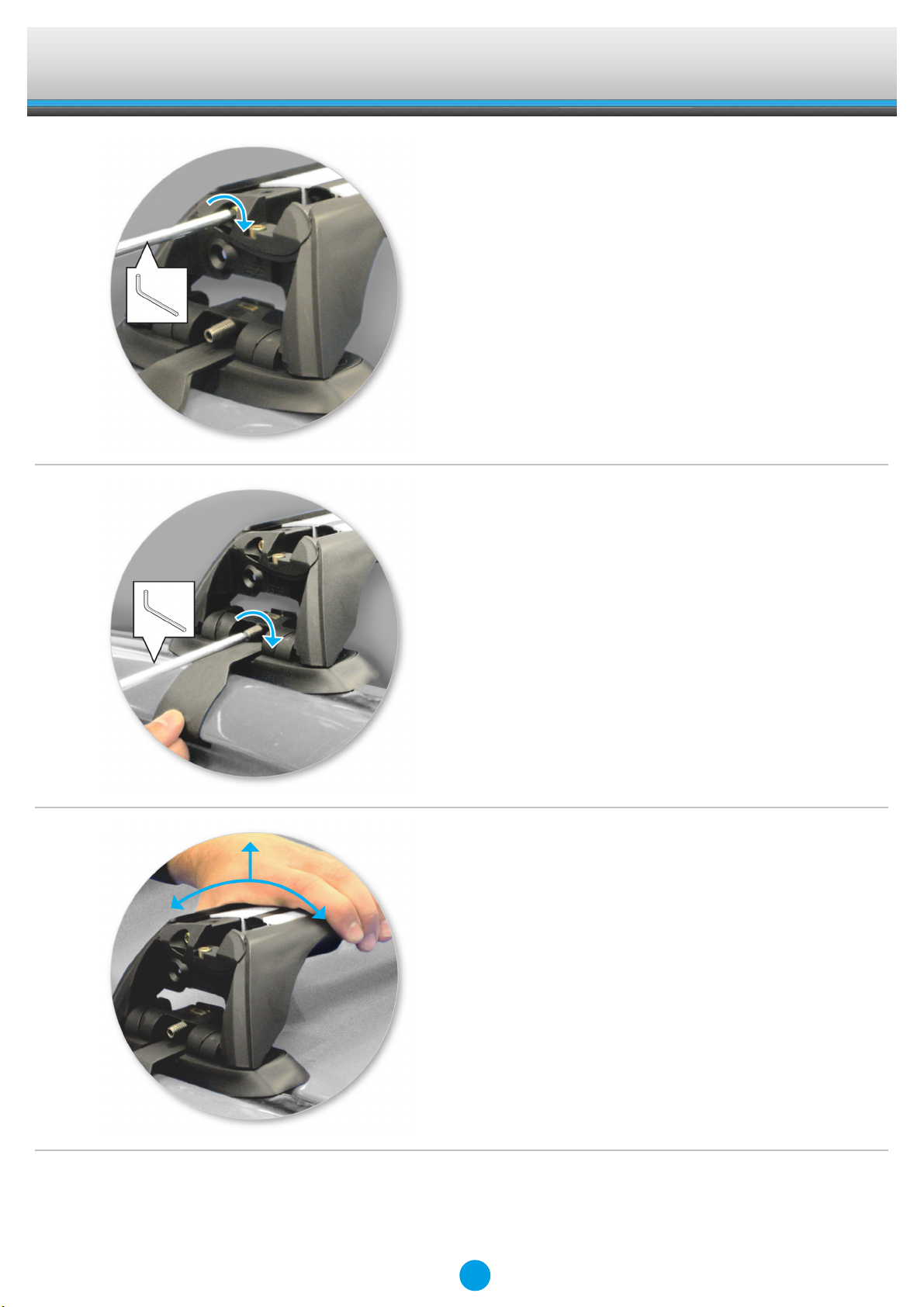

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

5

Fitting Kit EN

K746W

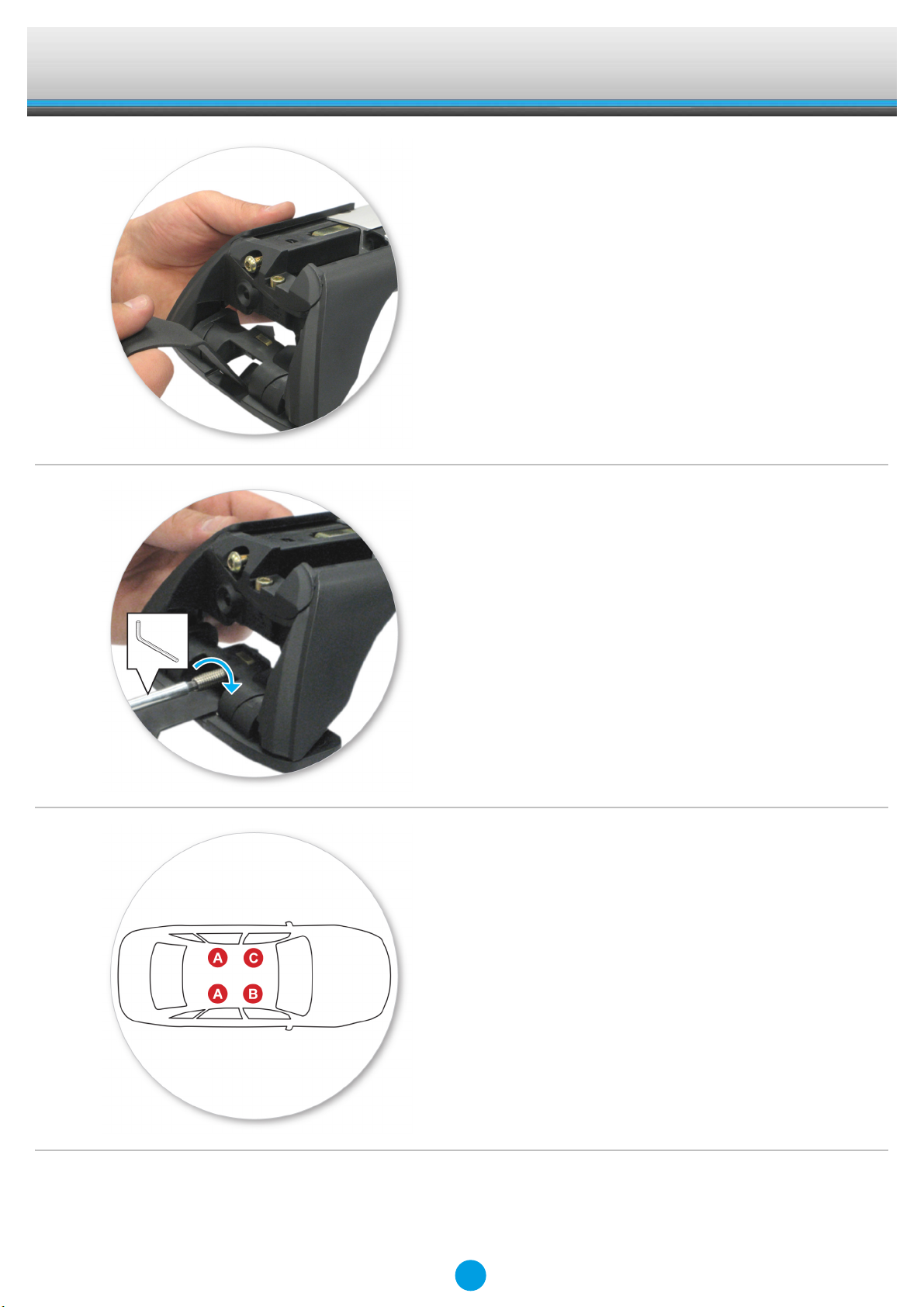

●Remove locking screw.

●Apply protective strip as shown.

Trim if required.

●It is important to put the clamps in the

correct position on the vehicle.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 149A

B = 150A

C = 151A

D = 152A

6

Fitting Kit EN

K746W

●Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

●Refit locking screw so that it goes through

the hole in the clamp. Do not begin to

tighten the locking screw.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 241

B = 295

C = 296

7

Fitting Kit EN

K746W

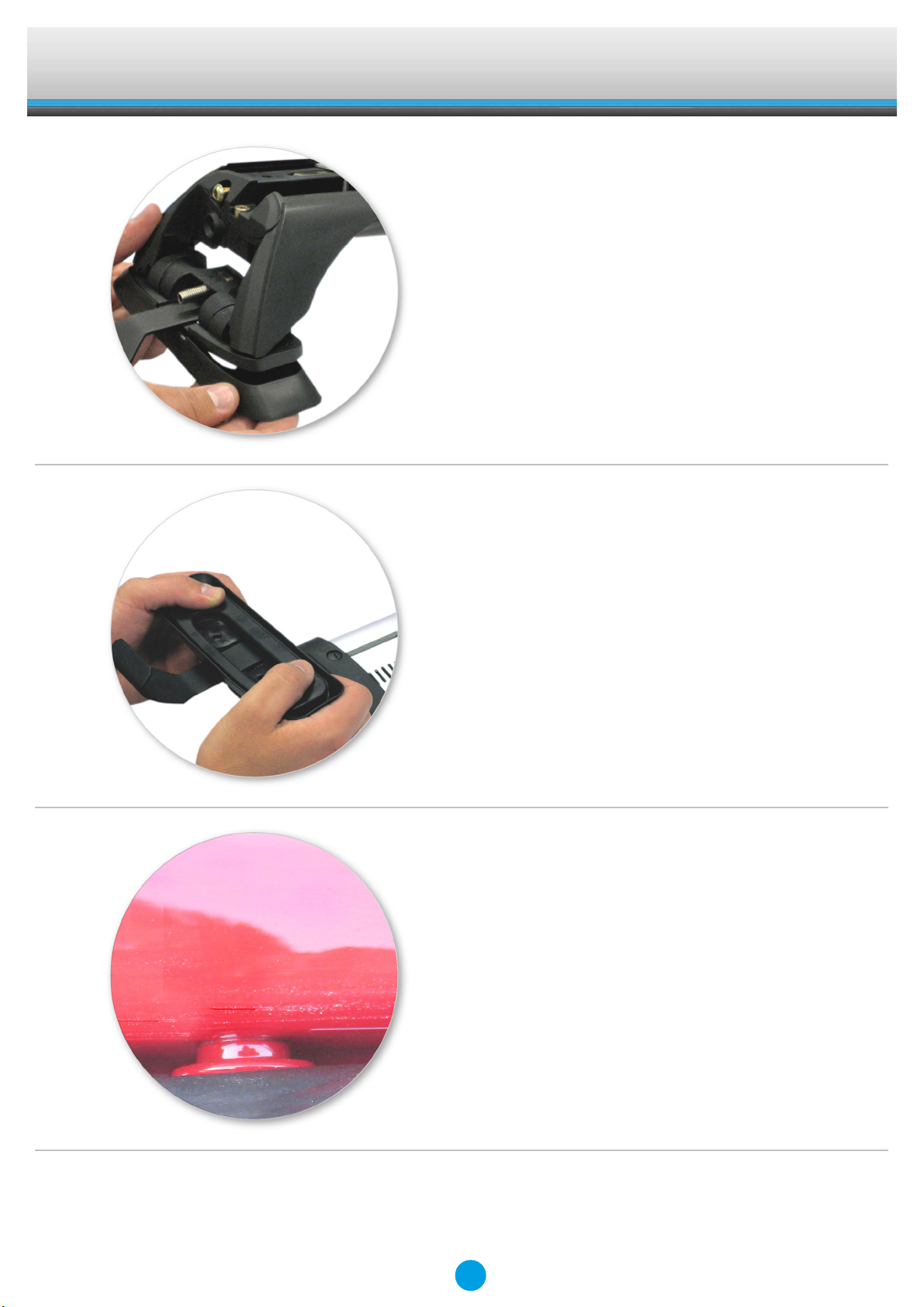

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

●Clamps onto anchor points under rubber

door frame mouldings

8

Fitting Kit EN

K746W

●The rubber seal must be peeled back from

the vehicle body to allow the clamp to be

inserted between the vehicle body and the

rubber seal.

Fitment

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Please check the front of this manual for

information relating specifically to your

vehicle.

●Press adjusting screw to adjust the leg

positions on the crossbar.

9

Fitting Kit EN

K746W

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Tighten locking screw on both legs evenly.

●Check crossbar is securely attached to the

vehicle.
