Whispbar K880W Bedienungsanleitung

K880W

Fitting Kit

EN Fitting Instructions for Basic Carrier CAUTION: Professional

installation recommended

x 2 x 2 x 4 x 2

x 6 x 1 x 6 x 6

x 1 x 12 x 12 x 6

Revision No: 3C 1

Fitting Kit K880W

MAX kgs (lbs)

W/P WHD

Isuzu

MU-X, 5dr SUV 14-+ NZ

MU-X, 5dr SUV Dec 13-+ AU

75 kgs (165 lbs) 75 kgs (165 lbs)

Fitting Kit K880W

A B C 1 2 3

MU-X, 5dr SUV 14-+ (NZ) - 700mm 1400mm 960mm 927mm 905mm

- 27 9/16ths" 55 1/8ths" 37 13/16ths" 36 1/2ths" 35 5/8ths"

MU-X, 5dr SUV Dec 13-+ (AU) - 700mm 1400mm 960mm 927mm 905mm

- 27 9/16ths" 55 1/8ths" 37 13/16ths" 36 1/2ths" 35 5/8ths"

Fitting Kit EN

K880W

Items you will require:

●Tape measure

Pen

Flat-head screwdriver

Craft knife

Side cutters or tin snips

Hammer

8mm (3/8") punch

Cordless drill

Depth stop

Vacuum cleaner

Rust inhibitor

Small paint brush

Neutral cure silicon sealant

Rivet gun

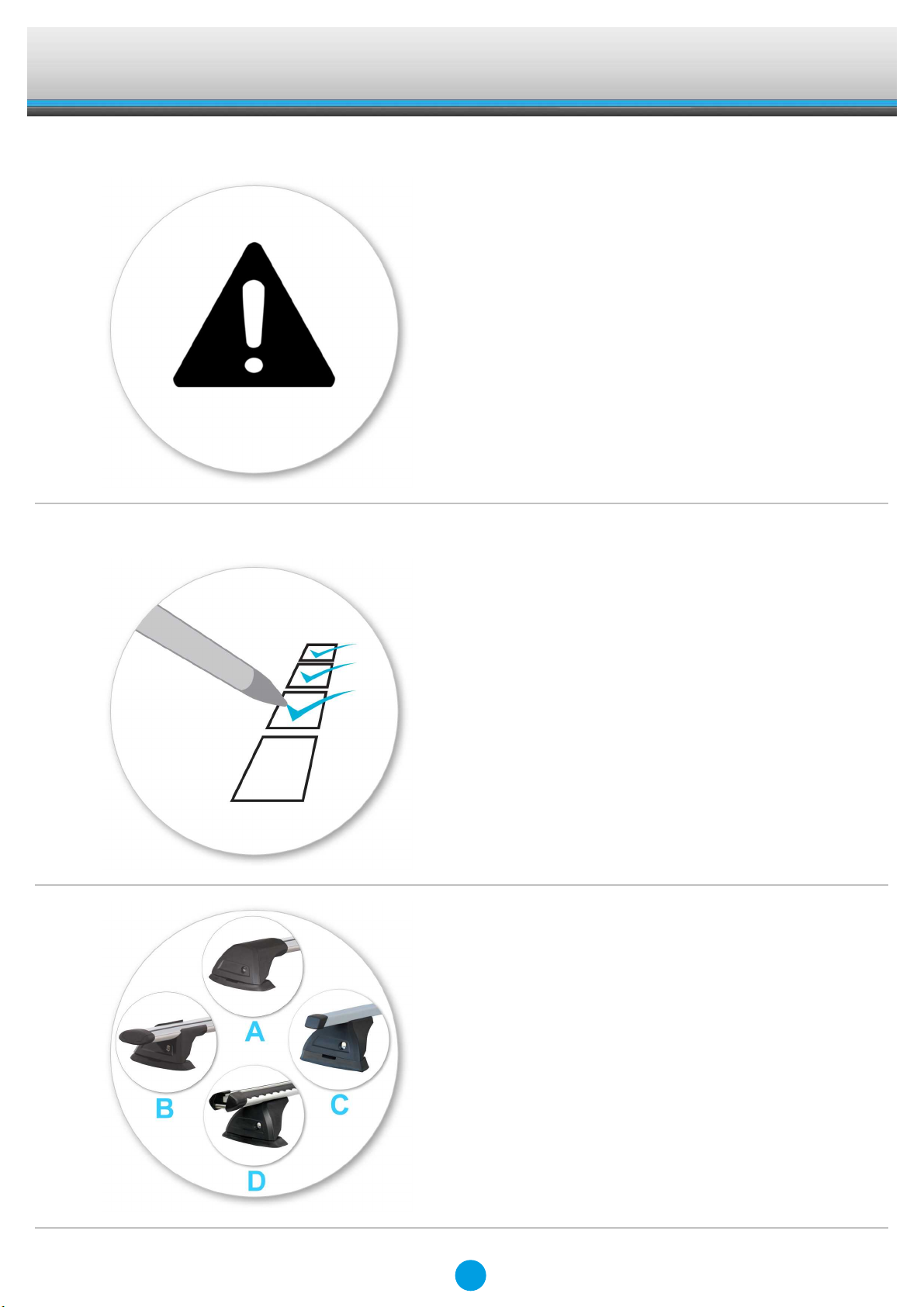

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

Fitting Kit EN

K880W

●Use keys to remove covers.

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

Fitting Kit EN

K880W

●Note: 2 Bar System

●Note: 3 Bar System

●Attention:

●Permanent Mount Fitment

●Position as shown.

Fitting Kit EN

K880W

●Carefully select desired position for

crossbars on vehicle roof.

●Adjust crossbar in or out to suit vehicle.

Refer to the crossbar instructions for

crossbar adjustment.

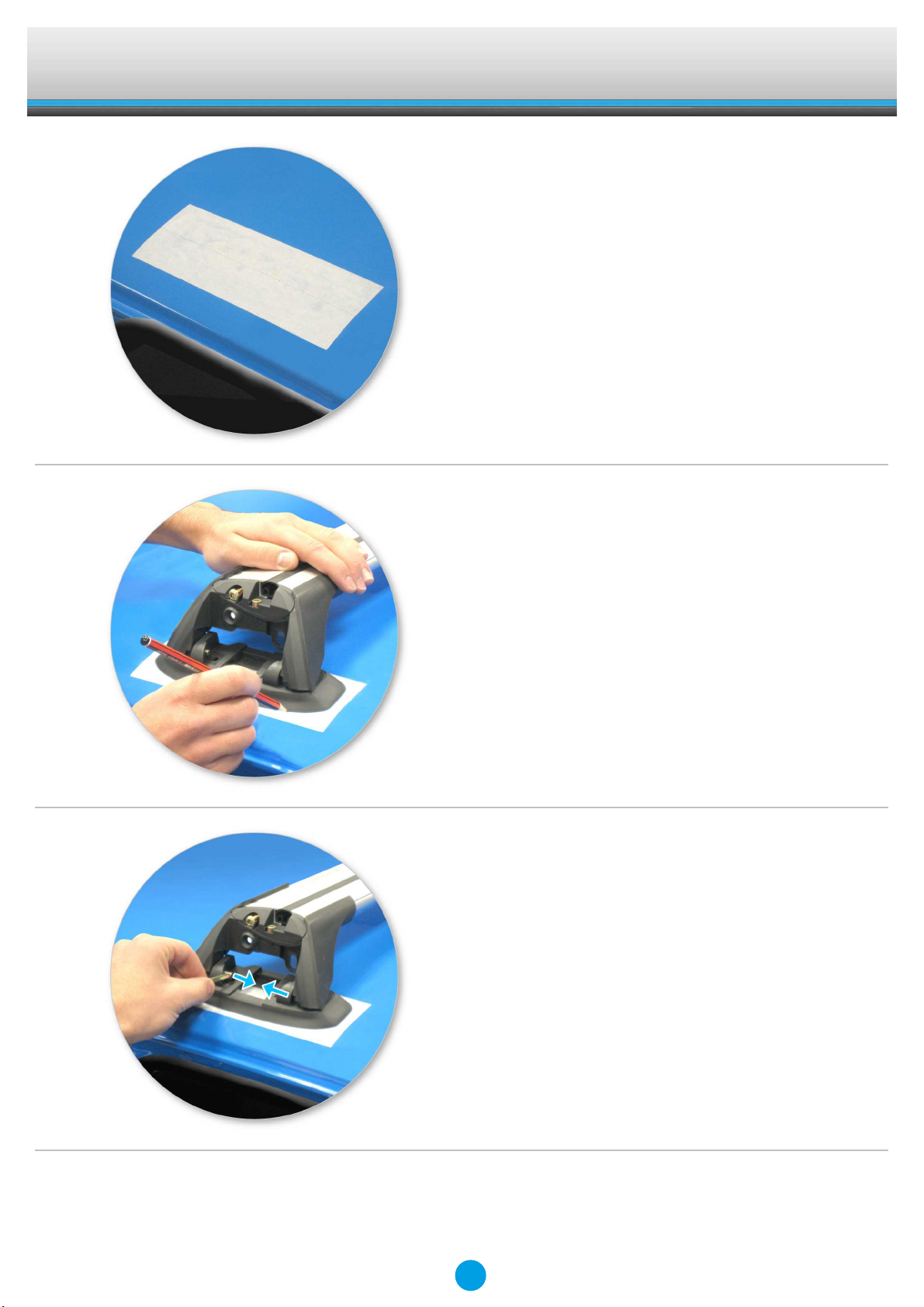

●Apply masking tape to vehicle roof in all

four positions.

●Make sure there is no interference between

what you intend to carry with aerials,

sunroof or tailgate.

●Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

●Trace around rubber pad using a pencil or

pen.

●Repeat for all four positions.

●Remove both pins from each leg. Use

tapered end of spanner located inside left

hand cover to assist.

●Repeat for all legs.

Fitting Kit EN

K880W

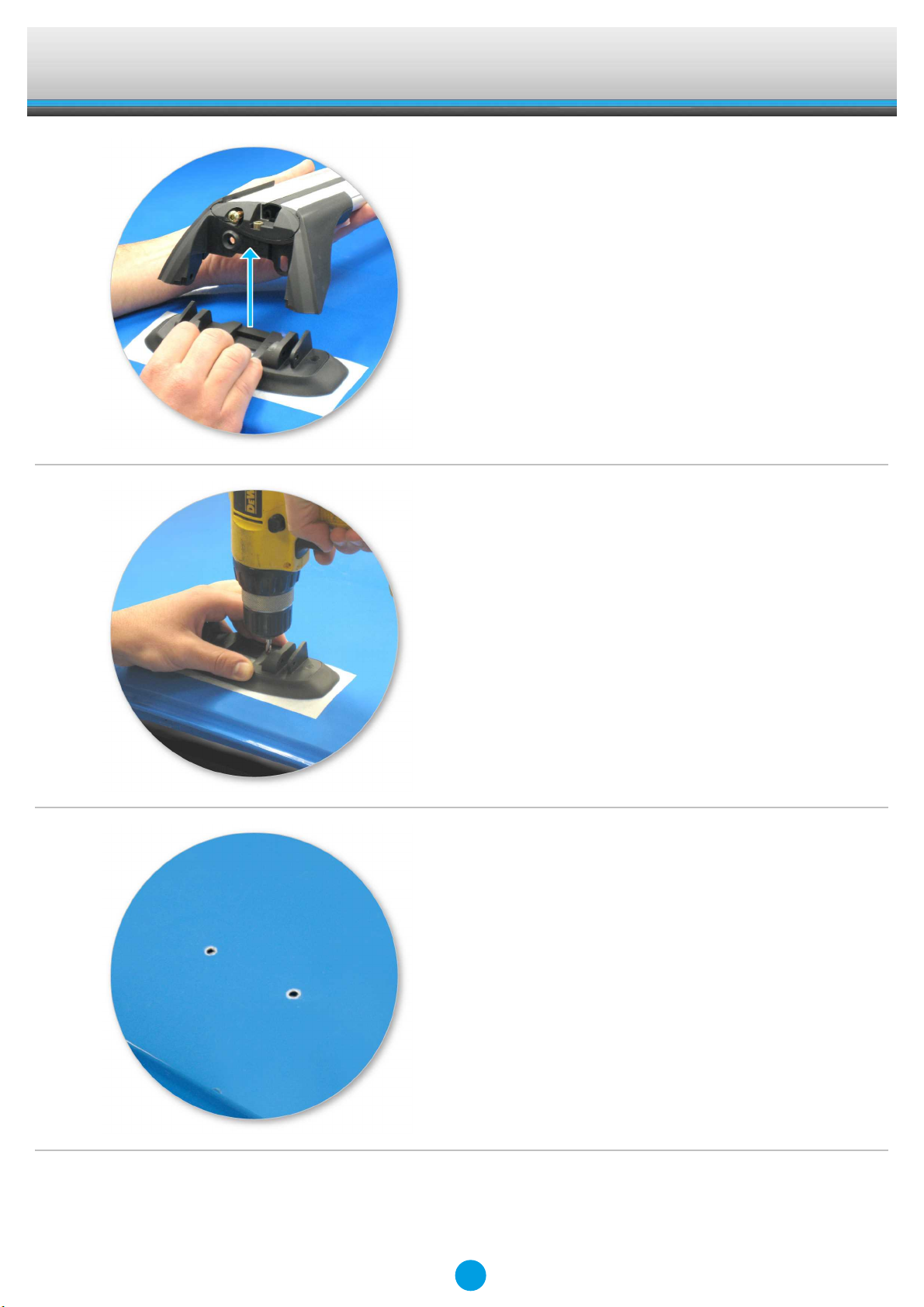

●While holding foot, detach crossbar from

foot.

●Drill through the two holes in the foot while

holding foot tight on roof in marked

position.

●Remove masking tape and place silicon

sealant around drilled holes on roof for all

four positions.

Fitting Kit EN

K880W

●Install rivets through permanent mount

blocks.

WARNING: Do not use countersunk screws as an

alternative fixing method to the rivets supplied with

this kit.

●While holding the permanent mount block

firmly on roof, rivet the blocks to the roof.

Fitting Kit EN

K880W

●Note: 2 Bar System

●Repeat for all four positions.

●Note: 3 Bar System

●Repeat for all six positions.

●Fit plastic plugs to permanent mount blocks

over rivet heads.

●Assemble as shown.
