Dierential pressure gauge with magnetic piston model 700.01
and with magnetic piston and separation diaphragm model 700.02
Dierenzdruckmessgerät mit Magnetkolben Typ 700.01 und mit
Magnetkolben und Trennmembrane Typ 700.02
Manomètre pour pression diérentielle avec piston magnétique
type 700.01 et avec piston magnétique et membrane de séparation
type 700.02
Manómetro diferencial con pistón magnético modelo 700.01 y con
pistón magnético y membrana de separación modelo 700.02
2WIKA operating instructions dierential pressure gauge with piston
2103869.04 12/2012 GB/D/F/E
GB
D
F
E
Operating instructions model 700.01 and 700.02 Page 3-12
Betriebsanleitung Typ 700.01 und 700.02 Seite 13-22
Mode d'emploi type 700.01 et 700.02 Page 23-32
Manual de instrucciones modelo 700.01 y 700.02 Página 33-42
© 2011 WIKA Alexander Wiegand SE & Co. KG
All rights reserved. / Alle Rechte vorbehalten.
WIKA® is a registered trademark in various countries.
WIKA® ist eine geschützte Marke in verschiedenen Ländern.
Prior to starting any work, read the operating instructions!
Keep for later use!
Vor Beginn aller Arbeiten Betriebsanleitung lesen!
Zum späteren Gebrauch aufbewahren!
Lire le mode d'emploi avant de commencer toute opération !
A conserver pour une utilisation ultérieure !
¡Leer el manual de instrucciones antes de comenzar cualquier trabajo!
¡Guardar el manual para una eventual consulta posterior!
WIKA operating instructions dierential pressure gauge with piston 3
2103869.04 12/2012 GB/D/F/E
GB
1. General information 4
2. Safety 5
3. Specications 7
4. Design and function 7
5. Options and accessories 8
6. Transport, packaging and storage 9
7. Commissioning, operation 9
8. Maintenance and cleaning 12
9. Dismounting and disposal 12
Contents
Contents
4
2103869.04 12/2012 GB/D/F/E
GB
WIKA operating instructions dierential pressure gauge with piston
1. General information
1. General information
The dierential pressure gauge described in the operating instructions has been
designed and manufactured using state-of-the-art technology.
All components are subject to stringent quality and environmental criteria during
production. Our management systems are certied to ISO 9001 and ISO 14001.
These operating instructions contain important information on handling the
dierential pressure gauge. Working safely requires that all safety instructions
and work instructions are observed.
Observe the relevant local accident prevention regulations and general safety
regulations for the dierential pressure gauge's range of use.
The operating instructions are part of the product and must be kept in the
immediate vicinity of the pressure gauge and readily accessible to skilled
personnel at any time.
Skilled personnel must have carefully read and understood the operating
instructions prior to beginning any work.
The manufacturer's liability is void in the case of any damage caused by
using the product contrary to its intended use, non-compliance with these
operating instructions, assignment of insuciently qualied skilled personnel or
unauthorised modications to the dierential pressure gauge.
The general terms and conditions contained in the sales documentation shall
apply.
Subject to technical modications.
Further information:
- Internet address: www.wika.de / www.wika.com
- Relevant data sheet: PM 07.14
Explanation of symbols
WARNING!
... indicates a potentially dangerous situation that can result in
serious injury or death, if not avoided.
Information
… points out useful tips, recommendations and information for
ecient and trouble-free operation.
WIKA operating instructions dierential pressure gauge with piston 5
2103869.04 12/2012 GB/D/F/E
GB
2. Safety
2. Safety
WARNING!
Before installation, commissioning and operation, ensure that
the appropriate pressure gauge has been selected in terms of
measuring range, design and specic measuring conditions.
Observe the selection and installation recommendations for
pressure gauges in accordance with EN 837-2.
Check the compatibility with the medium of the materials
subjected to pressure!
In order to guarantee the measuring accuracy and long-term
stability specied, the corresponding load limits must be
observed.
Non-observance can result in serious injury and/or damage to
the equipment.
Further important safety instructions can be found in the
individual chapters of these operating instructions.
2.1 Intended use
These dierential pressure gauges are used for monitoring dierential pressures
in industrial applications.
The dierential pressure gauge has been designed and built solely for the
intended use described here and may only be used accordingly.
The manufacturer shall not be liable for claims of any type based on operation
contrary to the intended use.
2.2 Personnel qualication
WARNING!
Risk of injury should qualication be insucient!
Improper handling can result in considerable injury and damage
to equipment.
■
The activities described in these operating instructions
may only be carried out by skilled personnel who have the
qualications described below.
6
2103869.04 12/2012 GB/D/F/E
GB
WIKA operating instructions dierential pressure gauge with piston
Date of manufacture
2. Safety
Skilled personnel
Skilled personnel are understood to be personnel who, based on their technical
training, knowledge of measurement and control technology and on their
experience and knowledge of country-specic regulations, current standards
and directives, are capable of carrying out the work described and independently
recognising potential hazards.
2.3 Special hazards
WARNING!
Residual media in dismounted pressure gauges can result in a
risk to people, the environment and the system. Take sucient
precautionary measures.
2.5 Labelling / safety marks
Product label (with option reed contact)
Explanation of symbols
Before mounting and commissioning the pressure gauge, ensure
you read the operating instructions!
CE, Communauté Européenne
Instruments bearing this mark comply with the relevant European
directives.
Model 700.02.080 Cont 851.3
MAX. LASTDATEN / CONTACT RATING
Pmax AC/DC 3 W
Umax AC/DC 30 V
Imax AC/DC 0.2 A
E-Nr./Prod-No: 1234567 12/2010 1234567
UL-Nr: E103299
CSA-Nr: LR57810
⊖left
⊕right
WIKA operating instructions dierential pressure gauge with piston 7
2103869.04 12/2012 GB/D/F/E
GB
3. Specications
3. Specications / 4. Design and function
Specications Model 700.01 Model 700.02
Nominal size 80
Accuracy class ± 3 % of full scale value with
increasing dierential pressure
± 5 % of full scale value with
increasing dierential pressure
Scale ranges 0 … 400 mbar to 0 … 10 bar 0 … 160 mbar to 0 … 2.5 bar
Max. working
pressure
(static pressure)
optionally 100, 250 or 400 bar 100 bar
(scale ranges 0 ... 160 mbar and
0 ... 250 mbar: 50 bar)
Overpressure safety either side to maximum working pressure
(exception for model 700.02, scale ranges 0 ... 160 mbar and
0 ... 250 mbar: Overpressure safety up to 50 bar)
Ingress protection lP 54 (EN 60529 / lEC 529)
Measuring chamber
with pressure
connection (wetted)
Stainless steel 1.4571, 2 x G ¼ female, on the right and left side,
in-line (EN 837-1 /7.3)
For further specications see WIKA data sheet PM 07.14 and the order
documentation.
4. Design and function
Description
Pressures p1and p2 are given in the ⊕ and ⊖ measuring chambers, separated
by the magnetic piston under pressure(or magnetic piston and separating
diaphragm for model 700.02).
The dierence in pressure causes an axial movement (deection) of the piston
supported by the compression spring.
The deection resulting from this is taken up by a ring magnet found on the
instrument pointer and appropriately displayed. This design combines the
advantages of complete separation of the measuring system and the indication
while eliminating any leakage to the exterior.
For model 700.01 the volume ow from the ⊕ measuring chamber to the ⊖
measuring chamber is minimised by the constructive design and will not interfere
with standard processes.
These instruments are mainly intended for gas/air supply and preparation appli-
cations where no magnetic particles are involved.
8
2103869.04 12/2012 GB/D/F/E
GB
WIKA operating instructions dierential pressure gauge with piston
C
D
B
B
A
C
D
In processes with oating particles model 700.02 should be used.
Scope of delivery
Cross-check the scope of delivery with the delivery note.
5. Options and accessories
5.1 Mounting ange (only for model 700.01, see left illustration)
May be retrotted on site as required.
Alignment of the front bezel (A) by means of the stamped cams to the grooves
found on the case circumference. Push front bezel on the case until it snaps into
position.
5.2 Minimum or maximum drag pointer (see illustrations)
The drag pointer (B) serves to monitor and control the miniumum or maximum
occurring dierential pressure.
5.3 Reed contact model 851.3 and 851.3.3 (see illustrations)
May be retrotted and adjusted on site as required.
Fastening is by means of two screws (D) integrated in the reed case (C) on the
display case with the pertinent female thread.
5. Options and accessories
WIKA operating instructions dierential pressure gauge with piston 9
2103869.04 12/2012 GB/D/F/E
GB
7. Commissioning, operation
Mechanical connection
The installation of the dierential pressure gauge is made following the installation
recommendations for pressure gauges in accordance with EN 837-2 /7.
Mounting of the process connection according to axed symbols ⊕ and ⊖
⊕ high pressure, ⊖ low pressure
■
Hold against the connection pieces in the case of installation by means of
17 mm screw spanner (installation without holding against the connection
pieces may cause thet measuring system to get loose).
■
The maximum permissible medium/ambient temperature must not be
exceeded
■
Prior to the installation of the pressure gauge, clean the measuring lines
thoroughly by tapping and blowing or rinsing
■
Mount and operate the measuring instruments free from vibration
■
Protect measuring instruments from contamination and high temperature
changes
To avoid foreign matter in the measuring system and the resulting damage to the
system, the pressure gauge must be mounted above the connector. For measuring
media containing suspended particles model 700.02 should be used.
6. Transport, packaging and storage
5.1 Transport
Check pressure gauge for any damage that may have been caused by transport.
Obvious damage must be reported immediately.
6.2 Packaging
Do not remove packaging until just before mounting.
Keep the packaging as it will provide optimum protection during transport (e.g.
change in installation site, sending for repair).
6.3 Storage
Permissible conditions at the place of storage:
Storage temperature: -20 ... +70 °C (optional: -40 … +70 °C)
6. Transport, packaging and storage / 7. Commissioning ...
10
2103869.04 12/2012 GB/D/F/E
GB
WIKA operating instructions dierential pressure gauge with piston
7. Commissioning, operation

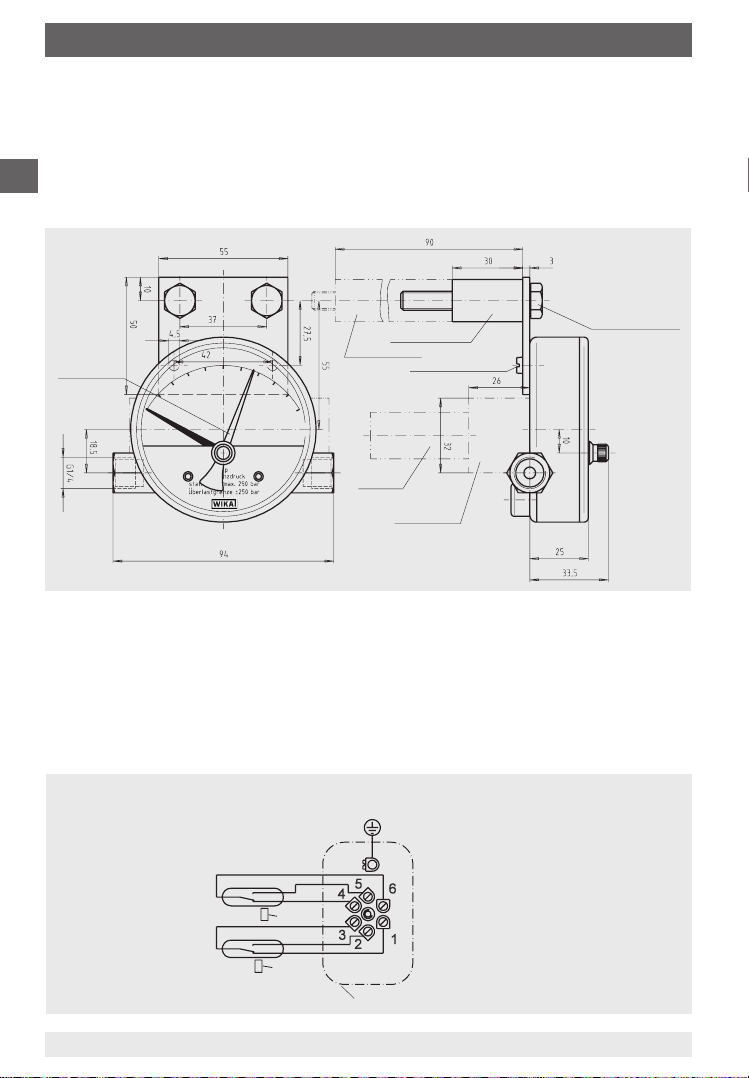

Hexagon bolt
M8 x 50 (M8 x 100)
without reed contact
with reed contact
Slotted screw M4 x 10
Reed case
Drag pointer
Plug
1581007.02
Electrical connection
(for instruments with electrical accessories)
Electrical connection of the pressure gauge is by means of terminal box and
cable. Precise wiring schemes can be seen in the following connection diagram.
In addition both the pin assignment and the required power supply are stated on
the product label of the reed case.
Electrical connection diagram
Reed contact model 851.3 and 851.3.3
(change-over contact)
The instruments do not
provide for incorporated
overcurrent protectors. If
overcurrent protectors are
requested, these have to
be provided for externally.
Terminal box
2nd contact
1nd contact
851. 3
851.3. 3
If the line to the gauge is not rigid enough for a vibration-free installation, the gauge
should be mounted by means of appropriate fastening elements for wall mounting,
or, if necessary, with a capillary.
Wall mounting (see drawing)
Installation / fastening by means of mounting brackets
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Sprachen:
Andere WIKA Messgerät Handbücher
WIKA
WIKA PG43SA-S Bedienungsanleitung
WIKA
WIKA intelliTHERM TGT70 Bedienungsanleitung
WIKA
WIKA DI32-1 Bedienungsanleitung
WIKA
WIKA CPG2300 Series Bedienungsanleitung
WIKA
WIKA DMSU21SA Bedienungsanleitung
WIKA
WIKA PGU23.100 Bedienungsanleitung
WIKA
WIKA 732.14 Bedienungsanleitung
WIKA
WIKA A2G-10 Bedienungsanleitung
WIKA
WIKA DI10 Bedienungsanleitung
WIKA
WIKA CTD9300 Series Bedienungsanleitung
WIKA
WIKA A2G-05 Bedienungsanleitung
WIKA
WIKA TC84 Bedienungsanleitung
WIKA
WIKA 212.20.100 Bedienungsanleitung
WIKA
WIKA RLT-1000 Bedienungsanleitung
WIKA
WIKA A-IAI-1 Bedienungsanleitung
WIKA
WIKA GDM-RC-100-T Bedienungsanleitung
WIKA
WIKA TC82 Betriebsanleitung
WIKA
WIKA 2 Series Bedienungsanleitung
WIKA
WIKA SENSeOR AMS01 Bedienungsanleitung
WIKA
WIKA 4x2.30.1x0 Series Bedienungsanleitung
