This booklet provides game operation, bookkeeping, game adjustment, and diagnostic procedures

for FIREPOWER. For installation and special maintenance information refer to the blue-covered

game manual. For detailed information refer to Williams Solid State Flipper Maintenance Manual.

SPECIAL CONSIDERATIONS WHEN REPLACING CIRCUIT BOARDS

CPU Board

1. Revision level 6 CPU Boards (batteries located on lower right corner of board) or later

boards must be used.

2. Must he equipped with green-labeled FIREPOWER PROMs, green-labeled game ROM and

green-labeled flipper ROMs.

3. Jumper J4 must be connected and J3 removed.

Sound Board

1. Model D 8224 required for speech.

2. Must be jumpered for white-labeled sound ROM operation and be equipped with Sound

ROM 3. (Jumpers W2, W5, W7, W9, W10, and W15 connected; W3, W4, W6, W8, W11,

W12, and W13 removed)

Power Supply Board

1. Fuse F4 (10A SB) for flipper solenoids must be installed.

Optional Speech Module

1. Requires 5T4971 (IC7), 5T4972 (IC5), and ST4973 (IC6) speech ROMs.

GAME OPERATION

*Indicates adjustable features

Game Over Mode - Turn game ON; player scores show zero, high score to date* alternates with

player I score, player I up lamp flashes, game over lamp lights, all playfield lamps except for

credit lamp cycle in attract mode.

Credit Posting - Insert coin; knocker sounds, number of credits displayed. If maximum credits*

exceeded by coin or high score to date*, credits are posted correctly, coin lockout deenergized

until remaining credits are below maximum. No credits may be won and coins are rejected while

lockout is deenergized.

Game Start - Push credit button; start-up tune played, ball served, credit display reduced by one,

player I up lamp flashes until first scoring switch is made, ball in play shows 1. Pushing credit

button before ball 2 displayed allows additional players.

MULTI-BALL and LANE CHANGE are trademarks of Williams Electronics, Inc.

16P-497-103

Game No. 497

March, 1980

http://www.firepowerpinball.com

Bonus Advance - "F-l-R-E" rollovers when not lit, flashing "1-6" targets, left and right inside rollovers (3

advances when lit), and left and right outside rollovers. Bonus multiplier advanced and FIRE insert lit by

spotting "F-l-R-E". "F-l-R-E" lamps rotate by actuating right flipper (LANE CHANGE™feature).

FIREPOWER - Making three POWER targets scores 10,000 and lites POWER insert, left and right inside

rollovers, and *ball saver kicker ON. Liting FIRE and POWER inserts scores and advances FIREPOWER

bonus (5,000 or lit values of 10, 30, and 50,000). Outlane Special lit when *30, or 50,000 bonus collected.

"1-6" Targets - *Making "1-3" or "4-6" or same ball lights ball saver kicker ON. Spotting "1-6" lights ball

saver kicker ON*, flashes two eject holes, lights spinner, and alternately lights two jet bumpers; ad justable

to flash eject holes one at a time (always one at a time once MULTI-BALL play is achieved). Spotting "1-6"

twice on the same ball lights all jet bumpers.

Eject Holes - Making eject hole when flashing locks up ball and new ball released per following order: from

ball ramp, flashing eject hole, unlit eject hole. Locking up all balls in eject holes initiates MULTI-BALL

play. To minimize multiple player interaction, lit and flashing eject holes are reallocated from ball to ball as

required: Dashing lamp to empty eject hole if possible; lit lamp to occupied eject hole if possible.

Extra Ball - Maximum of two Extra Balls per ball. Lighting *5x or making"F-I-R-E" with 5x lit lights center

POWER target for Extra Ball. Making target when lit awards Extra Ball.

Tilts - Ball in play tilted on first closure of Playfield and Ball Roll tilts and third* closure of Plumb Bob.

Slam Tilt returns game to game over.

Memory - "F-l-R-E" lanes, FIRE insert, POWER Target lamps, POWER insert, *FIREPOWER bonus lamps,

*lit target arrows, eject hole lamps.

End of Game - Match Digits* appears in ball in play display, *credit awarded for match. Exceeding high

score to date awards *three credits. Match, High Score to Date, and Game Over sounds made as appropriate.

Balls released from eject holes and are placed on ball ramp before new game can be started.

With optional Speech Module, the following phrases are produced during game play:

BOOKKEEPING AND EVALUATION TOTALS

(Functions 01-12)

1. In game over mode, set alternate-action switch to AUTO- UP (out) and depress ADVANCE pushbutton. Test

04 is indicated in number of credits display, Function 00 in ball in play display, and game identification in

Player 1 display.

ACHIEVEMENT

Game start, collecting FIREPOWER bonus

Making "F-l-R-E"

Lighting POWER

Spotting "1-6" lamps

MULTI-BALL play

Winning Extra Ball

Making Special

Tilt

High Score to Date

PHRASE

FIREPOWER.

FIRE.

POWER.

Enemy destroyed.

Fire 1, 2, 3.

You won one mission.

Mission accomplished.

You are destroyed.

FIREPOWER mission accomplished.

You destroyed FIREPOWER.

Enemy destroyed you.

Mission 213 accomplished.

You are enemy.

Enemy fire destroyed you.

Fire destroyed you.

Mission destroyed you.

Enemy power won.

You destroyed enemy mission.

Enemy mission.

You won, FIREPOWER destroyed.

FIREPOWER destroyed.

Game Over Random Phrase

http://www.firepowerpinball.com

2. Operate the ADVANCE pushbutton to display each function on the ball in play display (see Table 1) and

record each total from Player I display. (To reveiw a total that has been advanced past, set alternate-action

switch to MANUAL-DOWN (in) and operate the ADVANCE pushbutton.)

3. Calculate the following if desired:

% Paid Credits = Function 04 Function 08

4. Turn the game OFF and back ON to return to game over mode.

5. To change current High Score to Date to value of Function 13, momentarily depress HIGH SCORE

RESET pushbutton.

6. To zero Functions 01-11, see page 7

GAME ADJUSTMENT PROCEDURE

( Functions 13-35)

Coin door must be open to change settings.

1. In game over mode, set alternate-action switch to AUTO- UP (out) and depress ADVANCE pushbutton.

Test 04 is indicated in number of credits display, Function 00 in ball in play display, and game identification

in Player I display.

2. To raise Function number in ball in play display, operate ADVANCE pushbutton with switch set to

AUTO-UP (in). To lower Function number operate ADVANCE with it set to MANUAL-DOWN (out).

3. With desired Function indicated in ball in play display, raise value in player 1 display by operating credit button

with switch set to AUTO-UP (out); lower value by operating credit button with it set to MANUAL-DOWN (in).

Value left of Player I display is new setting. For values see Table I and (for pricing) Table 2.

4. Repeat steps 2 and 3 until all required adjustments have been made.

5. Turn game OFF and back ON to return to game over mode.

6. To restore factory settings and zero audit totals, see page 7.

DIAGNOSTIC PROCEDURES

(Display Digits, Lamp. Solenoid. and Switch Tests)

1. In game over mode, set alternate-action switch to MANUAL-DOWN (in) and depress ADVANCE. All

displays should go blank.

2. Momentarily depress ADVANCE and set switch to AUTO-UP (out). Display Digits test is performed.

3. Momentarily depress ADVANCE. Test 01 is indicated on number of credits display an Lamp Test is

performed.

4. Set switch to MANUAL-DOWN (in) and momentarily depress ADVANCE. Test 02 is indicated on number

of credits display and solenoid 01 on the ball in play display; solenoid 01 is pulsed by driver board.

5. Operate ADVANCE to pulse each solenoid (see Figure 3). Pulse solenoid 08 three times to remove balls

from ramp before proceeding to switch test.

6. Set switch to AUTO-UP (out) and momentarily depress ADVANCE. Test 03 is indicated on number of

credits display and stuck switches on ball in play display.

7. See Figure 4. Operate switches; switch number is indicated on ball in play display.

8. Turn game OFF and back ON to return to game over mode.

9. To set up Auto-Cycle Mode (Display Digits, Lamp, and Solenoid Tests) see page 7.

http://www.firepowerpinball.com

Table 1. Game Adjustments

FACTORY

FUNCTION DESCRIPTION NOTES SETTING

00 Game Identification 1 1497 2

01 Coins, Left Chute (Closest to coin door hinge) 1 –

02 Coins, Center Chute 1 –

03 Coins, Right Chute 1 –

04 Total Paid Credits 1 –

05 Total Specials 1 –

06 Total Replay (Extra Ball) Scores 1 –

07 Match and High Score to Date Credits 1 –

08 Total Credits 1, 2 –

09 Total Extra Balls 1, 3 –

10 Total Ball Time in Minutes 1 –

11 Total Number of Balls Played 1 –

12 Current High Score to Date 4 550,000

13 Backup High Score to Date 5 550,000

14 Replay 1 Score 6 410,000

15 Replay 2 Score 6 610,000

16 Replay 3 Score 6 0

17 Replay 4 Score 6 0

18 Maximum Credits 7 20

19 Standard and Custom Pricing Control (00-07) 8 02

20 Left Coin Slot Multiplier 8 01

21 Center Coin Slot Multiplier 8 04

22 Right Coin Slot Multiplier 8 01

23 Coin Units Required for Credit 8 01

24 Coin Units Bonus Points 8 00

25 High Scores Credits 5 03

26 Match (00=ON 01=OFF) – 00

27 Special – 00

0 = Awards Credit

01 = Awards Extra Ball

02 = Awards Points

28 Scoring Awards – 00

00 = Credits at Replay Score

01 = Extra Ball at Replay Score

29 Maximum Plumb Bob Tilts (1-9) – 03

30 Number of Balls (03 or 05) 9 03

31 "1-6" Targets 9 03

00 = Eject Holes lit singly, no target memory

01 = Eject Hole pair lit first time, no target memory

02 = Eject Holes lit singly, targets on memory

03 = Eject Hole pair lit first time, targets on memory

32 Ball Saver Kicker ON Lamp – 01

00 = Lit from POWER Targets

01 = Lit from "1-3" or "4-6" targets on same ball or spotting "1-6" lamps

02 = Lit from "1-6" lamps

03 = Lit from "1-6" Lamps or POWER targets

33 FIREPOWER Bonus Lamps – 03

00 = No lamps lit initially, no lamp memory (extra conservative)

01 = 10,000 lamp lit initially, no lamp memory (conservative)

02 = No Lamps lit initially, bonus lamps on memory (moderate)

03 = 10,000 lamp lit initally, bonus lamps on memory (liberal)

34 Extra Ball Control/Attract Mode Sounds – 01

00/01 = No Extra Ball

01/11 = Extra Ball when Lit after 5X

02/12 = Extra Ball when Lit with 5X

35 Special Control/Background Sound – 12

00/10 = Alternating Special lites when 50,000

FIREPOWER Bonus collected

01/11 = Alternating Special lites when 30,000

FIREPOWER Bonus collected

02/12 = Special lite when 50,000

FIREPOWER Bonus collected

03/13 = Specials lite when 30,000

FIREPOWER Bonus collected

1st setting = No Attract Mode Sounds

2nd setting = Attract Mode Sounds

1st setting =

no background sound

2nd setting =

background sound on

http://www.firepowerpinball.com

Notes:

1. Functions 00- 11 cannot be changed from the coin door; however, Functions 01-11 can be set to zero as

described on page 7.

2. Total Credits (Function 08) is the sum of Function 04 and as applicable, Functions 05, 06, and 07.

3. Total Extra Balls (Function 09) is the sum of the game extra ball feature and Functions 15 and 06, as

applicable.

4. Current High Score to Date (Function 12) can be changed to the value of the Backup High Score to Date

(Function 13) by operating the HIGH SCORE RESET switch while in the game over mode.

5. Function 13 may be set to any multiple of 10,000 points. Setting Function 25 to zero with Function 13 set

to any score but zero permits the High Score to Date feature to operate but no credits are awarded.

6. Functions 14-17 (Replay Scores) may be set to any multiple of 10,000 points. Setting a function to zero

disables the replay score point. Always disable the Replay 4 level first, the Replay 3 level second,

etc. The replay levels must be set with ascending values.

7. Setting Maximum Credits (Function 18) to zero places the game in a free play mode.

8. With Function 19 set to 00, Functions 20-24 must be set manually. Refer to Table 2 for seven standard

pricing schemes (selected by values of 01-07 for Function 19) and custom pricing values.

9. For 5-Ball play, it is recommended that Function 31 be set to 02.

RECOMMENDED SCORE LEVELS

Levels Score Card

CREDIT GAMES

3-Ball:

*410,000; 610,000 497-36

or 410,000; 620,000; 740,000 497-14

5-Ball:

(See Note 9)

500,000; 720,000 497-45

EXTRA BALL

3-Ball:

300,000 497-74

5-Ball:

400,000 497-76

* Factory Setting

http://www.firepowerpinball.com

Table 2. Standard and Custom Price Settings

COIN DOOR FUNCTION

MECHANISM CREDITS 19 20 21 22 23 24

Twin-Quarter 1 / 25¢, 3 / 50¢, 7 / $1 00 03 12 03 02 12

Quarter, Dollar, Quarter 1 / 25¢, 3 / 50¢, 7 / $1 coin only 00 03 14 03 02 00

1 / 25¢, 7 / $1 coin only 00 01 07 01 01 00

1 / 25¢, 3 / 50¢, 6 / $1 00 01 04 01 01 02

1 / 25¢, 6 / $1 coin only 00 01 06 01 01 00

• 1 / 25¢, 5 / $1 05 01 04 01 01 04

1 / 25¢, 5 / $1 coin only 00 01 05 01 01 00

• 1 / 25¢, 4 / $1 02 01 04 01 01 00

• 1 / 25¢, 3 / $1 01 01 04 01 02 04

1 / 50¢ 00 01 04 01 02 00

1DM, 5DM, 2DM • 1 / 1DM, 3 / 2DM, 10 / 5DM 03 09 45 18 05 45

2 / 1DM, 5 / 2DM, 14 / 5DM 00 13 65 26 05 65

20-Cent, 50-Cent 1 / 20¢, 3 / 50¢ 00 06 00 15 05 00

1 Franc, 10 Franc, 5 Franc • 1 / 2F, 3 / 5F only, 8 / 10F only 04 01 16 06 02 00

25 Cent, • 1 / 25¢, 4 / 1G 06 01 00 04 01 00

1 Guilder 1 / 25¢, 5 / 1G 00 01 00 04 01 04

50 Yen, 100 Yen • 1 / 50Y, 2 / 100Y 07 01 00 02 01 00

1 Franc or 1 / 1F, 3 / 2F 00 01 01 01 01 02

Twin-1 Franc 1 / 1F 00 01 01 01 01 00

5 Franc, • 1 / 5F, 2 / 10F 07 01 00 02 01 01

10 Franc 1 / 10F 00 01 00 02 02 00

Twin-2 Franc • 1 / 2F 02 01 04 01 01 00

10, 20 Franc • 1 / 10F, 2 / 20F 07 01 00 02 01 00

Twin-1 Sucre 1 / 3S, 2 / 5S 00 02 00 02 05 00

• Indicates standard price settings by adjusting only Function 19. For other price settings, set Function 19 to 00 and set Functions 20

through 24 to the values indicated in the chart.

http://www.firepowerpinball.com

RESETTING AUDIT TOTALS AND ADJUSTMENTS;

INITIATING AUTO-CYCLE MODE

1. In game over mode, set the alternate-action switch to MANUAL-DOWN (in) and momentarily depress the

ADVANCE pushbutton. All displays should go blank.

2. Remove the backglass and unlatch and open the insert door.

3. Set all switches on the MASTER COMMAND slide switch to OFF (move to the right).

4. Set switch on MASTER COMMAND switch to ON (move to left):

a.To zero audit totals (Functions 01-11) set switch 8 to ON.

b.To restore factory settings and zero audit totals, set switch 7 to ON. Coin Door must remain open to

restore factory settings.

c.For Auto-Cycle Mode set switch 6 to ON.

5. Momentarily depress MASTER COMMAND ENTER pushbutton. The LEDs should blink once.

6. a. After zeroing audit totals turn game OFF and ON to return to game over mode.

b.After restoring factory settings, turn game OFF and ON twice to return to game over mode.

c. To initiate Auto-Cycle Mode, set alternate-action switch to AUTO-UP (out) and momentarily depress the

ADVANCE pushbutton. Each cycle of this mode sequences through display digits test, flashes all

multiplexed lamps 64 times and pulses each solenoid. To terminate the Auto-Cycle mode and go to game

over, turn the game OFF and ON.

Figure 1. Coin Door Diagnostic Switches

Figure 2.

Master Command

Settings Switch

1 2 3 4 5 6 7 8

MASTER COMMAND

ZERO AUDIT TOTALS

RESTORE FACTORY SETTINGS

AUTO-CYCLE MODE

NOT USED

LED

MASTER

COMMAND

ENTER

DIAGNOSTIC

HIGH

SCORE

RESET

ADVANCE

AUTO-UP

MANUAL-DOWN

http://www.firepowerpinball.com

01 08

2122

15 15

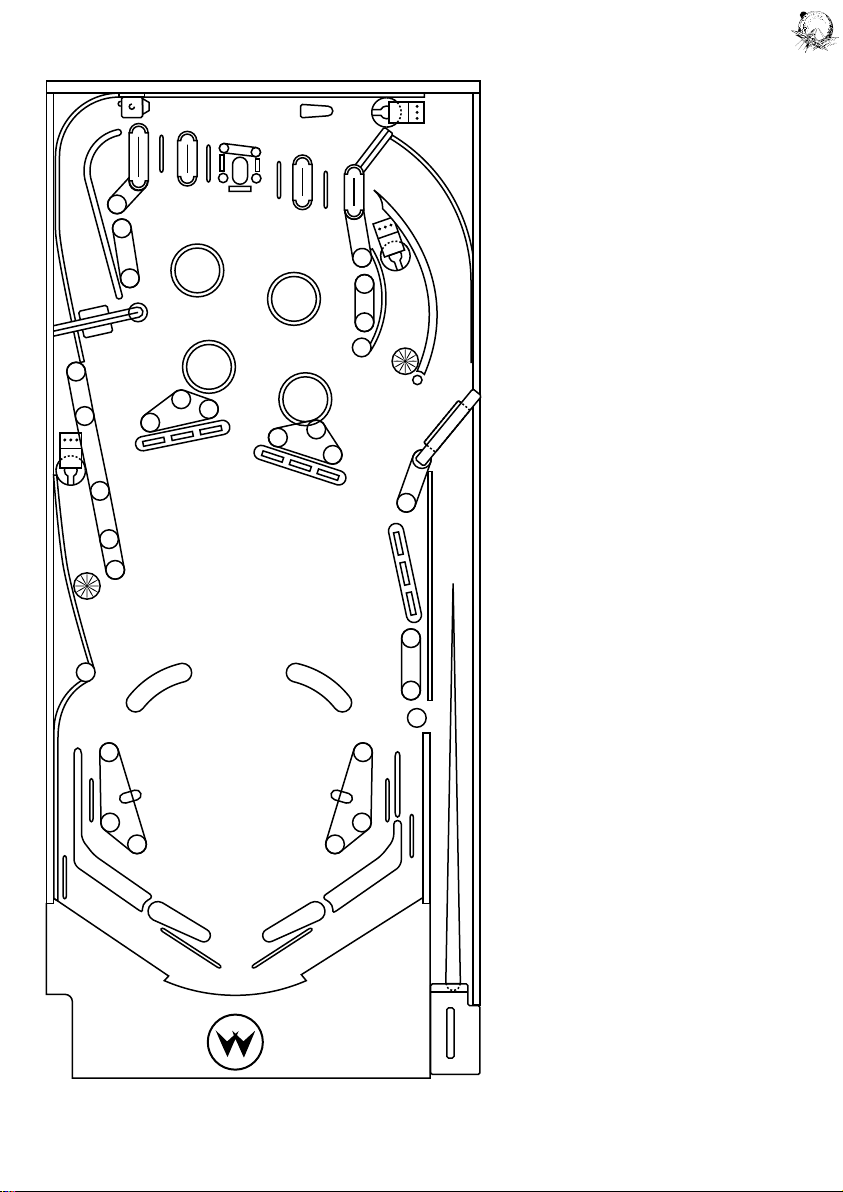

Figure 3. Playfield Solenoid Locations and Solenoid Chart

SOL.

NO. DESCRIPTION

01 Ball Release

02 Not Used

03 Not Used

04 Left Eject Hole

05 Right Eject Hole

06 Upper Right Eject Hole

07 Left Ball Saver Kicker

08 Ball Ramp Thrower

09 Sound

10 Sound

11 Sound

12 Sound

13 Sound

14 Credit Knocker

15 Flash Lamps

16 Coin Lockout

17 Top Left Jet Bumper

18 Bottom Left Jet Bumper

19 Top Right Jet Bumper

20 Bottom Right Jet Bumper

21 Right Kicker

22 Left Kicker

http://www.firepowerpinball.com

Table 3. Solenoid Connections

SOL. WIRE DRIVER SOLENOID

NO. FUNCTION COLOR CONNECTIONS TRANS. PART NO.

01 Ball Release GRY-BRN 2P11-4, 8P3-17 Q15 SA-23-850-DC

02 Not Used GRY-RED 2P11-5, 8P3-18 Q17 —

03 Not Used GRY-ORN 2P11-7, 8P3-19 Q19 —

04 Left Eject Hole GRY-YEL 2P11-8, 8P3-20 Q21 SG-23-850-DC

05 Right Eject Hole GRY-GRN 2P11-9, 8P3-21 Q23 SG-23-850-DC

06 Upper Right Eject Hole GRY-BLU 2P11-3, 8P3-22 Q25 SG-23-850-DC

07 Left Ball Saver Kicker GRY-VIO 2P11-2, 8P3-23 Q27 SG-23-850-DC

08 Ball Ramp Thrower GRY-BLK 2P11-1, 8P3-24 Q29 SA-23-850-DC

09 Sound BRN-BLK 2P9-9, 10P3-3 Q31 —

10 Sound BRN-RED 2P9-7, 10P3-2 Q33 —

11 Sound BRN-ORN 2P9-1, 10P3-5 Q35 —

12 Sound BRN-YEL 2P9-2, 10P3-4 Q37 —

13 Sound BRN-GRN 2P9-3, 10P3-7 Q39 —

14 Credit Knocker BRN-BLU 2P9-4, 7P1-16 Q41 SA2-23-850-DC

15 Flash Lamps BRN-VIO 2P9-5, 6P2 Q43 Type 89 Bulbs

16 Coin Lockout BRN-GRY 2P9-6, 7P1-18, 7P2-4 Q45 SM-35-4000-DC

*17 Top Left Jet Bumper BLU-BRN 2P12-7, 8P3-11 Q2 SG-23-850-DC

*18 Bottom Left Jet Bumper BLU-RED 2P12-4, 8P3-12 Q4 SG-23-850-DC

*19 Top Right Jet Bumper BLU-ORN 2P12-3, 8P3-13 Q6 SG-23-850-DC

*20 Bottom Left Jet Bumper BLU-YEL 2P12-6, 8P3-14 Q8 SG-23-850.DC

*21 Right Kicker BLU-GRN 2P12-8, 8P3-15 Q10 SG-23-850-DC

*22 Left Kicker BLU-BLK 2P12-9, 8P3-16 Q12 SG-23-850-DC

* Right FLipper BLU-VIO 7P1-8, 8P3-3 — SFL-19-400/

— 30-750-DC

* Left Flipper BLU-GRY 7P1-10, 8P3-4 — SFL-19-400/

— 30-750-DC

*NOTES:

1. Special switch connections for solenoids 17 through 22

are as follows:

17 — ORN-BRN — 2P13-5, 8P3-5

18 — ORN-RED — 2P13-3, 8P3-6

19 — ORN-BLK — 2P13-2, 8P3-7

20 — ORN-YEL — 2P13-4, 8P3-8

21 — ORN-GRN — 2P13-8, 8P3-9

22 — ORN-BLU — 2P13-9, 8P3-10

2. Flipper button connections are as follows:

Right — ORN-VIO — 2P12-1, 7P1-7

Left — ORN-RED — 2P12-2, 7P1-9

3. Typical wiring for solenoids and special switches:

RED (B+)

BLK (GRD)

http://www.firepowerpinball.com

Figure 4. Playfield Switch Locations and Switch Chart

SWITCH

NO. FUCTION (SCORE)

01 Plumb Bob Tilt

02 Ball Roll Tilt

03 Credit Button

04 Right Coin Switch

05 Centre Coin Switch

06 Left Coin Switch

07 Slam Tilt

08 High Score Reset

09 Outhole

10 Left Outside Rollover (1000)

11 Left Inside Rollover (1000/3000)

12 Left Kicker (10)

13 Left Eject Hole (1000/10,000)

14 Upper Middle Left Standup (50)

15 Spinner (100/1000)

16 Top Left Standup (50)

17 "1" Target (1000)

18 "2" Target (1000)

19 "3" Target (1000)

20 Not Used

21 "4" Target (1000)

22 "5" Target (1000)

23 "6" Target (1000)

24 Not Used

25 Bottom Left Jet Bumper (100/1000)

26 Top Left Jet Bumper (100/1000)

27 Top Right Jet Bumper (100/1000)

28 Bottom Right Jet Bumper (100/1000)

29 Top Centre Target (1000)

30 Right Eject Hole (1000/10,000)

31 Upper Top Right Standup (50)

32 "F" Rollover (1000)

33 "I" Rollover (1000)

34 "R" Rollover (1000)

35 "E" Rollover (1000)

36 Upper Right Eject Hole (1000/10,000)

37 Lower Top Right Standup (50)

38 Middel Right Standup (50)

39 Top "POWER" Target (1000)

40 Middle "POWER" Target (1000)

41 Bottom "POWER" Target (1000)

42 Right Kicker (10)

43 Right Inside Rollover (1000/3000)

44 Right Outside Rollover (1000)

45 Right Flipper LANE CHANGE Switch

46 Ball Shooter

47 Playfield Tilt

48 Lower Right Standup (50)

49 Centre Middle Left Standup (50)

50 Lower Middle Left Standup (50)

51 Left Ball Ramp

52 Not Used

53 Left Eject Rollover (1000)

54 Right Eject Rollover (1000)

55 Not Used

56 Not Used

57 Right Ball Ramp

58 Centre Ball Ramp

NOTE: Second score is lit or flashing value.

32 33 34 35

17 18 19

21 22 23 38

11 43

10 45

http://www.firepowerpinball.com

Inhaltsverzeichnis

Andere Williams Electronics Flipper Handbücher

Williams Electronics

Williams Electronics JUBILEE Bedienungsanleitung

Beliebte Flipper Handbücher anderer Marken

Stern Pinball

Stern Pinball Heavy Metal Bedienungsanleitung

Jersey Jack Pinball

Jersey Jack Pinball Pirates of the Caribbean Bedienungsanleitung

Williams

Williams Pinball 2000 Star Wars Episode I Bedienungsanleitung

HOMEPIN

HOMEPIN Thunderbirds Handbuch

Stern Pinball

Stern Pinball PRIMUS Bedienungsanleitung

Stern Pinball

Stern Pinball JAWS Bedienungsanleitung

DP THE BIG LEBOWSKI Bedienungsanleitung

Pinnovators

Pinnovators 330.128.000 Bedienungsanleitung

Dr Pinball

Dr Pinball Personal DMD Einrichtungshandbuch

Capcom

Capcom Breakshot Bedienungsanleitung

Stern Pinball

Stern Pinball The Beatles Leitfaden

Bally

Bally Miss America Deluxe Handbuch

Stern Pinball

Stern Pinball THE MANDALORIAN PRO Handbuch

Spooky Pinball

Spooky Pinball Rick and Morty Bedienungsanleitung

Data East

Data East Batman Bedienungsanleitung

Stern Pinball

Stern Pinball KISS PREMIUM Bedienungsanleitung

Stern Pinball

Stern Pinball Black Knight Sword of Rage Bedienungsanleitung

HOMEPIN

HOMEPIN Thunderbirds Handbuch
