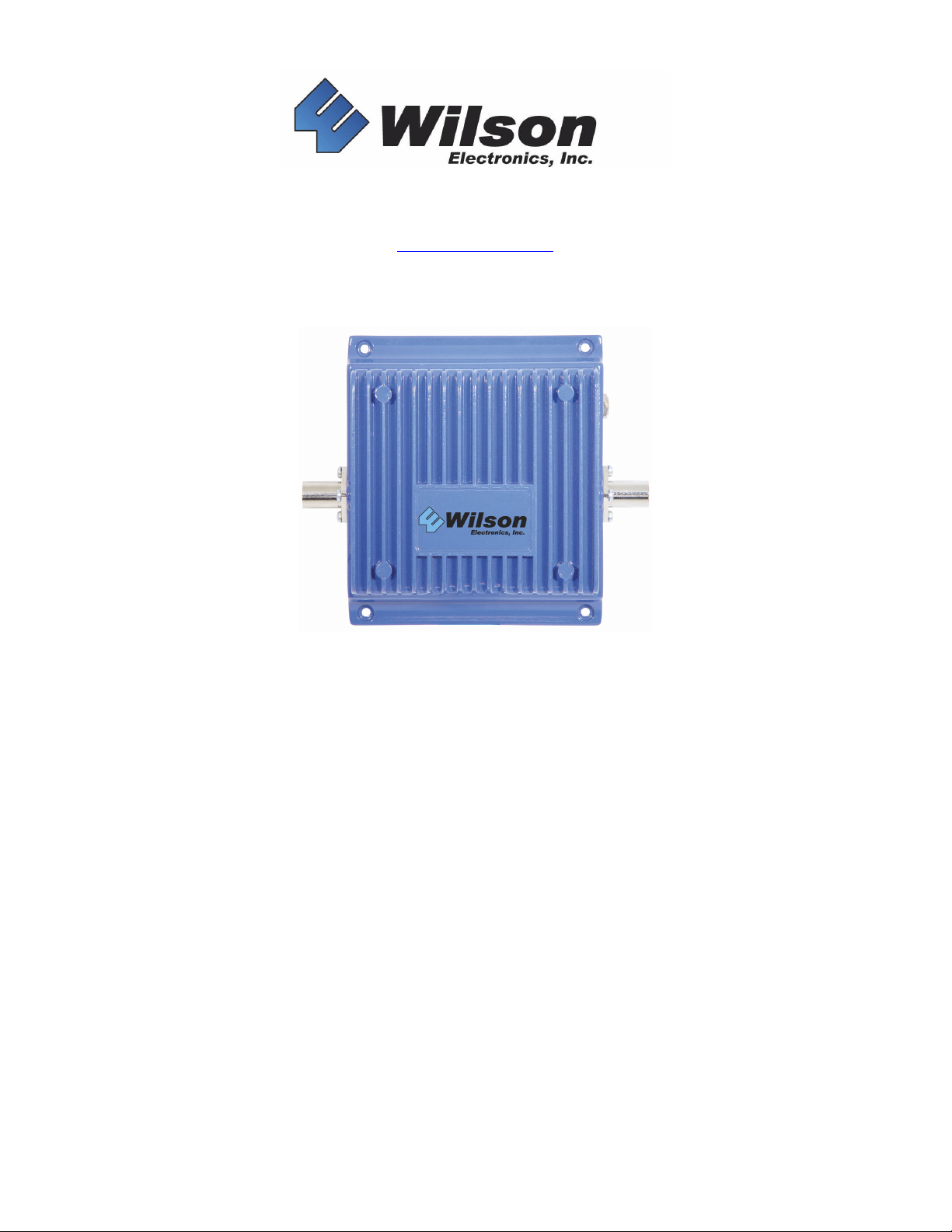

Wilson Electronics BD800AM-M Bedienungsanleitung

Rev 1 MODEL: BD800AM-M

PART#: 801101

BD800AM-M Bi-Directional

Amplifier/Repeater for AMPS

In Vehicle

Installation Guide

The information provided by Wilson Electronics, Inc. is believed to be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, Inc. for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result

from its use.

FCC ID: PWOBD800AM

3301 E. Deseret Drive

St. George, Utah 84790

wilsonelectronics.com

[email protected]

Phone 1-866-294-1660 Fax 1-435-656-2432

Rev 1 PAGE 2

TABLE OF CONTENTS

1. PACKAGE CONTENTS.……………………………….………page 3

2. ANTENNA OPTIONS...…………………………………………page 3

3. PURPOSE OF THE BD800AM-M………………………...……page 4

4. HOW THE BD800AM-M FUNCTIONS………………..………page 4

5. FEATURES……………………………………………….…..…page 4

6. AMPLIFIER SPECIFICATIONS……………………………… page 4

7. AMPLIFIER/REPEATER INSTALLATION……………... page 5 & 6

8. TECH SUPPORT…………………………………..……………page 6

9. NOTES & WARNINGS……………………………...…….……page 6

Rev 1 PAGE 3

Rev 1 PAGE 4

1. PURPOSE OF THE BD800AM-M

The BD800AM-M Bi-Directional Amplifier/Repeater greatly improves RF coverage

for areas in which low signal strength or no signal is a problem when using your

portable AMPS phone inside the car.

2. HOW THE BD800AM-M FUNCTIONS

The signal is received by the outside antenna from the cell site. It is then

AMPLIFIED/REPEATED and transmitted to your AMPS phone through the inside

antenna. When the phone transmits it is received by the inside antenna. It is then

AMPLIFIED/REPEATED and transmitted to the cell site through the outside antenna.

3. FEATURES

Wireless Operation -No Physical Connection to Cellphone

The BD800AM-M Amplifier / Repeater greatly improves signal strength inside a

vehicle without a physical connection to your phone. It also allows multiple phones to

be used simultaneously.

Advanced Electronics Receive & Transmit Better Than Your Cellphone

The Wilson Cellular Amplifier / Repeater has a better receiver than what's in your

cellphone. Its advanced electronics are very sensitive and able to receive small signals

that would go undetected by most cellphones. It also has a better transmitter with

double the power of your cellphone. This allows your voice to be heard by distant cell

sites, increasing coverage up to 50 miles or more.

4. AMPLIFIER SPECIFICATIONS

Frequency…….……………...824-849 MHz Uplink 869-894 MHz Downlink

Gain………………………….37dB Uplink 37dB Downlink

Flatness………………………+/-3dB Uplink +/-3dB Downlink

Max RF Output Power……….+31dBm Uplink +15dBm Downlink

Noise Figure………………….5dB Uplink 5dB Downlink

Uplink Downlink Isolation...…More than 90dB

Power Consumption………….12V, 1.5A

Connecter……………………..FME-Male 50 Ohms

Dimensions…………………..5.5 x 4.3 x 1.4 (inches) OR 14.0 x 10.8 x 3.5 (cm)

Weight…………………….….1.32 pounds or 600 grams

Model #………………………BD800AM-M

Part #…………………….…... 801101

Rev 1 PAGE 5

5. AMPLIFIER/REPEATER INSTALLATION (REFER TO ILLUSTRATION)

ILLUSTRATION

5.1 Mounting the Amplifier/Repeater

5.1.1 Mount the AMPLIFIER/REPEATER under the dash or car seat.

NOTE: The amplifier should be mounted to the selected location using

mounting screws. (Mounting screws not included.)

5.2 Installing the Outside Antenna (Sold Separately)

5.2.1 Select an outside mounting location. For best performance try to keep

the antenna centered on the car’s / truck’s roof.

5.2.2 The outside antenna should be located in an area with at least a 12”

radius clear of obstructions, and other radiating elements.

NOTE: When using a magnet mount, NMO or trucker antenna, keep the

separation distance between the inside and outside antennas at least 4ft.

When using a glass mount antenna, keep the separation distance between

the inside and outside antennas at least 5ft.

WARNING: The outside antenna used with this amplifier must be

mounted with a separation distance of at least 8 inches from all persons

and must not be co-located or operating in conjunction with any other

antenna or amplifier.

5.2.3 Connect the Outside Antenna to the AMPLIFIER/REPEATER side

labeled “OUTSIDE ANTENNA”.

BD800AM-M

Amplifier/Repeater

Rev 1 PAGE 6

5.3 Installing the Inside Antenna (Included)

5.3.1 Connect the Inside Antenna to the side labeled “INSIDE ANTENNA” on

the AMPLIFIER/REPEATER.

5.3.2 The Inside Antenna should be centered in the vehicle. It can be placed in

the seat back between the seat cushion and fabric or in the vehicle

headliner.

WARNING: The inside antenna used with this amplifier must be mounted

with a separation distance of at least 8 inches from all persons and must

not be co-located or operating in conjunction with any other antenna or

amplifier.

5.4 Connect the 12V Power Supply

5.4.1 Connect the large end of the 12V Power Supply into your cigarette lighter

and the other end into the input on your amplifier labeled “DC 12V IN”.

7. TECH SUPPORT

If you need further assistance with your installation please call us Toll-Free at 866-

294-1660 or send an E-mail to [email protected]

Our Hours of Operation are: 8:00 AM –4:30 PM (Mountain Time)

8. NOTES & WARNINGS

NOTE: When using a magnet mount, NMO or trucker antenna, keep the

separation distance between the inside and outside antennas at least 4ft. When

using a glass mount antenna, keep the separation distance between the inside

and outside antennas at least 5ft.

WARNING: The outside antenna used with this amplifier must be mounted

with a separation distance of at least 8 inches from all persons and must not be

co-located or operating in conjunction with any other antenna or amplifier.

WARNING: The inside antenna used with this amplifier must be mounted with

a separation distance of at least 8 inches from all persons and must not be co-

located or operating in conjunction with any other antenna or amplifier.
