Wilson Electronics Sleek 4G Bedienungsanleitung

Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Sleek® 4G

Cellular Signal Booster

460107

2Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Contents

Package Contents ...........................................................2

Installation Options..........................................................3

Option 1: Vehicle Installation ...............................................3

Option 2: In-Building Installation .............................................4

Adjusting the Sleek 4G Arms ..................................................5

Troubleshooting ............................................................5

Understanding the Sleek 4G Lights...........................................5

Additional FAQ..............................................................6

Optional Accessories ........................................................6

Safety and Recommendations .................................................7

Guarantee and Warranty............................................. Back Cover

Signal Booster Specifications ........................................ Back Cover

IT IS VERY IMPORTANT

TO POWER YOUR SIGNAL

BOOSTER USING A SURGE

PROTECTED AC POWER

STRIP WITH AT LEAST A 1000

JOULE RATING.

FAILURE TO DO THIS WILL VOID YOUR WARRANTY

IN THE EVENT OF A POWER SURGE OR LIGHTNING

STRIKE.

! ! THE SIGNAL BOOSTER UNIT IS DESIGNED

FOR USE IN AN INDOOR, TEMPERATURE-

CONTROLLED ENVIRONMENT (LESS

THAN 150 DEGREES FAHRENHEIT). IT IS

NOT INTENDED FOR USE IN ATTICS OR SIMILAR

LOCATIONS SUBJECT TO TEMPERATURES IN

EXCESS OF 150°F.

Sleek®4G operates on (Band 12/17, 13) 700 / 800 / AWS (1700 / 2100) / (Band 2) 1900 MHz

Model #460007 FCC: PWO460007

FCC requires to never use the cell phone in the cradle next to your ear.

Mini-Magnet Mount Antenna

(301126)

Vehicle Dash

Adhesive

Mounting Bracket

DC Plug-In Power Supply

& USB cable

(859910)

Sleek 4G®Adjustable Arms

Inside this Package

Optional Accessories

AC Power Supply

(859969)*

Gooseneck

Suction Cup

Cradle Mount

(901120)

Cup Holder

Cradle Mount

(901130)

Adjustable

Desk Mount

(901137)*

Antenna Window Mount

(Used with Mini-Magnet

Mount Antenna)

(901128)*

Vehicle Dash

Mounting Kit

-Rugged/Screw Mount-

-Adhesive Mount-

-Vent Clip Mount-

(901134)

(included in some kits)

Appearance of device and accessories may vary. (This product is not marketed by Verizon Wireless or AT&T).

Mobile Power

Supply

(859984)

*Case included

3Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Installation Options

Option 1: Vehicle Installation

1. Attach the Mounting Bracket to the vehicle’s

dashboard.

 •Cleantheareawherethebracketistobe

mounted with the alcohol wipe included.

Allow the area to dry.

 •Peelthebackingtoexposetheadhesive

and press the bracket onto the desired

location on the dashboard. NOTE: Be

sure the tab is positioned vertically.

 •Allowtheadhesivetocurefor24hours

before you attach the Sleek 4G (Step

4).

2. Install the Outside Antenna. Select a

location on top of the car that is:

 •Nearthecenterofthevehicle’sroof.

 •Atleast12inchesfromanyother

antennas.

 •Freeofobstructions.

 •Atleast6inchesfromanywindows

(including sunroofs).

 •Atleast8inchesfromanypeople.

The Outside Antenna must be installed

vertically.

3. Run the Outside Antenna cable into the car.

The cable is strong enough that it may be

shut in most vehicle doors without damaging

the cable. For a cleaner look, carefully pull

down the door seal, run the cable under the

seal, and push the seal back into place. This

method reduces wear on the cable as the

door opens and closes.

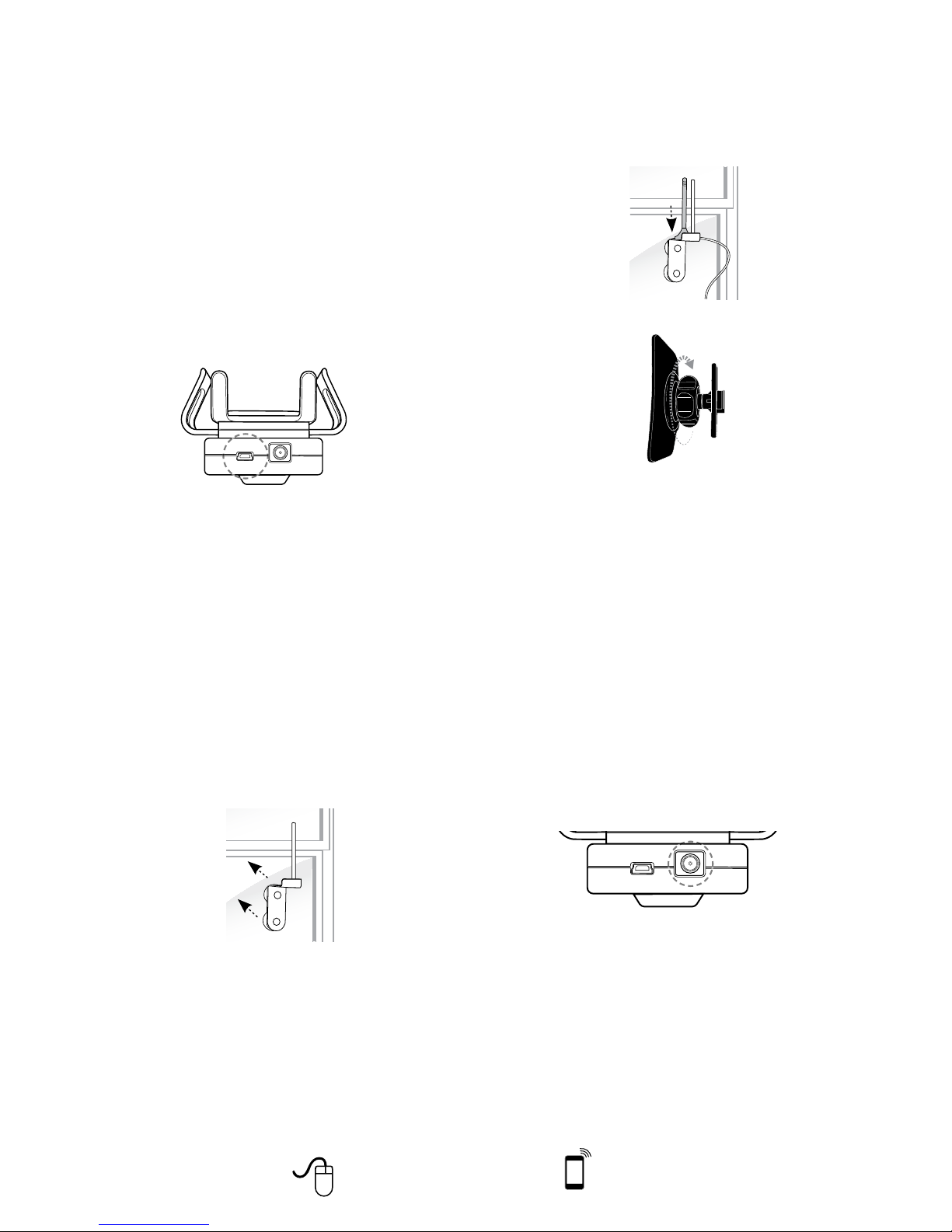

4. Attach the Sleek 4G to the Mounting

Bracket. After waiting 24 hours for the

adhesive on the bracket to cure, attach the

Sleek 4G by aligning the rectangular hole

on the back of the Sleek 4G with the tab on

the Mounting Bracket, grasping the sides

of the Sleek 4G, and sliding it downward

approximately ¼ inch into place.

The Mounting Bracket is designed to swivel

for more convenient viewing angles. Once

the Sleek 4G is in place, you can adjust

the angle of the bracket by loosening the

knurled nut, applying gentle pressure to the

top or bottom of the Sleek 4G, and then

tightening the nut when the desired angle is

achieved.

5. Attach the antenna to the Sleek 4G.

Connect the cable from the Outside Antenna

to the antenna connector on the bottom of

the Sleek 4G. Do NOT plug in the power

supply (next step) until the Outside Antenna

cable is connected to the Sleek 4G.

Note: The Sleek 4G has a convenient USB

charging port located on the right side

of your booster. This port allows for

charging your phone or device, using

your existing cable.

4Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

 •Withthebracketinplace,attachthe

magnetbaseoftheantennatotheat

surface of the bracket. The antenna must

be mounted vertically for the best signal.

2. Install the Mounting Bracket and Sleek 4G.

Put your Sleek 4G in the Mounting Bracket

(see instructions under Vehicle Installation)

and place it in a convenient location such as

a desk or table top in the room where you will

use the phone. The location should be at least

three feet from the Outside Antenna to avoid

oscillation (feedback). Your cell phone must

be in the cradle for the Sleek 4G to amplify the

signal. Use a Bluetooth headset, wired hands-

free device or speakerphone for talking on the

phone.

3. Attach the antenna to the Sleek 4G.

Connect the cable from the Outside Antenna

to the antenna connector on the bottom of

the Sleek 4G. Do NOT plug in the power

supply (next step) until the Outside Antenna

cable is connected to the Sleek 4G.

4. Power up your Sleek 4G. Connect the

power cable to the mini-USB port on the

bottom of the Sleek 4G. Then insert the

adapter and power it on. Use only the

supplied Wilson Electronics power supply.

6. Power up your Sleek 4G. Connect the

power cable to the mini-USB port on the

bottom of the Sleek 4G. Then insert the

adapter into the vehicle 12V DC power

source. Use only the supplied Wilson

Electronics power supply. While the Sleek

4G may remain on, leaving the Sleek 4G

on in a vehicle when it is not running may

discharge the battery in a day or two. Also

note that some 12V DC power sources

are shut down when the vehicle ignition is

turned to off. Use a Bluetooth headset, wired

hands-free device or speakerphone for talking

on the phone.

Option 2: In-Building Installation

Note: Home Ofce Accessory Kit sold separately

1. Install the Outside Antenna to a window. For

best results:

 •Selectawindowonthesideofthe

building where you get the strongest cell

signal.

 •Attachthesuctioncupbracket(sold

separately) to the inside of a window so

the cable will reach the location of the

Mounting Bracket and Sleek 4G. Place

the bracket as high on the window as

possible.

 NOTE:Manynewerenergyefcientdual

pane windows use a metal coating that may

decrease the strength of a cellular signal,

reducing the effectiveness of the Sleek 4G.

If you have dual pane windows, consider a

Wilson Electronics signal boost product that

provides an option for mounting an antenna on

an outside wall or roof of a building.

5Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Light off: If the light is not on:

Check connections on the power supply to see

thatitisrmlypluggedintoboththeSleek4G

and the power source.

If using a DC power supply in your vehicle,

ensure the power supply is properly inserted.

Then check the 12 volt power from the car

socket and the fuse. Replace the fuse if

necessary.

If using a power strip in a building, ensure the

power strip is plugged in and turned on and that

power is coming from the outlet.

Red light: A red light indicates the Sleek 4G

has powered down to protect the cell tower.

Separation between the Sleek 4G and the

Outside Antenna is important to prevent

oscillation (feedback), similar to when a

microphone is too close to a speaker. When

oscillation occurs, the Sleek 4G shuts down in

order to prevent interference in the cell tower.

If the light is red, move the Outside Antenna

farther away from the Sleek 4G. On a vehicle,

that usually means moving it farther toward the

back of the car. Remember to keep the antenna

at least 6 inches from any window or sunroof.

Inanofce,movethelocationoftheSleek4G

farther from the window where the antenna

is mounted. Once you have separated the

Outside Antenna and the Sleek 4G, reset the

Sleek 4G by disconnecting the power and then

reconnecting the power supply. If the light is

green, the Sleek 4G is working properly. If the

red light is still on, move the Outside Antenna

farther away and repeat the process.

Green light: A green light indicates the Sleek

4G is working properly.

Adjusting the Sleek 4G Arms

Various sized arms are included with your Sleek

4G. These provide you with options to customize

theSleek4Gtotvirtuallyanycellphone.

 •Tochangearms,gentlyliftthearm

upward until the arm slides free from the

Sleek 4G.

 •Torepositionarms,movethearmabove

a different slot on the Sleek 4G and

gently slide the arm down until the arm

isrmlyinplace.

Troubleshooting

Understanding the Sleek 4G Light

The light on the side of the Sleek 4G indicates

whether the system is working or if there are

problems. Take the following steps based on the

indicator light color when using the Sleek 4G.

6Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Additional FAQ:

What hours can I contact tech support?

Technical Support can be reached from 7:00am to 6:00pm MST, by calling (866-294-1660), or by email, at tech@

wilsonelectronics.com.

How does weather affect the performance of my Outside Antenna?

Watervapor(e.g.rain,fog,snoworotherprecipitation)createsaneffectiveltertocellularsignal.Intimesof

heavy precipitation, you may see less performance.

What’s the difference between the 800 MHz and the 1900 MHz bands? How do I know which MHz band

my cell phone uses?

The Sleek 4G works with all major North American cellular providers on the 850 & 1900 MHz frequencies.

Traditionally, 850/1900MHz are associated with voice and 3G data; while 700MHz and 1700/2100MHz are

associated with 4G data. For more detail see below.

United States Carrier Frequency Use

We recommend visiting www.wirelessadvisor.com for information regarding the frequency band used by your cell

serviceproviderinaspecicgeographicallocation.

Mobile Antennas

Mini-Mag

•301126w/12.5RG174cable-SMA

•301113w/12.5RG174cable-FME

12” Mag Mount w/ 12.5’ RG174

•311103

•311125

•311128

•311703

Trucker antenna w/10.5’ RG58

•311101

•311701

Trucker antenna w/13.5’ RG58

•311119

•311133

NMO Antenna’s w/ RG174

Kit 311104-17410

•800/1900NMOantenna

•10’RG174cable

Kit 311112-17410

•800/1900NMOantenna

•10’RG174cable

Kit 314203-17410

•800/900/1900NMOantenna

•10’RG174cable

NMO Antenna’s w/ RG174

Kit 311130-5810

•MarineAntenna

•10’RG58cable

Glass Mount w/14’ RG58 cable

•311102

•311114(MiniGlassMount)

NMO Antenna’s w/ RG58

Kit 311104-5810

•800/1900NMOantenna

•10’RG58cable

Kit 311112-5810

•800/1900NMOantenna

•10’RG58cable

Kit 314203-5810

•800/900/1900NMOantenna

•10’RG58cable

Outside Fixed Antennas

50 Ohm Outside Antenna Kits

Kit 314453-5825

•50OhmPoleMountPanelAntenna

•25’RG58Cable

Kit 314411-5825

•50OhmWideBandDirectional

•25’RG58Cable

Kit 301111-5850

•YagiDirectionalAntenna

•50’RG58Cable

Kit 311124-5840

•1900MHzYagiDirectional

•40’RG58Cable

Kit 311203-5820

•Omni-Directionalantenna

•20’RG58Cable

Kit 311129-5830

•800MHzYagiAntenna

•30’RG58Cable

Kit 314411-40075

•50OhmWideBandDirectional

•75’LMR400Cable

Kit 311203-40020

•Omni-Directionalantenna

•20’LMR400Cable

Kit 301111-400170

•YagiDirectionalw/N-Female

•170’LMR400

Kit 311124-400100

•1900MHzYagiDirectional

•100’LMR400Cable

Kit 311129-400100

•800MHzYagiAntenna

•100’LMR400Cable

Kit 314453-40075

•50OhmPoleMountPanelAntenna

•75’LMR400Cable

75 Ohm Outside Antenna Kits

Kit 301111-0675

•YagiDirectionalAntenna

•75’RG6Cable

•N-MaletoF-Femaleadapter

Kit 311201-0620

•OmniDirectionalw/F-Female

•20’RG6Cable

Kit 311124-0660

•1900MHzYagiDirectional

•60’RG6Cable

•N-MaletoF-Femaleadapter

Kit 311129-0650

•800MHzYagiDirectional

•50’RG6Cable

•N-MaletoF-Femaleadapter

Kit 314473-0640

•75OhmPoleMountPanelAntenna

•40’RG6Cable

Kit 314475-0630

•75OhmWideBandDirectional

•30’RG6Cable

Kit 311141-0620

•75OhmGreyBrickAntenna

•20’RG6Cable

Kit 301111-11140

•YagiDirectionalAntenna

•140’RG11Cable

•N-MaletoF-Femaleadapter

Kit 311201-1120

•OmniDirectionalw/F-Female

•20’RG11Cable

Kit 311124-11110

•1900MHzYagiDirectional

•110’RG11Cable

•N-MaletoF-Femaleadapter

Kit 311129-1180

•800MHzYagiDirectional

•80’RG11Cable

•N-MaletoF-Femaleadapter

Kit 314473-1175

•75OhmPoleMountPanelAntenna

•75’RG11Cable

Kit 314475-1175

•75OhmWideBandDirectional

•75’RG11Cable

Kit 311141-1120

•75OhmGreyBrickAntenna

•20’RG11Cable

7Need help? www.WilsonElectronics.com Tech Support 866-294-1660

Mon.- Fri. Hours: 7 am to 6 pm MST

Safety and Recommendations

WARNING: Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone.

WARNING: Use only the power supply provided in this package. Use of a non-Wilson Electronics product may damage

your equipment.

WARNING: To uphold compliance with network protection standards, all active wireless devices must maintain at least

18” of separation distance from mobile inside antennas, 4’ of separation distance from desktop antennas

and 6’ of separation distance from Panel and Dome antennas.

WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than 150

degrees Fahrenheit). It is not intended for use in attics or similar locations subject to temperatures in excess

of that range.

RF SAFETY WARNING: Any antenna used with this device must be located at least 8 inches from all persons.

This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation. Changes or modifications not expressly approved by Wilson Electronics could void the authority to

operate this equipment.

BEFORE USE, you MUST REGISTER THIS DEVICE with your wireless provider and have your

provider’s consent. Most wireless providers consent to the use of signal boosters. Some

providers may not consent to the use of this device on their network. If you are unsure, contact

your provider.

You MUST operate this device with approved antennas and cables as specified by the

manufacturer. Antennas MUST be installed at least 20 cm (8 inches) from any person.

You MUST cease operating this device immediately if requested by the FCC or a licensed

wireless service provider.

WARNING. E911 location information may not be provided or may be inaccurate for calls served

by using this device.

This is a CONSUMER device.

3301 East Deseret Drive, St. George, UT 84790

web: www.WilsonElectronics.com email: [email protected]

phone: 866-294-1660 local: 435-673-5021 fax: 435-656-2432

U.S. Patent Nos.– 7,221,967; 7,729,669; 7,486,929; 7,409,186; 7,684,838; 7,783,318; 8,473,018; 8,583,034; 8,583,033

Disclaimer:The information provided by Wilson Electronics, LLC is believed to be complete

and accurate. However, no responsibility is assumed by Wilson Electronics, LLC

for any business or personal losses arising from its use, or for any infringements

of patents or other rights of third parties that may result from its use.

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If

for any reason the performance of any product is not acceptable, simply return the product directly to the

reseller with a dated proof of purchase.

2-Year Warranty

Wilson Electronics Signal Boosters are warranted for two (2) years against defects in workmanship and/or

materials. Warranty cases may be resolved by returning the product directly to the reseller with a dated proof

of purchase.

Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated

proof of purchase and a Returned Material Authorization (RMA) number supplied by Wilson Electronics.

Wilson Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for

delivery of the repaired or replaced product back to the original consumer if located within the continental U.S.

This warranty does not apply to any Signal Boosters determined by Wilson Electronics to have been subjected

to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.

Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.

RMA numbers may be obtained by contacting Technical Support at 866-294-1660.

111284_Rev01_03.17.14

Signal Booster Specifications

Sleek 4G

Model Number 460007

Connectors SMA-Female

Antenna Impedance 50 Ohms

Frequency 698-746 MHz, 746-787 MHz, 824-894 MHz, 1850-1990 MHz, 1710-1755/2110-2155 MHz

3Power output for single cell phone (dBm) 700 MHz Band 12 700 MHz Band 13 800 MHz 1900 MHz 1700 MHz

Uplink 24.4 23.1 24.9 22.7 22.0

3Power output for single cell phone (dBm) 700 MHz Band 12 700 MHz Band 13 800 MHz 1900 MHz 2100 MHz

Downlink -26.0 -27.8 -27.3 -26.8 -28.6

Noise Figure (typical downlink/uplink) 3 dB nominal

Isolation > 40 dB

Power Requirements 5.5 V 2 A

Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory

reprogramming or disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase

coverage of authorized frequency bands only. If the Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected.

If a detected signal is too high in a frequency band, or if the Signal Booster detects an oscillation, the Signal Booster will automatically turn

the power off on that band. For a detected oscillation the Signal Booster will automatically resume normal operation after a minimum of 1

minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut off until the Signal Booster has been manually

restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the Signal Booster’s

microprocessor.

Andere Handbücher für Sleek 4G

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Wilson Electronics Extender Handbücher

Wilson Electronics

Wilson Electronics weboost Home Complete 530045 Bedienungsanleitung

Wilson Electronics

Wilson Electronics AG Pro 70 Bedienungsanleitung

Wilson Electronics

Wilson Electronics MobileMaxx 3G 460011 Bedienungsanleitung

Wilson Electronics

Wilson Electronics 4000R Bedienungsanleitung

Wilson Electronics

Wilson Electronics 460054 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE 4G-X OTR 470210R Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE 4G-X 470510R Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE SLEEK Bedienungsanleitung

Wilson Electronics

Wilson Electronics Weboost AM100-PRO Bedienungsanleitung

Wilson Electronics

Wilson Electronics WEBOOST DRIVE X OTR Bedienungsanleitung

Wilson Electronics

Wilson Electronics AG Pro Quint Bedienungsanleitung

Wilson Electronics

Wilson Electronics Sleek 4G Bedienungsanleitung

Wilson Electronics

Wilson Electronics 801101 Bedienungsanleitung

Wilson Electronics

Wilson Electronics AWS 70 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost Office 100 Bedienungsanleitung

Wilson Electronics

Wilson Electronics 2B1401 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE X 475021R Bedienungsanleitung

Wilson Electronics

Wilson Electronics 460008 Bedienungsanleitung

Wilson Electronics

Wilson Electronics Signal 4G 460019 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost Connect 4G-X 471104R Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost DRIVE REACH OTR FLEET Bedienungsanleitung

Wilson Electronics

Wilson Electronics iDEN 800 MHz 274080 Bedienungsanleitung

Wilson Electronics

Wilson Electronics WeBoost Drive Reach Flex Fleet Bedienungsanleitung

Wilson Electronics

Wilson Electronics WILSON PRO 1050 Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
