Wilson Electronics Sleek Bedienungsanleitung

Contents:

Accessories ..................................................................... 1

How it Works .................................................................... 2

Vehicle Installation Diagram ........................................................ 2

Install the Outside Antenna ......................................................... 2

Power up the Wilson Electronics Sleek ............................................... 3

Adjusting the Sleek Arms .......................................................... 4

Understanding the Sleek Lights ..................................................... 4

Troubleshooting .................................................................. 5

In-Building Installation ............................................................. 5

Warnings........................................................................ 6

About Wilson Electronics........................................................... 6

Signal Booster Specications ...............................................Back Cover

To boost your phone’s signal power, the phone must be placed in the Sleek cradle. For best results, use a

Bluetooth®headset or hands free device, while the phone remains in the Sleek.

Dual-Band SmarTech ™ Booster

Appearance of device and accessories may vary.

Note: This manual contains important safety and operating information. Please read and follow the

instructions in this manual. Failure to do so could be hazardous and result in damage to your Sleek.

U.S. Patent Nos. – D626,953; 7,684,838; 7,221,967; 7,729,669;

7,486,929; 7,729,656; 7,409,186; 7,783,318

1Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST.

AC Power Supply

*(859969)

Gooseneck

Suction Cup

Cradle Mount

(901120)

Cup Holder

Cradle Mount

(901130)

Adjustable

Desk Mount

*(901137)

Accessories for your Sleek®

Mobile Antennas

Antenna Window Mount

(Used with Mini-Magnet

Mount Antenna)

*(901128)

Mini-Magnet Mount Antenna

(301126)

Vehicle Dash

Adhesive

Mounting Bracket

DC Plug-In Power Supply

& USB cable

(859963)

Sleek®

Vehicle Dash

Mounting Kit

-Rugged/Screw Mount-

-Adhesive Mount-

-Vent Clip Mount-

(901134)

(included in some kits)

* All 3 available together in the Home Accessory Kit - 859970

Adjustable Arms

Carrying case included

Appearance of device and accessories may vary. (This product is not marketed by Verizon Wireless or AT&T).

Mobile Power

Supply

(859984)

Inside this Package

Sleek® 800 / 1900 MHz

Model #460006 FCC: PWO460006 IC: 4726A-460006

The term “IC” before the radio certication number only signies that Industry Canada technical specications were met.

FCC requires to never use the cell phone in the cradle next to your ear.

Mini-Mag

• 301126 w/ 12.5 RG174 cable- SMA

• 301113 w/ 12.5 RG174 cable - FME

12” Mag Mount w/ 12.5’ RG174

• 311103

• 311125

• 311128

• 311703

• 314202

Trucker antenna w/10.5’ RG58

• 311101

• 311701

Trucker antenna w/13.5’ RG58

• 311119

• 311133

NMO Antenna’s w/ RG174

Kit 311104-17410

• 800/1900 NMO antenna

• 10’ RG174 cable

Kit 311112-17410

• 800/1900 NMO antenna

• 10’ RG174 cable

Kit 314203-17410

• 800/900/1900 NMO antenna

• 10’ RG174 cable

Marine Antenna w/ RG58

Kit 311130-5810

• Marine Antenna

• 10’ RG58 cable

Glass Mount w/14’ RG58 cable

• 311102

• 311114 ( Mini Glass Mount)

NMO Antenna’s w/ RG58

Kit 311104-5810

• 800/1900 NMO antenna

• 10’ RG58 cable

Kit 311112-5810

• 800/1900 NMO antenna

• 10’ RG58 cable

Kit 314203-5810

• 800/900/1900 NMO antenna

• 10’ RG58 cable

NMO Antenna’s w/ LMR400

Kit 311104-40015

• 800/1900 NMO antenna

• 15’ LMR400 cable

Kit 311112-40015

• 800/1900 NMO antenna

• 15’ LMR400 cable

Kit 314203-40015

• 800/900/1900 NMO antenna

• 15’ LMR400 cable

Outside Fixed Antennas

50 Ohm Outside Antenna Kits

Kit 314453-5825

• 50 Ohm Pole Mount Panel Antenna

• 25’ RG58 Cable

Kit 314411-5825

• 50 Ohm Wide Band Directional

• 25’ RG58 Cable

Kit 301111-5850

• Yagi Directional Antenna

• 50’ RG58 Cable

Kit 311124-5840

• 1900 MHz Yagi Directional

• 40’ RG58 Cable

Kit 311203-5820

• Omni-Directional antenna

• 20’ RG58 Cable

Kit 311129-5830

• 800 MHz Yagi Antenna

• 30’ RG58 Cable

Kit 314411-40075

• 50 Ohm Wide Band Directional

• 75’ LMR400 Cable

Kit 311203-40020

• Omni-Directional antenna

• 20’ LMR400 Cable

Kit 301111-400170

• Yagi Directional w/ N-Female

• 170’ LMR400

Kit 311124-400100

• 1900 MHz Yagi Directional

• 100’ LMR400 Cable

Kit 311129-400100

• 800 MHz Yagi Antenna

• 100’ LMR400 Cable

Kit 314453-40075

• 50 Ohm Pole Mount Panel Antenna

• 75’ LMR400 Cable

75 Ohm Outside Antenna Kits

Kit 301111-0675

• Yagi Directional Antenna

• 75’ RG6 Cable

• N-Male to F-Female adapter

Kit 311201-0620

• Omni Directional w/ F-Female

• 20’ RG6 Cable

Kit 311124-0660

• 1900 MHz Yagi Directional

• 60’ RG6 Cable

• N-Male to F-Female adapter

Kit 311129-0650

• 800 MHz Yagi Directional

• 50’ RG6 Cable

• N-Male to F-Female adapter

Kit 314473-0640

• 75 Ohm Pole Mount Panel Antenna

• 40’ RG6 Cable

Kit 314475-0630

• 75 Ohm Wide Band Directional

• 30’ RG6 Cable

Kit 311141-0620

• 75 Ohm Grey Brick Antenna

• 20’ RG6 Cable

Kit 301111-11140

• Yagi Directional Antenna

• 140’ RG11 Cable

• N-Male to F-Female adapter

Kit 311201-1120

• Omni Directional w/ F-Female

• 20’ RG11 Cable

Kit 311124-11110

• 1900 MHz Yagi Directional

• 110’ RG11 Cable

• N-Male to F-Female adapter

Kit 311129-1180

• 800 MHz Yagi Directional

• 80’ RG11 Cable

• N-Male to F-Female adapter

Kit 314473-1175

• 75 Ohm Pole Mount Panel Antenna

• 75’ RG11 Cable

Kit 314475-1175

• 75 Ohm Wide Band Directional

• 75’ RG11 Cable

Kit 311141-1120

• 75 Ohm Grey Brick Antenna

• 20’ RG11 Cable

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST.

NOTE: The cell phone must be placed in the cradle to work properly.

Warning: DO NOT use phone covers that have chrome or any other metallic surface. It may block

cellular signals.

The Outside Antenna must be installed vertically.

Antenna performance will be degraded if the

antenna is not vertical.

The antenna cable is small yet strong enough that it

may be shut in most vehicle doors without damaging

the cable.

For a more professional looking installation, run the

antenna cable under the door seal. Carefully pull

down the door seal. Run the cable under the seal

and push the seal back into place. This prevents

constant wear and tear on the cable as the door

opens and closes. The antenna cable is small

enough to easily tuck under the door seal or

plastic molding.

Mini-Magnet

Mount Antenna

Shown

Carefully

Pull Down

Door Seal

Run Cable

Under Seal

Vehicle Installation

1. Install the Outside Antenna

To receive the best cell signal, select a location for the Outside Antenna that is preferably in the center

of the vehicle’s roof, 12 inches away from any other antennas, free of obstructions, and at least 6 inches

from the rear or side windows or sunroof.

General

Your Wilson Electronics Sleek has been carefully engineered to signicantly improve the performance

of your phone. Together with an Outside Antenna, the Sleek’s state-of-the-art circuitry is designed to

increase your phone’s signal to and from the cell tower. The Sleek reduces disconnects and dropouts

and increases data communication rates on 2G, 3G networks and 4G networks (in some models).

How it Works

With the phone in the cradle and while using a wireless Bluetooth™headset (or hands free device) the

Outside Antenna collects the cell tower signal and sends it through the cable to the Sleek. The signal

is then boosted by the Sleek and sent to the phone. When the phone transmits, the signal is picked up

wirelessly and boosted by the Sleek and transmitted back to the cell tower through the Outside Antenna.

Vehicle Installation Diagram

Sleek boosts

signal to and

from cell tower

Outside Antenna

communicates with cell

tower

Sleek w/phone

3Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST.

2. Attach the Mounting Bracket

A mounting bracket is provided for attaching the Sleek to your vehicle’s dash. Other options are also

available from Wilson Electronics.

3. Attach the Sleek®to the Bracket

Once you have installed the bracket in the desired location, and waited 24 hours for adhe-

sive to cure, attach the Sleek by aligning the rectangular hole on its back with the tab on

the mount bracket, grasping the sides of the Sleek, and sliding it downward approximately

¼ inch into place.

Once the cradle is attached, you can adjust the angle of the adhesive bracket by applying

gentle pressure to the top or bottom of the Sleek. The bracket is designed to swivel when

the knurled nut is loosened for greater adjustability of the Sleek viewing angle. To lock

bracket into position, tighten large nut.

ADHESIVE BRACKET- Included in this package

1. Clean the area where the bracket is to be mounted with the

supplied alcohol wipe. Allow to dry.

2. Peel the backing to expose the adhesive and press the

bracket onto the desired location in the vehicle. Note: Be sure

the tab is positioned vertically, not horizontally.

3. Allow the adhesive to cure for 24 hours before you attach

the Sleek.

Power up the Wilson Electronics Sleek®

Accessory port to power your phone, some adapters available

through Wilson Electronics at 866-294-1660. (See Figure 2)

Connect the mini-USB plug on the power cable to the Sleek’s mini

USB port located on the bottom of the Sleek and insert the adapter

into the vehicle power adapter of your vehicle. The Sleek may remain

on all the time. However, leaving the Sleek on in a vehicle when it is

not running can discharge the battery in a day or two.

Note: The 12V DC power source on many vehicles is shut off

with the ignition key.

Warning: Use only the supplied Wilson Electronics power

supply.

Warning: Make sure the Outside Antenna cable is

connected before powering up the Sleek.

4. Attach the Outside Antenna cable to the Sleek®

Attach the cable from the Outside Antenna to the antenna connector

on the Sleek. (See Figure 1)

Accessory USB Power port

Figure 2

Sleek Power port. Connect the

Wilson Electronics’s power supply

Antenna

connection

Figure 1

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST.

Adjusting the Sleek®Arms

Included with your Sleek are various sized arms, which will provide you with multiple

options to customize the Sleek to t your phone.

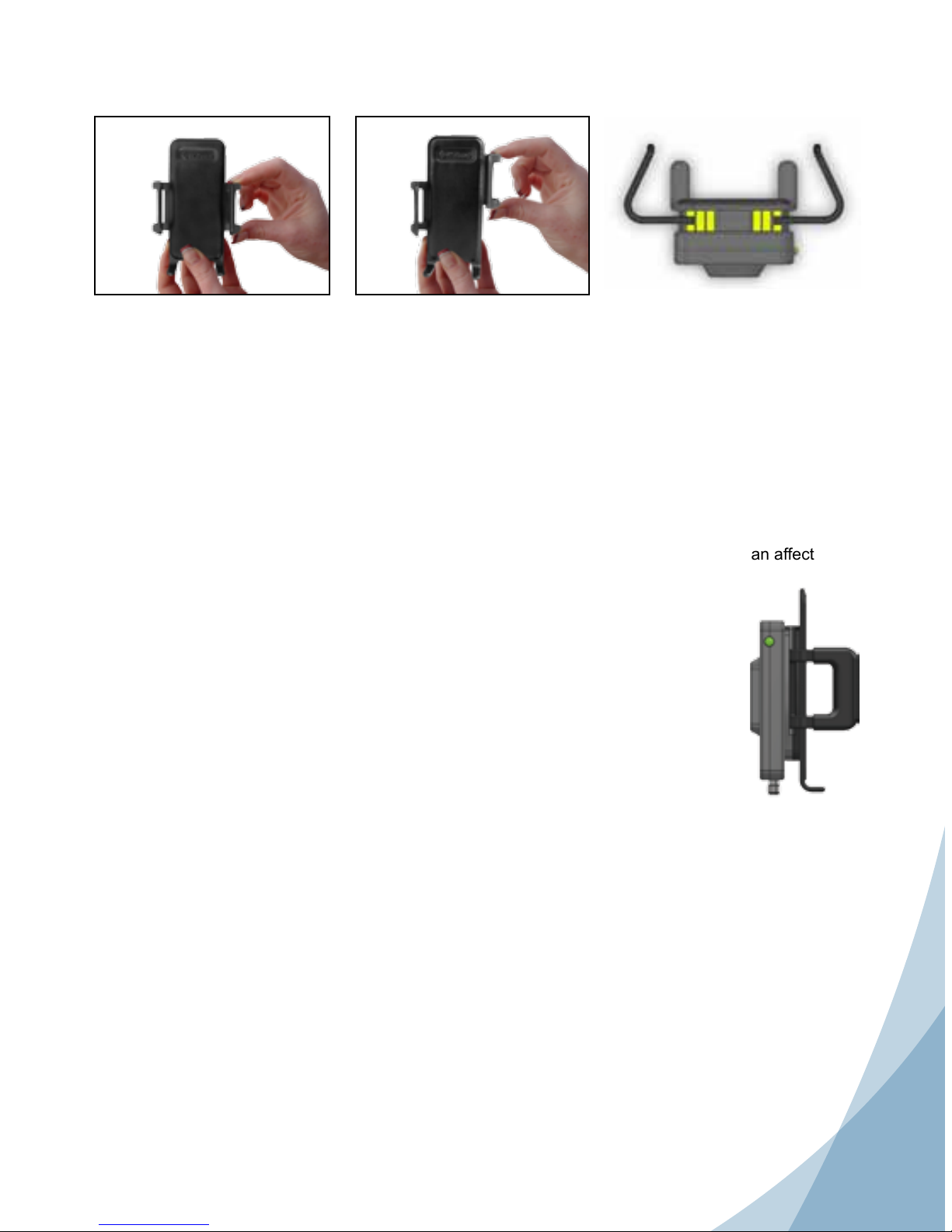

1. Change arms

Gently grab the arm and lift

upward until the arm slides

free from the Sleek.

2. Reposition arms

Position the arm above a different slot on the Sleek (indicated by

the yellow in the drawing). Gently slide the arm down until the arm

is rmly in place.

NOTE: The cell phone must be placed in the Sleek to work properly. Use a Bluetooth

™

or wired hands free device.

Green light is on : Sleek is operating properly.

SYMPTOM: No light, or light always off

1. Make sure that the power supply for the Sleek is functioning properly, by making

sure the light located on the power supply is lit.

2. If the DC plug-in power supply is properly inserted, but the plug’s light doesn’t

come on, then check the 12 volt power from the car socket, and check the fuse

in the DC plug-in power supply.

Understanding the Sleek®Lights

Separation of the Sleek and the Outside Antenna is very important. In a vehicle, the metal roof acts

as a barrier and helps shield the two antennas from each other, preventing oscillation (feedback).

Oscillation can occur when the roof mounted antenna is too close to the Sleek inside the vehicle. An

oscillation (or feedback) in the Sleek is similar to when a microphone is too close to a speaker in a

sound system, resulting in a loud whistle. An oscillation in the Sleek, if allowed to occur, can affect

nearby cell towers’ ability to handle calls.

Sleek® SYMPTOM: Red light is on

If the light is red, the Sleek has powered down to protect the cell tower. See section above “Separation

of Sleek and the Outside Antenna is very important.” If the light turns red, the Sleek has powered

down to protect the cell tower from oscillation. The red light indicates the outside roof mounted

antenna needs to be moved farther from the Sleek. In a vehicle installation, move the Outside

Antenna on the roof of the car farther to the rear of the car, but at least 6 inches from the rear

or side windows or sunroof. To reset the Sleek, disconnect and reconnect the power supply. If

the light is now green, the Sleek is working properly. If the red light is still on, move the Outside

Antenna farther away and repeat the process.

5Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST.

In-Building Installation

Installing a Wilson Electronics Outside Antenna in a Building

Follow the specic antenna instructions included with the Outside Antenna. These instructions assume

that you are using a Wilson Electronics Mini-Magnet Mount Antenna and the optional suction cup window

bracket.

To receive the best signal, select a window on the side of your building where your outside signal is the

strongest.

Attach the suction cup bracket to the inside of a window so that the cable will reach

the location of the Sleek. Place the bracket as high on the window as possible for

best performance.

Once the bracket is in place, attach the magnet base of the antenna to the at

surface of the bracket. Note: The antenna must be installed vertically. Signal

performance will be degraded if the antenna is not vertical.

Installing the Wilson Electronics Sleek®Signal Booster in a Building

The Wilson Electronics Sleek may be placed in any convenient indoor location, such as a desk or

tabletop. The cell phone or data card must be in the cradle and use a Bluetooth™headset or wired

hands free device for voice communications.

Attaching the Antenna

Once you have selected the location for the Sleek, run the cable from the outside antenna and attach it

to the SMA connector on the bottom of the Sleek.

Note: The cell phone must be placed in the Sleek cradle to amplify properly.

Warning: The Sleek®and the Outside Antenna must have a minimum separation of 3 feet to

prevent oscillation.

Outside Antenna

communicates

with cell tower

Sleek amplies signal

to & from cell tower

Sleek powered through surge

protected AC Power Strip

IMPORTANT NOTICE

• It is very important to power your Signal Booster using a surge protected AC Power Strip

with at least a 1000 Joule rating.

• Failure to do this will void your warranty in the event of a power surge or lightning strike.

Troubleshooting

SYMPTOM: No increase in bars

1. Make sure that the antenna connector is tight.

2. The cell phone must be placed in the Sleek cradle to amplify properly.

3. Call Wilson Electronics Technical Support at 866-294-1660.

Warning: DO NOT use phone covers that have chrome or any other metallic surface. It may

block cellular signals

Contact Wilson Electronics Technical Support Team with any questions at 866-294-1660

or email: [email protected]. Mon.- Fri. Hours: 7 am to 6 pm MST.

About Wilson Electronics

Wilson Electronics, LLC has been a leader in the wireless communications industry for over 40 years. The company

designs and manufactures Signal Boosters, antennas and related components that significantly improve cellular phone

signal reception and transmission in a wide variety of applications, mobile (marine, RV, vehicles) and in-building (home,

office, machine to machine).

With extensive experience in antenna and Signal Booster research and design, the company’s engineering team

uses a state-of-the-art testing laboratory, including an anechoic chamber and network analyzers, to fine-tune antenna

designs and performance. For its Signal Boosters, Wilson Electronics uses a double electrically shielded RF enclosure

and cell tower simulators for compliance testing.

Wilson Electronics Signal Boosters feature patented Smart Technology ™ that enables them to automatically adjust

their power based on cell tower requirements. By detecting and preventing oscillation (feedback), signal overload and

interference with other users, these Smart Technology ™ Signal Boosters improve network cell phone areas without

compromising carrier systems.

All products are engineered and assembled in the company’s 100,000-square-foot headquarters in St. George, Utah.

Wilson Electronics has product dealers in all 50 states as well as in countries around the world.

Warning: DO NOT plug in the power supply until the Outside Antenna cable is attached to the Sleek.

Warning: RF Safety: Any antenna used with this device must be located at least 8 inches from all

persons and can be found on pages 1 of the Install Guide.

Warning RF Safety: The FCC requires that a cell phone with cradle attached may only be used with

the cradle mounted as illustraged in this installation guide. A cell phone held near the ear

must be without the cradle atttached.

Warning: DO NOT use phone covers that have chrome or any other metallic surface. It may block

cellular signals.

Warning:

Warnings

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation. Changes or modications made

that are not expressly approved by Wilson Electronics could void authority to operate this equipment.

This is a CONSUMER device.

BEFORE USE, you MUST REGISTER THIS DEVICE with your

wireless provider and have your provider’s consent. Most wireless

providers consent to the use of signal boosters. Some providers

may not consent to the use of this device on their network. If you are

unsure, contact your provider.

You MUST operate this device with approved antennas and cables as

specified by the manufacturer. Antennas MUST be installed at least

20 cm (8 inches) from any person.

You MUST cease operating this device immediately if requested by

the FCC or a licensed wireless service provider.

WARNING. E911 location information may not be provided or may be

inaccurate for calls served by using this device.

111283_Sleek_Rev._01.10.14

Wilson Electronics, LLC

3301 East Deseret Drive, St. George, UT 84790

For additional Technical Support visit www.WilsonElectronics.com

or email at: [email protected]

Phone: 866-294-1660 Local: 435-673-5021 Fax: 435-656-2432

www.twitter.com/WilsonCellular www.facebook.com/WilsonCellular

Signal Booster Specifications

Model Number 460006

Connectors SMA-Female

Antenna Impedance 50 Ohms

Frequency 824-894 MHz/1850-1990 MHz

3Power output for single cell phone (dBm)

800 MHz 1900 MHz

Uplink

Downlink

22.9

-28.0

25.2

-29.1

Noise Figure (typical downlink/uplink) 3 dB nominal

Isolation > 40 dB

Power Requirements 5.5 V 1A

Each Signal Booster is individually tested and factory set to ensure FCC compliance. The Signal Booster cannot be adjusted without factory reprogramming or

disabling the hardware. The Signal Booster will amplify, but not alter incoming and outgoing signals in order to increase coverage of authorized frequency bands

only. If the Signal Booster is not in use for five minutes, it will reduce gain until a signal is detected. If a detected signal is too high in a frequency band, or if the

Signal Booster detects an oscillation, the Signal Booster will automatically turn the power off on that band. For a detected oscillation the Signal Booster will

automatically resume normal operation after a minimum of 1 minute. After 5 (five) such automatic restarts, any problematic bands are permanently shut off until

the Signal Booster has been manually restarted by momentarily removing power from the Signal Booster. Noise power, gain, and linearity are maintained by the

Signal Booster’s microprocessor.

30-Day Money-Back Guarantee

All Wilson Electronics products are protected by Wilson Electronics 30-day money-back guarantee. If, for any reason, the performance of any product is not acceptable, simply

return the product directly to the reseller with a dated proof of purchase.

2-Year Warranty

Wilson Electronics Signal Boosters are warranted for two (2) years against defects in workmanship and/or materials. Warranty issues may be resolved by returning

the product directly to the reseller with a dated proof of purchase.

Signal Boosters may also be returned directly to the manufacturer at the consumer’s expense, with a dated proof of purchase and a Returned Material Authorization (RMA)

number supplied by Wilson Electronics. Wilson Electronics shall, at its option, either repair or replace the product. Wilson Electronics will pay for delivery of the repaired or

replaced product back to the original consumer within the continental United States.

This warranty does not apply to any Signal Boosters determined by Wilson Electronics to have been subjected to misuse, abuse, neglect, or mishandling that alters

or damages physical or electronic properties.

Failure to use a surge protected AC Power Strip with at least a 1000 Joule rating will void your warranty.

RMA numbers may be obtained by contacting Technical Support at 866-294-1660.

Disclaimer: The information provided by Wilson Electronics, LLC is believed to be complete and accurate. However, no responsibility is assumed by Wilson

Electronics, LLC for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.

Andere Handbücher für Sleek

Inhaltsverzeichnis

Andere Wilson Electronics Extender Handbücher

Wilson Electronics

Wilson Electronics 271201 Bedienungsanleitung

Wilson Electronics

Wilson Electronics SLEEK 2B5225 Bedienungsanleitung

Wilson Electronics

Wilson Electronics 277280 Bedienungsanleitung

Wilson Electronics

Wilson Electronics WilsonPro A500 Bedienungsanleitung

Wilson Electronics

Wilson Electronics WilsonPro A1000 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost Drive Reach RV Bedienungsanleitung

Wilson Electronics

Wilson Electronics 460006 Bedienungsanleitung

Wilson Electronics

Wilson Electronics WilsonPro Single Room Bedienungsanleitung

Wilson Electronics

Wilson Electronics WEBOOST DRIVE X OTR Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE 4G-X OTR 470210R Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost Home Complete Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost 472061 Bedienungsanleitung

Wilson Electronics

Wilson Electronics 271265 Bedienungsanleitung

Wilson Electronics

Wilson Electronics Tri-Band 4G-C Bedienungsanleitung

Wilson Electronics

Wilson Electronics 460061 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weBoost DRIVE SLEEK Bedienungsanleitung

Wilson Electronics

Wilson Electronics SLEEK 2B5225 Bedienungsanleitung

Wilson Electronics

Wilson Electronics Sleek 4G Bedienungsanleitung

Wilson Electronics

Wilson Electronics WILSON PRO 4000R Bedienungsanleitung

Wilson Electronics

Wilson Electronics 463005 Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost DRIVE REACH OTR FLEET Bedienungsanleitung

Wilson Electronics

Wilson Electronics weboost DRIVE REACH OTR FLEET Bedienungsanleitung

Wilson Electronics

Wilson Electronics signalboost dt 271265 Bedienungsanleitung

Wilson Electronics

Wilson Electronics MobileMaxx 3G 460011 Bedienungsanleitung

Beliebte Extender Handbücher anderer Marken

SY HDBT-60T Bedienungsanleitung

Appsys ProAudio

Appsys ProAudio ADX-16 Bedienungsanleitung

Atlona

Atlona RS232 Bedienungsanleitung

IDK

IDK OPF-TH1000-A Bedienungsanleitung

Enable-IT

Enable-IT 824WP Bedienungsanleitung

Worx

Worx Landroid RadioLink WA0864 Technisches Datenblatt

TP-Link

TP-Link TL-WA730RE Bedienungsanleitung

Camplex

Camplex CMX-HDMI-SFPL Bedienungsanleitung

SC&T

SC&T HE03-4K Bedienungsanleitung

Marmitek

Marmitek MegaView70 Bedienungsanleitung

Samsung

Samsung SCS-26UC4 Bedienungsanleitung

Foxun

Foxun SX-GES24 Bedienungsanleitung

MuxLab

MuxLab 500771 Bedienungsanleitung

foxunhd

foxunhd SX-AEX01 Bedienungsanleitung

TERK Technologies

TERK Technologies LFIRX2 Bedienungsanleitung

Devolo

Devolo Audio Extender Handbuch

Edimax

Edimax EW-7438RPn V2 Bedienungsanleitung

Shinybow USA

Shinybow USA SB-6335T5 Bedienungsanleitung
