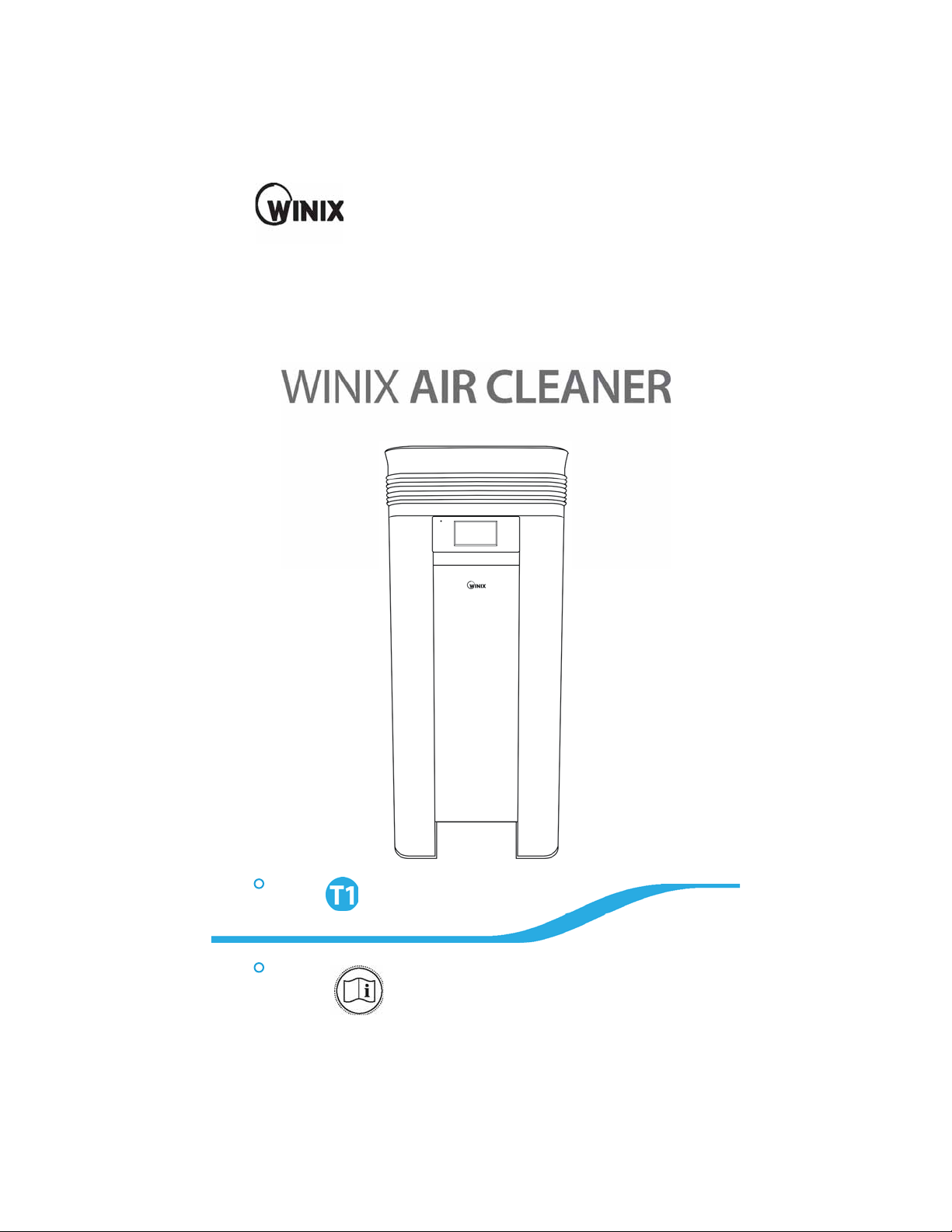

Winix T1 Bedienungsanleitung

User Manual

xPlease read and follow all safety rules and instructions in

this manual before operating.

xThe product warranty is printed on the back of this guide,

so please keep it in a safe place for future use.

Model

Use & Care

Guide

English T1

CONTENTS

Set Up

Where to use 8

Installing the filters 9

Safety Instructions

Safety and Cautions 12

Operation

Initial Operation 13

Modes of Operation 14

Features and Settings 15

WINIX SMART Set Up 19

Care and Maintenance

Filter Care 22

Smart Sensor Care 27

Cleaning Care 28

Troubleshooting

Frequently Asked Questions 29

Unit Specifications 32

Product Warranty 33

English

Français

Español 69

Deutsche 103

Italiano 137

Nederlands 171

5-Stage Air Purification 3

Controls 4

XThis product is suitable for AC220 ~ 240V, 60Hz only.

English T1

5-STAGE AIR PURIFICATION

Product Instruction manual

PACKAGE CONTENTS

󱳟High Capacity

AOCTM Filter

󱳝Anti-microbial

PM 2.5 Filter

󱳛Fine Mesh

Pre-Filter

PlasmaWave®

󱳡True HEPA

Filter

Filter Set EU & UK Power Cords

English T1

KNOW THE

Full Colour LCD Touch

Screen

Air Outlet Vent

Light Sensor

Top cover

Filter cover

Top cover

release

Dust Sensor

Speaker

Odour Sensor

Air Intake Vent

English T1

Manual

Mode

PM 2.5 Dust

Level Indicator Sleep Mode

Indicator

Timer Indicator Auto Mode

Wi-Fi

Connection

Indicator

Local Climate

and Weather

Information PlasmaWave®

Air Quality Indicator

Power

Fan Speed

Indicator

KNOW THE CONTROLS

ÚThe background colour will change, acting as an additional Air Quality Indicator;

Brown: Poor / Green: Fair / Blue: Good

English T1

KNOW THE CONTROLS

Settings

(Wi-Fi,

Brightness,

Volume, Filter)

Manual Fan

Speed Control

PlasmaWave®

Control

Sleep Mode

Control

Set the

Display

Language

Selected Menu

Home Screen

Set Timer

English T1

KNOW THE CONTROLS

Alert pop-up

This type of pop-up will appear when there is an issue that is not allowing

the unit to function properly.

Verification pop-up

This type of pop-up will appear when a setting or feature needs a

confirmation to continue.

English T1

WARNING Follow these instructions to reduce the risk of serious

injury or death and to reduce risk of damaging the unit.

WHERE TO USE

Do not use around mist or fumes from

industrial oil or around large quantities of

metallic dust

Do not install in any sort of motor or

transport vehicle (trucks, boats, ships, etc.)

Do not place near any flammable materials

(aerosols, fuel, gases etc.)

Do not place below any electrical outlet

Do not place around heating elements

Do not place in an area with excessive

amounts of noxious gases

Do not have unit facing into wind or draft

Do not place in excessively humid areas

where unit may become wet

Allow 30 ~ 45 cm. of space between TVs, radios, and other electronic products

electromagnetic interference from certain electronics may cause product malfunction.

Place indoors away from direct sun light

direct exposure may cause product malfunction or failure.

Only place on hard, flat surfaces

flimsy or slanted surfaces may result in abnormal noise and vibrations.

ÚThis unit is not intended to be used to preserve documents or in art conservation.

Environment with low humidity

risk of electric shock or product malfunction due to rust

English T1

①Remove the Filter Cover

xSqueeze the the two tabs towards the

middle and pulling it toward yourself.

②Remove the bottom filters from the

unit, they are protected inside

plastic wrap.

③Remove filters from protective

plastic wrap.

xOperating the unit without removing

lters from plastic wrap may cause

abnormal noise, deformation, or re as a

result of overheating.

④Install the bottom filters.

xInsert the lters into the

appropriate slots until the

back of the lter touches

the rear of the unit.

⑤Replace the Filter Cover.

xSqueeze the the two tabs towards the

middle and attach it back to the unit.

INSTALLING THE FILTERS

This product comes with all of the required filters. The protective plastic wrap must be

removed from the filters before use.

ÚOperating the unit without removing the plastic wrap may result in product failure.

ÚUnplug and make sure the unit is turned off before installing filters.

ÚOn the edge of each filter will show which way should face up.

󱳟

High

Capacity AOCTM

Carbon Filter

󱳝

Anti-microbial

PM 2.5 Filter

󱳛

Fine Mesh Pre-Filter

English T1

⑥Remove the Top Cover by pressing

the Release buttons on both sides.

⑦Pull the True HEPA filter out of the

unit and remove from protective

plastic wrap.

xOperating the unit without removing

lter from plastic may cause abnormal

noise, deformation, or re as a result of

overheating.

⑧Insert the True HEPA filter back into

place.

⑨Hold the Release buttons on both

sides of the Top Cover and connect it

back to the unit.

INSTALLING THE FILTERS
