QUICK START GUIDE

D-011-0099 Rev F (05/2021)

ALWAYS TEST THE SYSTEM

Test the system to ensure proper operation prior to leaving the job site.To test the system, either change the probe’s

temperature so it exceeds your limits, or change the limits to simulate an alarm. If a delay has been programmed, take the

delay out, test the unit, and then put the delay back in.

FREEZER/COOLER MONITORING

Never install the EnviroAlert console in a cooler or freezer (condensing environment). Instead, use a remote probe (TEMP-L-S

or TEMP-L-W) and program your zone accordingly. Extend the length of probe wiring up to 1,000’(304.8m) using 22-18 AWG

twisted pair.

AVOIDING FALSE ALARMS ON ACOOLER OR FREEZER

Both the EA200 and EA400 oer an alarm delay from 0-120 minutes for each zone. When a cooler or freezer door is opened,

the temperature will rise and the probe will detect that rise. Freezers periodically need to enter a defrost cycle which may

also cause the temperature to rise above your limits. Set delays to avoid nuisance alarms under these normal circumstances.

We cannot advise you on what to set for delays or limits.

ON-BOARD TEMP SENSOR (EA200 ONLY)

The EA200 has an on-board ambient temperature sensor and it is programmed on Zone 1.

More information and product manuals can be found at: www.winland.com

COMMON MISTAKES AND HOW TO AVOID THEM

“De-Energize”vs. “Energize”

• “De-Energize”means the relay will be OFF under normal conditions and will switch ON when there is an alarm.This is

the default state and will correspond with the legend on the circuit board (N.O. and N.C.).

• “Energize”means the relay will be ON under normal conditions and will switch OFF when there is an alarm or if power

is lost, providing power-supervision. However, this will reverse your N.O. and N.C. contacts. In either case, you still

have both sets of contacts.The AUX relay cannot be conﬁgured in this way.

Zone # vs. Output #

These directly correspond. Zone 1 uses the Output 1 relay. Zone 2 uses the Output 2 relay. Using Zone 2, but wiring to your

alarm panel using the Output 1 relay will not work. To cover all zones with a single relay, use the AUX relay.

“no”in Programming

To program a zone, press the ZONE button.The active zone will be ﬂashing. Select the zone number using INCREASE or

DECREASE, and then press ENTER.You will then see the word“no”ﬂashing. This means“not operational”

and indicates the zone is currently o. When you see this ﬂashing, press INCREASE or DECREASE to scroll

through your sensing options. Zones with no probe attached should be turned o. If you are trying to

turn a zone o, select“no”here.

Temperature Reading is Not Accurate

If the reading does not match your temperature reference, ask yourself the following questions:

• Is it programmed as the correct sensor type (Figure 2) and in the correct zone? If the displayed temperature is not even

close, this is most likely the problem.

• Has the temperature reference been calibrated, and is it known to be accurate?

• Is the reference probe in exactly the same place as the EA200/400 probe? It is normal for the temperature in a climate

controlled room to vary by several degrees.

If you need to match the EA200/400’s reading to a reference, use the OFFSET feature to do this. Ensure you have a known-

good calibrated reference or you may be unintentionally changing an already accurate reading.

Reading the LCD screen:

• Zone 2 current temp is 121° F

• Zone 2 high limit is 168°

• Zone 2 low limit is 115°

• The console is Locked

• Zone 2 programmed for REDprobe

• De-energized means relay is OFF under

normal conditions

• An hour glass indicates an alarm delay (up

to 120 minutes / zone)

• A solid bell indicates an alarm delay

• A ﬂashing bell indicates active alarm

• Press and simultaneously release Enter

and Alarm Silence buttons to Lock and

Unlock the console.

Tech Support 8:00am - 5:00pm CentralTime

(800) 635-4269

www.winland.com

STEP 1: CONNECT POWER AND PROBE(S)

Connect power to the PWR IN terminals, as shown in Figure 1. Be sure to observe proper polarity. Connect the probe(s) to the

zone(s) you intend to monitor. Extend the length of probe wiring up to 1,000’(304.8m) using 22-18 AWG twisted pair.

EA200 NOTE: Zone 1 is dedicated for the on-board temperature sensor. Remote probes must be programmed on Zone 2.

There is only one input for a remote probe on the EA200 - this is Zone 2.

EA400 NOTE: The EA400 does not have an on-board temperature sensor and uses only remote probes.

STEP 2: UNLOCK CONSOLE FOR PROGRAMMING

To unlock the console, press and simultaneously release the ENTER and ALARM SILENCE buttons. The

“lock”icon should change to“unlocked”.

STEP 3: SET THE TIME AND DATE

Press theTIME/DATE button. Using either the INCREASE or DECREASE button, adjust the hours and then press the ENTER

button. Continue in this manner to set the minutes, AM/PM, year, month, and day. If power is lost, the time and date must

be reset.

STEP 4: PROGRAM THE ZONE(S)

1. Press the ZONE button. The active zone number will be ﬂashing.

2. Select the zone you wish to program using INCREASE or DECREASE and then press ENTER. The“no”

means“not operational”and indicates the zone is currently o. Any zone not programmed should

be set to“no”and therefore turned o.

3. Based on the chart (Figure 2), select the proper sensor type using INCREASE or DECREASE and press ENTER.

4. Continue in this manner to set the

• high limit

• low limit

• optional time delay in minutes (this defaults to 0)

• non-alarm relay state (ENERGIZE/DE-ENERGIZE)

NOTE: If you are powering this device

from a system with battery back-up,

DE-ENGERGIZE (the default) generally

makes the most sense. If an alarm

is desired upon loss of power to the

EnviroAlert, select ENERGIZE. However,

the normally-open (N.O.) and normally-

closed (N.C.) contacts shown in Figure 1

will then be functionally opposite.

STEP 5: ALARM WIRING

You have the option of using the AUX

relay for all-in-one notiﬁcation or using

the individual relay outputs. The AUX relay will change state when any zone is in alarm and can be cancelled for 10 minutes

using the ALARM SILENCE button.The individual outputs are not aected by the ALARM SILENCE button.

NOTE: If you are using the individual relay outputs, Output 1 corresponds to Zone 1; Output 2 corresponds to Zone 2; etc.

See Figure 1.

STEP 6: TEST THE SYSTEM

Test the system to ensure proper operation prior to leaving the job site.To test the system, either change the probe’s

temperature so it exceeds your limits, or change the limits to simulate an alarm. If a delay has been programmed, take the

delay out, test the unit, and then put the delay back in.

ADDITIONAL FEATURES

OFFSET button: The EnviroAlert has the ability to adjust the displayed temperature reading for each zone to match to

a known-good reference (±9 degrees). To use this feature, press the OFFSET button, choose which zone you wish to oset,

press ENTER, adjust the value of the oset, and then press ENTER again.

ALARM HISTORY button: This will display the most recent eight alarm events.The display will toggle between

the time and date.To scroll through the alarm events, use the INCREASE or DECREASE buttons. Press the ALARM HISTORY

button again to exit. This feature relies on the time and date being set correctly. To clear the alarm history, press and hold the

ALARM HISTORY button until you see“CLR”.

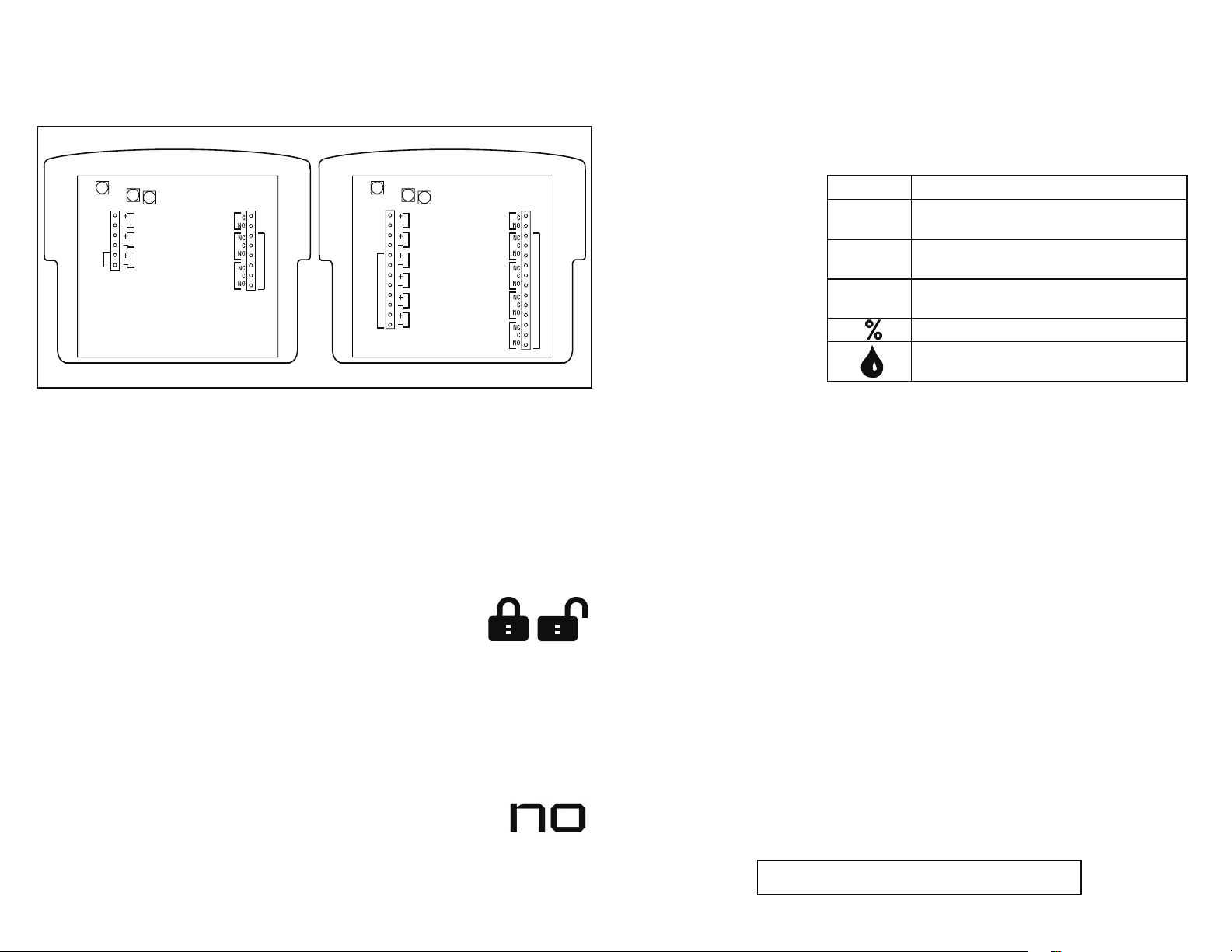

Figure 1 - EA200 and EA400 Wiring

POWER REQUIREMENTS:

EA200-12: 11 to 14 VDC @ 120mA EA400-12: 11 to 14 VDC @ 200mA

EA200-24: 23 to 26 VDC @ 120mA EA400-24: 23 to 26 VDC @ 200mA

AUX OUT

Zone 1

PWR IN

PWR OUT

Zone 2

REMOTE PROBE INPUT

ALARM OUTPUTS

(On-Board

Sensor)

Zone 2

(External

Probe)

EA200

AUX OUT

Zone 1

Zone 2

Zone 3

Zone 4

PWR IN

PWR OUT

Zone 1

Zone 2

Zone 3

Zone 4

REMOTE PROBE INPUTS

ALARM OUTPUTS

EA400

Lock Unlock

Probe Type Description

°C or °F Legacy (discontinued) polarity-sensitive temperature probes

1106, 1107, 1108, 1109, 1109A

Red °C or

Red °F

TEMP-H-S (32° to 302° F) and TEMP-H-W (32° to 221° F)

High-temperature range thermistor probes

Blue °C or

Blue °F

TEMP-L-S (-58° to 158° F) and TEMP-L-W (-58° to 158° F)

Low-temperature range thermistor probes

HA-III+ Humidity probe (5 to 95 % RH)

W-S-S

Water detection probe surface supervised

Figure 2 - Remote Probe Selections

To insure proper operation, test weekly.



QUICK START GUIDE

D-011-0099 Rev F (05/2021)

ALWAYS TEST THE SYSTEM

Test the system to ensure proper operation prior to leaving the job site.To test the system, either change the probe’s

temperature so it exceeds your limits, or change the limits to simulate an alarm. If a delay has been programmed, take the

delay out, test the unit, and then put the delay back in.

FREEZER/COOLER MONITORING

Never install the EnviroAlert console in a cooler or freezer (condensing environment). Instead, use a remote probe (TEMP-L-S

or TEMP-L-W) and program your zone accordingly. Extend the length of probe wiring up to 1,000’(304.8m) using 22-18 AWG

twisted pair.

AVOIDING FALSE ALARMS ON ACOOLER OR FREEZER

Both the EA200 and EA400 oer an alarm delay from 0-120 minutes for each zone. When a cooler or freezer door is opened,

the temperature will rise and the probe will detect that rise. Freezers periodically need to enter a defrost cycle which may

also cause the temperature to rise above your limits. Set delays to avoid nuisance alarms under these normal circumstances.

We cannot advise you on what to set for delays or limits.

ON-BOARD TEMP SENSOR (EA200 ONLY)

The EA200 has an on-board ambient temperature sensor and it is programmed on Zone 1.

More information and product manuals can be found at: www.winland.com

COMMON MISTAKES AND HOW TO AVOID THEM

“De-Energize”vs. “Energize”

• “De-Energize”means the relay will be OFF under normal conditions and will switch ON when there is an alarm.This is

the default state and will correspond with the legend on the circuit board (N.O. and N.C.).

• “Energize”means the relay will be ON under normal conditions and will switch OFF when there is an alarm or if power

is lost, providing power-supervision. However, this will reverse your N.O. and N.C. contacts. In either case, you still

have both sets of contacts.The AUX relay cannot be conﬁgured in this way.

Zone # vs. Output #

These directly correspond. Zone 1 uses the Output 1 relay. Zone 2 uses the Output 2 relay. Using Zone 2, but wiring to your

alarm panel using the Output 1 relay will not work. To cover all zones with a single relay, use the AUX relay.

“no”in Programming

To program a zone, press the ZONE button.The active zone will be ﬂashing. Select the zone number using INCREASE or

DECREASE, and then press ENTER.You will then see the word“no”ﬂashing.This means“not operational”

and indicates the zone is currently o. When you see this ﬂashing, press INCREASE or DECREASE to scroll

through your sensing options. Zones with no probe attached should be turned o. If you are trying to

turn a zone o, select“no”here.

Temperature Reading is Not Accurate

If the reading does not match your temperature reference, ask yourself the following questions:

• Is it programmed as the correct sensor type (Figure 2) and in the correct zone? If the displayed temperature is not even

close, this is most likely the problem.

• Has the temperature reference been calibrated, and is it known to be accurate?

• Is the reference probe in exactly the same place as the EA200/400 probe? It is normal for the temperature in a climate

controlled room to vary by several degrees.

If you need to match the EA200/400’s reading to a reference, use the OFFSET feature to do this. Ensure you have a known-

good calibrated reference or you may be unintentionally changing an already accurate reading.

Reading the LCD screen:

• Zone 2 current temp is 121° F

• Zone 2 high limit is 168°

• Zone 2 low limit is 115°

• The console is Locked

• Zone 2 programmed for REDprobe

• De-energized means relay is OFF under

normal conditions

• An hour glass indicates an alarm delay (up

to 120 minutes / zone)

• A solid bell indicates an alarm delay

• A ﬂashing bell indicates active alarm

• Press and simultaneously release Enter

and Alarm Silence buttons to Lock and

Unlock the console.

Tech Support 8:00am - 5:00pm CentralTime

(800) 635-4269

www.winland.com
