Winmate W05TA3S-PCT3AC Bedienungsanleitung

Please read these instructions carefully before using this product, and save this manual for future use.

5” S-Series HMI

W05TA3S-PCT3AC

Quick Start Guide

V1.0

Contents

Getting Started 2

Unpacking 3

Accessories 3

Description Of Parts 4

Connector Description 6

DC Input Connector 6

LAN (RJ45) Connector 6

USB A Type Connector 6

Digital Input / Output Connector 7

Turning On or Off 8

Turning ON 8

Turning OFF 9

Using Camera 10

Taking pictures 10

Opening the Gallery 11

TARS Test Application 12

Location and Interface 12

Testing LED Light Bar 13

Testing HF RFID Reader 14

HF RFID Reader Introduction 14

Scanning HF RFID Tag 14

Testing DIDO 15

Software Developer Support 16

Software System Diagram 16

Winmate Software Development Kit 16

Technical Specifications 17

HMI Device Specifications 17

HF RFID Reader Specifications 20

Please read these instructions carefully before using this product, and save this guide for future use.

Getting Started

Congratulations on purchasing Winmate® 5” S-Series HMI. Interactive and smart

automation systems of intelligent buildings are in a fast growing phase. Winmate®

multi-touch S-Series HMI is suitable for home automation and room management

systems. Flat surface is easy-to-clean and delivers aesthetically pleasing look for

any interior. By connecting to centralized database, it can provide real time update

for booking status and available schedule, or perform as a synchronous display in

meetings.

Winmate® 5” S-Series HMI powered by TI Cortex® A8 AM3354 1GHz with DSP

processor and support Android 4.4 operating systems. The HMI device features P-

Cap touch-screen. In addition, the HMI device model supports an exceptional

feature - LED Light Bar. With the help of red, green, blue and orange LED

indicators you can see the status of the machine or processes afar. It significantly

reduces power consumption by keeping the display turned off.

Winmate® 5” S-Series HMI features:

TI Cortex A8 AM3354 1GHz with Android Operating System

Fanless cooling system and ultra-low power consumption

5'' WVGA TFT (LED backlight) with P-CAP touch screen

Gigabit LAN with PoE (IEEE 802.3AT) Solution

Built-in non-contact HF RFID Module

2MP front-facing camera for interactive communication

Multi-Color(G,R,B) Programmable LED Light Bar Indicator

Unidirectional-Mic and Speaker for VoIP application

Wide-distance (10M) RF controller for Digital Out device trigger application

All-in-one design, completed solution for cost-saving and space-saving

Unpacking

Carefully remove the box and unpack your device. Please check if all the items

listed below are inside your package. If any of these items are missing or damaged

Accessories

Standard factory shipment list:

5” HMI Device

Quick Start Guide

(Hardcopy)

Power Cable

AC Adapter

(12V/ 50W)

Terminal Block 3 pin

Please read these instructions carefully before using this product, and save this guide for future use.

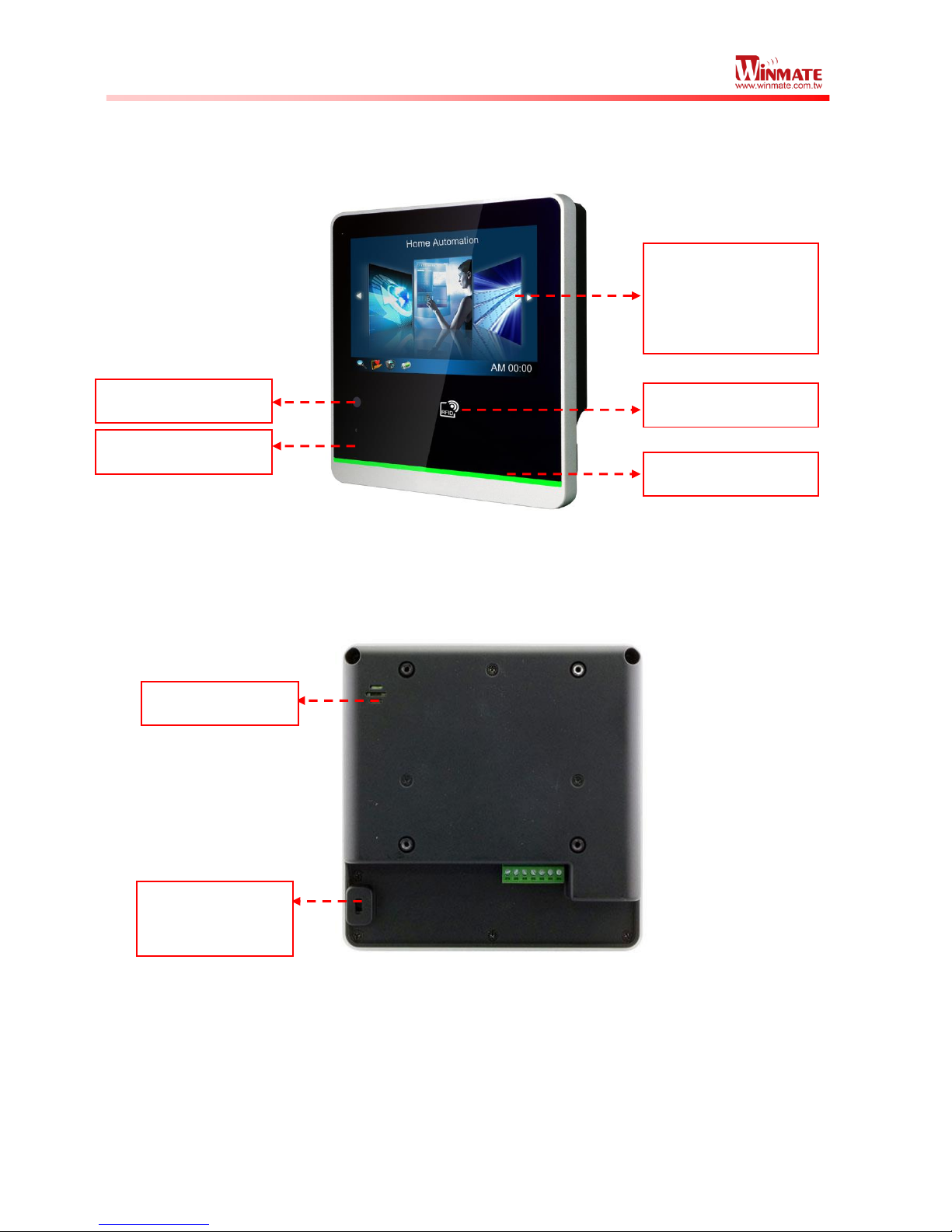

Description Of Parts

Front Side:

Rear Side:

Speaker

Kensington

Lock

5” 800*480 LED

panel with

PCAP Touch

Screen

2MP Camera

Mic

RFID Reader

LED Light bar

I/O Side:

Dimensions:

SD Card Slot

DC 12V in

Digital I/O

LAN / PoE

Backlight

Switch

Button

USB A Type

Please read these instructions carefully before using this product, and save this guide for future use.

Connector Description

DC Input Connector

DC terminal block power source input is a 3-pin terminal block that has to be

secured with screws to the HMI device housing

LAN (RJ45) Connector

The 5” S-Series HMI supports one 10/100/1000 Mbps Ethernet interface for

connecting to the internet.

USB A Type Connector

Use USB A Type (USB2.0) connector to connect your HMI device to other

USB2.0 compatible devices.

Pin No.

Symbol

Description

VIN+

12V DC Input +

VIN-

12V DC Input -

GND

Ground

Voltage

Minimum Voltage 11.4V

Maximum Voltage 12.6V

Maximum Current 4.2A

Pin №

Name

Pin №

Name

TX1+

TX1-

TX2+

TX2-

TX3+

TX3-

TX4+

TX4-

Pin №

Name

Pin №

Name

+5V

Data-

Data+

GND

Digital Input / Output Connector

Digital Input and Output 2 in / 2 out (one 12V/1A for electromagnetic lock).

Go Refer to Testing DIDO section in this guide to test the DIDO functions.

№

Name

№

Name

GND

DO0

DO1

DO_COM

DI0

DI1

GND

Voltage

Digital output:

Open drain to 40V ; Maximum load 2.0A

Digital input:

Level 0: close to GND; Level 1: 2.5~12V

Please read these instructions carefully before using this product, and save this guide for future use.

Turning On or Off

Turning ON

Follow the following steps to turn on your device:

1. Connect the power cable to AC to DC adapter.

2. Connect the open wire of AC to DC adapter to the terminal block female

connector and tighten the screws to secure it to the HMI device.

3. Connect the terminal block female connector to the device's male connector.

4. Plug the power cord to the AC outlet and the device will turn on

automatically.

CAUTION

Use only the AC adapter included in your package

(Rating: Output 4.2 A). Using other AC adapters may damage the

device.

ALTERNATING CURRENT

This product must be grounded. Use only a grounded AC outlet.

Install the additional PE ground wire if the local installation

regulations require it.

Turning OFF

Remove the power input to shut down the device.

Press this button to turn the backlight off, press again to turn the backlight on.

Backlight Control Button
