Wolf L Series SO30F Leitfaden

WOLF DESIGN GUIDE

Contents

Ovens and Warming Drawers . . . . . . . . . . . . . . . . . . . 3

Cooktops .................................. 29

RangesandRangetops ....................... 53

OutdoorGrills............................... 79

CooktopVentilation .......................... 87

ProVentilation ............................. 101

ShippingWeights........................... 111

WolfWarranties ............................ 112

Features and specifications are subject to change at any time

without notice. Visit wolfappliance.com/specs for the most

up-to-date information.

I PORTANT NOTE: Throughout this guide, dimensions in

parentheses are millimeters unless otherwise specified.

MODEL SO30U

Wolf Built- n Ovens 3

wolfappliance.com/specs

L Series Ovens. Since their introduction a few short years ago, Wolf L series electric ovens have taken the culinary

world by storm—and not just for their stylish cobalt blue interior and 10 cooking modes. Thanks to a Wolf innovation called

dual convection, the L series delivers faster, more consistent results for baking, roasting, broiling—even drying fruits. Wolf

L series ovens are crafted of stainless steel in framed and unframed door styles with tubular handles.

SO30F

30" (762) S NGLE

FRAMED

SO30U

30" (762) S NGLE

UNFRAMED

SO36U

36" (914) S NGLE

UNFRAMED

DO30F

30" (762) DOUBLE

FRAMED

DO30U

30" (762) DOUBLE

UNFRAMED

KEY FEATURES L SERIES OVENS

•Dual convection: two fans for even heat distribution.

•Ten cooking modes, including the bake stone and

dehydration kits for precise, easy-to-use control.

•Rotating control panel.

•Full-extension bottom rack for easier access to foods.

•Spring and damper door hinge for quiet, effortless

opening and closing of the door.

Wolf Built- n Ovens 4

24" (610)

BEHIND FRAME

271/2"

(699)

283/16"

(716)

28"

(711)

297/8"

(759)

24"

(610)

CONDUIT

CHANNEL

OPEN OVEN DOOR

TOP VIEW

(76)

203/4"

(527)

11/4"

(32)

17/8"

(48)

17/8"

(48)

RIGHT SIDE VIEW

261/16"

(662)

INSIDE

SIDE TRIM

24" (610)

BEHIND FRAME

243/8"

(619)

355/8"

(905)

24"

(610)

23" (584)

INSIDE

SIDE TRIM

CONDUIT

CHANNEL

OPEN OVEN DOOR

TOP VIEW

341/8"

(867)

3311/16"

(870)

(76)

173/4"

(451)

11/4"

(32)

17/8"

(48)

17/8"

(48)

RIGHT SIDE VIEW

L Series Ovens

30" (762) SINGLE OVENS

36" (914) SINGLE OVEN

Wolf Built- n Ovens 5

wolfappliance.com/specs

50"

(1270)

297/8"

(759)

24" (610)

BEHIND FRAME

24"

(610)

OPEN OVEN DOOR

CONDUIT

CHANNEL

TOP VIEW

283/16"

(716)

28"

(711)

(76)

203/4"

(527)

11/4"

(32)

17/8"

(48)

17/8"

(48)

RIGHT SIDE VIEW

481/2"

(1232)

INSIDE

SIDE TRIM

L Series Ovens

30" (762) DOUBLE OVENS

Interior Specifications

INTERIOR CAPACITY CU FT (L)

30" (762) Oven 4.5 (127)

36" (914) Oven 4.4 (125)

INTERIOR DI ENSIONS WHD

30" (762) Oven 25" (635) 161/2"(419) 19" (483)

36" (914) Oven 30" (762) 131/4"(337) 19" (483)

Wolf Built- n Ovens 6

SO30-2F/S-TH

30" (762) S NGLE

FRAMED

SO30-2U/S-TH

30" (762) S NGLE

UNFRAMED

DO30-2F/S-TH

30" (762) DOUBLE

FRAMED

DO30-2U/S-TH

30" (762) DOUBLE

UNFRAMED

KEY FEATURES

•Dual convection: two fans for even heat distribution.

•Ten cooking modes, including the bake stone and

dehydration kits for precise, easy-to-use control.

•Full-extension bottom rack for easier access to foods.

•Balanced door hinge system for smooth opening and

closing of the door.

E Series Ovens. The newest addition to the Wolf built-in oven family is a true partner, helping to create great meals

with ease, as well as adding a striking design feature to the kitchen. Smart technology gives the E series 10 cooking

modes, with Wolf’s innovative dual convection in single ovens and in the upper unit of double ovens. E series ovens can be

installed flush with cabinets for a contemporary, integrated look. Wolf E series ovens are crafted of stainless steel in framed

and unframed door styles with tubular handles.

E SERIES OVENS

MODEL SO30-2U/S-TH

Wolf Built- n Ovens 7

wolfappliance.com/specs

E Series Ovens

233/4"(603)

BEHIND FRAME

277/8"

(708)

281/4"

(718)

297/8"

(759)

233/4"

(603)

CONDUIT

CHANNEL

OPEN OVEN DOOR

TOP VIEW

22"

(559)

11/4"

(32)

1"(25)

17/8"

(48)

17/8"

(48)

RIGHT SIDE VIEW

271/16"

(687)

297/8"

(759)

25/8"

(67)

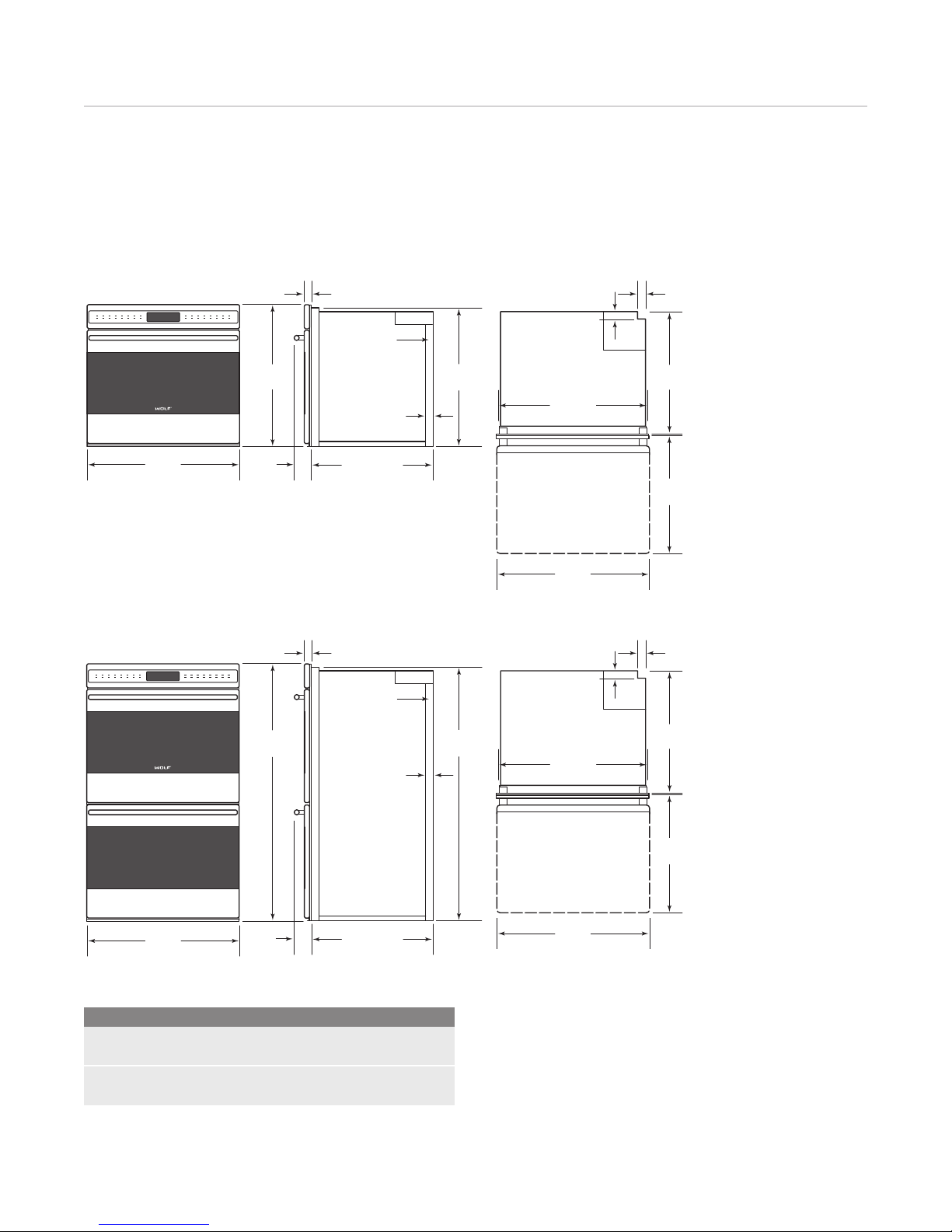

30" (762) SINGLE OVENS

233/4"(603)

BEHIND FRAME

503/8"

(1280)

491/2"

(1257)

281/4"

(718)

297/8"

(759)

233/4"

(603)

OPEN OVEN DOOR

TOP VIEW

25/8"

(67)

22"

(559)

11/4"

(32)

1" (25)

17/8"

(48)

17/8"

(48)

RIGHT SIDE VIEW

297/8"

(759)

CONDUIT

CHANNEL

30" (762) DOUBLE OVENS

Interior Specifications

INTERIOR CAPACITY CU FT (L)

30" (762) Oven 4.5 (127)

INTERIOR DI ENSIONS WHD

30" (762) Oven 25" (635) 161/2"(419) 19" (483)

Wolf Built- n Ovens 8

DIMENSION WILL VARY*

43/4"(121) TYPICAL*

36" (914)

FLOOR TO

COUNTERTOP

*Dimension must accommodate height of oven trim.

NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.

281/2"(724)

OPENING WIDTH

273/16"

(691)

OPENING

HEIGHT

24" (610) min

OPENING DEPTH

(127)

(102)

FRONT VIEWSIDE VIEW

FLUSH INSET INSTALLATION (E SERIES ONLY)

For E series ovens, a flush inset installation requires the

oven to be recessed into the cabinet. A minimum 25" (635)

deep cabinet is needed if you want the front of the oven to

be flush with surrounding cabinetry.

ELECTRICAL REQUIRE ENTS

The single oven requires a separate, grounded 4-wire

240/208 V AC, 60 Hz, 30 amp service with its own circuit

breaker. The double oven requires a separate, grounded

4-wire 240/208 V AC, 60 Hz, 50 amp service with its own

circuit breaker. 30" (762) single ovens have a 4' (1.2 m)

conduit, the 36" (910) single oven has a 3' (.9 m) conduit

and double ovens have a 5' (1.5 m) conduit. Total amps for

single ovens is 21 and for double ovens, 37.

Planning nformation

STANDARD INSTALLATION

For ease of installation, Wolf recommends using 33" (838)

wide cabinets with 30" (762) ovens and 39" (991) wide

cabinets with the 36" (914) L series oven. You will need a

minimum 24" (610) of usable cabinet depth. The cabinet

must be able to support 250 lbs (113 kg) for a single oven

and 400 lbs (181 kg) for a double oven.

The oven has a face trim on all four sides and will overlap

stiles and rails. Refer to the chart for overlap dimensions.

30" (762) L Series and E Series Single Oven

STANDARD INSTALLATION

Oven Trim Overlap

OVEN TRI L SERIES E SERIES

Top Overlap 3/16"(5) 5/8"(16)

Bottom Overlap 1/8"(3) 1/8"(3)

Side Overlap 3/4"(19) 3/4"(19)

Wolf Built- n Ovens 9

wolfappliance.com/specs

67" (1702)

TYPICAL*

495/8"

(1260)

OPENING

HEIGHT

281/2"(724)

OPENING WIDTH

(127)

(102)

24" (610) min

OPENING DEPTH

*Dimension must accommodate height of oven trim.

NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

36" (914)

FLOOR TO

COUNTERTOP

341/2"(876)

OPENING WIDTH

241/16"

(611)

OPENING

HEIGHT

(127)

(102)

73/4"(197)

TYPICAL*

DIMENSION WILL VARY*

24" (610) min

OPENING DEPTH

*Dimension must accommodate height of oven trim.

NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

36" (914) L Series Single Oven

STANDARD INSTALLATION

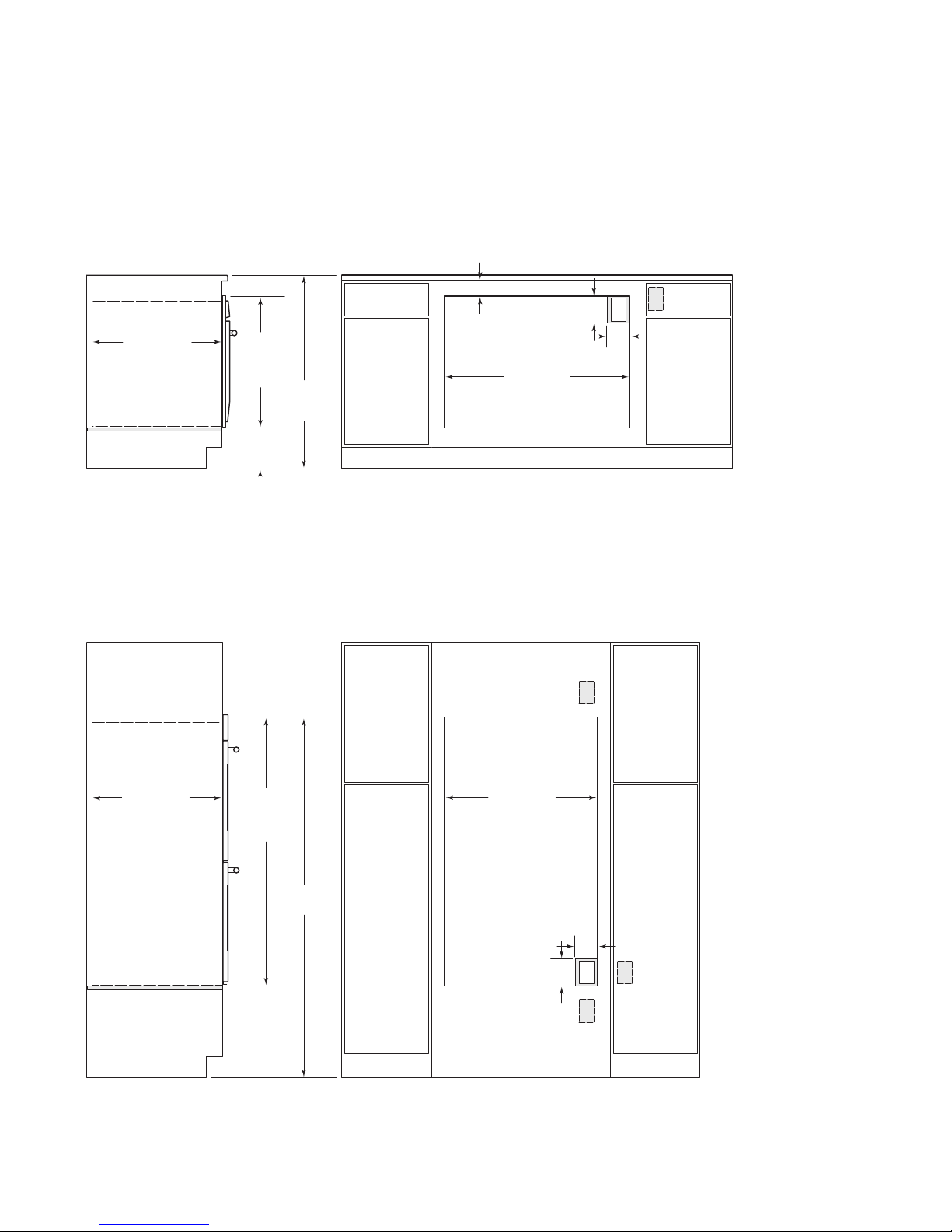

30" (762) L Series and E Series Double Oven

STANDARD INSTALLATION

Wolf Built- n Ovens 10

273/16"

(691)

OPENING

HEIGHT

281/2"

(724) min

FLUSH INSET

HEIGHT

281/2"(724)

OPENING WIDTH

25" (635) min

CABINET DEPTH 303/8"(772) min

FLUSH INSET WIDTH

7/8"(22) TOP CLEAT

7/16"(11)

PLATFORM*

SIDE CLEATS

243/4"

(629) min

FLUSH INSET

DEPTH

1" (25)

*Platform must support 250 lbs (113 kg).

NOTE: Location of electrical supply within opening may require additional cabinet depth. Dashed line represents profile of unit.

FRONT VIEWSIDE VIEW

TOP VIEW

1" (25)

SIDE CLEATS

(127)

(102)

30" (762) E Series Single Oven

FLUSH INSET INSTALLATION
