Worcester Greenstar 9i System ErP Bedienungsanleitung

UK/IE

User instructions

Wall hung RSF gas fired condensing system boiler

Greenstar i System ErP

6720806946-00.1Wo

For sealed central heating systems

6 720 806 947 (2015/03)

If you smell gas:

▶ Well away from the building: call the National Gas Emergency

Service on 0800 111 999.

▶ L.P.G. boilers: Call the supplier’s number on the side of the

gas tank.

These appliances are for use with:

Natural Gas or L.P.G.

(Cat. II 2H 3P type C13, C33 & C53)

Model GC Number

Natural Gas Greenstar 9i System ErP 41-406-21

Greenstar 12i System ErP 41-406-23

Greenstar 15i System ErP 41-406-25

Greenstar 18i System ErP 41-406-27

Greenstar 21i System ErP 41-406-29

Greenstar 24i System ErP 41-406-31

L.P.G. Greenstar 9i System ErP 41-406-22

Greenstar 12i System ErP 41-406-24

Greenstar 15i System ErP 41-406-26

Greenstar 18i System ErP 41-406-28

Greenstar 21i System ErP 41-406-30

Greenstar 24i System ErP 41-406-32

Preface

Greenstar i System ErP – 6 720 806 947 (2015/03)

Preface

Please read these instructions carefully

These instructions are applicable to the Worcester, Bosch

Group appliance model stated on the front cover only.

These instructions apply in the UK/IE only and must be followed

except for any statutory obligation.

After installation please leave this User instruction Manual,

Installation, Commissioning and Servicing Instructions and

completed Benchmark Checklist with the user.

Dedicated to heating comfort

Thank you for purchasing a Greenstar gas-fired condensing

appliance manufactured by Worcester, Bosch Group. The

company prides itself on manufacturing appliances to the

strictest quality control standards throughout every stage of

production.

Worcester, Bosch group has led the field in innovative

appliance design and performance for over 50 years. This

heritage means all our products are of exceptional quality and

proven reliability.

The Greenstar range in particular is extremely energy efficient,

offering you economical running costs and value for money. It is

amongst the top energy rated appliances available.

There is also the reassurance of our parts and labour guarantee

- backed up by Worcester Total Cover, an optional complete

maintenance scheme to keep your appliance operating at peak

condition and efficiency.

Contents

Greenstar i System ErP– 6 720 806 947 (2015/03)

Contents

1 Key to symbols and safety instructions . . . . . . . . . . . . 4

1.1 Key to symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . 4

2 General information . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.1 Energy efficiency . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.3 Benchmark standard . . . . . . . . . . . . . . . . . . . . . . 5

2.4 User caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

3 Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3.1 Appliance controls . . . . . . . . . . . . . . . . . . . . . . . . 8

3.1.1 Appliance display . . . . . . . . . . . . . . . . . . . . . . . . . 9

3.1.2 Basic adjust mode . . . . . . . . . . . . . . . . . . . . . . 12

3.2 Central heating . . . . . . . . . . . . . . . . . . . . . . . . . 13

3.2.1 View appliance flow set temperature . . . . . . . 13

3.2.2 Setting the appliance flow temperature

for the system . . . . . . . . . . . . . . . . . . . . . . . . . .13

3.2.3 Set economic temperature - Central

heating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

3.2.4 Turning the central heating off during the

summer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

3.2.5 Appliance frost protection . . . . . . . . . . . . . . . 14

3.3 No integral diverter valve fitted:

Cylinder temperature adjustment . . . . . . . . . .15

3.4 Optional integral diver valve kit fitted:

Setting the cylinder hot water temperature . .15

3.4.1 View the cylinder hot water temperature set

temperature . . . . . . . . . . . . . . . . . . . . . . . . . . .15

3.4.2 General cylinder hot water temperature

adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

3.4.3 Mid point domestic hot water temperature . . 16

3.4.4 Domestic hot water eco and preheat modes . 17

3.4.5 Domestic hot water preheat mode manual

activation (Eco mode off) . . . . . . . . . . . . . . . . .17

3.4.6 Turn off the operation/fault diagnostic

light (blue) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

4 System pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

4.1 External filling link . . . . . . . . . . . . . . . . . . . . . . 18

5 Clearances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

6 Maintaining your appliance . . . . . . . . . . . . . . . . . . . . 20

7 Fault finding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

7.1 Appliance alert state . . . . . . . . . . . . . . . . . . . . 22

7.2 Appliance reset . . . . . . . . . . . . . . . . . . . . . . . . 22

7.3 Extreme cold weather . . . . . . . . . . . . . . . . . . . 23

8 Fault or breakdown . . . . . . . . . . . . . . . . . . . . . . . . . . 23

9 Tips on energy saving . . . . . . . . . . . . . . . . . . . . . . . . 24

10 Environment/disposal . . . . . . . . . . . . . . . . . . . . . . . . 25

11 Your guarantee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

12 Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Key to symbols and safety instructions

Greenstar i System ErP – 6 720 806 947 (2015/03)

1 Key to symbols and safety instructions

1.1 Key to symbols

Warnings

The following keywords are defined and can be used in this

document:

•NOTICE indicates a situation that could resultin damage to

property or equipment.

•CAUTION indicates a situation that could result in minor to

medium injury.

•WARNING indicates a situation that could result in severe

injury or death.

•DANGER indicates a situation that will result in severe

injury or death.

Important information

Additional symbols

Examples of additional symbols used

A numbered step in an action sequence

A sequence of numbered steps or actions carried out in a

specific order to complete a task.

1. First action

2. Second action

3. Third action

etc.

A step in an action sequence

A sequence of defined actions or steps carried out in order to

complete a task.

▶Action

▶Nextaction

▶etc

A reference to a related part in the document or to other

other related documents

a reference number to identify or refer to a part or

item

•alistentry

– a list entry (second level)

Table 1

General information

Greenstar i System ErP– 6 720 806 947 (2015/03)

Combustible and corrosive materials:

Chemically aggressive substances can corrode the appliance

and invalidate any guarantee.

• Do not store or use any combustible materials (paper,

thinners, paints, propellants, cleaning agents etc.) inside

the cupboard containing the appliance or within the vicinity

of the appliance.

Fittings and modifications:

Only a competent engineer can remove the appliance case and

carry out any work, in accordance with the Gas Safety

(Installation and Use) Regulations.

• Do not remove the appliance case.

Any misuse or unauthorised modifications to the appliance,

flue or associated accessories and heating system will

invalidate the guarantee.

• Do not modify the appliance or flue system in any way.

Worcester, Bosch Group accepts no liability arising from any

such actions. This does not affect your statutory rights.

Cleaning the appliance case:

Use a damp, soft cloth to clean the outer painted metal case of

the appliance, do not use chemicals or abrasive materials.

2 General information

2.1 Energy efficiency

Energy efficiency information is given in the Installation,

Commissioning and Servicing Instructions supplied with the

appliance.

2.2 Servicing

• The appliance must be serviced regularly by a competent,

qualified person, such as a Worcester service engineer or

other Gas Safe registered engineer.

• Always use original spares, to help maintain the efficiency,

safety and reliability of the appliance and have the Service

Record completed in the Benchmark Checklist.

The completed Benchmark Checklist will be required in the

event of any guarantee work and may be required by the local

Building Control Inspector.

2.3 Benchmark standard

The Benchmark initiative is a

code of practice to encourage

the correct installation,

commissioning and servicing of

domestic central heating

appliances and system

equipment.

A “checklist” is dispatched with every appliance and can be

found towards the back of the Installation, Commissioning and

Servicing Instructions. This is a vital document that needs to be

completed by the installer at the time of installation. It confirms

that the appliance has been installed and commissioned

according to the manufacturer's instructions.

The service record provides space for the recording of regular

servicing of the appliance/heating system and this can become

a valuable document when, for example, you wish to sell the

property. The service record will show a potential purchaser

that the heating system has received regular professional

maintenance and servicing during its lifetime.

The Benchmark initiative aims to:

• Raise standards among professional installers

• Build and maintain high safety standards in the industry

• Improve customer satisfaction levels

• Make a contribution to the nation's commitment to climate

change

2.4 User caution

• It isforbidden for any interference with the appliance other

than those actions allowed in this document.

Ensure that the service engineer completes

the Service Record in the Benchmark

Checklist after each service. The Benchmark

Checklist and service interval record can be

found at the rear of the Installation,

Commissioning and Servicing Instructions.

CAUTION: Incorrect use

▶ Any incorrect use can result in danger to

the householder.

Controls

Greenstar i System ErP – 6 720 806 947 (2015/03)

3Controls

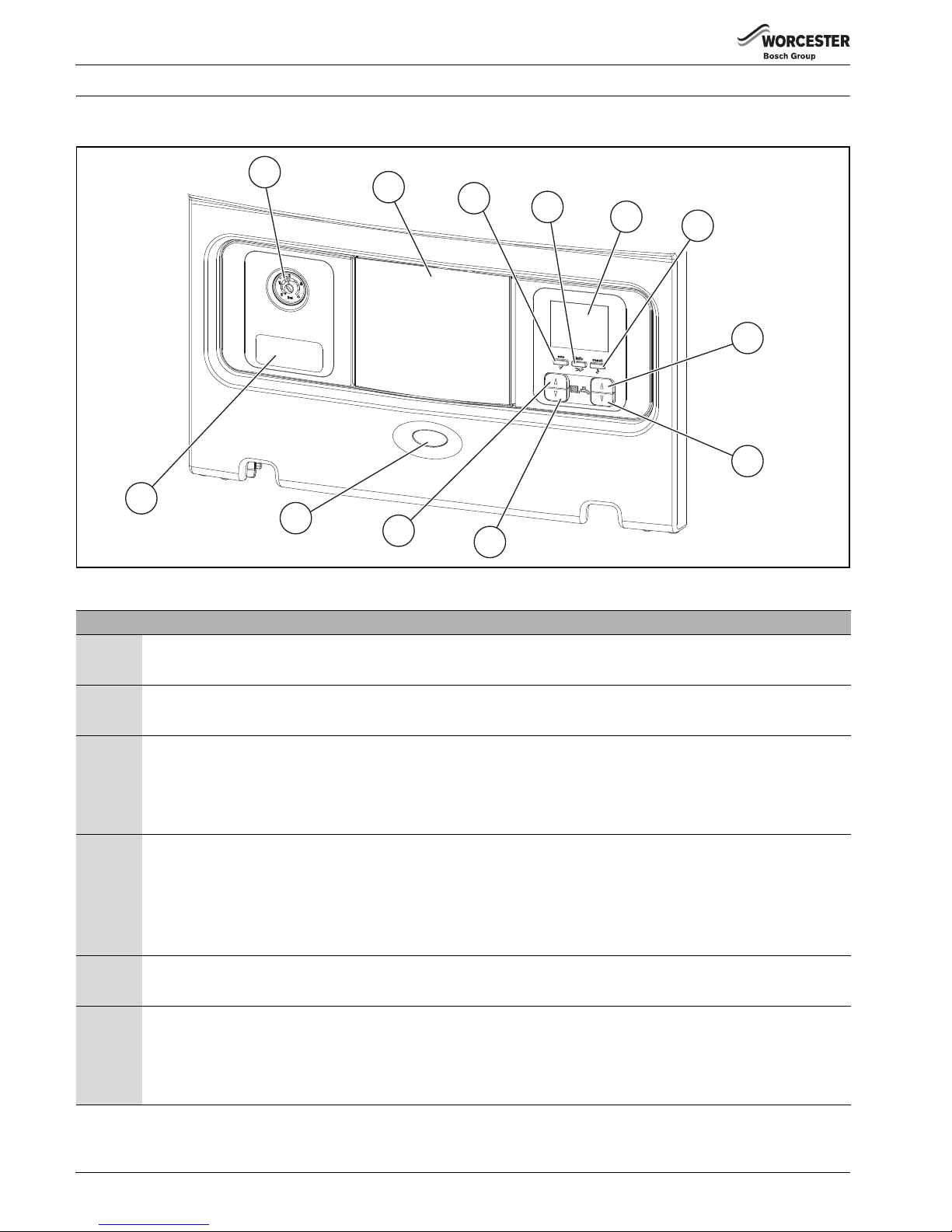

Fig. 1 Appliance control panel

Item Description

1Systempressuregauge

• Displays pressure in the heating system and appliance

2 Position for optional programmer

• Worcester plug in controls position

3ECO/OKbutton

• Dual function button

– ECO (toggles domestic hot water preheat ON/OFF)

–OK(menuconfirmation)

4 Info/Return/Spanner button

• Multi function button

– Info (Information menu access)

– Return (return to previous screen)

– Spanner (engineer function)

5 Appliance display

• Temperature and information display

6 Reset/Service engineer button

• Dual function button

– Reset (appliance reset)

– Service engineer (engineer service and set up function)

Table 2 Legend to figure 6

6720806946-01.1Wo

123456

10 9

Controls

Greenstar i System ErP– 6 720 806 947 (2015/03)

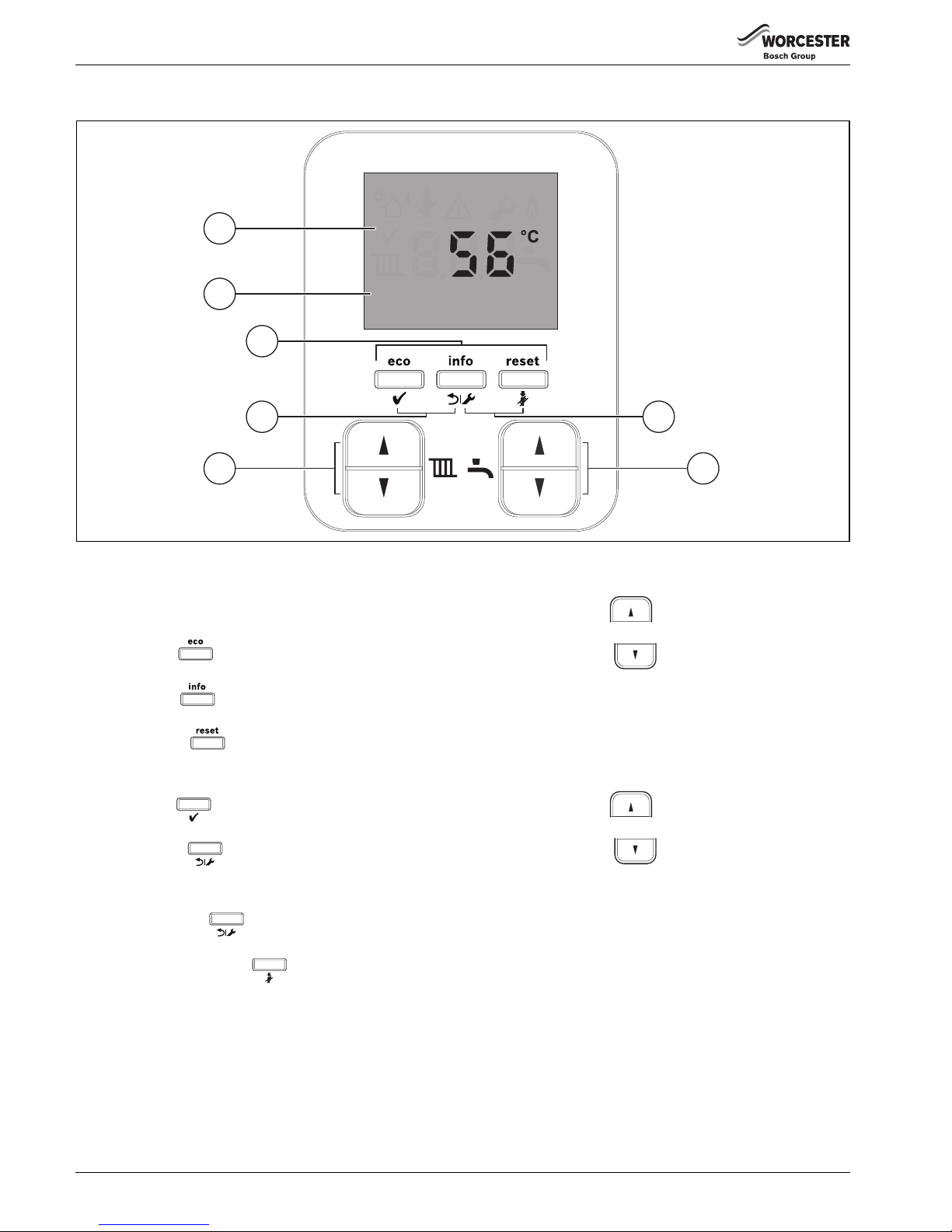

7 Cylinder hot water settings increase temperature/menu scroll up button

• Dual function button

– Increase temperature (increase the desired hot water temperature), this function is only available if the

optional integral diveter valve kit is fitted.

– Menu scroll up (scroll upwards through menu items)

8 Cylinder hot water settings decrease temperature/menu scroll down button

• Dual function button

– Decrease temperature (decrease the desired hot water temperature), this function is only available if the

optional integral diveter valve kit is fitted.

– Menu scroll down (scroll downwards through menu items)

9 Central heating settings decrease button

• Decrease temperature (decrease the desired flow temperature)

10 Central heating settings Increase button/Increase button

• Increase temperature (increase the desired flow temperature)

11 Heat requirement demand and fault indicator (blue)

• Dual function

– Heat requirement demand (illuminates during a central heating or hot water requirement demand)

– Fault indicator (flashes during a fault condition)

12 Appliance identification label

• Details on appliance model, serial number and gas council number

Item Description

Table 2 Legend to figure 6

Controls

Greenstar i System ErP – 6 720 806 947 (2015/03)

3.1 Appliance controls

Fig. 2 Display (example in standby with Eco mode active) and buttons

[1] Display Screen

[2] Eco mode active display message

[3] User function buttons:

•Ecobutton( )

– Manually select Economy or Pre-Heat mode

• Info button ( )

– Access to Info menu Function

• Reset button ( )

– Appliance reset button

[4] Menu functions buttons:

•OKbutton( )

–Confirmsaselection

•Backbutton( )

– To return to the previous option or menu

[5] Engineer function buttons:

• Spanner button ( )

– Service menu function button only

• Chimney sweep button ( )

– Engineer service and set up function only

[6] Central heating flow temperature adjustment buttons:

• Increase button ( )

–Increasevalue

•Decreasebutton( )

– Decrease value

[7] Cylinder hot water maximum temperature adjustment

buttons, this function is only available if the optional

integral diveter valve kit is fitted. (These buttons are also

used in menu /scroll/adjustment, indicated by arrows on

right of text display line):

• Increase button ( )

–Increasevalue

•Decreasebutton( )

– Decrease value

6720806946-02.1Wo

Eco

Controls

Greenstar i System ErP– 6 720 806 947 (2015/03)

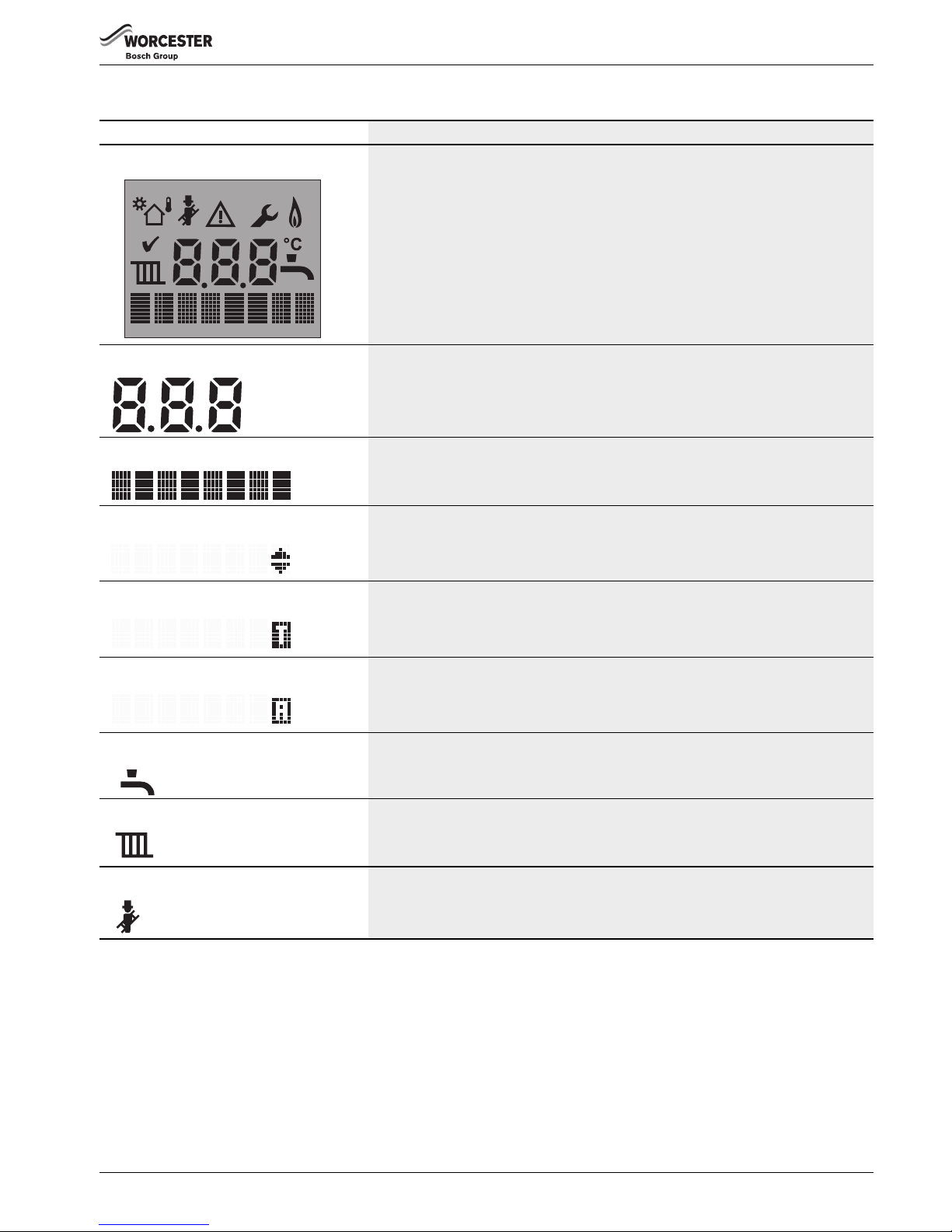

3.1.1 Appliance display

SCREEN DISPLAY DESCRIPTION

All possible screen symbols This screen is displayed briefly during appliance start up and shows all the symbols

that could be displayed.

Alpha/Numerical display Displays a temperature or appliance status code.

Text display Displays status, diagnostic code and short description information.

Right hand arrows (text display) Use domestic hot water arrow buttons to alter the menu item.

Flashing T (text display) Appliance in component test mode.

Flashing A (text display) Appliance in air purge mode.

Hot water Displays this symbol during cylinder hot water demand, when controlled with

Worcester intelligent controls in conjunction with the optional integral diverter valve

kit.

Central Heating Displays this symbol during a central heating use.

Chimney sweep mode Displays during service when the appliance is set to maximum or minimum output.

Table 3 Symbol description

6720806944-32.1Wo

Controls

Greenstar i System ErP – 6 720 806 947 (2015/03)

Alert Displays with the appliance status code and diagnostic code during a fault

condition.

Service mode Displays when a qualified service engineer is in the service menus.

Burner on The appliance is in operation and the flame is alight.

Centigrade Displays next to the temperature reading.

Confirmation This symbol confirms a setting change.

Table 3 Symbol description

°C

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Worcester Kessel Handbücher

Worcester

Worcester Benchmark Danesmoor Utility 12/14 Benutzerhandbuch

Worcester

Worcester GREENSTAR 35CDi Classic System ErP 41-406-39 Benutzerhandbuch

Worcester

Worcester Greenstar Ri Bedienungsanleitung

Worcester

Worcester Greenstar 2000 Bedienungsanleitung

Worcester

Worcester benchmark ZWB 7-25 R 25 HE Benutzerhandbuch

Worcester

Worcester GREENSTAR Ri ErP Series Bedienungsanleitung

Worcester

Worcester Greenstar Heatslave 12/18 Bedienungsanleitung

Worcester

Worcester Highflow 3.5 OF Benutzerhandbuch

Worcester

Worcester Greenstar FS 30CDi ErP Bedienungsanleitung

Worcester

Worcester 24CDi BF Benutzerhandbuch

Worcester

Worcester Greenstar Highflow 440 Bedienungsanleitung

Worcester

Worcester ZWB 7-25 HE combi Bedienungsanleitung

Worcester

Worcester 29CDi GC 47-406-34 Benutzerhandbuch

Worcester

Worcester DANESMOOR FS12/18 Benutzerhandbuch

Worcester

Worcester GREENSTAR UTILITY 32/50 Bedienungsanleitung

Worcester

Worcester DANESMOOR Benutzerhandbuch

Worcester

Worcester Greenstar Danesmoor 25kW Bedienungsanleitung

Worcester

Worcester GREENSTAR 29CDi Classic ErP Benutzerhandbuch

Worcester

Worcester Gas boiler Bedienungsanleitung

Worcester

Worcester Greenstar Heatslave II External 12/18 Bedienungsanleitung

Worcester

Worcester GB162 Konfigurationshandbuch

Worcester

Worcester danesmoor 12/14 Benutzerhandbuch

Worcester

Worcester Greenstar Danesmoor Utility Regular ErP+... Bedienungsanleitung

Worcester

Worcester GREENSTAR 24i junior Benutzerhandbuch

Beliebte Kessel Handbücher anderer Marken

Vaillant

Vaillant uniSTOR VIH SW GB 500 BES Bedienungsanleitung

Radijator

Radijator BIO max 23.1 Bedienungsanleitung

Brunner

Brunner BSV 20 Bedienungsanleitung

Buderus

Buderus Logamax GB062-24 KDE H V2 Bedienungsanleitung

Potterton

Potterton 50e Datenblatt

UTICA BOILERS

UTICA BOILERS TriFire Bedienungsanleitung

Joannes

Joannes LADY Series Handbuch

ECR International

ECR International UB90-125 Gebrauchsanweisung

Froling

Froling FHG Turbo 3000 Bedienungsanleitung

Froling

Froling P4 Pellet 8 - 105 Bedienungsanleitung

U.S. Boiler Company

U.S. Boiler Company K2 Bedienungsanleitung

Henrad

Henrad C95 FF Bedienungsanleitung

NeOvo

NeOvo EcoNox EF 36 Bedienungsanleitung

Potterton

Potterton PROMAX SL 12 Bedienungsanleitung

Eco Hometec

Eco Hometec EC 25 COMPACT Bedienungsanleitung

Viessmann

Viessmann VITODENS 200 Leitfaden

Baxi

Baxi Prime 1.24 Bedienungsanleitung

REXNOVA

REXNOVA ISA 20 BITHERMAL Bedienungsanleitung
