WORKZONE TITANIUM DBG 150 Bedienungsanleitung

User Manual

Premium Bench Grinder 250W

Contents

CONTENTS:

Warranty Details 07

Repair and Refurbished Goods or Parts Notice 08

Explanation of the symbols 09

I. Introduction 10

II. Layout 11

III. Scope of delivery 11

IV. Intended use 12

V. Safety regulations 13

VI. Technical data 17

VII. Assembly 18

VIII. Operation 20

IX. Cleaning and maintenance 21

X. Storage/Transport 22

XI. Electrical connection 23

XII. Disposal and recycling 24

XIII. Trouble shooting 25

ALDI guarantees that our exclusive brand products are developed to

our stringent quality specications. If you are not entirely satised with this

product, please return it to your nearest ALDI store within 60 days from

the date of purchase for a full refund or replacement, or take advantage of

our after sales support by calling the supplier’s Customer Service Hotline.

Made in China

WORKZONE TITANIUM is a registered trademark of ALDI Stores

DISTRIBUTED BY:

ALDI STORES

1 SARGENTS ROAD

MINCHINBURY NSW 2770

www.aldi.com.au

MODEL:DBG 150PRODUCT CODE: 51893 02/2016

AFTER SALES SUPPORT

 1300 855 831 support@scheppach.com.au

AUS

Original instruction manual

UtilisationOverview

45Contents of Box

Contents of Box

1 x Bench Grinder;

1 x Warranty card

2 x Tool rest;

2 x Spark shield;

2 x Eye protection

1 x Assembly material (Loose Parts)

1 x Instruction manual

Fig.1

Fig.11

Fig.10Fig.9

AUS

DBG 150

1AFTER SALES SUPPORT

 support@scheppach.com.au  1300 855 831

MODEL:DBG 150PRODUCT CODE: 51893 02/2016 AUS Hotline

Fig.3

Fig.4

E D F H2

Fig.5 B C D A2

Fig.7

1 2 3 4 5 6 7 8 9

10111213

Fig.6

M L K J2

Fig.8

BCDA2

J1 MLK J2

E D FG2

Fig.2

Premium Bench Grinder 250W

Warranty Details

The product is guaranteed to be free from defects in workmanship and parts for a period

of 60 months from the date of purchase. Defects that occur within this warranty period,

under normal use and care, will be repaired, replaced or refunded at our discretion.

The benets conferred by this warranty are in addition to all rights and remedies in respect of

the product that the consumer has under the Competition and Consumer Act 2010 and similar

state and territory laws.

Our goods come with guarantees that cannot be excluded under the Australian Consumer

Law. You are entitled to a replacement or refund for a major failure and for compensation

for any other reasonably foreseeable loss or damage. You are also entitled to have the goods

repaired or replaced if the goods fail to be of acceptable quality and the failure

does not amount to a major failure.

AFTER SALES SUPPORT

 1300 855 831  support@scheppach.com.au

MODEL:DBG 150 PRODUCT CODE: 51893 02/2016

Premium Bench Grinder 250W

Repair and Refurbished Goods

or Parts Notice

Unfortunately, from time to time, faulty products are manufactured which need to be returned

to the Supplier for repair.

Please be aware that if your product is capable of retaining user-generated data (such as les

stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs

stored on a portable media player, games saved on a games console or les stored on a USB

memory stick) during the process of repair, some or all of your stored data may be lost.

We recommend you save this data elsewhere prior to sending the product for repair.

You should also be aware that rather than repairing goods, we may replace them with

refurbished goods of the same type or use refurbished parts in the repair process.

Please be assured though, refurbished parts or replacements are only used where they

meet ALDI’s stringent quality specications.

If at any time you feel your repair is being handled unsatisfactorily, you may escalate your

complaint. Please telephone us on 1300 855 831 or write to us at:

RossMac Pty. Ltd.

P.O. Box 261, Essendon North, Victoria, 3041

1300 855 831

support@scheppach.com.au

AFTER SALES SUPPORT

 1300 855 831  support@scheppach.com.au

MODEL:DBG 150 PRODUCT CODE: 51893 02/2016

AFTER SALES SUPPORT 9

 1300 855 831  support@scheppach.com.au

MODEL:DBG 150 PRODUCT CODE: 51893 02/2016

AUS

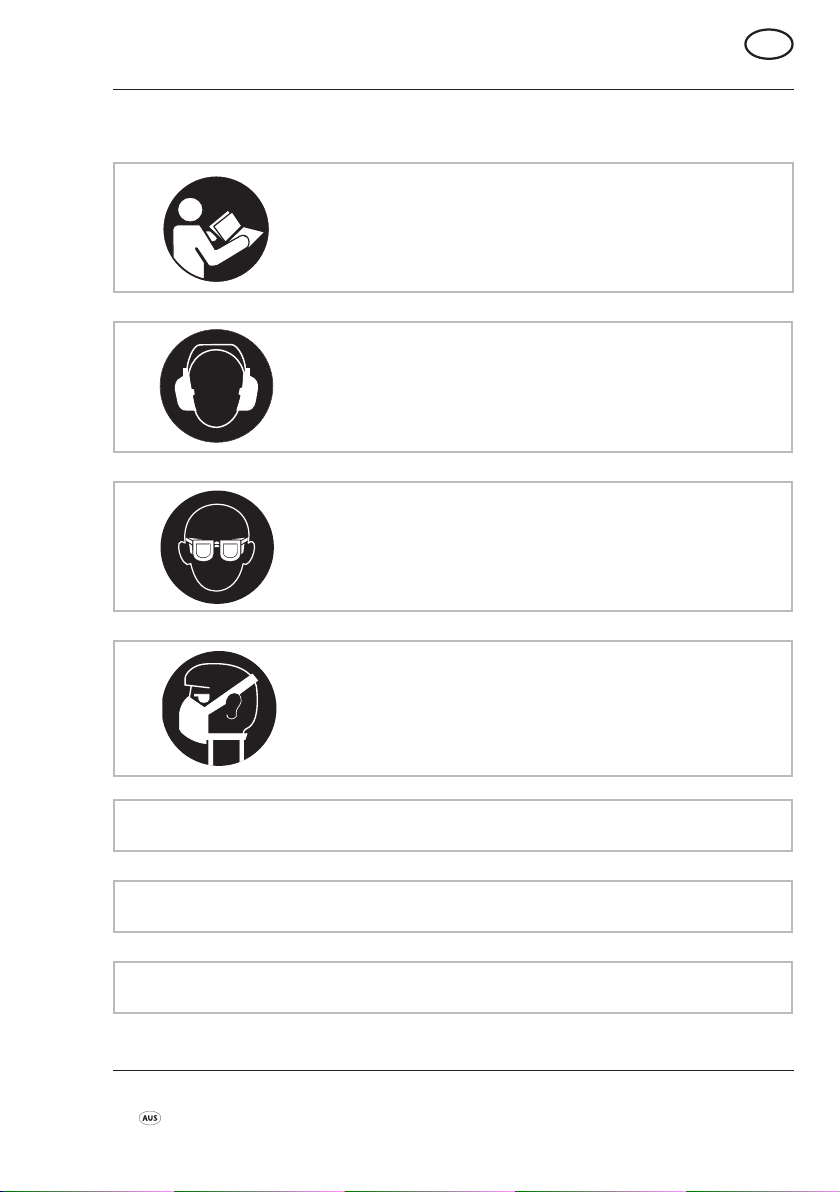

DBG 150 Explanation of the symbols

Explanation of the symbols

Read the operating instructions to reduce the risk of

injury.

Wear ear-muffs. The impact of noise can cause damage

to hearing.

Wear safety goggles. Sparks generated during working

or splinters, chips and dust emitted by the device can

cause loss of sight.

m Attention! These operating instructions provide places concerning

your safety which are marked with this indication.

m Caution! Failure to follow these instructions may cause light to

medium risk of injury.

m Warning! Failure to follow these instructions may cause danger to

life or danger of serious injuries.

Wear a breathing mask. Dust which is injurious to health

can be generated when working on wood and other ma-

terials.

10 AFTER SALES SUPPORT

 support@scheppach.com.au  1300 855 831

MODEL: DBG 150 PRODUCT CODE: 51893 02/2016

I. Introduction

Congratulations on choosing to buy a WORKZONE TITANIUM®product.

All products brought to you by WORKZONE TITANIUM®are manufactured to the

highest standards of performance and safety, as part of our philosophy of customer

service and satisfaction, are backed by our comprehensive 5 Year Warranty.

We hope you will enjoy using your purchase for many years to come.

Note:

According to the applicable product liability law the manufacturer of this device is not

liable for damages which arise on or in connection with this device in case of:

• improper handling,

• non-compliance with the instructions for use,

• repairs by third party, non authorised skilled workers,

• installation and replacement of non-original spare parts,

• improper use,

• failures of the electrical system due to the non-compliance with the electrical

specications and regulations.

Recommendations:

Read the entire text of the operating instructions prior to the assembly and operation

of the device.

These operating instructions are intended to make it easier for you to get familiar

with your device and utilise its intended possibilities of use.

The operating instructions contain important notes on how to work safely, properly

and economically with your machine and how to avoid dangers, save repair costs,

reduce downtime, and increase the reliability and working life of the machine.

In addition to the safety regulations contained herein, you must in any case comply

with the applicable regulations of your country with respect to the operation of the

machine.

Put the operating instructions in a clear plastic folder to protect them from dirt and

humidity, and store them near the machine. The instructions must be read and

carefully observed by each operator prior to starting the work. Only persons who

have been trained in the use of the machine and have been informed on the related

dangers and risks are allowed to use the machine. The required minimum age must

be met.

In addition to the safety notes contained in the present operating instructions and

the special regulations of your country, the generally recognised technical rules for

the operation of machines must be observed.

AUS

Introduction DBG 150

AFTER SALES SUPPORT 11

 1300 855 831  support@scheppach.com.au

MODEL:DBG 150 PRODUCT CODE: 51893 02/2016

II. Layout

1 Wheel cover

2 Wheel cover lock screw

3 Spark deector

4 Shield rod

5 Spark shield

6 Housing

7 Hex head bolt

8 Clamp bracket

9 Phillips head screw

10 Work rest

11 Work rest knob

12 Mounting hole

13 ON/OFF switch

III. Content

2x Work rest (J1 - left /J2 - right)

2x Shield rod (G1 - left / G2 - right)

2x Spark shield (H1 - left / H2 -right)

2x Clamp bracket (F)

4x Washer (D)

2x Hex head bolt (E)

2x Spark deector (A1 - left / A2 - right)

2x Lock washer (C)

2x Phillips head screw (B)

2x Work rest knob (M)

2x Washer (K)

2x Lock washer (L)

• Open the packaging and remove the device carefully.

• Remove the packaging material as well as the packaging and transport bracing

(if available).

• Check that the delivery is complete.

• Check the device and accessory parts for transport damage.

• If possible, store the packaging until the warranty period has expired.

m ATTENTION!

The device and packaging materials are not toys!

Children must not be allowed to play with plastic bags, lm and small parts!

There is a risk of swallowing and suffocation!

AUS

DBG 150 Layout/Scope of delivery

AUS

Intended use/Safety regulations DBG 150

12 AFTER SALES SUPPORT

 support@scheppach.com.au  1300 855 831

MODEL:DBG 150 PRODUCT CODE: 51893 02/2016

IV. Intended use

This product has been designed only for the purposes listed below:

• Sharpening drill bits

• Sharpening lawn mower blades

• Sharpening chisels, scissoris and at screwdrivers

Bench grinders are ideal for sharpening tools such as chisels, lawn mower blades,

scissors, etc., and for removing rust or corrosion. Grinders remove material rapidly

so pressure is the key to efcient grinding.

The machine is allowed to be used only for its intended purpose! Even when the

equipment is used as prescribed it is still impossible to eliminate certain residual risk

factors. The following hazards may arise in connection with the machine’s construc-

tion and layout:

• Contact with the grinding wheel where it is not covered.

• Catapulting parts out of damaged grinding wheels.

• Catapulting of workpieces and parts of workpieces.

• Damage to hearing if essential ear-muffs are not used.

• The rotating parts of the device cannot be covered for functional reasons.

Therefore you must exercise care and hold the workpiece rmly to prevent it

slipping which could result in your hands coming into contact with the grinding

wheel.

The equipment is allowed to be used only for its prescribed purpose. Any other use

is deemed to be a case of misuse. The user/operator and not the manufacturer will

be liable for any damage or injuries of any kind resulting from such misuse.

Please note that our equipment has not been designed for use in commercial, trade

or industrial applications. Our warranty will be voided if the equipment is used in

commercial, trade or industrial businesses or for equivalent purposes.

AUS

DBG 150 Safety regulations

AFTER SALES SUPPORT 13

 1300 855 831  support@scheppach.com.au

MODEL:DBG 150 PRODUCT CODE: 51893 02/2016

V. Safety regulations

WARNING! When using electric tools basic safety precautions should always be fol-

lowed to reduce the risk of re, electric shock and personal injury including the follow-

ing. Read all these instruction before attempting to operate this product and save these

instructions.

Working safely

1. Keep your working area clean and tidy.

• A disorderly working area can lead to accidents.

2. Be aware of the effects of the environment.

• Do not leave electrical power tools out in the rain.

• Do not use electrical power tools in moist or wet surroundings.

• Ensure that your working area is well lit.

• Do not use electrical power tools in areas where there is risk of re or explo-

sion.

3. Protect yourself from electric shock.

• Avoid touching earthed objects such as pipes, heating radiators, ovens or refriger-

ators with parts of your body.

4. Keep other people at a safe distance.

• Do not allow other people, in particular children, to touch the electrical power tool

or the mains lead. Keep them away from your working area.

5. Store currently unused electrical power tools in a safe place.

• When not being used electrical power tools should be stored in dry conditions in a

high or enclosed place, out of reach of children.

6. Do not overload your electrical power tool.

• By keeping within the specied working range of the tool you will work more safely

and achieve a better result.

7. Use the right electrical power tool for the task.

• Do not use low-output devices for heavy tasks.

• Do not use an electrical power tool for purposes for which it was not intended. For

example, do not use a hand operated circular saw for trimming tree branches or

cutting logs.

8. Wear suitable clothing.

• Do not wear loose-tting clothing or jewellery. They could become caught on mov-

ing parts.

• We recommend that you wear anti-slip footwear when working outdoors.

• If you have long hair, wear a hair net.

9. Use personal protective equipment.

AUS

Safety regulations DBG 150

14 AFTER SALES SUPPORT

 support@scheppach.com.au  1300 855 831

MODEL:DBG 150 PRODUCT CODE: 51893 02/2016

• Wear protective glasses.

• Wear a dust mask if your work generates dust.

10. Attaching the vacuum dust extraction device.

• Where there are connection points provided for vacuum dust extraction please en-

sure that the connections are made and used properly.

11. Do not use the mains lead for purposes for which it was not intended.

• Do not use the mains lead to pull the plug out of the mains socket. Protect the

mains lead from heat, oil and sharp edges.

12. Securely support the workpiece.

• Use clamps or a vice to grip the workpiece rmly. This is much safer than holding it

with your hand.

13. Avoid placing your body in an unnatural position.

• Keep proper footing and balance at all times.

14. Look after your tools carefully.

• Keep cutting tools sharp and clean. This way you will work more safely and

achieve better results.

• Follow the advice on tool lubrication and co sumables replacement.

• Check the condition of the mains lead on your electrical power tool regularly and

have any damage repaired by a competent specialist.

• Check the condition of extension leads regularly and replace them if they are dam-

aged.

• Keep handles and hand grips clean, dry and free of oil and grease.

15. Pull the mains plug out of the mains socket.

• Do this if the electrical power tool is not being used, before carrying out mainte-

nance tasks on the electrical power tool and whenever you are changing inserted

tools, e.g. saw blades, drills or router bits.

16. Make sure that no spanners, keys etc. are left attached.

• Check before switching on that all spanners, keys and setting tools have been re-

moved.

17. Avoid unintentionally starting up the device.

• Check that the switch is set to OFF on the device when the mains plug is inserted

into the mains socket.

18. Using an extension lead for working outdoors.

• When working outside, always use an approved and appropriately labelled exten-

sion lead.

19. Remain alert.

• Watch what you are doing. Proceed with caution. Do not use electrical power tools

if you cannot concentrate.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere WORKZONE TITANIUM Schleifer Handbücher

WORKZONE TITANIUM

WORKZONE TITANIUM BTS920 Bedienungsanleitung

Beliebte Schleifer Handbücher anderer Marken

Parkside

Parkside PWS 230 C3 Bedienungsanleitung

SUHNER ABRASIVE

SUHNER ABRASIVE ASC 9 Technisches Handbuch

PTA

PTA P1322 Bedienungsanleitung

Crown

Crown CT13313 Bedienungsanleitung

Parkside

Parkside 280250 Bedienungsanleitung

Climax

Climax VM2150 Series Bedienungsanleitung

Jet

Jet JPSG-618M1 Service-Handbuch

Makita

Makita GA4030 Bedienungsanleitung

DeWalt

DeWalt DWEN202 Bedienungsanleitung

Grizzly

Grizzly G2790 Bedienungsanleitung

Fein

Fein MSf843-1a Bedienungsanleitung

Bosch

Bosch GWS 14,4 V PROFESSIONAL Bedienungsanleitung

RAMSET

RAMSET CBAGR18 Bedienungsanleitung

Bosch

Bosch 8-115 Z Bedienungsanleitung

STEELE PRODUCTS

STEELE PRODUCTS SP-PB008 Bedienungsanleitung

MW TOOLS

MW TOOLS ME15W Bedienungsanleitung

Caravaggi

Caravaggi SP 20 Betriebsanleitung

SUHNER ABRASIVE

SUHNER ABRASIVE UWK 10-R125 Technisches Handbuch
