1 Security requirements

1.1 Electromagnetic compatibility

When connecting additional or other compo-

nents the “Electromagnetic Compatibility Direc-

tive” (EMC) must be adhered to.

Hearing aids

Under certain circumstances, terminals can

cause some hearing aids to malfunction. Con-

tact the dealer/manufacturer of your hearing aid.

Other medical equipment

If you use a medical device, please contact the

manufacturer to determine whether it is suf-

ciently protected against electromagnetic

waves. If necessary, your attending physician

could be helpful in obtaining this information.

Equipment is often used in hospitals, medical

ofces and other facilities which is highly sensi-

tive to external electromagnetic waves. Do not

use the terminal in such locations.

Aeroplanes

To avoid interfering with the communication

systems, do not use the terminal during the

ight. Only activate the terminal on the ground

with permission from the ground personnel.

Potentially explosive areas

Do not use the terminal in explosive zones or

areas bearing signs with “Switch off sending/

receiving devices”. Do not use the terminal in

such potentially explosive locations.

Appropriately marked locations

Follow instructions and do not use the terminal

in locations with obvious signs and instructions

prohibiting such use.

While driving

Radio frequencies can interfere with electronic

systems in vehicles, such as car radios or secu-

rity devices, etc.

Vehicles equipped with airbags

An enormous force is released when airbags are

activated. Therefore, do not place the terminal in

the area above the airbag or in the space in which

the airbag could deploy. Terminals that are

improperly installed can cause serious injury

upon deployment of an airbag.

Electronic devices

Most morn electronic devices, such as those

used in hospitals and vehicles, are protected

against radio frequencies. However, this is not

the case with all electronic devices. Do not use

your terminal in the proximity of medical equip-

ment without obtaining prior permission.

Heart pacemaker/other medical devices

Terminals can affect the functioning of implanted

heart pacemakers and other medically implanted

devices. Patients with a heart pacemaker should

be informed that the use of terminals in the

immediate vicinity of a pacemaker can lead to

malfunctions. Do not pass the terminal over the

pacemaker. The risk of a malfunction however, is

minor if a minimum distance of 15 cm between

the terminal and the pacemaker is maintained. If

you suspect that malfunctions are occurring, put

the terminal aside. If necessary, consult your car-

diologist. If other medical devices are used in or

on the body, then the equipment manufacturer

should be consulted as to whether such devices

are sufciently protected against radio frequency

signals. Do not use the terminal where the devices

are implanted.

1.2 Where wireless technologies are used

The CE declaration of conformity is found on the

SIX Payment Services homepage at:

www.six-payment-services.com

Every effort has been made to ensure that the information in

this document is complete and exact at the date of printing.

Further developments in the eld of electronic payment trafc

and technological progress could result in changes that might

deviate from the description in this user guide.

Consequently, SIX Payment Services Ltd accepts no responsi-

bility for the information provided in the operating instructions

being current, complete or correct. Furthermore, to the extent

permitted under the relevant legal provisions, SIXPayment

Services Ltd accepts no responsibility in connection with the

operating instructions.

The menu navigation on the terminal has been designed to

be self-explanatory, making this document necessary only in

case of emergency.

The latest version of the user guide, together with any updates,

can be found on our homepage at:

www.six-payment-services.com

1.3 CE declaration of conformity

2 Product info

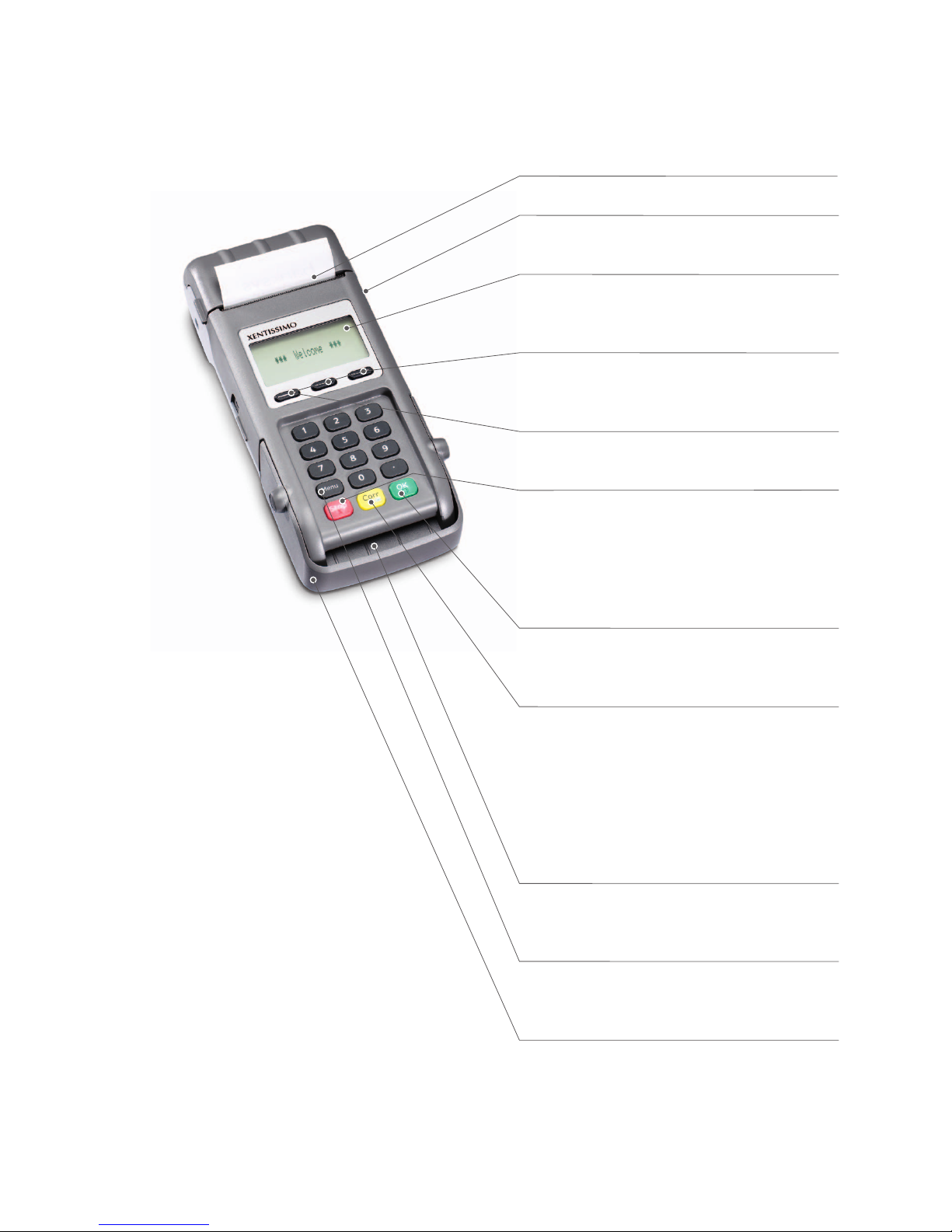

2.1 Terminal overview

Thermal printer

Magnetic strip reader (on the side)

For cards with magnetic strips.

Display

The next step to be taken is always shown on

the display.

Navigation buttons

You can use these three buttons to navigate

through the menu (up/down/conrm).

Special case

<Conrmation special signalization>.

<STOP> button

Active procedures can be stopped using this

button. The terminal can also be switched off

completely by pressing the button for more than

5 seconds (to do so, the terminal must not be

connected to the power supply).

<OK> button

All entries must be conrmed using the <OK>

button.

<Corr/On> button

– Incorrect entries can be corrected using the

<Corr> button.

– Press the button to activate the terminal from

stand-by mode.

– The terminal will restart if the button is

pressed for more than 5 seconds. All data will

be retained.

Chip reader

For chip cards (EMV-capable cards and post-

cards).

<Menu> button

Activates battery charging, displays reception

strength.

View protection

The swipe and chip reader can only be used

when the view protector is raised.

The view protection cannot be removed!

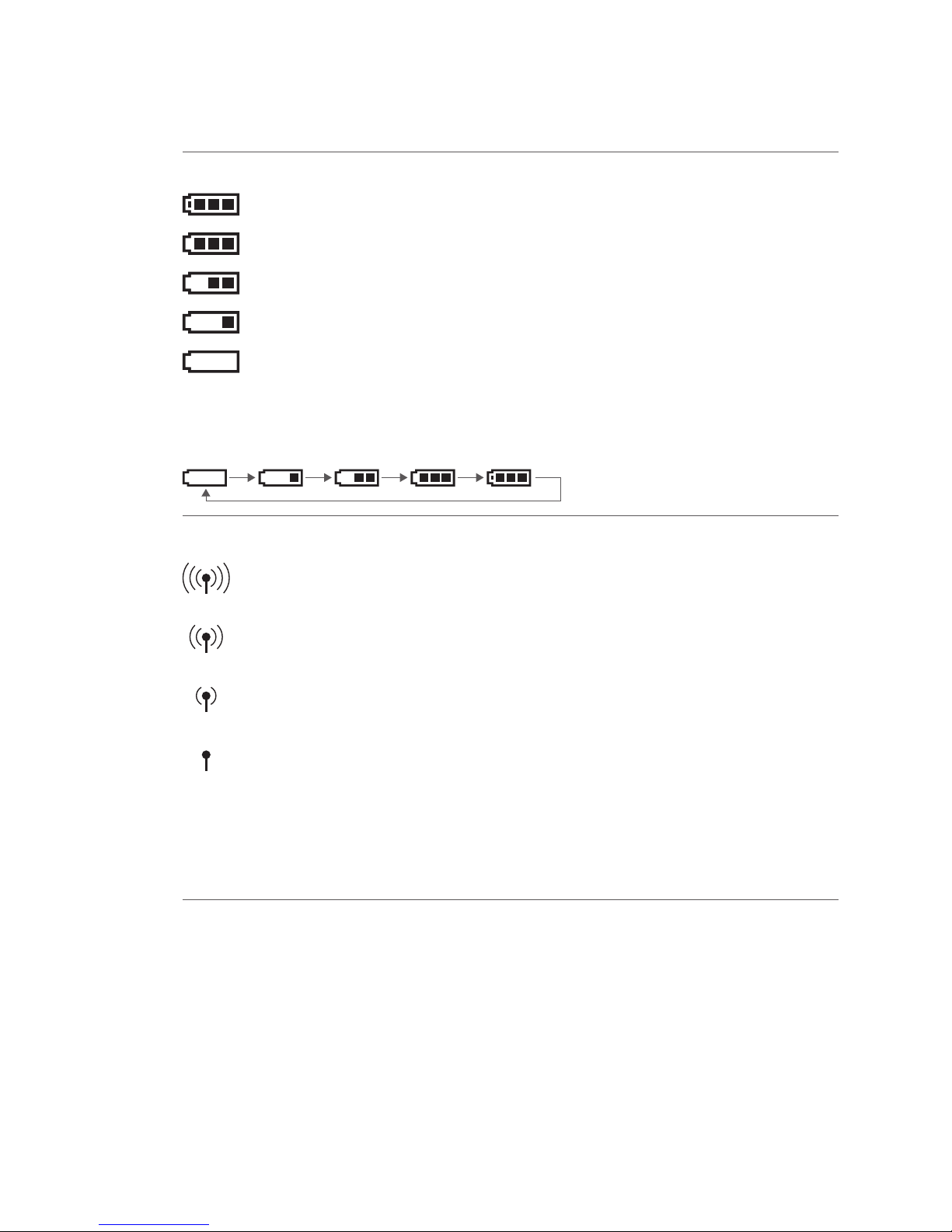

2.2 Display symbols

Battery

Battery level 95 – 100%

Battery level 66 – 95%

Battery level 33 – 66%

Battery level 10 – 33%

Battery level 0 – 10%

!If the battery symbol does not appear, the battery is empty.

Recharging: The symbols are shown in the following order when the battery is recharging:

WLAN Only appears when WLAN communication is used.

WLAN is connected to an access point, the IP address is valid, and the reception

strength is 100%.

WLAN is connected to an access point, the IP address is valid, and the reception

strength is greater than 66%.

WLAN is connected to an access point, the IP address is valid, and the reception

strength is greater than 33%.

WLAN is connected to an access point, the IP address is valid, but reception is

poor.

! If the WLAN symbol ashes, there is a connection to the access point, but the IP address is

invalid.

!If the WLAN symbol does not appear, either WLAN is not available or there is no connection to

the access point.

GSM/GPRS

Reception

strength

Only appears when GPRS communication is used.

There is a connection to the network and the reception strength is 100%.

There is a connection to the network and the reception strength is greater than

80%.

There is a connection to the network and the reception strength is greater than

60%.

There is a connection to the network and the reception strength is greater than

40%.

There is a connection to the network and the reception strength is greater than

20%.

!If the GSM/GPRS symbol does not appear, GSM/GPRS is not assigned to a network or reception

is too poor to set up a connection.

The reception strength is supplemented by one of the two symbols shown below.

GSM is in use, GPRS is not available/in use.

! If the GSM/GPRS symbol ashes, it is in use but ofine.

GSM/GPRS is in use (GPRS mode).

!If no supplementary symbol appears, GSM/GPRS is not available.

GSM/GPRS

Data transmission

This symbol always appears together with a communication symbol. It shows

that a transaction is running.

This symbol appears with either the Ethernet or the WLAN symbol. It shows that

a secure connection is active.

Table loading station installation

1. Loading station with power supply.

2. The electrical current is supplied through

the cable that connects directly with the

loading station.

1 2

Wall mount installation

1. The loading station is screwed to the wall

mounting component (screw holes

provided, see back of loading station).

2. Wall mounting (screw holes provided).

3. After the loading station has been positioned

on the wall, connect it to the power supply

using the cable provided.

Placing the xentissimo in the loading station

1. Insert the xentissimo from top to bottom.

2. Snap into the side clamps.

1 2

Removing the xentissimo

1. Press the two side buttons simultaneously.

2. Slide back and upwards to remove the unit.

1 2

Clip holder

1. Remove the plastic nub from the rear of the

xentissimo and put to one side.

2. Open the printer and remove the paper.

Slide the clip underneath. Tighten with a

Phillips head screwdriver. Reinsert the paper.

3. xentissimo with clip!

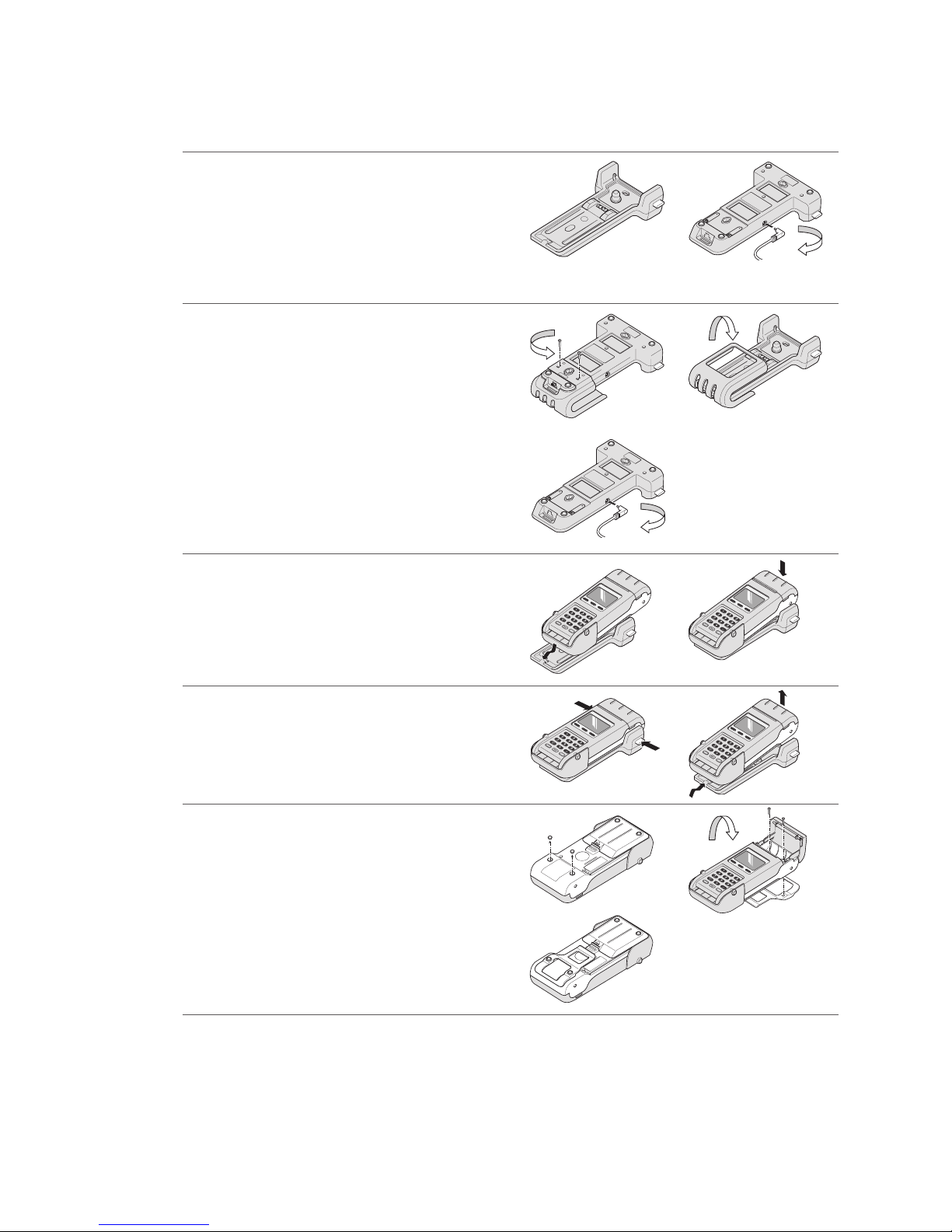

2.3 Loading station: table/wall installation and clip holder

The lifespan of the rechargeable battery is three

years. Replacement batteries can be obtained

from SIX Payment Services Ltd.

The rechargeable battery can be replaced in

four steps:

1. Press the tag with your thumb and remove

the cover.

2. Remove the rechargeable battery

(using a coin helps).

3. Insert the new rechargeable battery and

press it into place.

4. Slide the cover back into position.

Installing SIM cards

(generally performed by SIX Payment Services Ltd,

see point 2.5 GSM/GPRS).

1. Remove the rechargeable battery

(using a coin helps).

2. Remove the SIM card (to the left!) and insert

the new card. Replace the cover and close.

!Be sure to insert SIM card with the oblique

corner facing in the right direction!

If you do not intend to use the device for an

extended period of time, remove the recharge-

able battery and store it separately.

2.4 Changing the rechargeable battery/Installing SIM cards

Cards with a chip Cards which store the information needed for electronic payment on a chip

must be inserted in the chip reader.

Cards with a

magnetic strip

Cards which store the information needed for electronic payment on a

magnetic strip must be pulled through the swipe reader.

CC Computer centre

CCC Credit card company

CrC Credit cards

CVC/CVV Card Verication Code /Card Verication Value number used to identify the

card.

EFT/POS Electronic fund transfer at the point of sale.

EMV Global specications from Eurocard, MasterCard and VISA based on a chip

card.

ep2 <EFT/POS 2000>, Swiss standard based on the EMV standard in electronic

payment trafc.

GPRS General Packet Radio Service (GPRS) is a packet-oriented transmission

service that is used in the eld of mobile telephone systems.

GSM Global Standard for Mobile Communications

Online transaction An online transaction is always directly authorised at the CCC.

Ofine transaction An ofine transaction is authorised in interdependence with the card and

terminal risk management (e.g. if the amount of the previous transactions is

less than the card limit or if the amount is less than the terminal oor limit

on the card, etc.).

PF PostFinance (Switzerland)

PIN Personal Identication Number

PIN-based

transaction

For a PIN-based transaction, the customer must enter his/her PIN at the

point of sale during the payment process.

PSW Password

PUK Personal Unblocking Key

Tip Tip

TRM Terminal

TRX Transaction

WLAN A Wireless Local Area Network is a “wireless” local radio network, which

generally refers to a standard within the IEEE 802.11 family.

2.5 Abbreviations/Information

Inhaltsverzeichnis

Andere Worldline Zahlungsterminal Handbücher

Worldline

Worldline YOMANI Bedienungsanleitung

Worldline

Worldline Saturn 1000F2 Portable Flex Technisches Datenblatt

Worldline

Worldline Link/2500 Portable Flex Bedienungsanleitung

Worldline

Worldline VALINA Bedienungsanleitung

Worldline

Worldline Six VALINA Kurzanleitung zur Einrichtung

Worldline

Worldline YOXIMO Bedienungsanleitung

Worldline

Worldline ingenico Move/5000 Bedienungsanleitung

Worldline

Worldline VALINA Gebrauchs- und Pflegehandbuch

Worldline

Worldline Link/2500 Portable Flex Technisches Datenblatt

Worldline

Worldline VALINA Kurzanleitung zur Einrichtung

Worldline

Worldline Ingenico Telium TETRA Desk/3500 Bedienungsanleitung

Worldline

Worldline SIX Payment Services YOMANI TOUCH XR Bedienungsanleitung

Worldline

Worldline Ingenico Telium TETRA Desk/3500 Bedienungsanleitung

Worldline

Worldline Ingenico Lane/3600 Bedienungsanleitung

Worldline

Worldline Yomora Bedienungsanleitung

Worldline

Worldline Self/7000 Kurzanleitung zur Einrichtung

Beliebte Zahlungsterminal Handbücher anderer Marken

PAX

PAX D180SRF Bedienungsanleitung

LinkPoint

LinkPoint AIO Bedienungsanleitung

Moneris

Moneris hispeed 6200 Bedienungsanleitung

Moneris

Moneris iWL220 Bedienungsanleitung

Ingenico

Ingenico iUC280 Bedienungsanleitung

Ingenico

Ingenico Tetra Move/5000 Bedienungsanleitung

Ingenico

Ingenico iWL250B Bedienungsanleitung

Optimum

Optimum M4230 Bedienungsanleitung

Triton

Triton RL5000 Bedienungsanleitung

Ingenico group

Ingenico group Lane/8000 Bedienungsanleitung

Gilbarco

Gilbarco FlexPay IV CRIND Installations- und Betriebshandbuch

Infinite Peripherals

Infinite Peripherals Infinea Tab Lite Bedienungsanleitung

PAX

PAX S920 Bedienungsanleitung

Ingenico

Ingenico iCT220, iCT250 Bedienungsanleitung

dejavoo

dejavoo Z Series Bedienungsanleitung

VeriFone

VeriFone VX 520 Series Bedienungsanleitung

Optomany

Optomany axept S900 Bedienungsanleitung

Skyzer

Skyzer iWL252 BLUETOOTH Bedienungsanleitung

Worldline xentissimo Bedienungsanleitung

Beliebte Zahlungsterminal Handbücher anderer Marken
