WowWee RobotZombie Bedienungsanleitung

USER MANUAL

ITEM NO.: 0920

RobotZombie™ Apocolypse!

Contents

X1 RobotZombie™

X1 Zombie Blaster X3 Foam Darts

X1 Instruction Manual

RobotZombie™

Zombie Blaster

3 Foam Darts

Congratulations on your purchase of RobotZombie™!

At one time just a working robot, RobotZombie™ was infected with a mysterious Zombie virus,

and is now on the prowl to spread the infection.

Inside you will nd instructions on how to not only battle this mechanical menace in Zombie

Infection mode, but also how to take direct control and access his movements and functions!

1.5V “AAA”

LR03 /UM4

1.5V “AAA”

LR03 /UM4

1.5V “AAA”

LR03 /UM4

1.5V“AA”

LR6 / UM3

1.5V“AA”

LR6 / UM3

1.5V“AA”

LR6 / UM3

1.5V“AA”

LR6 / UM3

Battery Detail

BATTERY REQUIREMENTS:

Your robot is powered by 4 x“AA”size Alkaline batteries

(2 batteries in each foot - not included).

Your zombie blasteris powered by 3 x “AAA”batteries (not included).

RobotZombie™ : Base of Feet Zombie Blaster: Side View

IMPORTANT BATTERY INFORMATION:

•Use only fresh batteries of the requiredsize and recommended type

•Do not mix old and new batteries, dierent types of batteries [standard

(Carbon-Zinc), Alkaline or rechargeable] or rechargeable batteries of dierent capacities

•Remove rechargeable batteries from the toy before recharging them

•Rechargeable batteries are only to be charged under adult supervision

•Please respect the correct polarity, (+) and (-)

•Do not try torecharge non-rechargeable batteries

•Replace all batteries ofthe same type/brand at the same time

•The supply terminals are not tobe short-circuited

•Remove exhaustedbatteries from the toy

•Batteries shouldbe replacedby adults

•Remove batteries if the toy is not goingto be played with for some time

•Robot will just stop when battery power gets VERY low. Power o and replace all batteries.

• Some lighting or sunlight can interfere with infra-red signals.

NOTE

LOW BATTERY INDICATORS:

When RobotZombie™ ’s batteries grow weak, your RobotZombie™ will move and walk very slowly

When this occurs, power robot OFF and replace all batteries.

When the Zombie Blaster’s batteries grow weak, RobotZombie™ will no longer respond to the

commands. Whenthis occurs, replace all batteries

BATTERY INSTALLATION:

• Be sure the robot powerbutton is in the OFFposition before installing or

changing batteries.

• Remove the battery covers with a Phillips/crosshead screwdriver as shown

(not included).

•Install recommended batteries as shown, making surebattery polarity iscorrect

(batteries not included).

• Replace battery doors and carefully tighten all screws.

RobotZombie™ Overview

Light Up

LED Eyes

Left

Chestplate

Right

Chestplate

Infra-Red

Receiver

Exploding

Arms

Front View

Exploding

Arms

Cranium

Plate

Speaker

Infra-Red

Receiver

ON/OFF

Switch

Removable

Arms

Back View

Removable

Arms

Cranium

Plate

Cranium

Plate

Zombie Blaster Overview

Forward

Back

Turn Right

Boost

SFX2

Command

RobotZombie™ to

shufe around!

Turn Left

Basic Controls

Note: Swivel the barrel to load the

next foam dart to the chamber.

Zombie Blaster - Side View

TOP View

• Do NOT store Zombie Blaster cocked and ready to re.

• Be sure to upload darts before storing away.

NOTE

CAUTION:

Do NOT aim at eyes or face.

TO AVOID INJURY:

Use only darts designed for this

product. Do not modify darts or

Zombie Blaster.

Discover hidden sounds by trying

different button sequences and

combinations!

SFX1

Command RobotZombie™

to burp, laugh maniacally,

or groan!

Hold for extended effect!

Barrel

Compression

Handle

Infra-Red

Transmitter

Trigger

Assembly Instructions

Click in arms

Tilt head forward Close Cranium Plates

1. Load Foam Darts, pull back compression handle

Blast off arms by hitting

the chestplates!

Hit him in the forehead to blast

open the cranium plates!

2. Press the trigger to fire 2

1 1

Advanced controls

Boost // /+

Boost RobotZombie™’s power core, increasing his speed!

Supercharge

Supercharge RobotZombie™’s memory circuits,

causing him to activate sounds and memories from

his past!

lurch

RobotZombie™ will suddenly lurch forward,

deecting incoming re!

Infection mode

Allow the Zombie virus to take over,

activating RobotZombie™’s Infection mode!

Hold down button for...?

•

Standby Mode: After 3 minutes of inactivity, RobotZombie™’s

lights will shut down and he will enter Standby Mode. To exit

Standby Mode, press any button on the Zombie Blaster.

• Power Down Mode: After 5 minutes of inactivity,

RobotZombie™

will power down. To exit Power Down Mode,

activate the chestplate or cranium cover, or switch the power

OFF then ON again.

NOTE

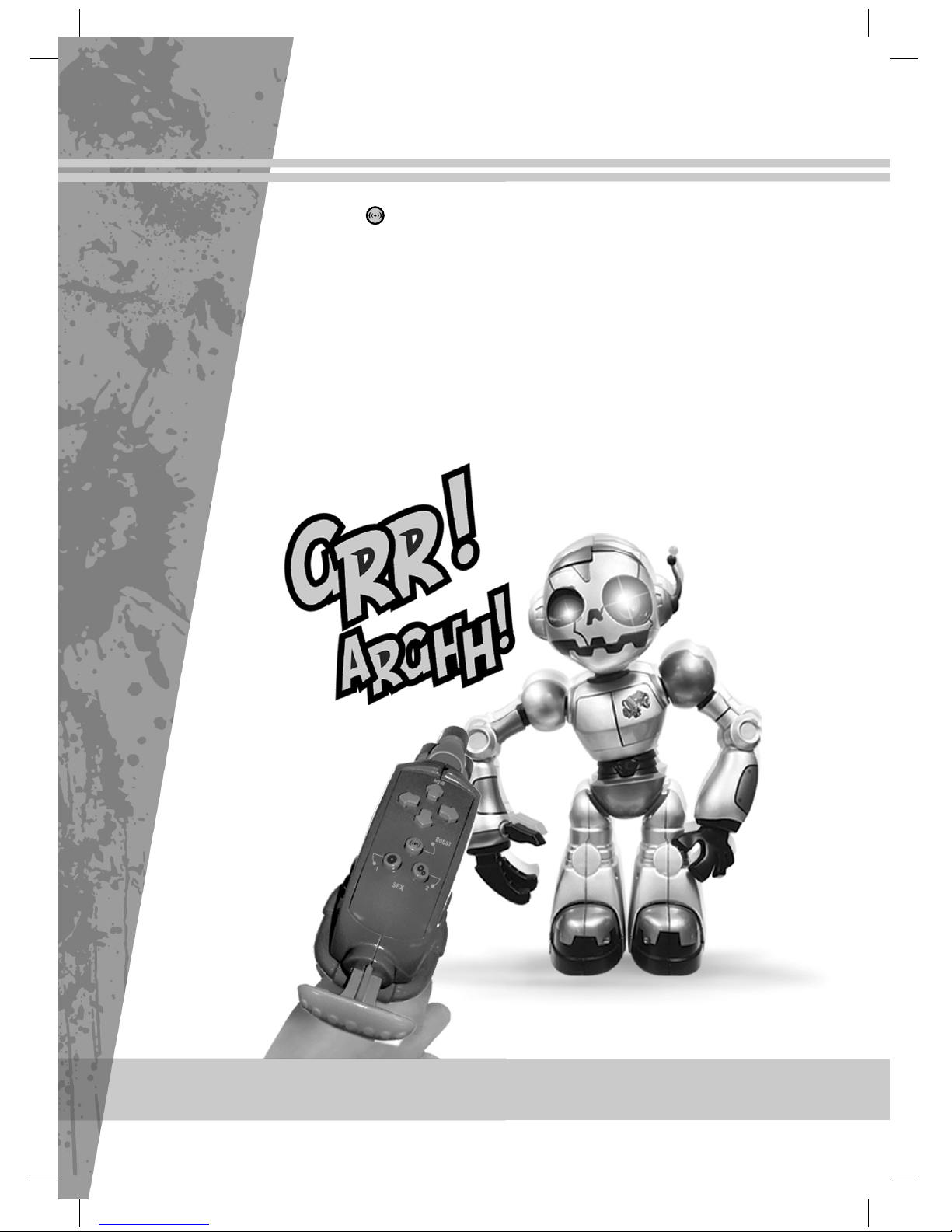

To play Zombie Infection, rst make sure that RobotZombie™ is fully assembled.

Then, press quickly on the Zombie Blaster. RobotZombie™ will growl and his

eyes will start to blink as he moves around, searching for

uninfected machinery and humans.

To defeat him in time, you must blast off both his arms by hitting the two chest

plates rst, then hit him in the head to blast open his head plate before your time

runs out.

If you win, RobotZombie™ will be deactivated. If your time runs out before

deactivating him, you become RobotZombie™’s latest victim. Whether you win or

lose, you can still reassemble RobotZombie™ and take direct control or play Zombie

Infection again!

Zombie Infection Gameplay

010

CONTACT INFORMATION

To learn more about RobotZombie™ andrelated products, go to www.wowwee.com

If you have any questions that are not answered inthis user manual, refer towww.wowwee.com/support

This symbol is only valid in the European Union. If youwishtodiscardthis product, please contact your local authorities or dealer and ask for the

correct method of disposal.

The equipment that you have purchased has required the extraction and use ofnatural resources for its manufacturing. It may

contain substances that are hazardous to health andthe environment. In order to prevent the release of these substances into

the environment and toreduce the pressure on natural resources, we encourage youto use appropriate return systems. These

systems will ensure that most of the materials in your equipment are properly reused or recycled at the end ofits operational life.

The crossed-bin symbol invites to use these systems. For further information on collection, reuse and recycling systems, please

contact your regional waste management administration.
