loader Crane
Model：SQ10SK3Q
Operation and Maintenance Manual
XCMG Xuzhou Truck-mounted Crane Co.,Ltd
！
！C
Ca
au
ut
ti
io
on
n
：
：R
Re
ea
ad
d
t
th
hi
is
s
m
ma
an
nu
ua
al
l
c
ca
ar
re
ef
fu
ul
ll
ly
y
b
be
ef
fo
or
re
e
o
op
pe
er
ra
at
ti
in
ng
g,
,
k
ke
ee
ep
p
t
th
hi
is
s
m
ma
an
nu
ua
al
l
i
in
n
t
th
he
e
c
ca
ab
b
f
fo
or
r
f
fu
ut
tu
ur
re
e
r
re
ef
fe
er
re
en
nc
ce
e
徐州徐工随车起重机有限公司
- 2 -
Foreword
The series loader crane in the manual is designed and manufactured
by us, and the chassis connected which is made in china, the main series truck-mounted
crane including telescopic type and knuckle type.
The product have two performance of lifting and carrying, with tightness structure,
operational safety and easy to operating. It can be used in transporting, dock, storage, etc. and
also can be used to loading and unloading goods, greatly saved labor force.
You should read the manual carefully to ensure that your safety and crane working reliably,
truck-mounted crane driver, crane operator and crane maintenance man must be trained by
related man and familiar with the truck and crane operating process.
You should comply with the operating and maintenance request for truck
for the useful life of the truck.
The operating and maintenance and note in the manual is for crane, you should refer to
the truck operating manual if you want to operating and maintenance it.
Make sure that do not refit the machine or replace its parts with non-original
without authorization and permission of manufacturer, and therefore manufacturer has
no responsibility for the bad result arising from the reasons mentioned above！
All the specification, annex, operating and maintenance are subject to technical
modification without notice.
Executive standard QC/T459-2004.
Copyright：XCMG Xuzhou Truck-mounted Crane Co., Ltd.
Printing date:2005.9
Address：No. 55 Tuolanshan road, Xuzhou economic development zone, Jiangsu Province
Post Code：221004
List of section:
This Manual comprises 8 sections. Each section is described as follows:
A General information：This section contains important general information intended to
acquaint you with the machine, as well as data for the exact identification.
徐州徐工随车起重机有限公司
- 3 -
B Performance data and specification: This section contains all the technical
characteristics of the crane in its standard set-up.
C Safety rules and devices：This section sets forth all the rules, introductions and
information regarding both operator and machine safety.
D Operator: This section specifies the skills requirement and other attributes that the
operator must possess.
E Description of controls and Instruments：This section explains and illustrates the
various controls and instruments located on the machine.
F Operate instruments：This sections describes and illustrates the various machine
movements.
G analysis & eliminate for general faults：This section contains the faults of eliminate.
H Maintenance：This section contains charts and tables covering crane maintenance jobs
and schedules.
Customer information:
The manufacturer in the manual is XCMG Xuzhou Truck-mounted Crane Ltd
The operate instruments are designed by manufacturer.
NOTICE：You should notice the following points when check the machine.
1. The requirement of the manual description.
2. The specification, rated capacity and other information contained in the manual refer to
the max capacity of the crane ,The capacity of crane will be reduced if the truck, ship, flat
vehicle to be matched crane have not enough stability, the capacity of the crane will be
reduced ,it should be defined again.
3. do not perform weld and tamper with electrical or hydraulic equipment and replace parts
with anything but original spares and to remove protection guards and devices.
4. maintenance should be done as request and at the specified intervals.
徐州徐工随车起重机有限公司
- 4 -
Content:
A.00 General........................................................................................................................................................6
A.01 Definition of glossary.................................................................................................................................6
A.02 Symbols.......................................................................................................................................................6
A.03 Crane type & meaning...............................................................................................................................6
A.04 Crane nameplate........................................................................................................................................6
A.05 Warning.......................................................................................................................................................7
A.06 Main parts name of the crane...................................................................................................................7
B.00 Description of performance data ..............................................................................................................8
B.01 Working Data..............................................................................................................................................8
B.02 Slewing base and active leg........................................................................................................................9
B.03 Hydraulic system........................................................................................................................................9
B.04 Movement speed.........................................................................................................................................9

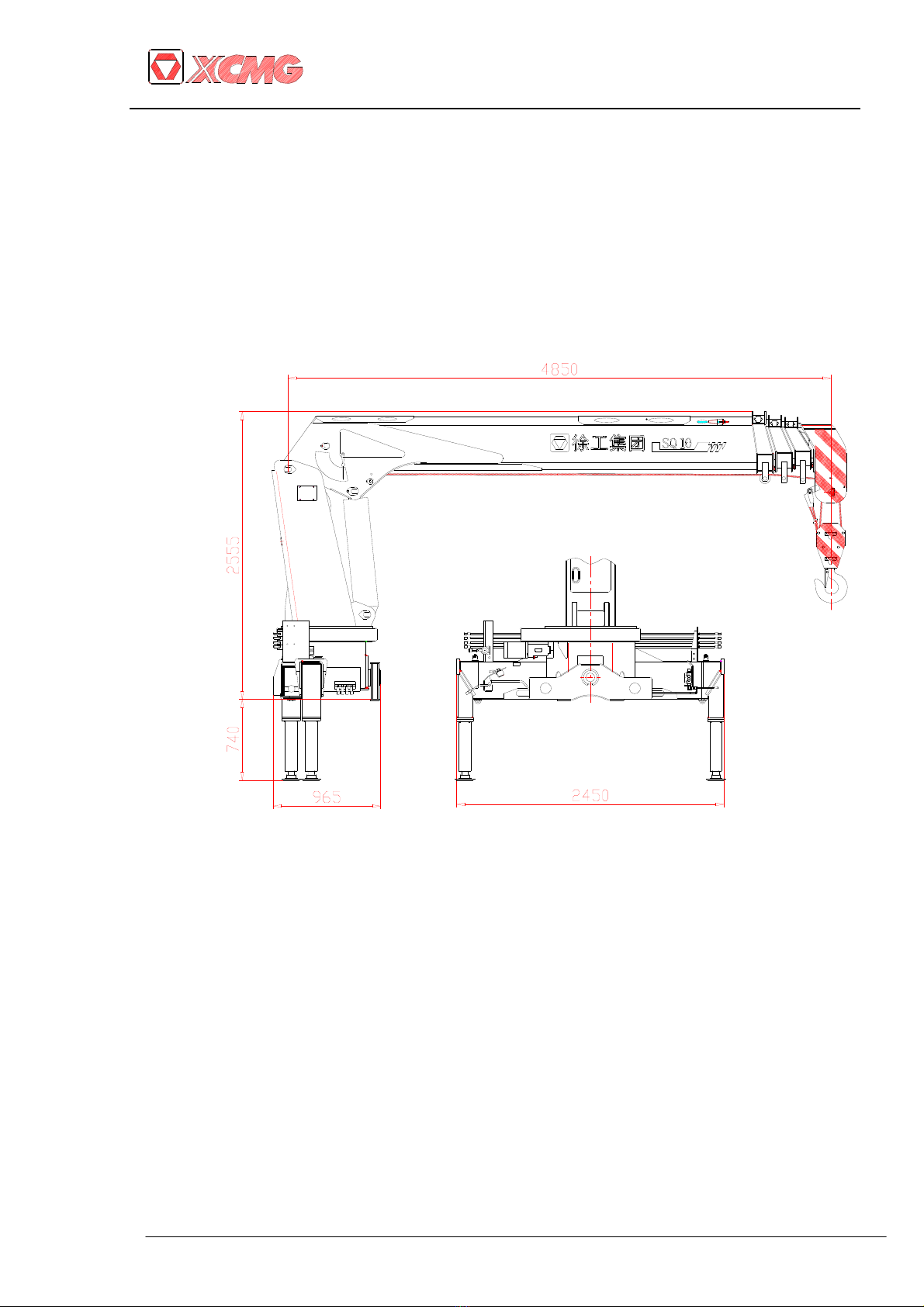

B.05 Overall dimensions...................................................................................................................................10
B.06 Boom working range................................................................................................................................10
B.07 Crane character graph.............................................................................................................................11
B.08 Theory chart of hydraulic system...........................................................................................................12
B.09 Selecting of parts line of rope..................................................................................................................12
C.00 Safety rules & device................................................................................................................................12
C.01 Working condition....................................................................................................................................12
C.02 Environment condition............................................................................................................................12
C.03 Requirement for rope use........................................................................................................................13
C.04 General description of safety rules.........................................................................................................13
C.05 Safety devices............................................................................................................................................17
C.05.1 Lock device on fixed legs ......................................................................................................................17
C.05.2 Valves on hydraulic cylinders...............................................................................................................17
C.05.3 Anti-rotation device...............................................................................................................................17
C.06 Forecast risk and unforecast risk area...................................................................................................18
D.00 Operator....................................................................................................................................................18
D.01 Essential requirements.............................................................................................................................18
D.02 Duties and Responsibilities......................................................................................................................19
D.03 Control stations........................................................................................................................................19
E.00 Control devices .........................................................................................................................................19
E.01 Oil level indicator.....................................................................................................................................19
E.02 Crane operation controls.........................................................................................................................19
E.02.1 Boom, column and lift machine control lever.....................................................................................20
E.02.2 Stabilizer control lever..........................................................................................................................21
F.00 Operating instruction...............................................................................................................................22
F.01 Notice before operating ............................................................................................................................22
F.02 Start-up operations...................................................................................................................................23
F.03 Stabilizing the crane..................................................................................................................................23
F.04 Opening the crane.....................................................................................................................................23
F.05 Operating telescopic boom.......................................................................................................................25
F.06 Closing the crane.......................................................................................................................................25
徐州徐工随车起重机有限公司
- 5 -
F.07 Maintenance the crane:............................................................................................................................28
G.00Analysis & eliminate for general faults ..................................................................................................28
H.00 Maintenance.............................................................................................................................................29
H.01 Notice before maintenance......................................................................................................................29
H.02 Maintenance schedule..............................................................................................................................30
H.03 Crane maintenance..................................................................................................................................30
H.04 Checking the oil level in the tank............................................................................................................32
H.05 Replace the oil..........................................................................................................................................32
H.06 Replacing the oil filter.............................................................................................................................32
H.07 Checking wear on sliding pads ...............................................................................................................32
H.08 Checking screw tightness ........................................................................................................................33
H.09 Operation and maintenance for lifting winch .......................................................................................33
H.09.1 Purpose and characters........................................................................................................................33
H.09.2 Reasonable use and greasing................................................................................................................33
H.09.3 Safekeeping............................................................................................................................................33
H.09.4 Faults and eliminations ........................................................................................................................33
H.10 Operation and maintenance for rotation speed reducer ......................................................................34
H.10.1 Purpose and character..........................................................................................................................34
H.10.2 Reasonable use and greasing................................................................................................................34
H.10.3 Safekeeping............................................................................................................................................35
H.10.4 Faults and eliminations ........................................................................................................................35
H.11 Character of hydraulic oil, grease and gear oil .....................................................................................35
H.12 Disassembly..............................................................................................................................................35
徐州徐工随车起重机有限公司
- 6 -
A.00 General
A.01 Definition of glossary
Active safety: devices controlled by operator to ensure safety
Articulation point: articulated joint between two or more elements.
Active hook: attach the end of boom for lifting.
Hydraulic telescopic boom: cylinder operated telescopic the boom
Limit point: it can’t be movement if exceed the point
Moment: product of load applied and its distance from slewing axis.
Operator: person who operate the crane
Nameplate of lifting graph: device for express the 90%-100% lift capacity of crane.
Working range: horizontal distance from center of hook to slewing center.
Passive safety: devices can’t be controlled to ensure safety.
Power system: hydraulic drive system for perform crane movement.
Rated lift capacity: max lift weight at give distance.
Standard device: crane without optional attachment.
A.02 Symbols
In this manual you will come across various symbols accompanied by a written message.
The symbols are intended to alert you to specific situations which are described in the
message, there are three main symbols as follows.
warning：Giving the operator information on methods or procedures that are either
prohibited or recommended.
Danger: giving the operator information that the operator or person around are danger.
Notice: giving the operator information that danger for structure or goods.
A.03 Crane type & meaning
A.04 Crane nameplate
Nameplate is located on the crane column and contains the follow details:
1.Crane type 2.max lifting moment 3.delivery date 4.delivery No
徐州徐工随车起重机有限公司
- 7 -
A.05 Warning
Notices as follows: Symbol board for danger(black letter on yellow background) do not
suspended load, electrocution, waiting within the crane working range.
indicator plate:
the plate indicated the max lift capacity of boom in the varies situation, the load lifted
don’t exceed the indicated value by the indicator.

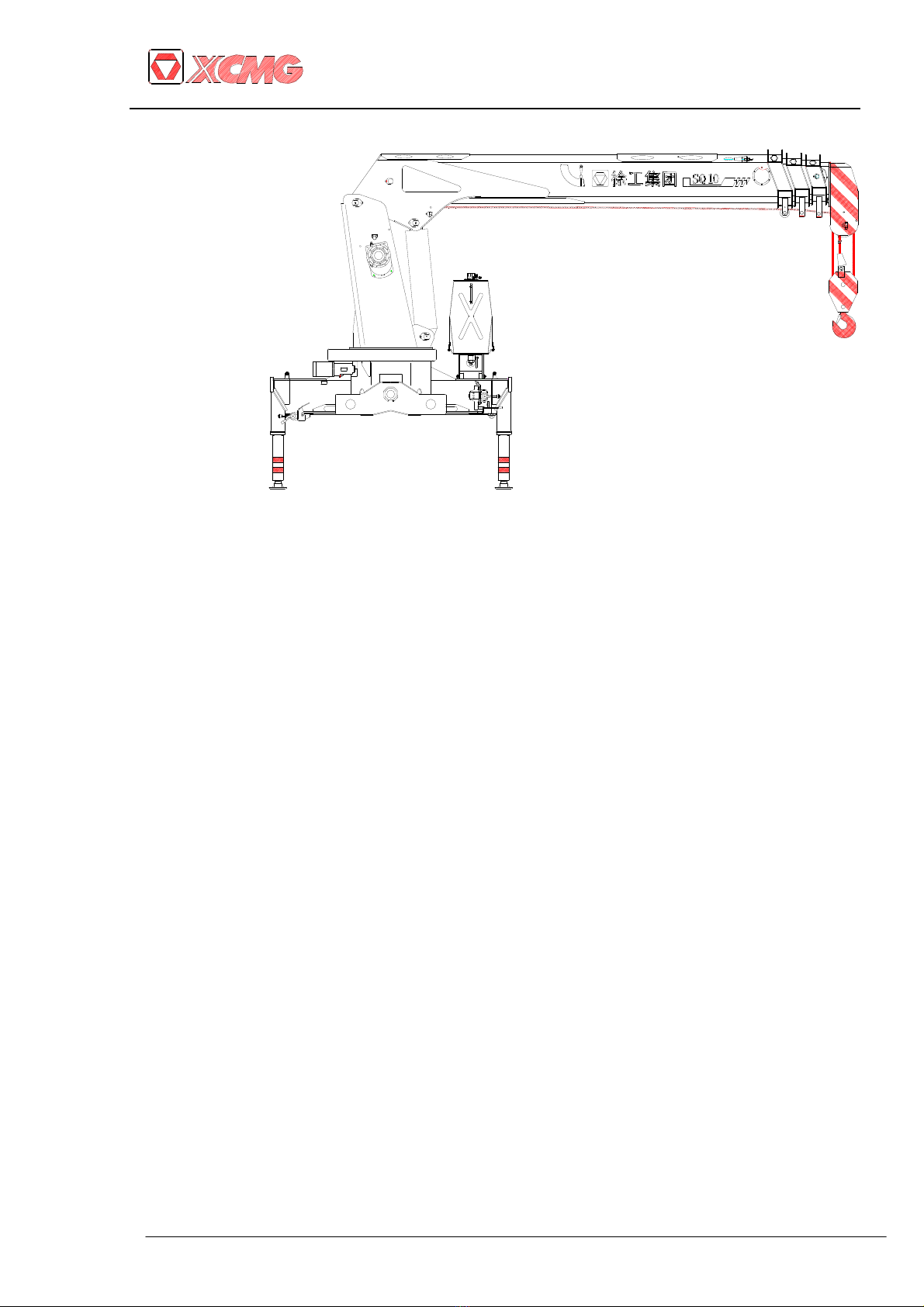

A.06 Main parts name of the crane
1.hook group 2.telescopic boom（tree）3.base boom
4. telescopiccylinder 5.indicator 6. winch
7.derrickingcylinder 8.column 9.slewingbase
10. active leg 11. vertical leg cylinder 12. controls
13. slewing motor 14. slewing reducer 15. bracket
16. horizontal leg cylinder
徐州徐工随车起重机有限公司
- 8 -
B.00 Description of performance data
B.01 Working Data
The technical data below were given when crane to be delivery
Sort Item Unit SQ10SK3Q
Data
Max lift moment T.m 25
Min working range m 2.5
Max working range m 12
Max lift height m 13.2
Boom length m 4.85～12.35
Slewing angle ° Slewing
continous
Derricking range ° 0～75°
Max rated lift capacity Kg 10000
Installation space m 1.2
Rated pressure of hydraulic
system MPa 26
Max flow of hydraulic
system L/min 63
Crane weight Kg 3800
徐州徐工随车起重机有限公司
- 9 -

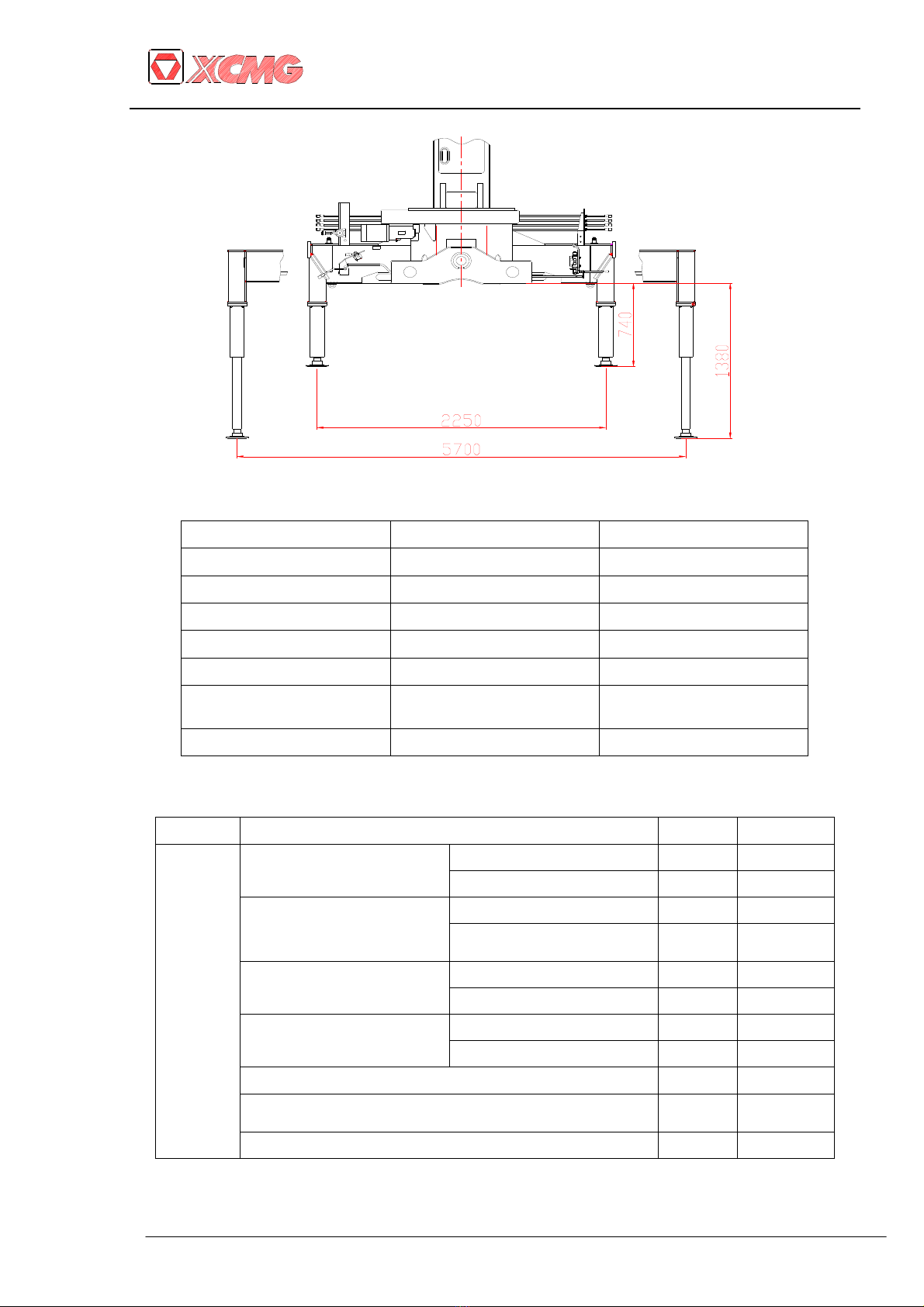

B.02 Slewing base and active leg
B.03 Hydraulic system
Item Unit Value
Pump displacement ml/r 63
System flow l/min 63
Max working pressure MPa 26
Power recommended KW 28
Ambient oil temperature OC -25 OC-+50 OC
Hydraulic pump ：piston
pump recommended Model: A2F63L2P3 （may meet the customer’
request ）
Hydraulic oil tank capacity L 180
B.04 Movement speed
remark：1. The values given refer to crane movements without load on hook and to the rated
displacement of the pump.
Sort Item Unit Value
Working
data
Boom telescoping speed Extend at the whole route s 39
Retract at the whole route s 16
Boom derricking speed
Lifting boom at the route s 31
Dropping boom at the whole
route s 16
Vertical leg cylinder
telescoping speed
Extend at the whole route s 13
Retract at the whole route s 4
Horizontal leg cylinder
telescoping speed
Extend at the whole route s 10
Retract at the whole route s 7
Slewing speed r/min ≤3
Slewing angle ° Slewing
continous
Single rope lifting speed m/min 35
徐州徐工随车起重机有限公司
- 10 -
2. With regard to slewing, the time indicated refers to a rotation of 3600(one turn).
B.05 Overall dimensions
This page shows the min dimension of SQ10SK3Q crane with the boom retract completely
Notice: the combination of crane and chassis must be conform to the traffic & related rules
Remark：1. The values given refer to crane movements without load on hook and to the rated
displacement of the pump.
2. With regard to slewing, the time indicated refers to a rotation of 3600(one turn).
SQ10SK3Q Overall dimensions
B.06 Boom working range
This page shows the dimensions of the crane with the boom extend/retract completely in
their horizontal position.
Inhaltsverzeichnis
Andere XCMG Baumaschinen Handbücher
