XINDAK MUSE DELUXE 1.0 Bedienungsanleitung

COMPACT DISC PLAYER

MUSE DELUXE 1.0

INSTRUCTIONS

1. Important Safety Instruction

1.1 Before Use

1.2 Check Accessory

2. Introduction

2.1 Product Features

2.2 Block Diagram

3. Precaution

3.1 Precaution In Use

3.2 Condensation

3.3 Compact Discs

3.4 For Using The Remote Controller

3.5 Remote Controller

3.6 Front Panel

3.7 Rear Panel

4. Operation Instruction

4.1 Connection

4.2 Start Play

4.3 Program Play

4.4 Repeat Play

4.5 Preview Play

4.6 Random Play

4.7 Information Window

4.8 Work hour display

5. Specifications

5.1 Specification

5.2 Dimensions

Muse Deluxe 1.0

Content

Chapter 1

Muse Deluxe 1.0

Important Safety Instruction

Caution!!!

To reduce the risk of electrical shock, DO NOT remove cover. No user-serviceable parts inside. Refer

servicing to qualified personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to presence of uninsulated “Dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

Dangerous Voltage

The exclamation point within an equilateral triangle is intended to alert the

user to presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

Important Instructions

Marking by the "CE" symbol (shown left)

indicates compliance of this device with the

EMS (Electrornagnetic Compatibility) and

LVD (low voltage directive) standards of the

European Community.

Please read all instructions and precautions carefully and

completely before operating your MUSE Deluxe CD-Player.

Then, please keep this manual for referring in future.

Recommend this unit only for family using.

CD player

Unpack your MUSE Deluxe 1.0 CD Player and keep all packing materials for future transport or service, locate and

remove all accessory items from the accessory box within the controller shipping carton.

Accessories Included:

Please read all instructions and precautions carefully and completely before operating your Muse Deluxe 1.0 CD Player.

1.Read these instructions.

2.Keep these instructions.

3.Heed all warnings.

4.Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Always keep this unit out of the reach of children.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus ( including amplifiers) that

produce heat.

9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they

exit from the apparatus.

10. Unplug this apparatus during lightning storms or when unused for a long time.

11. Always disconnect your entire system from the AC mains before connecting or disconnecting any cable, or when cleaning any

component.

12. This product must be terminated with a three conductor AC mains power cord which includes an earth ground connection, to

prevent shock hazard, all three connections must always be used.

13. AC extension cords are not recommended for use with this product.

14. Never use flammable or combustible chemicals for cleaning audio components.

15. Never operate this product with any cover removed.

16. Never pour or spill liquids directly onto this unit.

17. Never block air flow through ventilation slots or heat sinks.

18.Never by pass any fuse.

19. Never replace any fuse with a value or type other than those specified.

20. Never attempt to repair this product, if a problem occurs, contact your dealer.

21. Never expose this product to extremely high or low temperatures.

22. Never operate this product in an explosive atmosphere.

1. AC power cord × 1 2. Remote controller × 1 3. AAA battey × 2 4. User manual (This manual)

1.2 Check Accessory

Chapter 1

1.1 Before Use

Muse Deluxe 1.0

Important Safety Instruction

2.2 Block Diagram

2.1 Product Features

Introduction

Chapter 2

Muse Deluxe 1.0

Close Transformer Shield

Adopt special close transformer shield to shield the ‘Electro Magnetic’ Interference.

Tube Audio Output

Ts hiunit adopts tube as output, which makes the tune sweeter and more beautiful.

24-Bit/96kHz

Sampling,

DIGITAL

ANALOG

CONVERTER

16-Bit/44.1kHz

DATA

PHILIPS

CD18

SERVE

24-Bit/96kHz

DATA

SAMPLE

RATE

CONVERTER

OUTL-

OUTL+

OUTR+

OUTR-

The analog circuit

The analog circuit adopts high-grade operational amplifier in the amplification of analog system, including the balance

connection and RCA connection.

The CircuitSample Rate Converter

It uses Delta digital interface, which transfers and upgrades 16Bit/44.1KHz digital signal of common CD to 24Bit/96KHz,

and then decodes 24Bit/96KHz to improve quality of sounds.

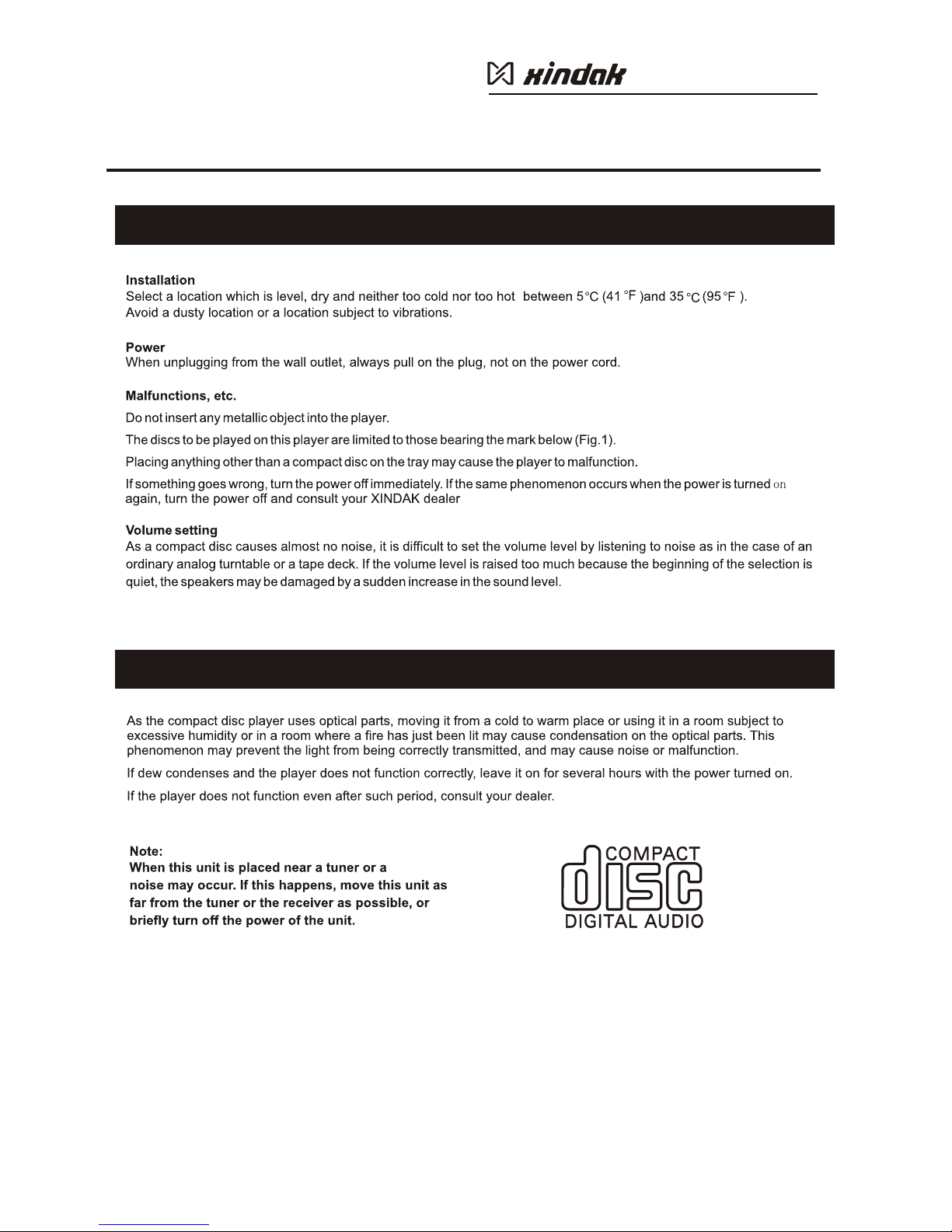

3.1 Precaution In Use

3.2 Condensation

Precaution

Chapter 3

Muse Deluxe 1.0

，

Fig.1

receiver

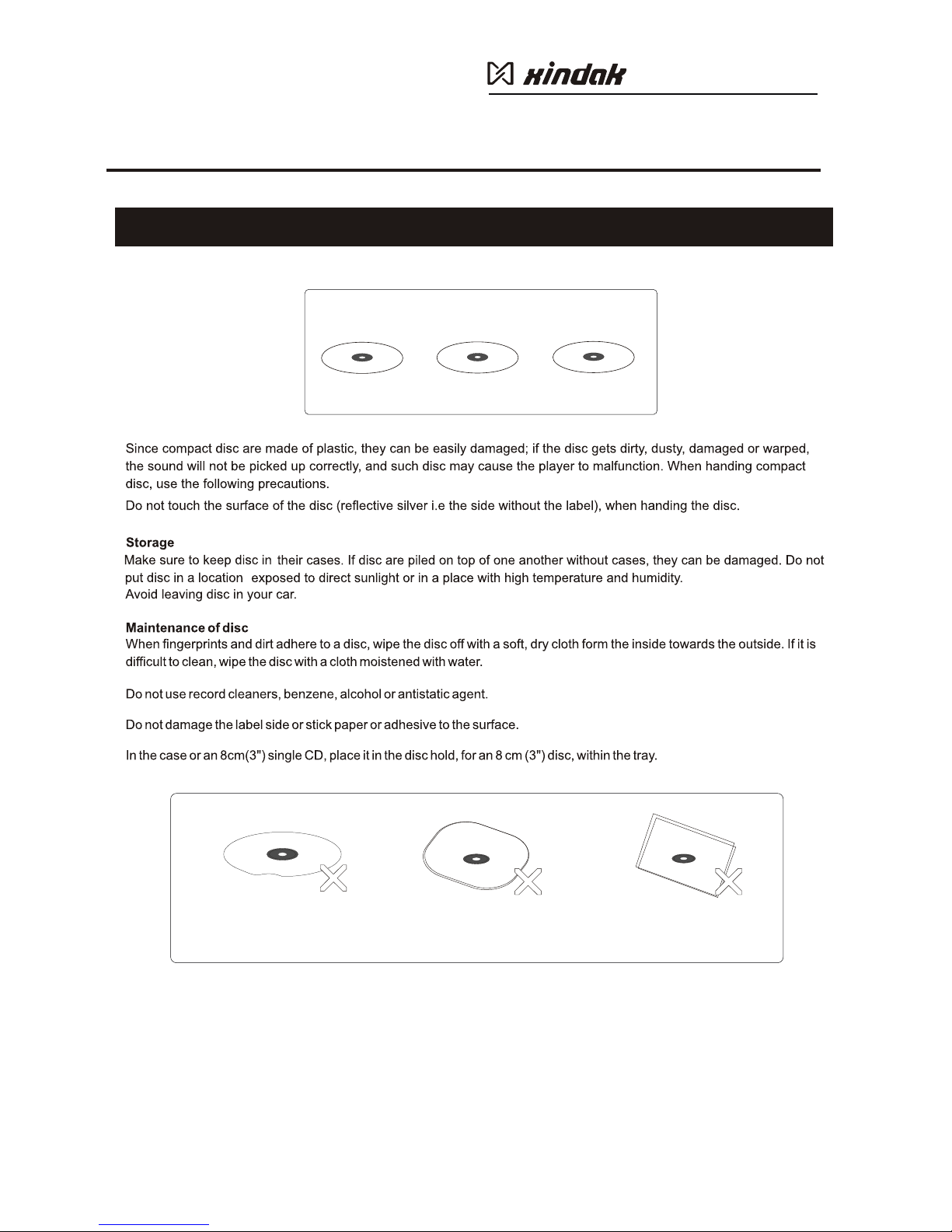

3.3 Compact Discs

This player can play back the CD-RW (Re-Writable) discs as well as ordinary Audio CD and CD-R (Recordable) discs.

Please do not play the CD which is not round, otherwise it may cause fault on this player.

Precaution

Chapter 3

Muse Deluxe 1.0

Supported Disc

CD CD-R CD-RW

iDO NOT USE the special shape disc or metamor phic disc

AAA Batteries

Install Batteries

Before using the remote controller for the first time, you need install

the new battery in the remote controller.

Process

1. Use the tool to remove the rear cover of the remote control unit.

2. Install the 2 batteries (AAA)

3. Reinstall the rear cover of the remote control unit.

Battery Replacement

1. Do not use new and old batteries simultaneously.

2. Batteries with similar shapes may have different rated voltages

Be sure to use the correct batteries.

3. Remove batteries from the remote control unit if it will not be used

for a long period of time.

If you use the remote control unit to control the amplifier:

1.The remote control range is approximately 5 meters.

2.Pointing the remote control on an angle to the receiver, will

shorten the useful distance of the remote control.

with correct +/-

3 with correct +/-

Using Remote Controller

polarity.

1. Use the tool remove the rear cover of the remote control unit.

2. Take out the old batteries from remote control unit.

. Install the 2 batteries (AAA) polarity.

4. Reinstall the rear cover of the remote control unit.

Caution

Incorrect use of batteries

n shorter battery life.

may cause corrosion or damage.

The lower temperature, the

3.4 For Using the Remote Controller

Install Batteries

Precaution

Chapter 3

Muse Deluxe 1.0

Battery Reclaim

Please send the waste batteries to local battery

reclaim center. DO NOT discard the waste

batteries discretionarily, in order to avoid

environment pollution.

OWER

POWER

30° 30°

5.Play

Press button to start play.

6.Stop Play

Press button to stop play.

7.Program Play (Chapter 4.3)

8.Clear/Cancel

Cancel the function operation.

9. Repeat A to B (Chapter 4.4)

10. Repeat play (Chapter 4.4)

11. DIMMER

Press this button to adjust the lighteness of alphanumeric display window

as the order: High-lightness, mid-lightness,low-lightness,close.

12. Up-sampling Switch: No use for this unit

13. Volume Control : No use for this unit

14. Random Play (Chapter 4.6).

15. Preview Play

Press this button to begin the track intro scan (10 seconds). The player

will play the first 10 seconds of every track. Press the button ‘Clear’ to

cancel this operation.

16. Pause Play

Press button to stop play temporarily.

17. Search Forward

When button is pressed during play, the CD player will begin to scan

forward with the speed 4 times of the normal speed. When the button is

kept to pressed for 4 seconds or longer, the CD player will begin to scan

forward with 8 times speed of normal. Then release the pressure, the unit

will resume normal play.

18. Skip Forward

Press button, the CD player will skip to the beginning of the next

track.

19. Open/Close

Press button to open or close to slide the disc tray out or in.

1. Power

Press this button to make the CD-Player enter "sleep”.

2. Number Select

Press the number button 1 to 9 to choose the corresponding song to

play. Press two number buttons within 2 seconds to choose the track

number more than 9. For example, press 1 and 2 within 2 seconds, it

will skip to No.12 song and play it. If the number chose exceeds the

number range of disc, this chose will be recognized useless and the

player will remain the current work model.

3. Previous Track

Press button, the CD player will skip to the beginning of the

previous track.

4. Search Backward

When button is pressed during play, the CD player will begin to

scan backward with the speed 4 times of the normal speed. When the

button is kept to pressed for 4 seconds or longer, the CD player will

begin to scan backward with 8 times speed of normal. Then release

3.5 Remote Controller

Precaution

Chapter 3

Muse Deluxe 1.0

;

POWER

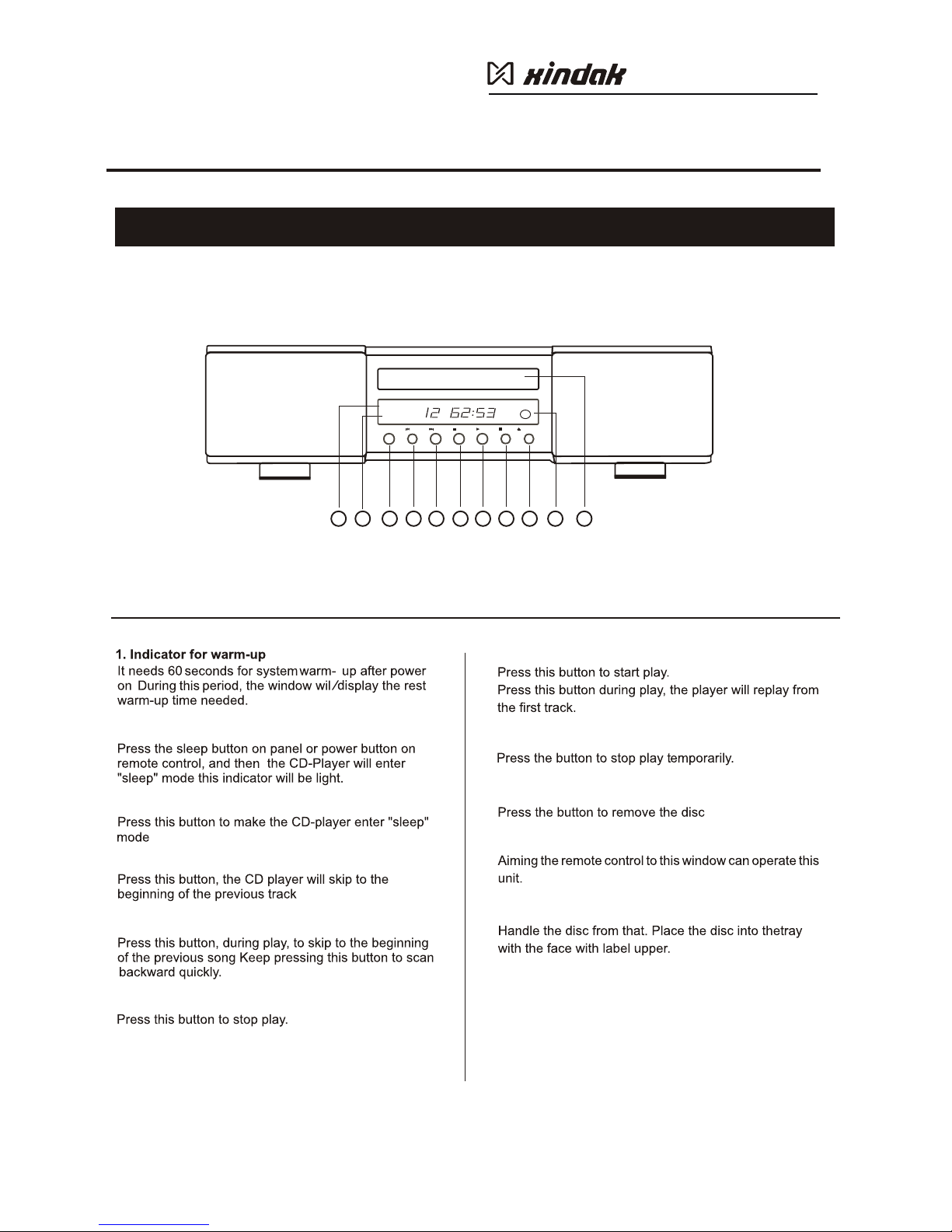

Front Panel

1 2 345679 10

811

Precaution

Chapter 3

3.6 Front Panel

Muse Deluxe 1.0

IR Sensoer

SLEEP

HEATING

SLEEP PREV NEXT STOP PLAY PAUSE OPEN/CLOSE

3. Sleep

2. Sleep Indicator

4. PREV

5. NEXT

6. STOP

7. PLAY

8. PAUSE

9. OPEN/CLOSE

10. IR Sensor

11. DISC Tray
