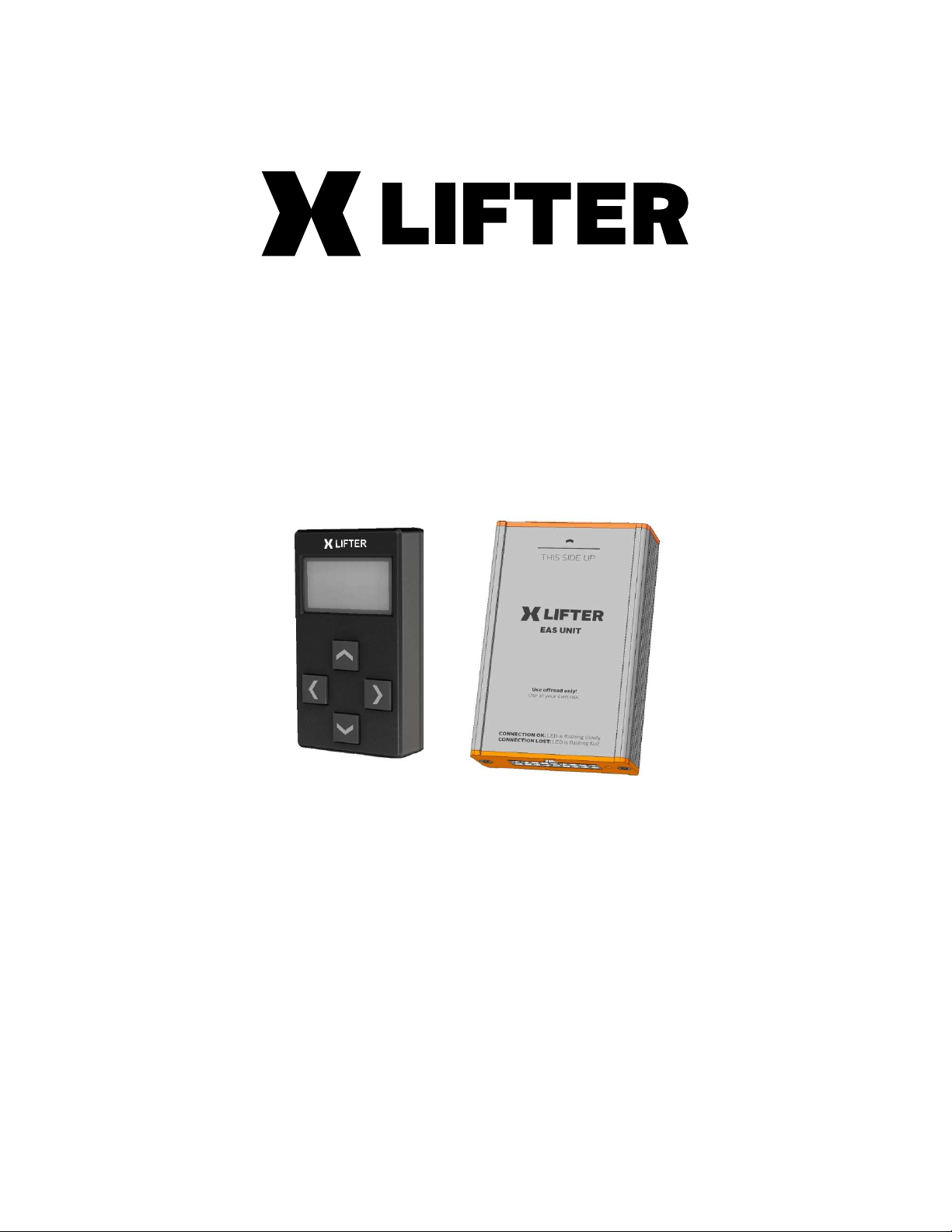

XLifter model X1, user guide, ver. 1.41, firmware ver. 0.98
Reco, spol. s.r.o., Na hlinach 6, 18200 Prague, Czech Rep., https//www.xlifter.com, info@xlifter.com Page 2
1. Legal disclaimer
You are hereby provided with an air-suspension controller for Land Rover vehicles – product named
XLifter (hereinafter as the „device” or „XLifter“).
XLifter is an additional device able to change the air-suspension adjustment and able to change
other parts of your car set-up by the car´s manufacturer.
XLifter is not a device approved and designed for installation into vehicles intended to be operated
on public roads namely pursuant to Act. no. 361/2000 Coll, as amended. The manufacturer does not
assume any liability deriving from technical requirements for operation of vehicles on public roads
in case you decide to use this product in traffic on public roads or anywhere else, where operation
of this device may be considered as unauthorized, whether in the Czech Republic or in any other
jurisdiction. The end-user assumes all liability connected to use of the device on public roads,
derived namely from the mandatory technical requirements for operation of vehicles on public
roads provided by Act. No. 56/2001 Coll and regulation no. 341/2014 Coll.
By installation of the device the end-user discharges the manufacturer from any liability connected
to any influence or damage (whether financial or immaterial) of the provided product on other
systems, parts or components of the vehicle (whether mechanical or electronical). By installation of
this product the end-user also acknowledges that this product is meant to be used in controlled
conditions, namely at low speeds and with increased caution.
The end-user undertakes to inform about installation of the device any prospective future owner of
the respective vehicle equipped with the device.
By installation of the device you acknowledge the above-mentioned and agree with the above-
mentioned terms. Please use the XLifter only in off-road conditions and not on public roads.
2. General description
XLifter is an advanced air-suspension controller for the Land Rover vehicles. XLifter allows
you to take the air suspension capabilities of your Land Rover to the maximum, making
your off-roading or expedition travelling greater experience.
XLifter gives you more detailed control over the vehicle height settings. Raising the
vehicle, even above the „Off-road“ height, helps you to tackle difficult terrain. XLifter is not
limited by the 40 Km/h speed limit, so travelling over long stripes of sand, green lanes or
dirty roads will be fun more fun. Also, XLifter keeps selected lift settings permanently, you
can fit bigger tires easily. Lowering the vehicle slightly improves cornering stability and
aerodynamics. Lowering below the original access height makes possible the entering of
low-clearance garages or ferries and makes cargo loading easier.
XLifter unique self-levelling feature makes your in-car or in a roof top tent sleeping more
comfortable while expedition travelling.
XLifter controls are intuitive and comfortable. The control module with graphical OLED
display and physical buttons was optimized for off-road handling.
XLifter EAS unit communicates with the control module wirelessly. Installation to your
vehicle is simple and XLifter is fully removable. No drilling, soldering, or in-car wiring is
required.
XLifter is designed for Land Rover Discovery 3 (LR3), Discovery 4 (LR4) and Range Rover
Sport (model L320) vehicles.
