da Vinci Super

Quick Guide

Safety Precautions

Product instructions

Unboxing and Installation

Product specication

Function Operation and Instructions

Setting

Supporting information

ENG

da Vinci Super 3D printer

September . 2017

da Vinci Super

P 2

da Vinci Super 3D printer

da Vinci Super

The manual is mainly intended for users to understand how to use the da Vinci Super 3D printer (“da Vinci Super”)

correctly. In this manual, users can learn more about the operating tips, application skills and maintenance of the da Vinci

3D printer.

For more information on the da Vinci Super 3D printer and the complete XYZprinting product line, please contact your

local dealer or visit the ofcial website of XYZprinting: http://www.xyzprinting.com.

Safety Precautions

Safety and Compliance

Important Safety Precautions

Please read through this manual and all safety precautions carefully before using, operating, unpacking, replacing,

removing any part or maintaining this product. Please also comply with the instructions of relevant safety

precautions.

●

Do not move the machine by yourself as it is heavy.

Do not place the printer on a soft or tilted surface. Otherwise, the machine will fall / ip over and become

damaged or cause personal injury.

Do not place the printer in a dusty, humid or outdoor environment.

Weak odors may be generated during the printing process. We recommend working in a well-ventilated

and open area to ensure operational comfort.

Do not leave the product or power cord to unattended children. Otherwise, personal injury or electric

shock might occur.

Use the provided power cord. Otherwise, incorrect grounding might lead to damage.

Do not place any liquid container on top of the product. Otherwise, overow or spill might go into the

machine and pose the risks of danger or safety concern.

Do not wipe the printer with alcohol or ammable chemicals. Otherwise, danger might occur.

Do not move the machine when it’s powered on.

Do not reach into the machine with your hands during operation. Otherwise, risks of impact from moving

printing parts or burn from high temperature might occur.

The machine becomes hot during operation and thus run in high temperature. Do not touch or replace

parts when they are not cooled down.

After startup, the parts in the machine will heat up or move depending on the user’s instructions. During

product operation, do not touch or block the operation of the parts.

Defect reparation must be carried out according to the contents of this instruction manual. Where the

defect cannot be repaired, please contact your printer dealer or the customer service center.

Trademarks

All trademarks and registered trademarks are the properties of their respective owners.

●

P 3

da Vinci Super 3D printer

da Vinci Super

Scraper Print head cleaning wirewire Feed hole cleaning wire Wire brush Gear cleaning brush

Product instructions

Accessory List

●

①5” color touch panel

②Rear feeding motor

③Print bed

④Filament holder

⑤Print head

⑥Power inlet

⑦USB socket

⑧Power switch

⑨USB Port

Precautions and Instructions of Maintenance Tools

Maintenance and Service

●

The following maintenance tool shall only be used with adult guidance or supervision. To prevent accidents,

do not allow a child to access maintenance tools without proper training.

• Make sure the maintenance work of the printer is carried out when the printing bed is cooled down.

• Filament residues generated during the course of printing may be stuck on the print head and gears of the printing module. The printing quality and

printer operation as well as the measurement of the printing bed may be affected. When this happens, clean the printing module with the wire brush.

• When printing is completed and the printing bed is cooled down to room temperature, the printed object can be removed from the printing bed with

the scraper.

When the printer needs to be serviced during the term of the warranty, it is recommended that the machine is packed with original packaging

materials prior to shipment. For this purpose, the packaging materials are better to be kept. If other packaging materials are used instead,

the printer might be damaged during printing. We reserve the right to assess relevant service fees.

USB drive

(including XYZware Pro installer,

da Vinci SUPER user manual and

XYZware Pro user manual)

Filament guide tubePLA lament Power cord USB cable

Front-feeding motor Wireless Top cover Mask tape

● ●● ● ●

● ● ●●

P 4

da Vinci Super 3D printer

da Vinci Super

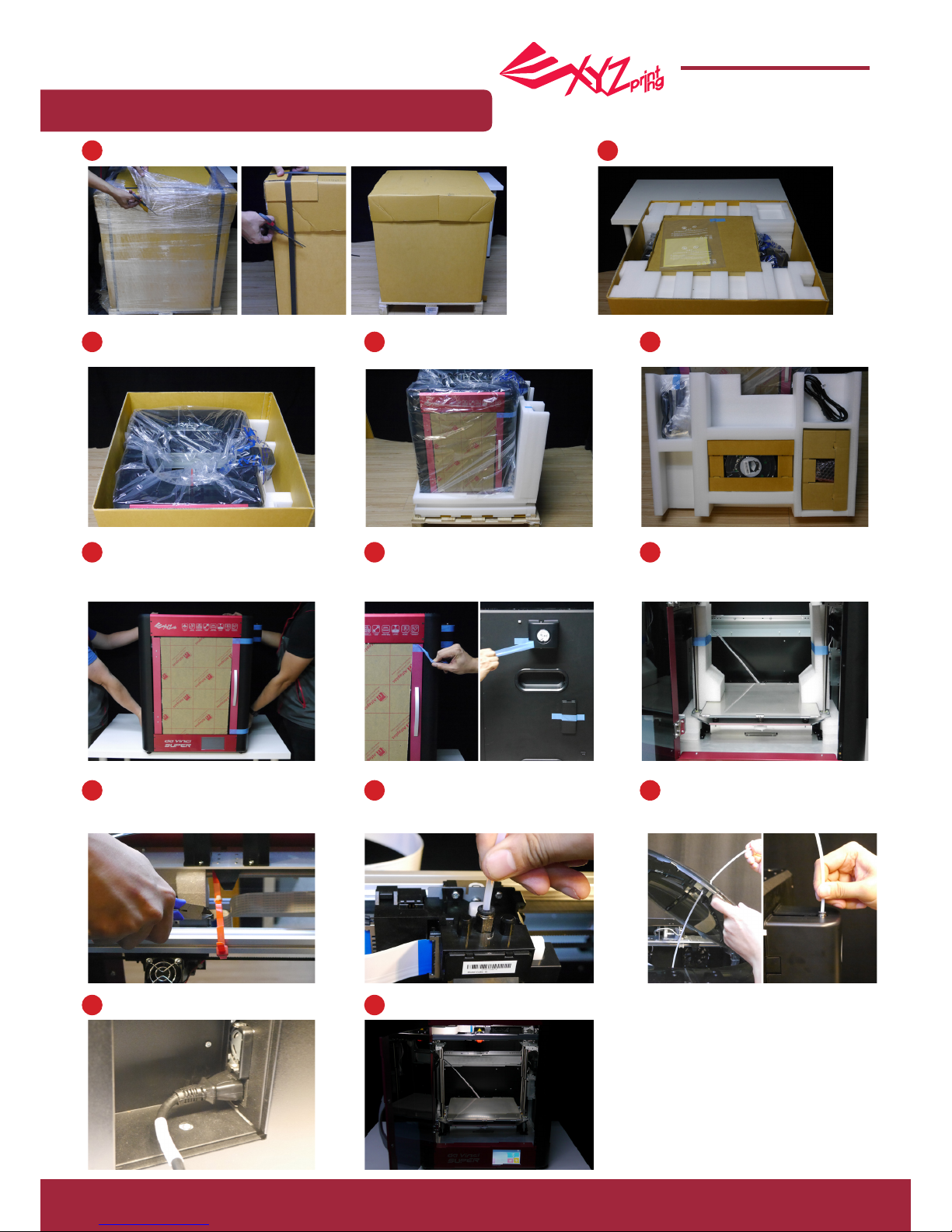

Unboxing and Installation

Remove the plastic wrap and PP strap.

Remove the top cover box and the

packaging materials.

Place the printer on a table or platform

(please do not move the printer alone).

Remove the cable tie and foam situated

behind the front door.

Plug-in the power cord

Remove the top cover.

Remove the side of the carton .

Remove all tape from the body (4

pieces in total).

Insert the guide tube through the

top cover, and then insert one end

into the extruder module.

power on the printer.

Remove the assessory box.

Remove the foam next to the guide

screws on both sides, and then remove

the foam under the print bed. (total 4

pieces)

Insert the other end of the guide

tube into the feed module and

secure it tightly.

P 5

da Vinci Super 3D printer

da Vinci Super

Product specication

Printing technology

Dimensions (W*D*H)

Gross weight

Printing dimensions (W*D*H)

Print resolution

Automatic feed system

Printing bed heating

Automatic printing bed calibration

Print head diameter

Print material

Language

Connection method

Printing software

File format

Operation System

FFF (fused lament fabrication)

511*581*670 mm

35.5kg

Front-feeding motor: 290 x 290 x 300 mm

Rear-feeding motor: 300 x 300 x 300 mm

0.02 - 0.4 (mm)

Yes

0.4 (mm)

ABS / PLA / TPE / Tough PLA / PETG , open-lament

Multi language

USB 2.0 / Wi-Fi

XYZware Pro

.stl / .3w

Windows 7+ / Mac OS X 10.10 to 10.12

P 6

da Vinci Super 3D printer

da Vinci Super

Function Operation and Instructions

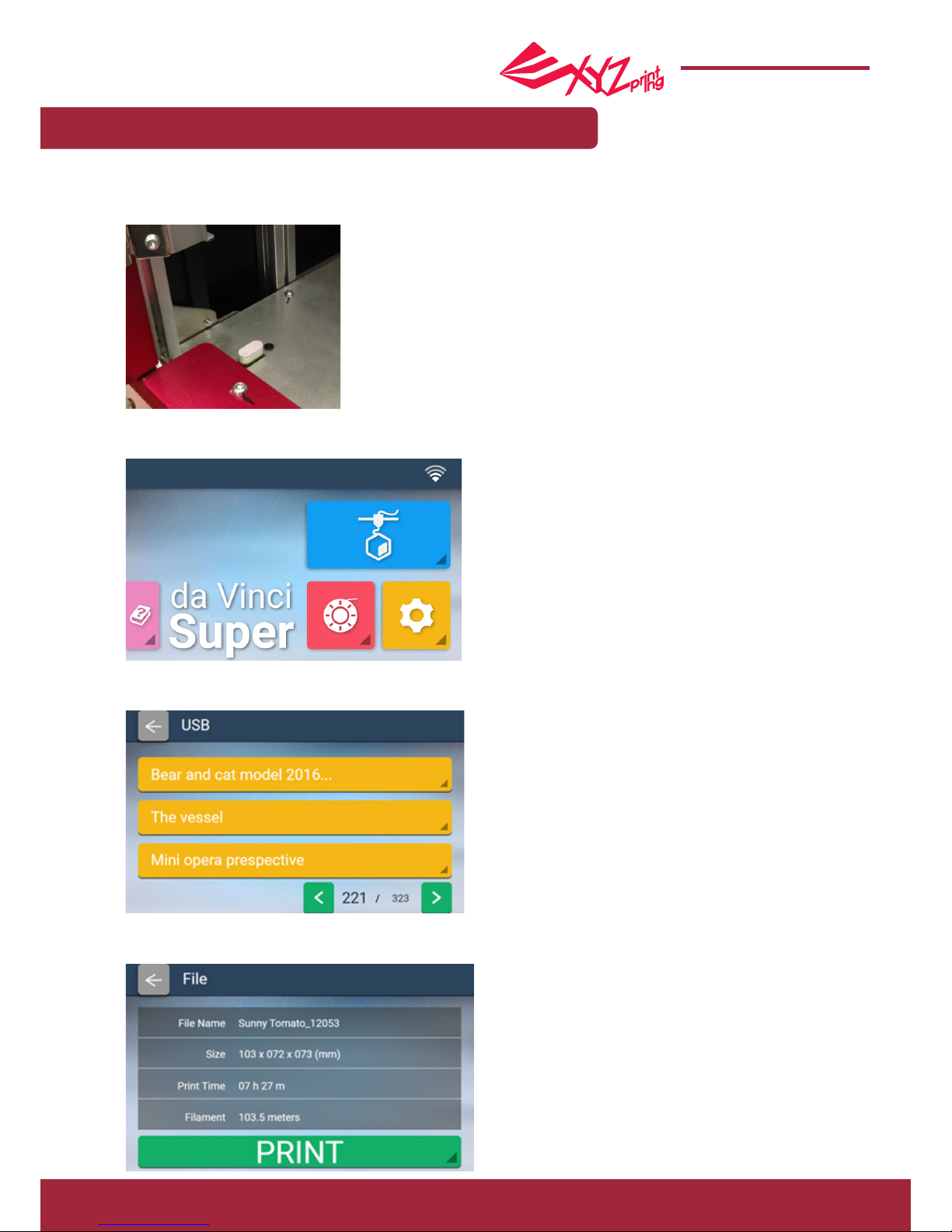

USB printing

●

1. Check if the USB drive is plugged to the machine.

2. Tap the USB Printing Menu in the main screen.

3. Select the le (.3w le) to print.

4. Check le information and tap “PRINT”.

P 7

da Vinci Super 3D printer

da Vinci Super

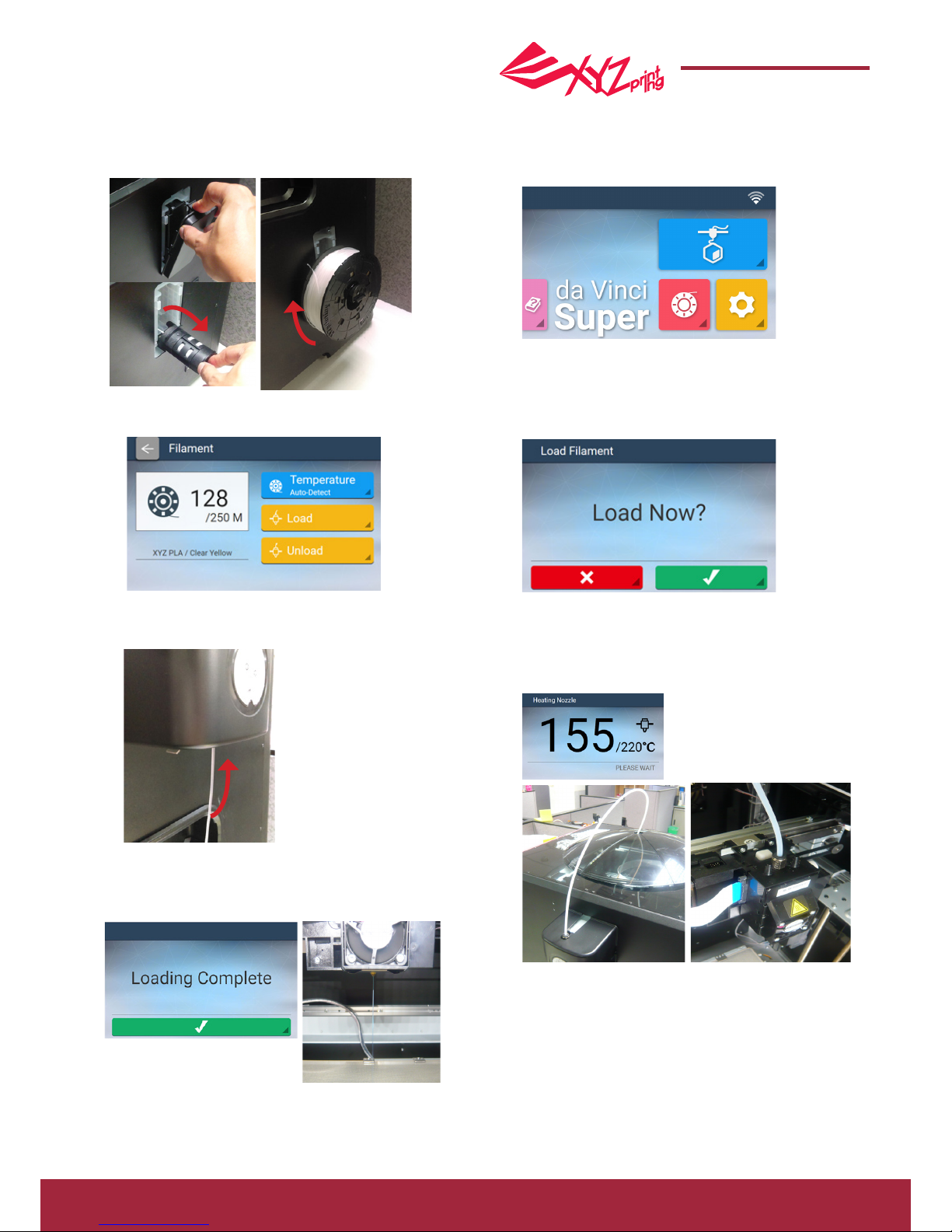

Loading the filament

●

1. Remove the side cover and place the lament on

the side of the machine.

2. Tap Filament Load and Unload in the main screen.

4. Conrm the operation.

7. Once the print head extrudes lament in a continuous thread,

loading is complete. After the lament is loaded, tap to conrm.

5. Insert the lament into the auto-feed module.

3. Tap Load.

6. The print head will pre-heat until it reaches 240°C

(XYZprinting PLA).

Once the set temperature is reached, the feeding motor will

feed the lament along the guide tube into the print head.

P 8

da Vinci Super 3D printer

da Vinci Super

Unloading the lament

●

1. Tap Filament Load and Unload in the main screen.

3. Conrm the unloading operation.

5. When the unloading operation is complete,

tap to conrm.

2. Tap “Unload” and conrm the operation.

4. Once the print head pre-heating reaches 240°C,

the feeding motor will unload the lament.

P 9

da Vinci Super 3D printer

da Vinci Super

Filament Installation (Rell)

●

1. Tap the icon when printing.

3. The nozzle will be preheated and the lament will be unloaded

automatically.

5. The nozzle will be preheated and the machine will notify you when to insert lament into the feed module.

6. Check if lament has been extruded from the nozzle, after conrmation, the printer will resume printing.

4. Replace the empty spool with a new one.

(please refer to the LOADING section in this

manual) and then tap "PROCEED".

2. Tap Rell Filament and then tap Rell.

da Vinci Super will prompt you to rell material.

P 10

da Vinci Super 3D printer

da Vinci Super

Temperature settings

Auto-detection (Auto)

Manual settings (Manual)

●

da Vinci Super allows the user to use different materials or third party laments. To satisfy the parameters or

characteristics of various laments, da Vinci Super allows the user to manually adjust extruder temperature,

printing bed temperature, and lament unloading temperature.

The printer will automatically read the NFC chip provided on the XYZprinting lament spool to automatically

adjust extruder temperature, printing bed temperature, and lament unloading temperature.

You can adjust the nozzle temperature, print bed temperature and nozzle unloading temperature, to suit you

lament type.

Print Bed

Temperature range 40~100℃170~300℃170~300℃

Nozzle Unloading
